REMOVAL

PROCEDURE

SERVICE MANUAL

Indoor Unit

Inverter / Non-Inverter

Wall Mounted Type

5.0/6.0/7.1 kW Class

15000/18000 Btu/h Class

Si041254EE

Service Manual

Removal Procedure

Indoor Unit

zCooling Only zHeat Pump

ATM18MV2S FTX50GV1B

FTX60GV1B

FTE50KV19 FTX71GV1B

FTE60KV19

FTXD50FVMV

FTM15NV2S FTXD60FVMV

FTM18NV2S FTXD71FVMV

FTM50JV14 FTXD50HVMV

FTXD60HVMV

FTM50KV1V FTXD71HVMV

FTN50JV1G FTXS50FVMV

FTN50JV1G9 FTXS60FVMV

FTXS71FVMV

FTNE50LV1

FTNE60LV1 FTXS50GVMV

FTNE50MV1 FTXS60GVMV

FTNE60MV1 FTXS71GVMV

FTNE50MV14

FTNE60MV14 FTXS50KVM

FTNE50MV18 FTXS60KVM

FTNE60MV18 FTXS71KVM

FTNE50MV1V

FTNE60MV1V

FTKS50FVM

FTKS60FVM

FTKS71FVM

FTKS50FVMV

FTKS60FVMV

FTKS71FVMV

FTKS50KVM

FTKS60KVM

FTKS71KVM

Si041254EE

Removal Procedure 1

Table of Contents

1. Air Filters .................................................................................................2

2. Front Panel..............................................................................................3

3. Front Grille ..............................................................................................4

4. Horizontal Blades ....................................................................................5

5. Vertical Blade ASSYs..............................................................................6

6. Electrical Box ..........................................................................................8

7. PCBs .....................................................................................................10

8. Swing Motors ........................................................................................12

9. Indoor Heat Exchanger .........................................................................13

10.Fan Motor / Fan Rotor...........................................................................15

Note: The illustrations may be slightly different depending on the model.

Air Filters Si041254EE

2Removal Procedure

1. Air Filters

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

Open the front panel.

Release each air filter

from the 2 hooks of the

front panel.

Remove the air filter by

pulling out downward.

The air filter is not marked

for difference between the

right and left sides.

Insert the air filter with the

“FRONT” mark faced up.

When reassembling, insert

the air filter along the guides.

Be sure to fasten the hooks

when installing the air filter.

4 Remove the Titanium

apatite photocatalytic

air-purifying filter, if

available, from the 5

hooks.

The right and left filters are

interchangeable.

Some models have no

Titanium apatite

photocatalytic air-purifying

filter.

Air filter

Hook (R21150)

Front panel

Hook

(R23427)

Titanium apatite

photocatalytic

air-purifying filter

Si041254EE Front Panel

Removal Procedure 3

2. Front Panel

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

1 Open the front panel

over the position where

it stops.

2 Slide the front panel to

the right and release

the left shaft.

When reassembling the front

panel, fit the right and left

shafts one by one into the

grooves and fully push them

into position.

Release the right shaft

in the same way.

Remove the front panel.

(R23428)

Front panel

(R2754)

(R2755)

Front Grille Si041254EE

4Removal Procedure

3. Front Grille

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

1 Remove the 3 screws

of the front grille.

2 Unfasten the 3 hooks

on the top of the front

grille.

The convex marks (...) on

the front grille indicate the

position of the hooks.

When reassembling, make

sure that the 3 hooks are

securely fastened.

3 Pull the upper part of

the front grille out and

lift the lower part up,

and then remove the

front grille.

(R2758)

Front grille

(R17741)

(R15467)

Si041254EE Horizontal Blades

Removal Procedure 5

4. Horizontal Blades

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

Bend the horizontal

blade (lower) slightly

and release the 2

center shafts.

Release the left shaft.

When reassembling, mount

the large horizontal blade to

the upper position and the

small horizontal blade to the

lower position.

Slide the horizontal

blade (lower) to the left

and release the right

shaft.

Remove the horizontal

blade (upper) in the

same way.

Installation procedure

1. Fit the horizontal blade to the

right shaft first. Make sure to

rotate the horizontal blade so

the shaft fits correctly.

2. Fit the horizontal blade to the

center and left shafts.

Left shaft

(R21152)

Center shaft

Horizontal blade

(upper)

Horizontal blade

(lower)

Right shaft

(R2766)

Vertical Blade ASSYs Si041254EE

6Removal Procedure

5. Vertical Blade ASSYs

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

1. For auto-swing (right and

left) models

Some models have fan

guards. Remove the fan

guards beforehand.

The unit has 3 sets of

vertical blade ASSYs linked

to one another with interlock

rods.

1 Release the right and

left shafts.

2 Unfasten the 3 hooks

for each set of vertical

blade ASSY (9 hooks).

3 Pull the vertical blade

ASSYs to the right and

remove them.

Vertical blade ASSY

(R21153)

Interlock rod

Hook

(R2768)

(R6706)

Si041254EE Vertical Blade ASSYs

Removal Procedure 7

2. For models without auto-

swing (right and left)

Each vertical blade ASSY

has 5 or 6 fins which can not

be replaced individually.

The vertical blade ASSY is

not marked for difference

between right and left.

1 Unfasten the hooks at

the upper 2 positions.

Unfasten the 3 hooks of

the vertical blade ASSY

by pressing them with a

flat screwdriver.

Remove the vertical

blade ASSY.

Remove the other

vertical blade ASSY in

the same way.

Step Procedure Points

(R18194)

Vertical blade ASSY

Hook

(R8022)

Hook

Electrical Box Si041254EE

8Removal Procedure

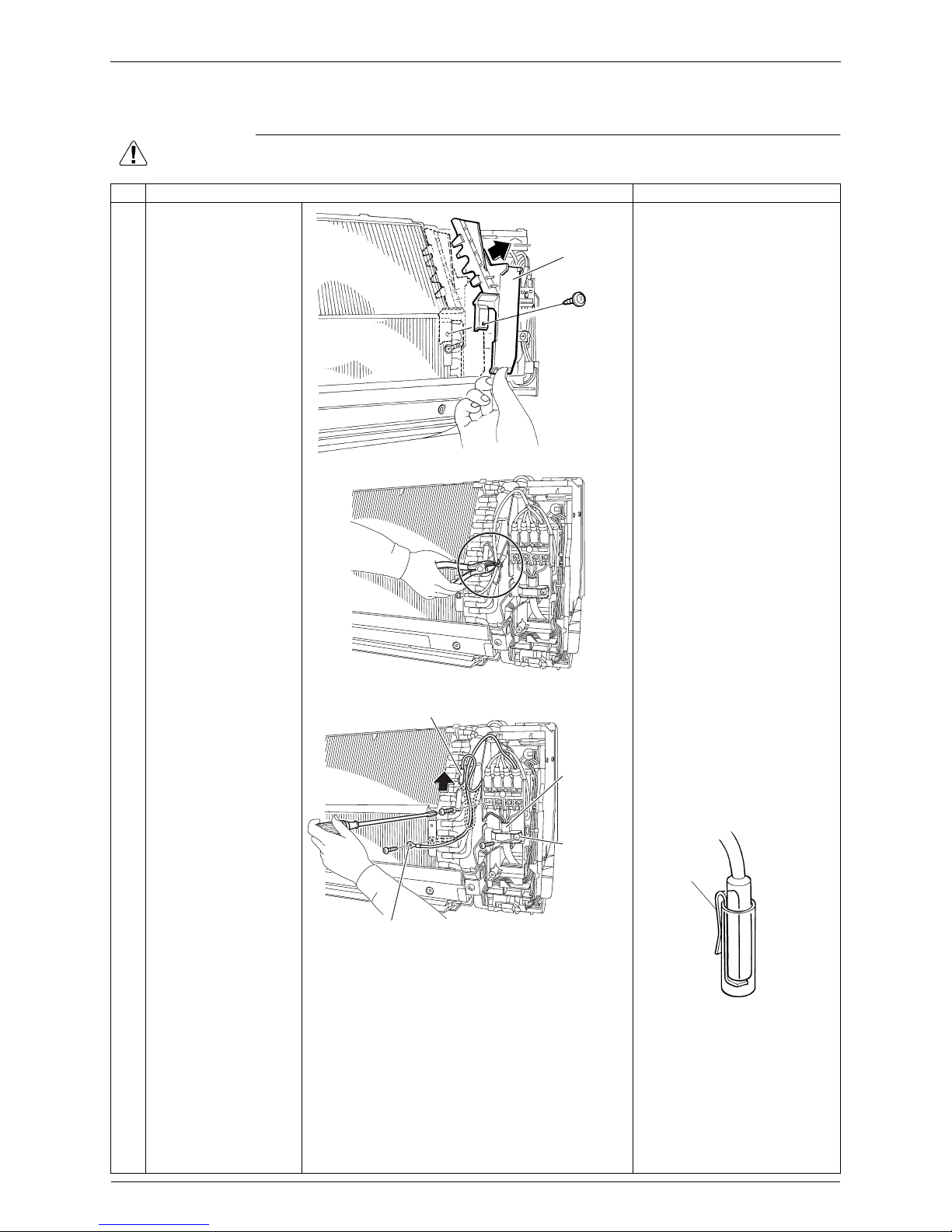

6. Electrical Box

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

1 Remove the screw,

then the drip proof

plate.

2 Cut the clamp.

Pull out the indoor heat

exchanger thermistor.

Remove the screw of

the earth/ground wire.

Remove the screw of

the wire fixture.

Remove the 4 screws

of the connecting wires.

The position of the indoor

heat exchanger thermistor

varies depending on the

model.

Be careful not to lose the clip

of the thermistor.

Drip proof plate

(R2771)

(R6707)

Indoor heat exchanger thermistor

Earth/ground wire

(R19204)

Connecting

wire

Wire fixture

Clip

(R11234)
