Daikin BSVQ-P Dimensionsleitfaden

EDUS 39 - 800 - F8

AMERICAS

BSVQ-P

BS Units

EDUS39-800-F8

BSVQ-P 1

BSVQ-P

BS Units

1. Specifications ..............................................................................................2

2. Dimensions .................................................................................................3

3. Piping Diagrams..........................................................................................5

4. Wiring Diagrams..........................................................................................6

5. Electric Characteristics................................................................................7

6. Sound Levels ..............................................................................................8

7. Installation ...................................................................................................9

8. Accessories...............................................................................................24

Specifications EDUS39-800-F8

2BSVQ-P

1. Specifications

BS Units

Note:

★1 In case of connecting with a 07~18 type indoor unit, match to the size of field pipe using the attached pipe.

(Connection between the attached pipe and the field pipe must be brazed.)

★2 In case of connecting with indoor unit capacity index 54 or more and 60 or less, match to the size of the field pipe using the attached pipe.

(Connection between the attached pipe and the field pipe must be brazed.)

Model BSVQ36PVJU BSVQ60PVJU

Power Supply 1 Phase 60Hz 208~230V 1 Phase 60Hz 208~230V

Total Capacity Index of Connectable Indoor

Unit Less than 36 Less than 60

No. of Connectable Indoor Units Max. 5 Max. 8

Casing Galvanized Steel Plate Galvanized Steel Plate

Dimensions: (H×W×D) in 8-1/8 × 15-1/4 × 12-13/16 8-1/8 × 15-1/4 × 12-13/16

Sound Absorbing Thermal Insulation

Material Foamed Polyurethane, Frame Resisting Needle Felt Foamed Polyurethane, Frame Resisting Needle Felt

Piping

Connection

Indoor

Unit

Liquid Pipes φ3/8 C1220T (Brazing Connection) ★1φ3/8 C1220T (Brazing Connection)

Gas Pipes φ5/8 C1220T (Brazing Connection) ★1φ5/8 C1220T (Brazing Connection) ★2

Outdoor

Unit

Liquid Pipes φ3/8 C1220T (Brazing Connection) φ3/8 C1220T (Brazing Connection)

Suction Gas Pipes φ5/8 C1220T (Brazing Connection) φ5/8 C1220T (Brazing Connection) ★2

Discharge Gas

Pipes φ1/2 C1220T (Brazing Connection) φ1/2 C1220T (Brazing Connection) ★2

Mass Lbs 26 26

Standard Accessories Installation Manual, Attached Pipe, Insulation Pipe Cover,

Clamps Installation Manual, Attached Pipe, Insulation Pipe Cover,

Clamps

Drawing No. 4D058233A 4D058234A

EDUS39-800-F8 Dimensions

BSVQ-P 3

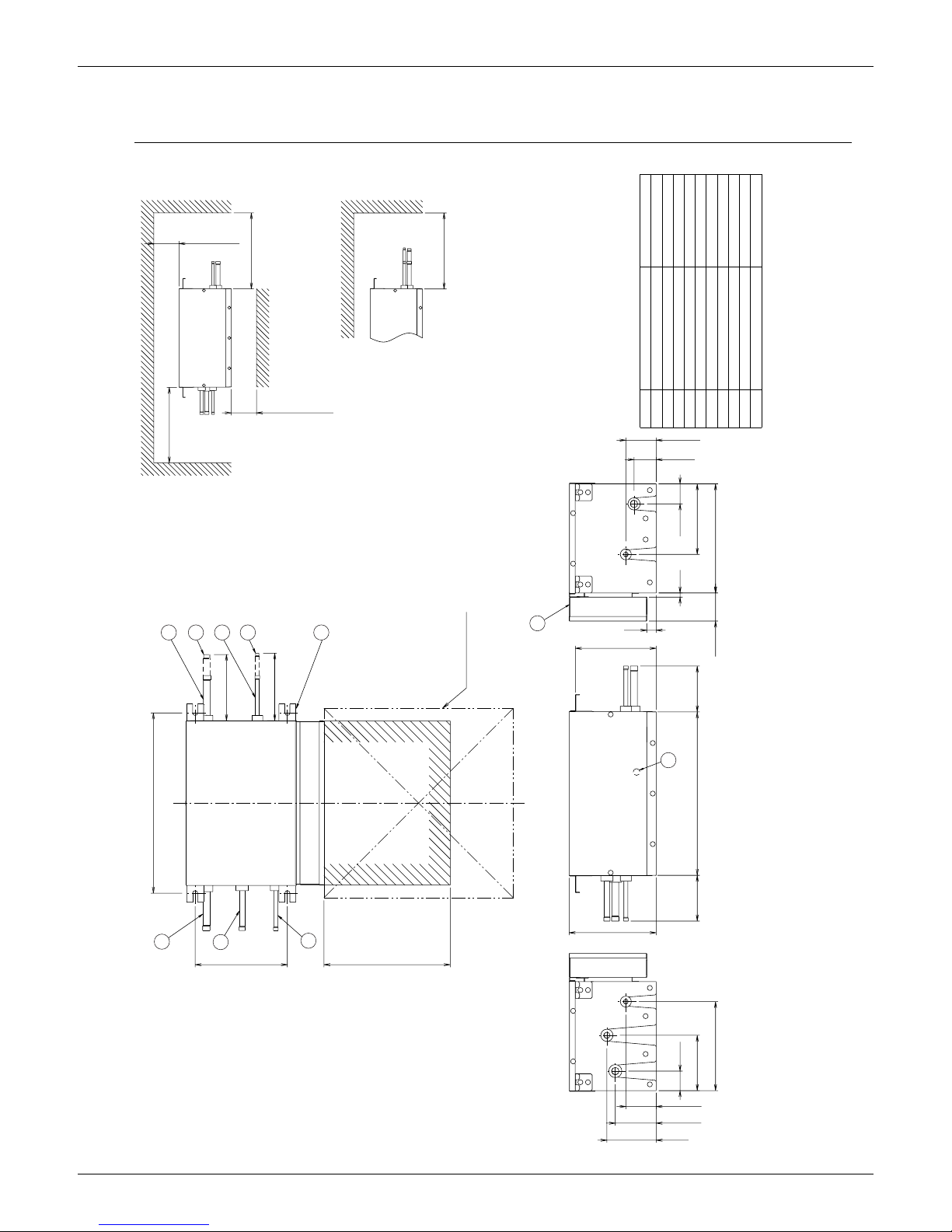

2. Dimensions

BSVQ36PVJU

φ3/8 brazing connection

Description

φ3/8 brazing connection

Liquid pipe connection port

Suction gas pipe connection port

Electric box (Note 1.)

Grounding terminal

φ1/4 brazing connection

φ5/8 brazing connection

φ1/2 brazing connection

M8~M10

Liquid pipe connection port

Suspension brackets

Number

10 Attached pipe (2) (Note. 3)

Attached pipe (1) (Note. 3)

Part name

φ1/2 brazing connectionHP/LP gas pipe connection port

Gas pipe connection port

(Servicing space)

Servicing space

(Servicing space)

2 or more

3 or more

(Servicing space)

10 or more

(Servicing space)

10 or more

(In case of use Attached pipe)

(Servicing space)

12 or more

(Suspension bolt pitch)

(Servicing space)

18 (Note 2.)

8-5/812

(6-3/16)

16-7/8

(6-5/16)

Inspection door

Location of unit's Name Plate…Right side of electric box

(Note 1.)

1-7/8

2-5/88-3/8

(4-5/16)

8-1/8

6-5/8

1-7/8

15-1/4

7/8

2-1/16

10-3/16

2-13/16

(4-5/16)

4-5/8

2-13/16

5-3/16

3/8

7-9/16

3-13/16

Notes) 1. Electric box can also be fixed on the other side

of the unit.

2. Be sure to install a inspection door at electric

box side.

3. Attached pipe is only used in case of

connecting with a 07~18 class indoor unit.

4. Small sound of refrigerant will be made, which

may be disturbing.

Do not install it at the place such as bedroom

under roof.

3D058236

Dimensions EDUS39-800-F8

4BSVQ-P

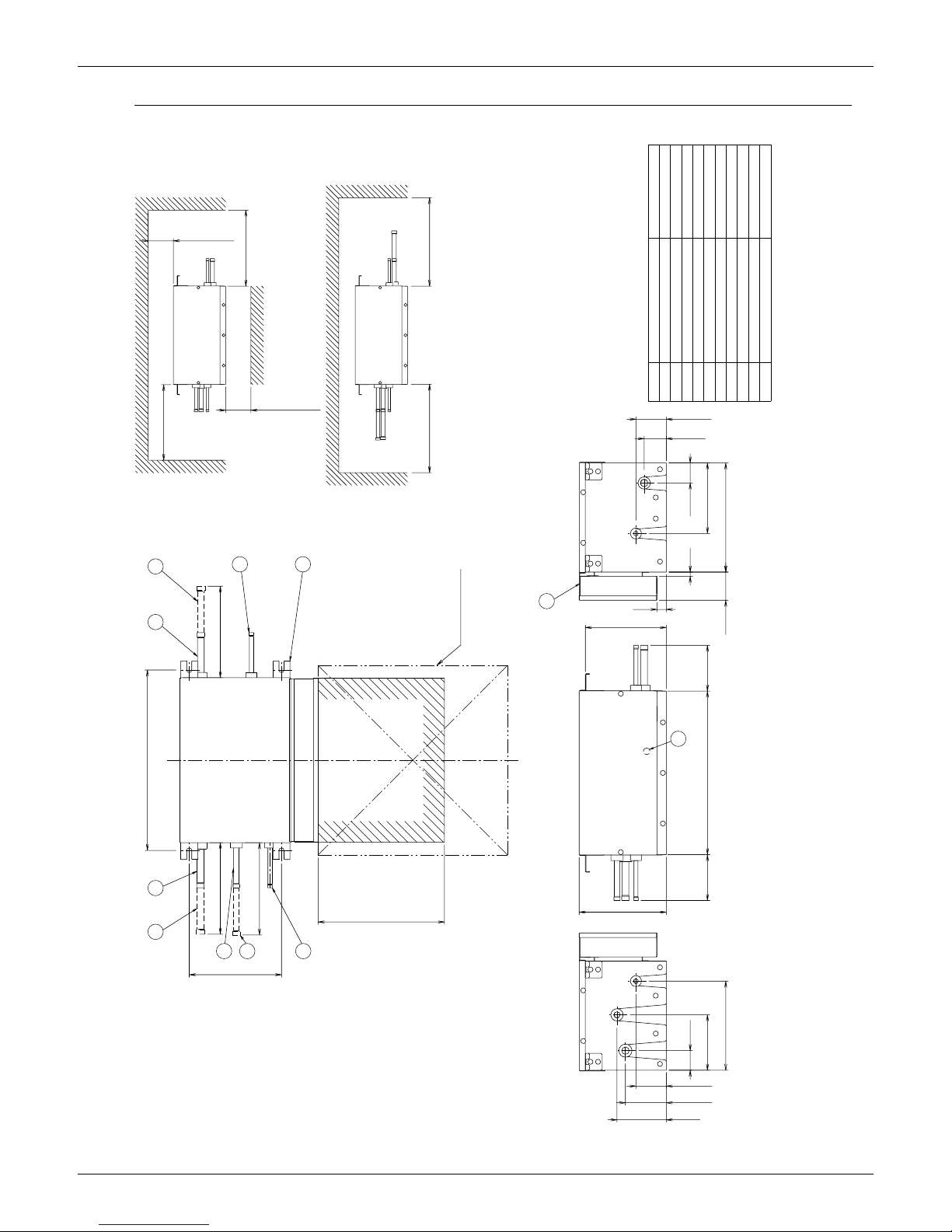

BSVQ60PVJU

(Servicing space)

(Suspension bolt pitch)

8-5/8

(8-5/8)

(8-9/16)

16-7/8

(8-9/16)

18 (Note 2.)

Inspection door

10-3/16

8-3/8

(4-5/16)

15-1/4

7-9/16

3/8

3-13/16

1-7/8

4-5/8

7/8

8-1/8

(4-5/16)

2-13/16

5-3/16

2-13/16

2-1/16

6-5/8

1-7/8

2-5/8

(Note 1.)

Location of unit's Name Plate…Right side of electric box

Servicing space

(Servicing space)

2 or more

3 or more

(Servicing space)

10 or more

(Servicing space)

10 or more

(In case of use Attached pipe)

(Servicing space)

13-3/4 or more

(Servicing space)

13-3/4 or more

Notes) 1. Electric box can also be fixed on the other side

of the unit.

2. Be sure to install a inspection door at electric

box side.

3. Attached pipe is only used in case of connecting

with indoor unit capacity indey 54 or more and

60 or less.

4. Small sound of refrigerant will be made, which

may be disturbing.

Do not install it at the place such as bedroom

under roof.

φ3/8 brazing connection

Description

φ3/8 brazing connection

Liquid pipe connection port

Suction gas pipe connection port

Electric box (Note 1.)

Grounding terminal

φ5/8 brazing connection

φ3/4 brazing connection

M8~M10

Liquid pipe connection port

Suspension brackets

Number

10 Attached pipe (2) (Note. 3)

Attached pipe (1) (Note. 3)

Part name

φ1/2 brazing connection

HP/LP gas pipe connection port

Gas pipe connection port

4 9

3D058237

EDUS39-800-F8 Piping Diagrams

BSVQ-P 5

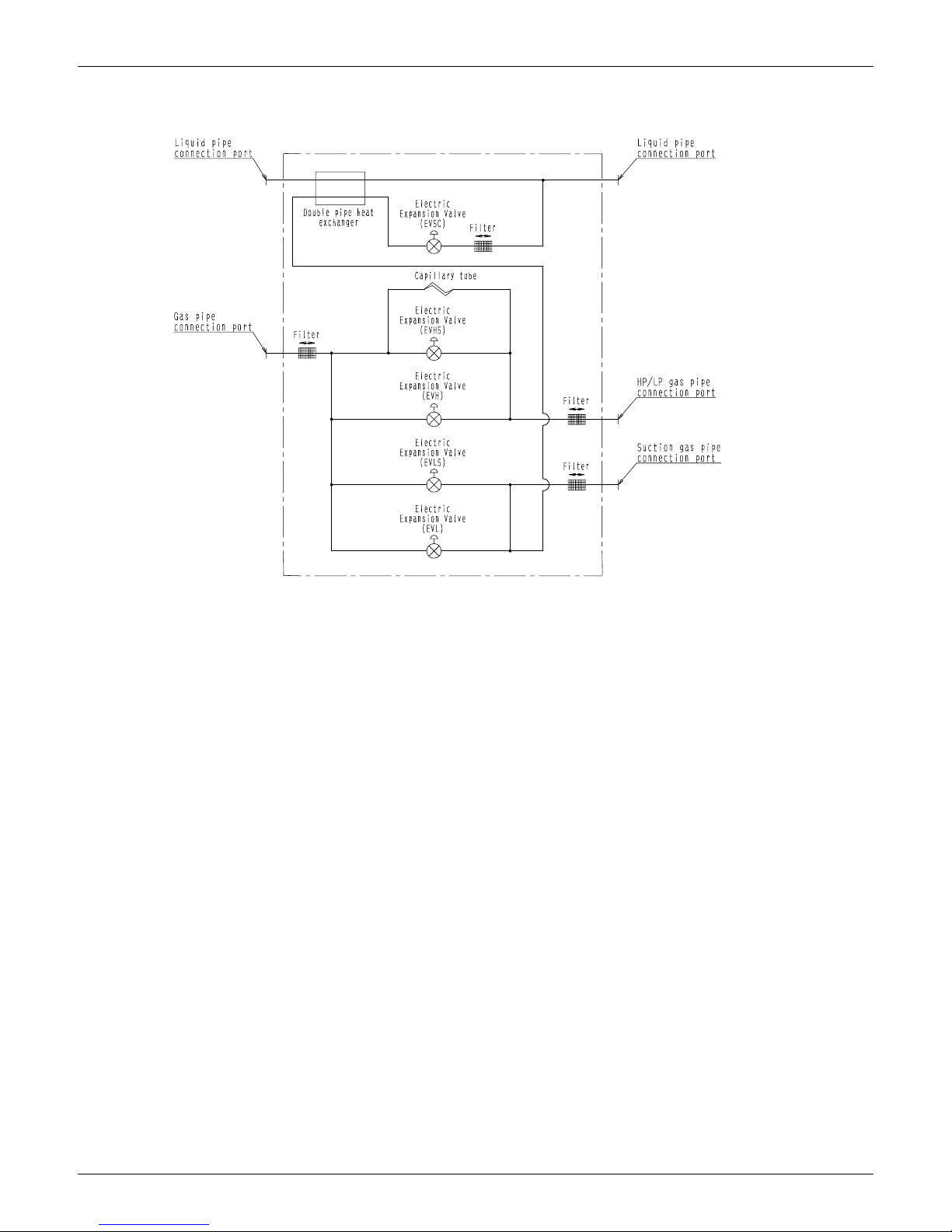

3. Piping Diagrams

4D057985A

Wiring Diagrams EDUS39-800-F8

6BSVQ-P

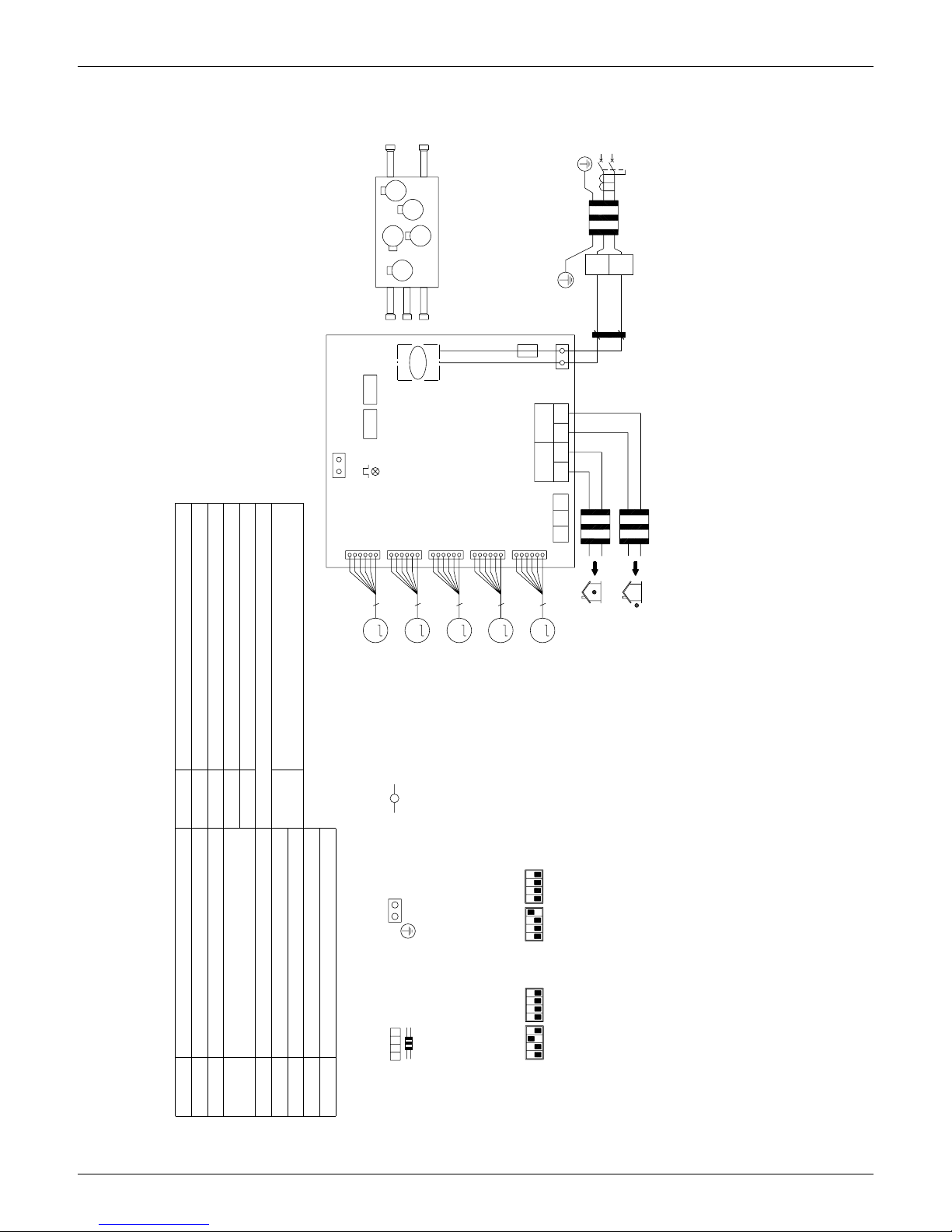

4. Wiring Diagrams

POWER SUPPLY

~208-230V

60Hz

RED

HAP

X1A

Y4E

Y1E

X5A

X1M

BLU

Y3E

NOTE) 7.

F1U

Y5E

X6A

OUTDOOR

UNIT

X8A

DS2

INDOOR

UNIT

X7A

X2M

NOTE) 3.

DS1

Y2E

X4A

X1M

X2A

A1P

Z1C

N=2

Y4E M6

Y3E M

CAB

Y1E M

Y2E 6

Y5E M

BS UNIT TOP

TO IN/D

UNIT

TO OUT/D

UNIT

Y5E

CONNECTOR FOR OPTIONAL PARTS

X2M

Y4E

NOISE FILTER (FERRITE CORE)

PRINTED CIRCUIT BOARD

F1U

Z1C

X1M (A1P)

DIP SWITCH

ELECTRIC EXPANSION VALVE (MAIN DISCHARGE)

X1M

Y1E

ELECTRIC EXPANSION VALVE (SUB DISCHARGE)

TERMINAL STRIP (CONTROL)

A1P

FLASHING LAMP

(SERVICE MONITOR-GREEN)

Y3E

ELECTRIC EXPANSION VALVE (SUB COOL)

FUSE (T, 3.15A, 250V)

Y2E

ELECTRIC EXPANSION VALVE (SUB SUCTION)DS1, DS2

ELECTRIC EXPANSION VALVE (MAIN SUCTION)

TERMINAL STRIP (C/H SELECTOR)

SWITCHING POWER SUPPLY (A1P)

TERMINAL STRIP (POWER) X2A

HAP

CONNECTOR (WIRING EXTERNAL CONTROL

ADAPTOR FOR OUTDOOR UNIT)

BSVQ60PVJUBSVQ36PVJU

OFF

DS1

1234 1234 1234 1234

DS2 DS2DS1 OFF

FOR USING DIP SWITCH (DS1 · 2), REFER TO INSTALLATION MANUAL

OR "SERVICE PRECAUTION" LABEL ON EL. COMPO. BOX COVER.

NOTES) 1. THIS WIRING DIAGRAM APPLIES TO THE BS UNIT ONLY.

2. : TERMINAL STRIP, : CONNECTOR, : TERMINAL

: FIELD WIRING, : PROTECTIVE EARTH

3. WHEN USING THE COOL/HEAT SELECTOR (OPTIONAL ACCESSORY),

CONNECT IT TO TERMINALS A, B AND C ON X2M.

4. AS FOR WIRING TO THE IN/D UNIT (F1) · (F2) AND OUT/D UNIT (F1) · (F2)

ON X1M (A1P), REFER TO INSTALLATION MANUAL.

5. SYMBOLS SHOW AS FOLLOWS. (BLU : BLUE RED : RED)

6. USE COPPER CONDUCTORS ONLY.

7. DIP SWITCH (DS1 · 2) INITIAL SETTINGS ARE AS FOLLOWS.

3D058235A

EDUS39-800-F8 Electric Characteristics

BSVQ-P 7

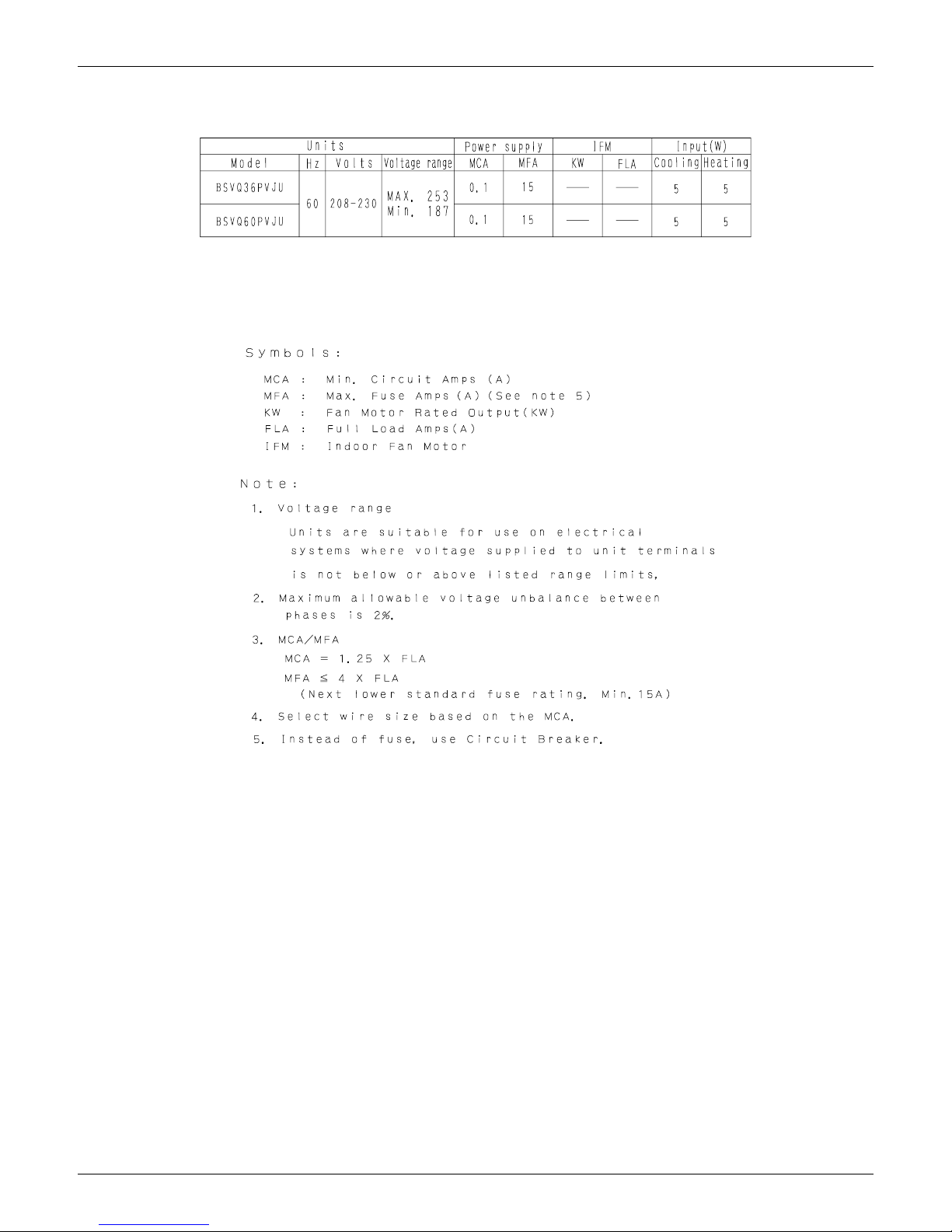

5. Electric Characteristics

4D058238

Sound Levels EDUS39-800-F8

8BSVQ-P

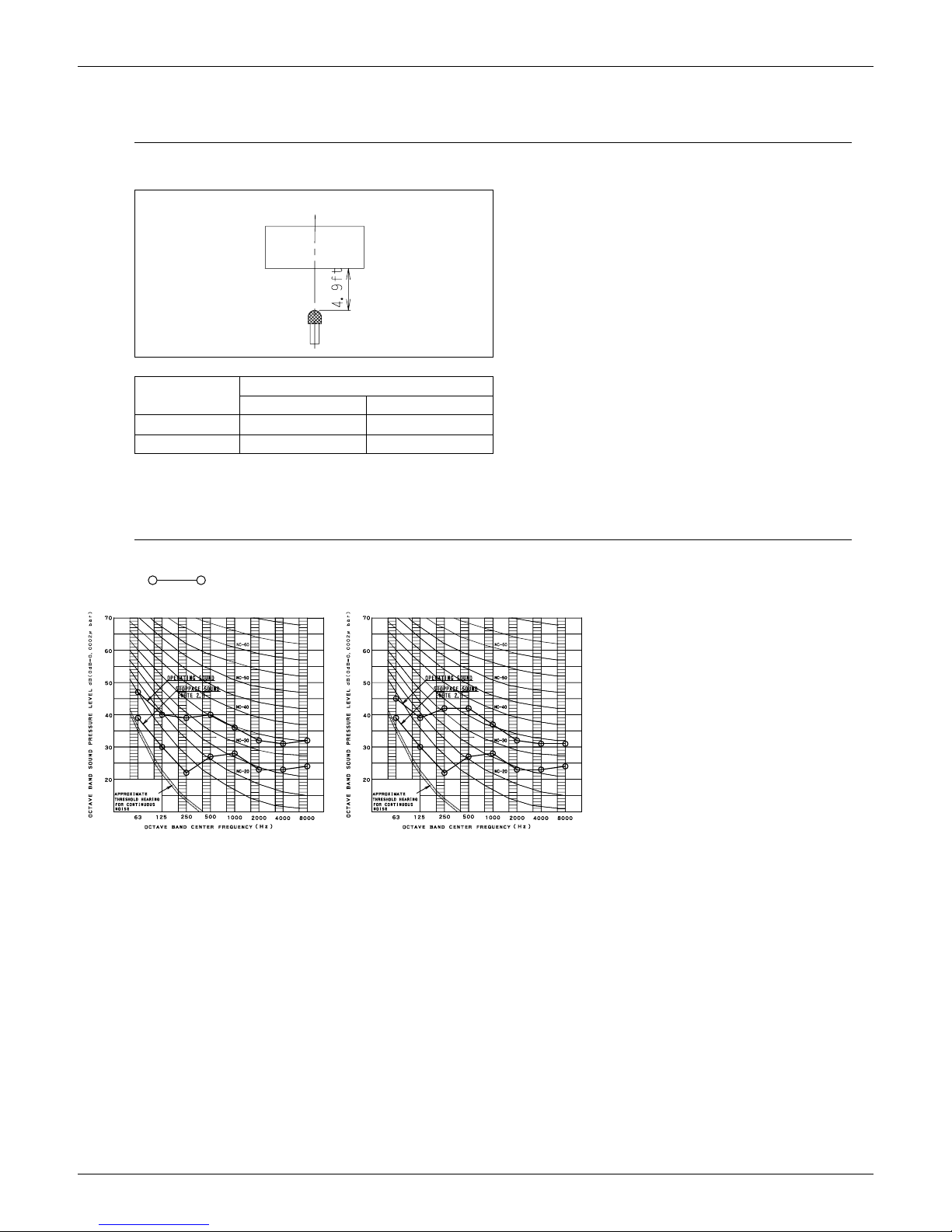

6. Sound Levels

Overall

Octave Band Level

208V~230V

Ceiling Mounted Type Notes:

Operation noise differs with operation and ambient

conditions.

dBA

Model 208~230V, 60Hz

Operating Sound Stoppage Sound

BSVQ36PVJU 42 32

BSVQ60PVJU 43 32

BSVQ36P BSVQ60P

4D059692 4D059693

EDUS39-800-F8 Installation

BSVQ-P 9

7. Installation

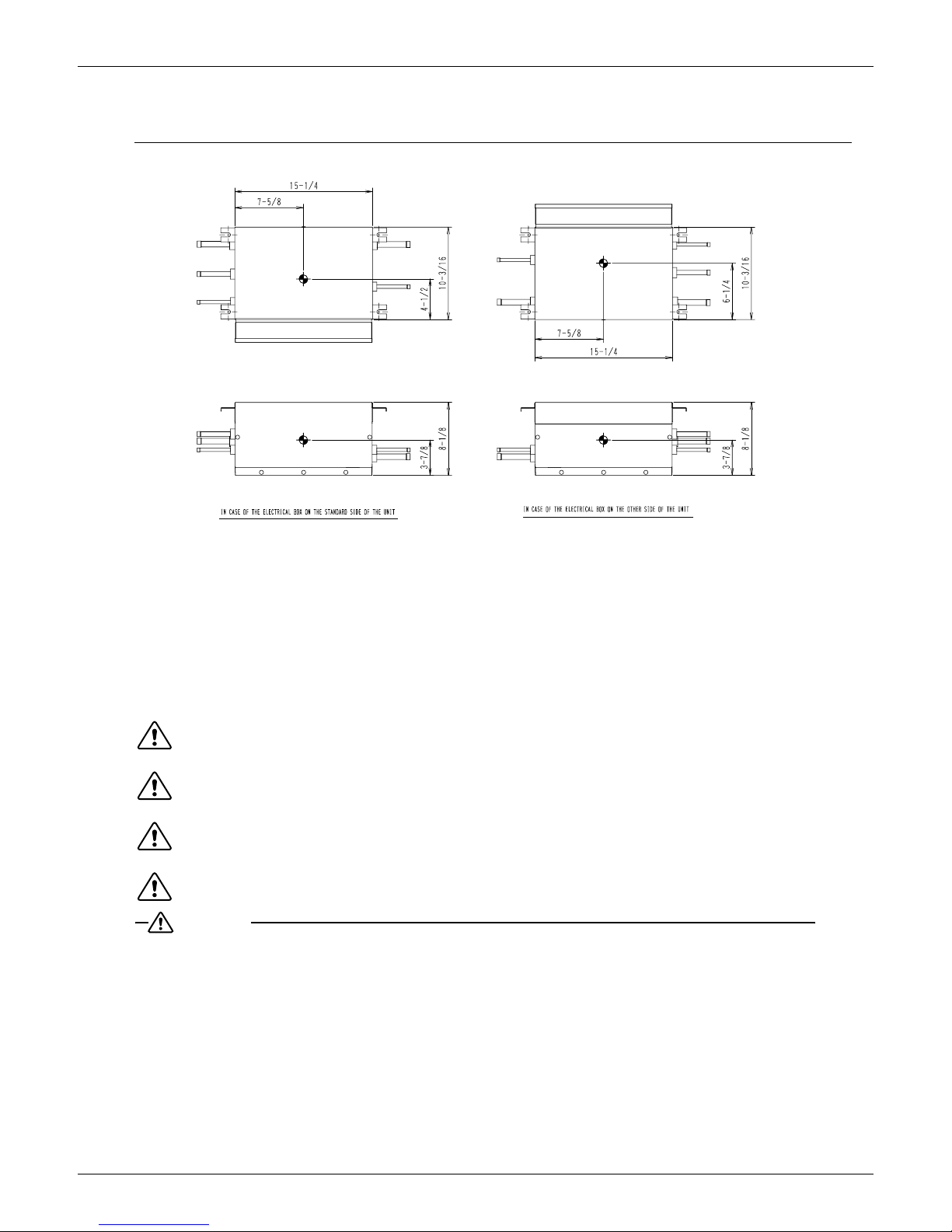

Center of Gravity

3D059694

1. SAFETY CONSIDERATIONS

Please read these “SAFETY CONSIDERATIONS” carefully before installing air conditioning equipment and

be sure to install it correctly. After completing the installation, make sure that the unit operates properly during

the start-up operation.

Please instruct the customer on how to operate the unit and keep it maintained.

Also, inform customers that they should store this installation manual for future reference.

This air conditioner comes under the term “appliances not accessible to the general public”.

Meaning of danger, warning, caution and note symbols.

DANGER ..........Indicates an imminently hazardous situation which,if not avoided, will result in death

or serious injury.

WARNING ........Indicates a potentially hazardous situation which, if not avoided, could result in death

or serious injury.

CAUTION .........Indicates a potentially hazardous situation which, if not avoided, may result in minor

or moderate injury. It may also be sued to alert against unsafe practices.

NOTE ................Indicates situation that may result in equipment or property-damage-only accidents.

DANGER

• Refrigerant gas is heavier than air and replaces oxygen. A massive leak could led to oxygen deple-

tion, especially in basements, and an asphyxiation hazard could occur leading to serious injury or

death.

• Do not install unit in an area where flammable materials are present due to the risk of explosion

resulting in serious injury or death.

• If the refrigerant gas leaks during installation, ventilate the area immediately.

Refrigerant gas may produce toxic gas if it comes into contact with fire such as from a fan, heater, stove or

cooking device. Exposure to this gas could cause severe injury or death.

• After completing the installation work, check that the refrigerant gas does not leak.

Refrigerant gas may produce toxic gas if it comes into contact with fire such as from a fan, heater, stove or

cooking device. Exposure to this gas could cause severe injury or death.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Daikin Klimaanlage Handbücher

Daikin

Daikin RXYQ72PYDN Bedienungsanleitung

Daikin

Daikin CTXA15A2V1BW Produktinformationsblatt

Daikin

Daikin ERLQ004CAV3 Anleitung zur Verwendung

Daikin

Daikin SkyAir RZAG100M7V1B Anleitung zur Verwendung

Daikin

Daikin Modular T Bedienungsanleitung

Daikin

Daikin 3MXM52M2V1B Bedienungsanleitung

Daikin

Daikin Siesta ATXM20N2V1B Produktinformationsblatt

Daikin

Daikin Sky Air Alpha Series Bedienungsanleitung

Daikin

Daikin FTXJ20MV1BW Bedienungsanleitung

Daikin

Daikin FTXM09WVJU9 Bedienungsanleitung

Daikin

Daikin BA-Series Bedienungsanleitung

Daikin

Daikin RXYSCQ4TMV1B Benutzerhandbuch

Daikin

Daikin FHQ71BUV1B x 2 Bedienungsanleitung

Daikin

Daikin FXFQ-A Gebrauchsanweisung

Daikin

Daikin Altherma 3 R ECH2O Anleitung zur Verwendung

Daikin

Daikin VRV FXMQ20PAVE2 Bedienungsanleitung

Daikin

Daikin SkyAir FTQ24PAVJU Bedienungsanleitung

Daikin

Daikin FVXS60HVMA Bedienungsanleitung

Daikin

Daikin RZQSG-L3/9V1 Gebrauchsanweisung

Daikin

Daikin ERLQ004CA Anleitung zur Verwendung

Daikin

Daikin RXP20N5V1B9 Anleitung zur Verwendung

Daikin

Daikin FTXM-K Bedienungsanleitung

Daikin

Daikin FTXTP25K3V1B Bedienungsanleitung

Daikin

Daikin Altherma EHVZ04S18CB Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung

Frigidaire

Frigidaire FAZ12ES2A Bedienungsanleitung
