Dakin FWW200VC Bedienungsanleitung

Ceiling Concealed Chilled Water

Fan Coil Unit

Engineer Data ED-FWW-VC-201607

Models: FWW200VC FWW300VC FWW400VC FWW500VC

FWW600VC FWW700VC FWW800VC FWW1000VC

FWW1200VC FWW1400VC

Air Flow: 340-2380m3/h

NOTE: Installation and maintenance are to be performed only by qualied personnel who are

familiar with local codes and regulations, and experienced with this type of equipment.

Caution: Sharp edges and coil surfaces are a potential injury hazard. Avoid contact with them.

Warning: Moving machinery and electrical power hazard. May cause severe personal

injury or death. Disconnect and lock off power before servicing equipment.

Literature No.:

ED-FWW-V-201501

Supersedes:

ED-FWW-VC-201607

Contents

Nomenclature …………………………………………………………………………………… 2

Valve Nomenclature …………………………………………………………………………… 3

Features ………………………………………………………………………………………… 4

Specications …………………………………………………………………………………… 5

Sound Data ……………………………………………………………………………………… 6

Air Flow vs ESP Curve ………………………………………………………………………… 7

Operating Limits………………………………………………………………………………… 8

Water Flow Rate/Pressure Drop Chart ……………………………………………………… 9

Outlines and Dimensions……………………………………………………………………… 10

Electrical Data…………………………………………………………………………………… 11

Wiring Diagrams………………………………………………………………………………… 12

Installation ……………………………………………………………………………………… 13

Nomenclature

FWW 200 V C 3 R C X - A 0 A E

Sales Region: E: Export

Power Supply: A: 220V~/50 Hz

Other Feature Codes

Material of Drain Pan

Filter: X: no lter F: 8mm nylon lter

A: 8 mm aluminum lter

Return Air Plenum: C: without return air plenum

E: back return air plenum(5mm PE insulation)

F: bottom return air plenum(5mm PE insulation)

Pipe Connection: R: facing air ow right hand

L: facing air ow left hand

External Static Pressure: 1: 12 Pa

3: 30 Pa

5: 50 Pa

Coil Type: C: 3 rows

Unit Design SN

Rated Air Volume (CFM, 1 CFM = 1.7 m3/h)

DAIKIN Ceiling Concealed Horizontal Fan Coil Unit

B: back return air plenum

D: bottom return air plenum

Valve Nomenclature

FWW - 2V 4 Y B R A E

FWW-DAIKIN FCU

(Only 2-pipe system is applicable)

Valve model

2V:2-Way Valve Kit

3V:3-Way Valve Kit

Union Size

Omitted-R3/4

4-R1

Pipe Connection

R-for Right hand unit

L-for Left hand unit

E-Export

U-Stick "Made In China"

Power Supply:

A-220-240V/1Ph/50Hz

K-208-230V/1Ph/60Hz

Valve Type

B-with Ball Valve

X-without Ball Valve

Strainer Type

Y-with Y-Strainer

X-without Y-Strainer

Features

Compact

■ Light-weighted, good-looking appearance, and compact and solid structure.

■ 235 mm height, allowing installation on the ceiling with a limited space.

Low-noise

■ Low-noise motor for driving the low speed fan with a wide impeller; strictly tested before delivery.

■ Precise distance between the impeller inlet/outlet and the heat exchanger for more reasonable air ow

distribution.

■ Highly efcient sound-absorbing and heat-preserving materials inside to minimize noises produced by the unit.

Reliable

■ Single-phase capacitor motor with the protection grade IP20 and insulation grade B to ensure operation safety.

■ Permanently lubricated and sealed ball bearing with high precision, which is provided by internationally famous

brands and receives processing including hardening and tempering as well as chroming.

■ Motor power outlet wires protected by metal hoses to ensure its durability.

■ Working pressure up to 1.6 MPa and test pressure up to 2.0 MPa for the heat exchanger to endure high

pressures and prevent leakage.

High Efciency

■ Heat exchanger with the high-quality mechanically expanded copper pipe and hydrophilic aluminum ns to

ensure high efciency.

■ Intensied air supply using a large air ow fan with a wide impeller to maximize the heat transfer performance.

■ Precise matching of the fan and motor to guarantee the maximum cooling capacity but a low power input.

Flexible

■ Multiple external static pressures designed based on the unit’s cooling capacity, meeting the air supply

requirements at different distances.

■ Optional bottom return air plenum or back return air plenum with support for onsite changes, featuring time

saving.

■ Variable accessories for more options.

Anti-leakage

■ Delicate condensate-proof drain pan made of the cold-rolled steel through one-time impact molding, with

coating on both sides and high-quality heat-preserving materials on the exterior.

■ Unique independent mounting bracket without soldering seams or joints, requiring no bolts for xing to prevent

damages to the drain pan heat-preserving layer or cold bridges.

■ Tilt structure for rapid condensate water drainage.

Specications

General Data

NOTES:

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL THE UNITS ARE BEING TESTED UNDER FOLLOWING CONTITION:

 •COOLING-27°CDB/19.5°CWBINDOORANDWATERINLET7°COUTLET12°C

 •HEATING-21°CDBINDOORANDWATER60°CINLET.WATERFLOW:SAMEWITHCOOLINGCONDITION.

3) SOUND PRESSURE LEVEL ARE ACCORDING TO MICROPHONE POSITION OF THE MEASUREMENT POINT

IS 1m IN FRONT END

FWW-VC

MODEL FWW200VC FWW300VC FWW400VC FWW500VC FWW600VC FWW700VC FWW800VC FWW1000VC FWW1200VC FWW1400VC

Air

Flow

HIGH

m3/h 340 510 680 850 1020 1170 1360 1700 2040 2380

CFM 200 300 400 500 600 688 800 1000 1200 1400

MEDIUM

m3/h 279 418 558 697 836 959 1115 1394 1673 1952

CFM 164 246 328 410 492 564 656 820 984 1148

LOW

m3/h 170 255 340 425 510 585 680 850 1020 1190

CFM 100 150 200 250 300 344 400 500 600 700

EXTERNAL

STATIC PRESSURE Pa/in.wg 12,30,50/0.05,0.12,0.20

TOTAL COOLING

CAPACITY

W 2220 3300 4260 5050 5820 6600 8200 9300 11190 13000

Btu/h 7575 11260 14536 17231 19859 22520 27980 31733 38182 44358

SENSIBLE

COOLING

CAPACITY

W 1380 2220 2770 3400 4000 4550 5500 6500 7700 9200

Btu/h 4709 7575 9452 11601 13649 15525 18767 22179 26273 31392

TOTAL HEATING

CAPACITY

W 3500 5330 6800 8400 9600 11100 13500 15800 18300 21500

Btu/h 11942 18187 23203 28662 32757 37875 46064 53912 62442 73361

WATER FLOW

RATE

m3/h 0.37 0.58 0.72 0.88 1.02 1.14 1.41 1.67 1.95 2.29

USGPM 1.6 2.6 3.2 3.9 4.5 5.0 6.2 7.4 8.6 10.1

HEAD LOSS

(Cooling)

Pa 25 21 30 30 32 35 32 40 35 50

in.wg. 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.2

UNIT WEIGHT

(Without plenum)

kg 10.3 12.4 12.8 15.1 16.7 17.6 25.2 28.6 31.0 33.5

lb 22.7 27.3 28.2 33.3 36.8 38.8 55.6 63.1 68.3 73.9

UNIT GROSS

WEIGHT

(Without plenum)

kg 12.4 14.7 15.3 17.8 19.4 20.4 28.9 32.4 35.4 38.5

lb 27.3 32.4 33.7 39.2 42.8 45.0 63.7 71.4 78.0 84.9

DIMENSIONS

Without

Return

Air Plenum

mm 625×465×235 815×465×235 865×465×235 945×465×235 1045×465×235 1095×465×235 1425×465×235 1475×465×235 1675×465×235 1825×465×235

With Back

Return

Air Plenum

mm 625×516×235 815×516×235 865×516×235 945×516×235 1045×516×235 1095×516×235 1425×516×235 1475×516×235 1675×516×235 1825×516×235

With Bottom

Return

Air Plenum

mm 625×497×235 815×497×235 865×497×235 945×497×235 1045×497×235 1095×497×235 1425×497×235 1475×497×235 1675×497×235 1825×497×235

UNIT WEIGHT

(With plenum)

kg 13.2 16.0 16.7 19.3 21.2 22.4 31.3 34.8 38.0 41.5

lb 29.1 35.3 36.8 42.5 46.7 49.4 69.0 76.7 83.8 91.5

UNIT GROSS

WEIGHT

(With plenum)

kg 15.3 18.3 19.2 22.0 23.9 25.2 35.0 38.6 42.4 46.5

lb 33.7 40.3 42.3 48.5 52.7 55.6 77.2 85.1 93.5 102.5

CONDENSATE

DRAIN SIZE R3/4

NOTES:

ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

Components Data

FWW-VC

FWW200VC FWW300VC FWW400VC FWW500VC FWW600VC FWW700VC FWW800VC FWW1000VC FWW1200VC FWW1400VC

FAN

TYPE GALVANIZED STEEL DOUBLE STAGE IMPELLER CENTRIFUGAL (BLADE: FORWARD)

QUANTITY 1222223344

MATERIAL GALVANIZED STEEL

DRIVE DIRECT DRIVE

DIAMETER

mm 150

in 5.904

LENGTH mm 150/200/240

in 5.91/7.87/9.45

MOTOR

TYPE SINGLE PHAZE BALL BEARING CAPACITOR RUNNING

QUANTITY 1111112222

IP/INSULATION GRADE IP20/B

COIL

TUBE

MATERIAL COPPER

DIAMETER mm 7

in 0.28

THICKNESS mm 0.25

in 0.01

FIN

MATERIAL HYDROPHILIC ALUMINUM

THICKNESS mm 0.11

in 0.0043

FACE AREA m20.08 0.12 0.13 0.15 0.17 0.18 0.25 0.26 0.30 0.34

ft20.86 1.29 1.40 1.61 1.83 1.94 2.69 2.80 3.23 3.66

ROW 3

FIN PER INCH 17

AIR

FILTER

(Option)

TYPE NYLON/ALUMINIUM FRAME

SIZE

LENGTH mm 438 628 678 758 858 908 1238 1288 1488 1638

in 17.24 24.72 26.69 29.83 33.77 35.74 48.73 50.70 58.57 64.47

WIDTH mm 196

in 7.71

THICKNESS mm 8

in 0.31

NOTES:

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) SOUND PRESSURE LEVEL ARE ACCORDING TO MICROPHONE POSITION OF THE MEASUREMENT POINT IS 1m

IN FRONT AND 1m BELOW THE UNIT.

Sound Data

FWW-VC

Model FWW200VC FWW300VC FWW400VC FWW500VC FWW600VC FWW700VC FWW800VC FWW1000VC FWW1200VC FWW1400VC

Sound

Pressure Level

(ESP: 12Pa)

High dBA 33.9 33.2 40.0 40.3 44.4 45.2 43.9 47.9 48.0 51.0

Middle dBA 29.3 28.8 35.5 36.3 39 40.3 38.6 43.6 44.3 47.5

Low dBA 20.1 24.2 24.0 25.6 29.8 27.9 27.4 32.6 33.4 38.0

Sound

Pressure Level

(ESP: 30 Pa)

High dBA 37.3 37.6 41.6 44.3 46.5 46.6 46.2 49.3 50.9 52.0

Middle dBA 32.5 32.5 36.5 39.5 41.1 41.8 41.3 44.9 45.7 46.0

Low dBA 20.9 22.8 25.8 27.3 27.3 29.4 30.6 36.4 34.7 35.5

Sound

Pressure Level

(ESP: 50 Pa)

High dBA 41.2 42.2 44.4 46.4 47.5 47.5 48.3 50.6 51.8 53.5

Middle dBA 37.3 35.8 40.5 42.7 43.9 43.6 43.7 46.4 47.1 49.0

Low dBA 26.1 25.8 32.3 31.3 33.9 37.3 31.8 37.6 41.7 41.0

ESP, 12Pa

ESP, Pa

Air Flow vs ESP Curve

ESP, 30Pa

ESP, 50Pa

Air Flow, m3/hAir Flow, m3/h

Air Flow, m3/h

ESP, Pa

FWW1200

FWW1000

FWW800

FWW700

FWW600

FWW500

FWW400

FWW200

FWW300

FWW1200

FWW1000

FWW800

FWW700

FWW600

FWW500

FWW400

FWW200

FWW300

FWW1200

FWW1000

FWW800

FWW700

FWW600

FWW500

FWW400

FWW200

FWW300

Operating Limits

Operating Limits FWW-V

Water Circuit

Max. Water side pressure 1.6MPa

Min. Entering water temperature 3ºC (cooling)

Power supply

Operating voltage limits ±10% Volt

Operating frequency limits ±2Hz

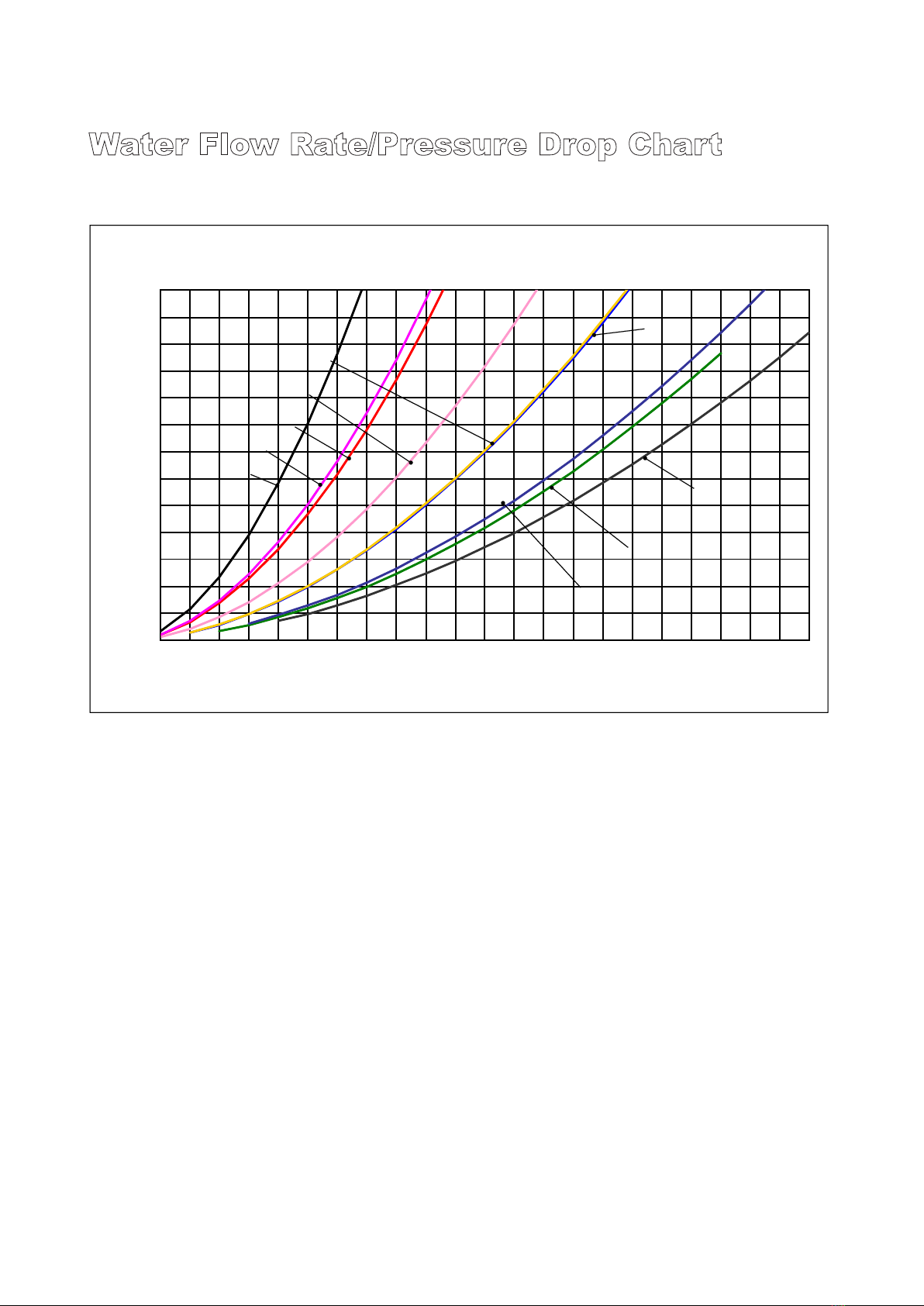

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 2.1 2.2 2.3

WATER PRESSURE DROP kPa

WATER FLOW m3/h

WATER PRESSURE DROP CURVE(3 Rows)

Water Flow Rate/Pressure Drop Chart

FWW-VC

FWW700VC

FWW500VC

FWW300VC

FWW400VC

FWW200VC

FWW1000VC

FWW800VC

FWW1200VC

FWW600VC
