Introduction

1 Introduction

This manual provides information to install and re up a Daktronics digital billboard.

Please read and understand all steps in this manual before beginning the installation

process. Contact the Project Manager with questions.

Limitation of Liability

Failure to perform the following may void factory warranties:

• Install the digital billboard according to the steps in this manual

• Provide proper electrical service

• Ground the display properly

For the full Daktronics Warranty and Limitation of Liability, refer to Section B: Daktronics

Warranty and Limitation of Liability (p�27).

Note: This applies to initial installation only. Manufacturer does not warranty relocation

of displays.

Important Contact Information

Daktronics Help Desk: 1-877-DAK-HELP (325-4357)

Display Identication

This section provides information

that is helpful in understanding a

Daktronics digital billboard display

label. Refer to Figure 1 while

reading the table below.

Display Assembly Number

Display Serial Number

Manufacture Month/Date Year

DB-6000 Modules High X Modules Wide

RMN: Daktronics - 0200 - 11 Manufactured in Sioux Falls, SD

120/240 VAC, Single Phase, 60 HZ

AMPS (L1/L2) = 25.5/24.4 Total

Total Watts = 5,979

6000 Series Improvements

Component Improvement Image of Change

Mounting • Standard offset extrusion

mount

SmartLink • Located externally on third

door from right

Figure 1: 6000 Series Display Label

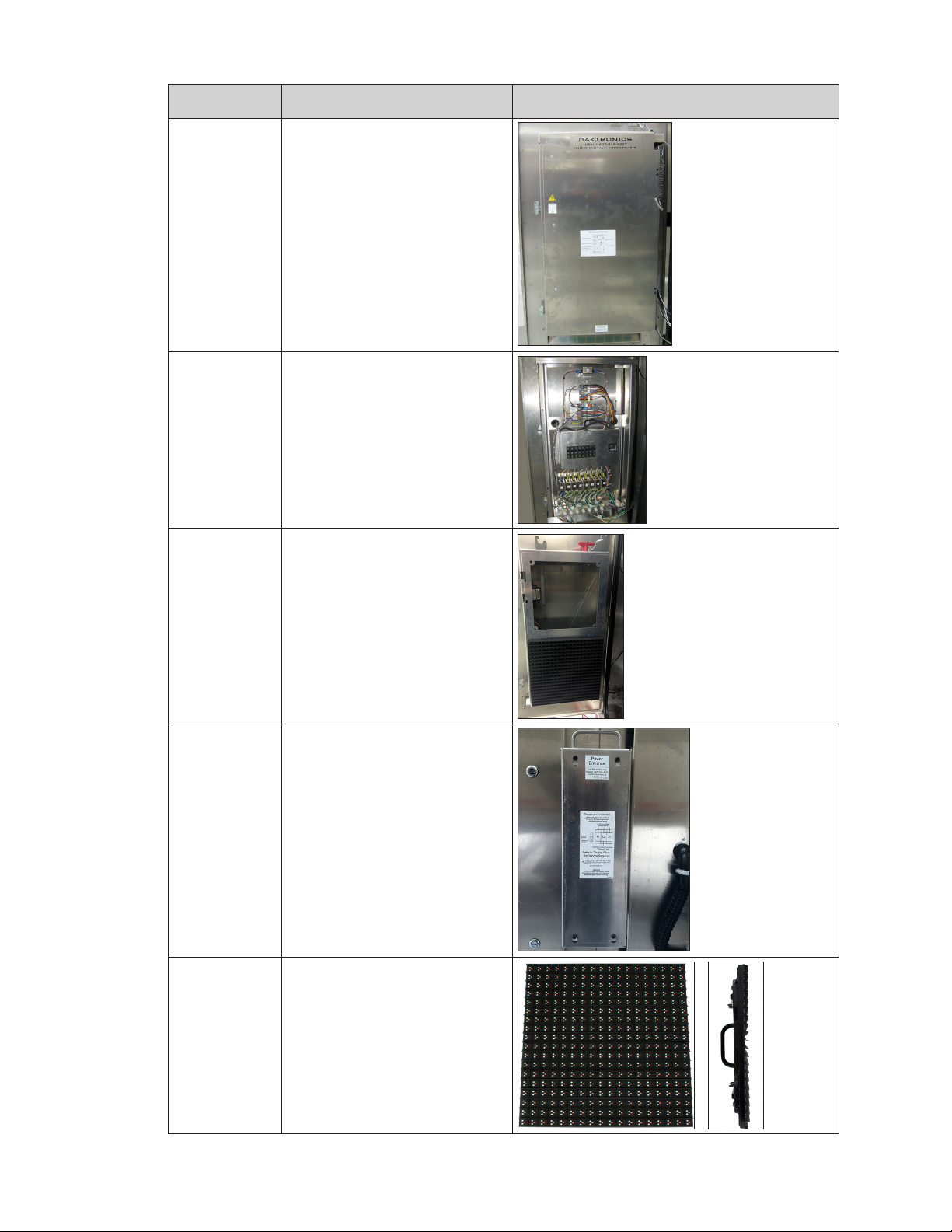

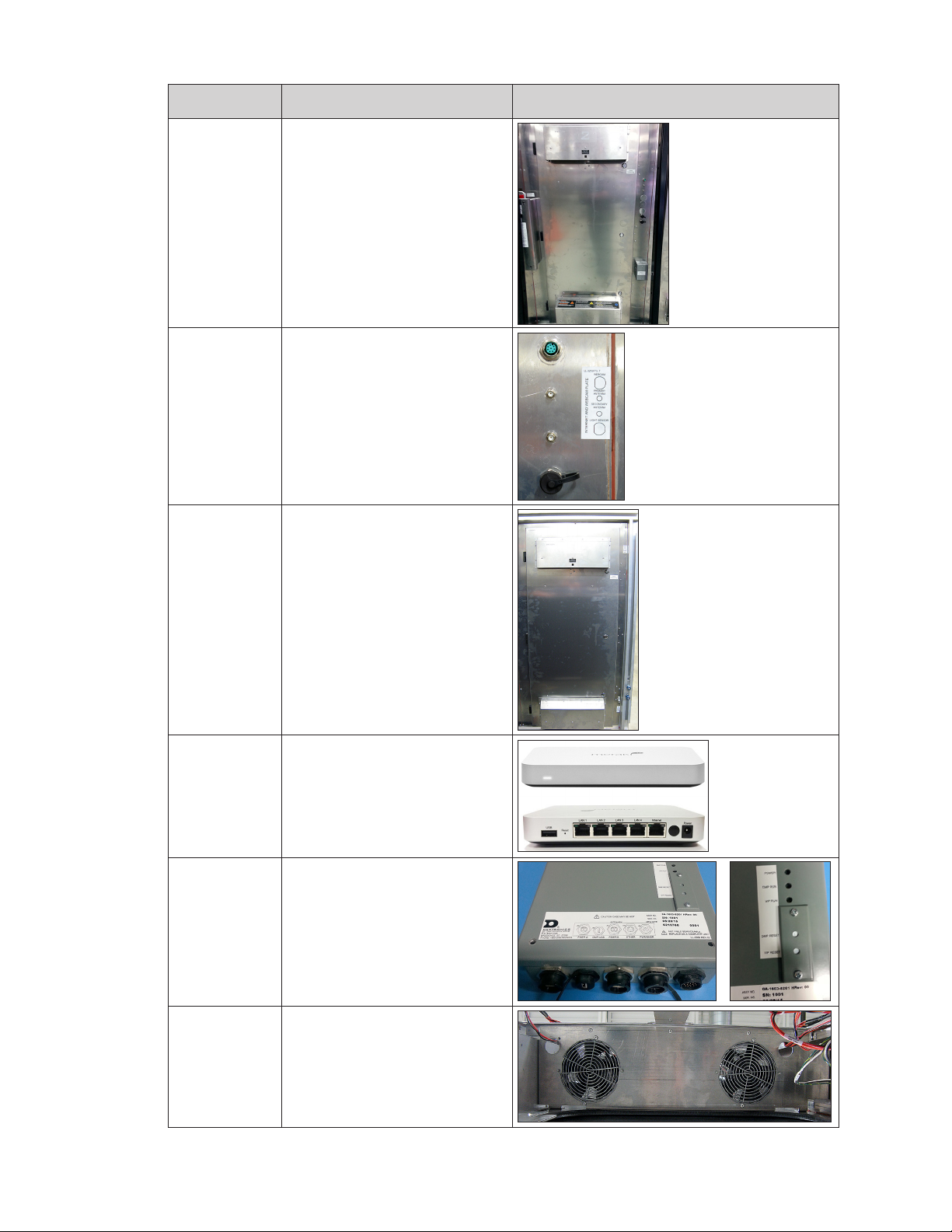

Introduction

Component Improvement Image of Change

Ventilation

• Intake and exhaust hoods

replace intake and exhaust

vents

Internet and

Webcam

Connections

• Located three bays in from

the left

Display Doors

• Hinged doors allow

easy access to internal

components

Control

System • Meraki Router

DMP-8065

• DMP-8065 Gen 2

• No fans on DMP-8065

(internal or external)

• Single Power Supply

• Located on the door to the

right of the ISP equipment

door

Cooling • Fans located on horizontal

members within the display

Introduction

Component Improvement Image of Change

ISP Box • Located inside the third

door from left

Term Panel • Located inside the third

door from the right

Spare Parts

• Spare parts are located

inside the far-left bottom

door

• Module, module tool,

power supply, and splice

tool are included. Other

standard service tools are

not

Power

Entrance Box

• Located between third and

fourth doors from the right

• See layout examples on

Page 6

Module Size

• 400 mm

• Uses the latest technology

with a downward-focused

LED

Introduction

Component Improvement Image of Change

Power Supply

• Low-prole power supplies

• One 65 W power supply

now powers two modules.

• Power supplies are

mounted to the uprights

inside the display

Optional

Control

System -

Third Party

• Internal location for

customer-provided player

• See DD2879292 for

requirements

Terms Used in this Manual

Lanyard Attachment Ring: A ring found on the back of each module and on the display

doors that attaches to a lanyard and prevents the module from falling.

Latch Release: Releases the latch that holds the module rmly in the display. The latches

are centered near the top and bottom of the module.

Light Emitting Diode (LED): Low-energy, high-intensity lighting unit.

Line Filter: Removes electromagnetic noise that might interfere with local communication

channels from the power system.

Module: Consists of a display board with LEDs, a driver board or logic card, housing, a

module latch assembly, and a louver. Each module is individually removable from either

the front or back of the display. Module part numbers vary by pixel pitch.

ProLink Router (PLR): The PLR takes data in and then routes that data to other areas in the

sign. There is typically one PLR per display section.

Power Supply: A device that converts AC line voltage from the panel board to low DC

voltage for driver boards. In the 5000 series, one power supply powers two modules, one

controller, or a ProLink Router (PLR).

Serial Advanced Technology Attachment (SATA) Cable: Allows high speed signal from

ow from device to device. In digital billboards, they run signal from module to module

and from the PLR to the modules.

Termination Block: An electrical connection point, usually used to connect internal

power and signal wires of the same type coming into the display from an external

source.

DMP-8065: Digital billboard control card that sends content to the display. The DMP limits

the display to static content and regulates content hold times.

Introduction

Required Tools

The following table lists the minimum tool requirements Daktronics recommends having

on site for each installation. Daktronics provides some specialized tools but it is the

installer’s responsibility to provide the majority of tools:

Daktronics-Provided Tools

(located behind labeled

doors)

• Black cable ties

• L-Handle hex head wrench: 1/8"

• Splice wrench

• T-Handle Hex head wrench: 1/8"

Customer-Provided Tools

• Hex head wrenches:

Various sizes

• Flat-head screwdriver

• Phillips screw driver

• Bucket truck: Customer

must provide until nal

proof of performance

• Crane

• Cordless drill

• Drill bits

• Hammers

• Ladder: 6', 8', 10'

• Laptop

• Pry bar

• Ratchet tie-downs/come

along

• Socket and open end

wrench: 11/16"

• Socket extension: 3"

• Socket set

• Tape measure

• Torque Allen wrench: 1/8"

• Utility knife

• Taglines

• Fish tape

Daktronics Digital Billboard Overview

Figure 2 provides a general

overview of display components in

a poster (11’ x 22’) display. Refer to

display-specic drawings to identify

component locations as they vary

by display size.

Spare

Parts

Location

Doors

Ventilation

Exhaust Hood

Ventilation

Intake Hood

ISP Box

DMP-8065

Power

Entrance

Term

Panel

SmartLink

Webcam/Light/Temp

Sensor Connections

Lift Eye

Display Back

Border

Module

Support

Ledger

Display Front

Figure 2: 6000 Series Display Front and Back

Installation Preparation

2 Installation Preparation

Installation Planning

Prior to the display arriving on site, review installation plans with the electrician, Internet

Service Provider, and members of the installation crew.

Support Ledger

Ensure that the ledger brackets are mounted to the upright I-beam. All ledger brackets

must be installed prior to lifting the display to the head. For ledger bracket details, refer to

DWG A-988359 (use with offset mounts) and DWG 3041598 (use without offset mounts) in

Section A: Reference Drawings (p�25).

Display Inspection

When the display arrives on site, verify the packaging is in good condition. When

unpacking the display, inspect it for damage and potential issues.

Photograph any damage and contact your Project Manager immediately to report

issues. Failure to report and document shipping damage may void any manufacturer’s

warranties.

Inhaltsverzeichnis

Andere Daktronics Monitor Handbücher

Daktronics

Daktronics PPX-1050 Series Bedienungsanleitung

Daktronics

Daktronics Galaxy AF-3050 Series Bedienungsanleitung

Daktronics

Daktronics DVX-1830 Series Benutzerhandbuch

Daktronics

Daktronics Galaxy Series Bedienungsanleitung

Daktronics

Daktronics 65 P2210 Bedienungsanleitung

Daktronics

Daktronics ST-2002 Bedienungsanleitung

Daktronics

Daktronics Galaxy AF-3400 Series Bedienungsanleitung

Daktronics

Daktronics Small Matrix Galaxy GS6 Series Benutzerhandbuch

Daktronics

Daktronics 65 Series Bedienungsanleitung

Daktronics

Daktronics FUELIGHT FL-3000 Series Bedienungsanleitung

Daktronics

Daktronics Galaxy AF-3300 Series Bedienungsanleitung

Daktronics

Daktronics Galaxy Series Bedienungsanleitung

Daktronics

Daktronics VF-23 Series Bedienungsanleitung

Daktronics

Daktronics DF-2300 Series Bedienungsanleitung

Daktronics

Daktronics LARGE MATRIX GALAXY GS6 Series Bedienungsanleitung

Daktronics

Daktronics Galaxy AF-3165 Bedienungsanleitung

Daktronics

Daktronics NPN-4100 Series Bedienungsanleitung

Daktronics

Daktronics Fuelight FL-4000 Series Bedienungsanleitung

Daktronics

Daktronics DF-2009 Series Bedienungsanleitung

Daktronics

Daktronics Galaxy AF-3165 Bedienungsanleitung

Daktronics

Daktronics Large Matrix Galaxy GT6X Series Bedienungsanleitung

Daktronics

Daktronics Galaxy GS6 Bedienungsanleitung

Daktronics

Daktronics Galaxy AF-3200 Series Bedienungsanleitung

Daktronics

Daktronics Galaxy AF-3080 Series Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
