Dancover GH152080 Bedienungsanleitung

for

Greenhouse

2,45x3,04x2,1m

Manual

28-11-2019

Assembly Instructions

PRODUCT SIZE(LxWxH):304X245X210CM

PLEASE READ CAREFULLY BEFORE ASSEMBLY

CONTENTS

KEEP WORKING AREA CLEAN AND DRY

A cluttered, damp or wet working area may cause injuries.

Safety Warning & Advice

PREPARE A FLAT AND LEVEL BASE

Make sure your greenhouse is located on a flat and level surface.

Although this greenhouse is designed to withstand greater wind loads than many other

greenhouses, do not install it in on a windy day or in an area which is subject to high winds.

A partially completed greenhouse may be seriously damaged if it is left in this state. It is

your responsibility to safely and securely anchor the greenhouse, having regard to wind

conditions in your area.

DO NOT INSTALL THE GREENHOUSE ON A WINDY DAY OR

IN AN AREA SUBJECT TO HIGH WINDS

POLYCARBONATE SHEET

Remove approximately 2 inches of film from all sheet edges before installing and remove all film

immediately after the construction is completed. Please ensure that the side with the white film

faces outwards.

CHECK PARTS BEFORE ASSEMBLY

All parts have been well labelled. Please sort, separate and identify all components before

construction and check against the parts list in this manual.

WARNING

Do not install this product when you are tired or distracted from the job at hand. We recommend

that you use gloves during assembly.

POWERED SCREWDRIVER RECOMMENDED

This quality greenhouse features self-tapping screws to provide strong joints. As the name

suggests, the screws tap their own thread. Driving in self-tapping screws requires more force

than conventional screws. A powered screwdriver is therefore recommended.

16*S01

PART NO QTY

4C 2

A1 2

4*S01

A1 B1

M6X10

S01 16

M01

M4.2X16

Z01 36

Base Assembly

Fixing the greenhouse to

the base is recommended.

It is best to do this at

the end, after the

greenhouse has been fully

assembled.

L13

L10

L13

L10

2 2 2

A1 Z01

Z01

L08A

B1 B1 Z01

Use a powered screwdriver to fix the self-tapping screws (Z01) through the cills (L08A, L10 and L13)

and base plinth (A1 and B1). The screws should be evenly spaced to ensure a neat appearance. The

recommended spacing of the screws is 238mm. You can mark the painted surfaces with a pencil.

PART NO QTY

L01A

L10

L04A

1L04B

L05B

L11

L03B

L01B

W01

L01A

L13

L04A

L04B

L05A

L03B

L01B

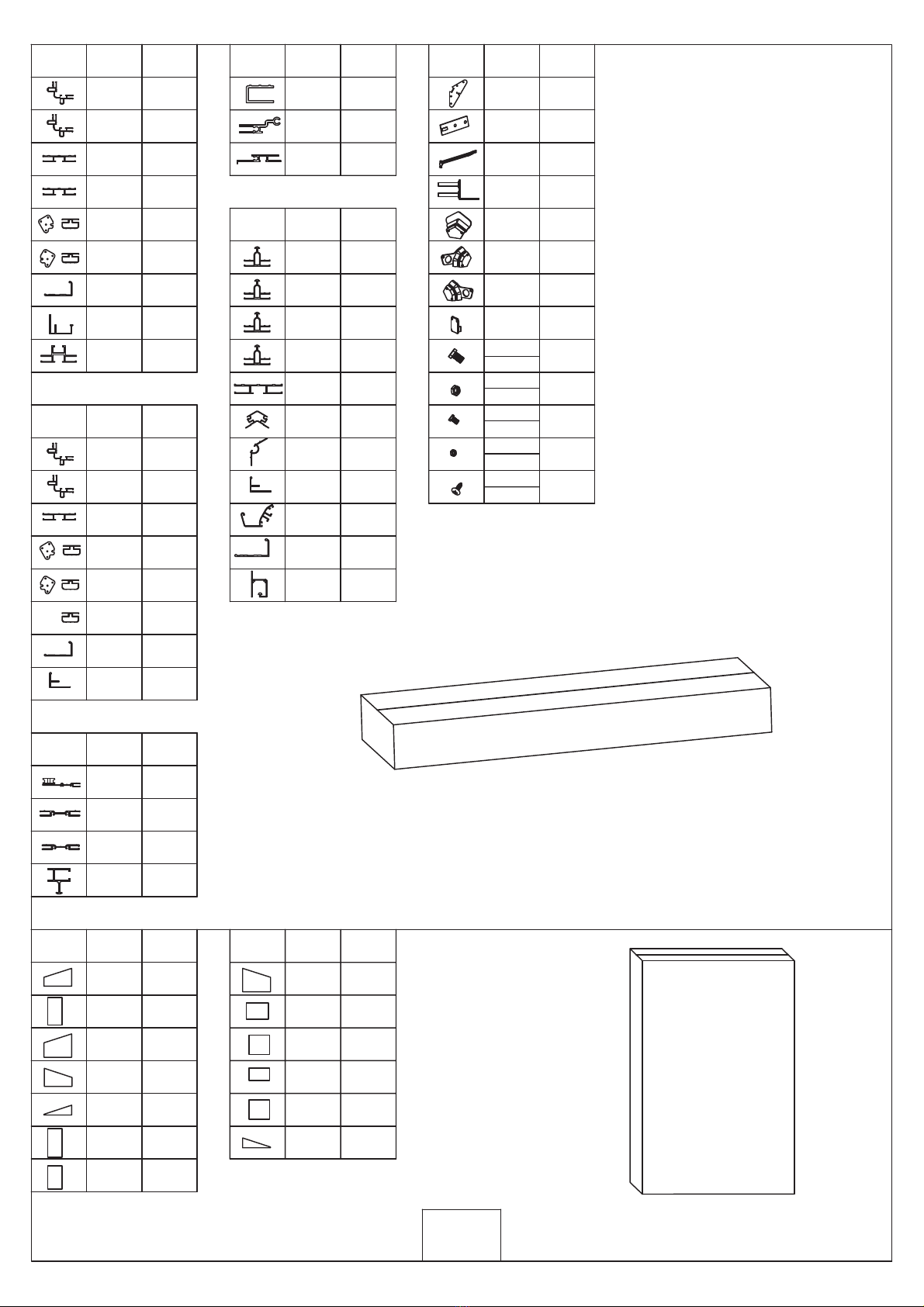

PART NO QTY

L08A

PART NO QTY

L07

L02A

L12A 4

L06

L02B

L02C

L03B

L09

J01

J02L

J02R

J03

L14

PART NO QTY

W06

W04

W08

M6X10

S01 48+2

M01 48+2

M4X10

S02 2

M4.2X16

Z01

M4X10

M02 2

182+10

PART NO QTY PART NO QTY

L19

L21

L20

L15

L17

L16

L18

Y10

Y11

Y12

L03C

1L04C

L02D

Y13 1

PC/Glass

L21

L19

L20

L19

4*Z01 Y10

2*S02

W06

L21

PART NO QTY

M4.2X16

Z01

L19

L21 1

L20

W06

Y10

M4X10

S02 2

M02 2

Vent Assembly

Slide 2 bolts (S02) into the bolt channel (L21)

and fix the handle (W06) in the middle

L18

L16

L17

L15

16*Z01

PART NO QTY

M4.2X16

Z01

Y12

Y11

Y12

Z01

L15

L17 4

L16

L18

Y11 4

Y12

Z01

Door Assembly

L01A

L10

L04A L04B L01A

L01A

L10

L04A L04B

L01A

PART NO QTY

L01A 1

L10 4

M4.2X16

Z01

L04A 1L04B

L10

L01A

L10

L01A

L04A

L04B

L01A

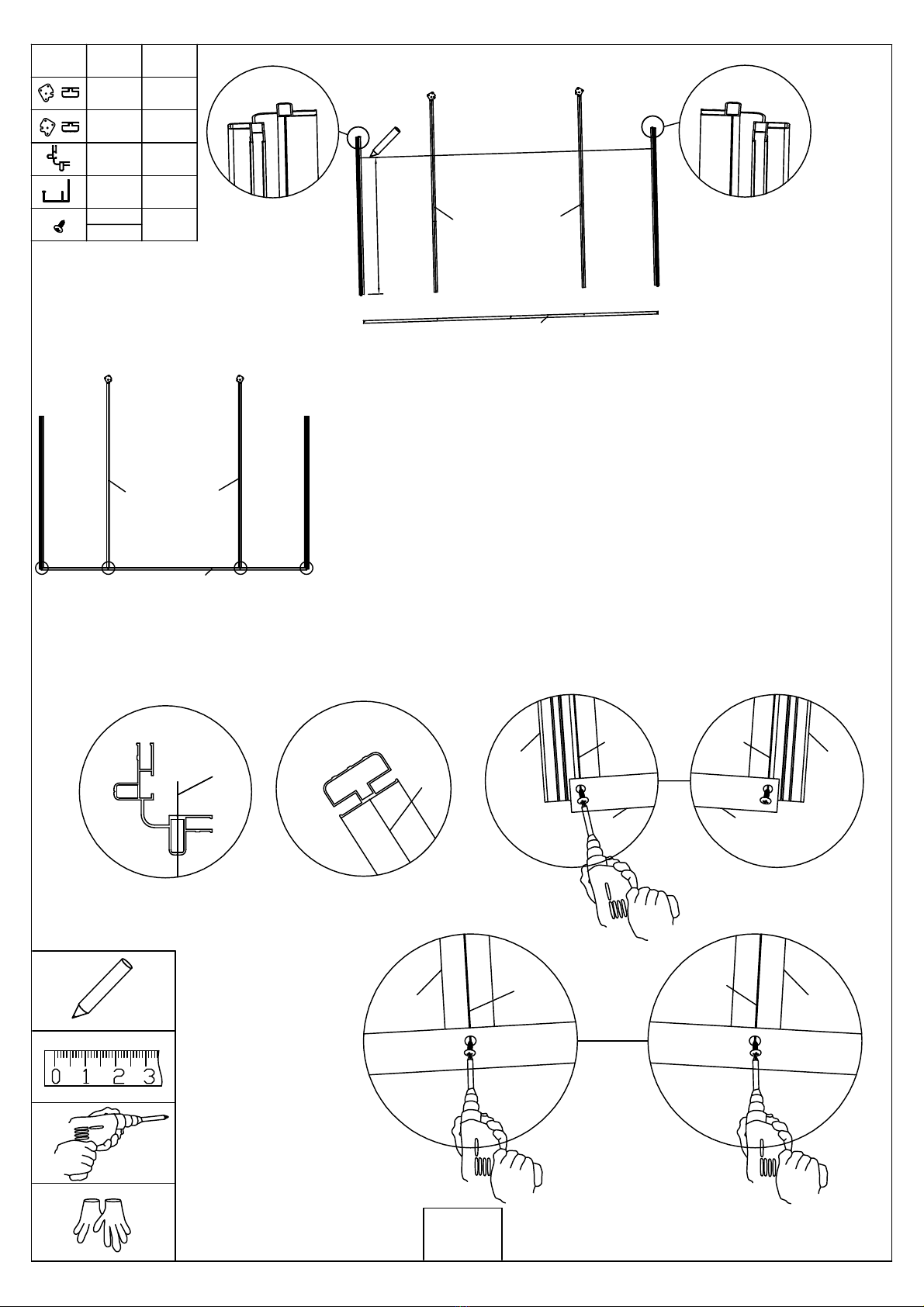

1. Lay out the glazing bars (2 x L01A, L04A and L04B) and the

cill (L10). Ensure that the cill upstand is on the inside

and that L01A is the correct way round.

2. Make a pencil mark on the glazing bars (2 x L01A, L04A and

L04B) at a height of 1059mm from the bottom. This will help

later when fitting part L05B.

3. Fix the glazing bars (2 x L01A, L04A and L04B) to the cill

(L10) with the self-tapping screws (Z01) using a powered

screwdriver. The inside of the glazing bars feature guide

lines which indicate the correct screw positions (see detail

drawings below). Be careful to ensure that the screws are

in the correct position (see detail drawings below).

Screw

position Screw

position

Screw

position Screw

position

Screw

position Screw

position

1059MM
