Dancover B788 Bedienungsanleitung

2,7x5,1x2,3m

Garage tent

Manual

21-04-2015-QJ

Safety Advice

Attention

In some countries approval is needed to set up a marquee/tent larger than 75 m2. It is

your responsibility to comply with local rules and regulations and to ensure that the

marquee/tent is assembled correctly.

In case of bad weather conditions, it is your responsibility to ensure the marquee/tent is

safely secured and that the marquee/tent does not cause damage to others.

close to the tent.

The marquee/tent must be safely secured. We recommend you secure your marquee/tent

with straps and pegs as soon as it is assembled.

Make sure to check if the marquee/tent is covered by your home contents

insurance.

Marquees/tents must be evacuated under extreme weather conditions.

In the event of snow always remove snow from the roof of the marquee/tent regularly to

prevent snow from building on the roof as heavy snow can cause the marquee/tent to

collapse.

In the event of rain there is a risk of rain puddles building up on top of the roof of the

marquee/tent. Heavy rain puddles can cause the roof to collapse. It is your responsibility

to ensure rain puddles do not build up. As a precaution, make sure the roof of the

marquee/tent is stretched out properly and adequately over the side frames of the

marquee/tent and remove rain water regularly.

Do not unpack or repack your marquee/tent in freezing temperatures. In case of

temperatures below zero always unpack and repack your marquee/tent indoors to avoid

the risk of cracking parts.

The marquee/tent must be totally dry before you repack and store it to avoid mildew.

Warranty Information

Please visit dancovershop.com for information on warranty.

Maintenance: You must regularly check and retighten all assembly points of your storage shelter

or garage tent. It is especially important to retighten the roof cover 1 month after having erected

your shelter or tent. The roof cover of your shelter or tent must always be tensioned to withstand

wind and weather.

Please always check our website for the latest safety advice and manuall.

Packing List of Model B788 (2.7*5.1*2.3M）

Part

Code

Description Quantity Box

1Top roof curved tube

2 Roof curved tube

3Sidewall tube

3A Sidewall tube at front and rear

4 Roof purlin an horizontal tube

4A Roof purlin and horizontal

tube

Cross bar

6Wind brace

Wind brace

support tube

6A Tube slip for

standing support tube

7 Tension at the bottom of the

tube

2sets

7A At the bottom end tighten

tube

8 Stake peg

21-04-2015-QJ

8A Tube clip

9 M6 * 65 ball stud

10 M6*40 hex bolt

11 M6*25 hex bolt

12 M6*40 hex bolt

13 Plastic cap for tensioning tube

14 Lace rope for roof cover front

cover rear cover

40m

15 S hook

16 The S hook rope of the door

17 Roof cover

18 Door cover

19 Back cover

21-04-2015-QJ

7A 7A

6A 5

4/4A

3/3A

/5A

part 11

(part 9)

Step #4--POSITION ROOF COVER

As figure 8shows, when ready to install Roof Cover, unpack cover and lay parallel to building

frame on one side. Cover must be pulled over top of frame assembly without being snagged or

stressed on any frame parts. Use multiple ropes over top of frame as shown in picture below.

Having another person inside frame on a ladder to assist in getting Roof Cover over frame will

insure the cover will go on without any damage.

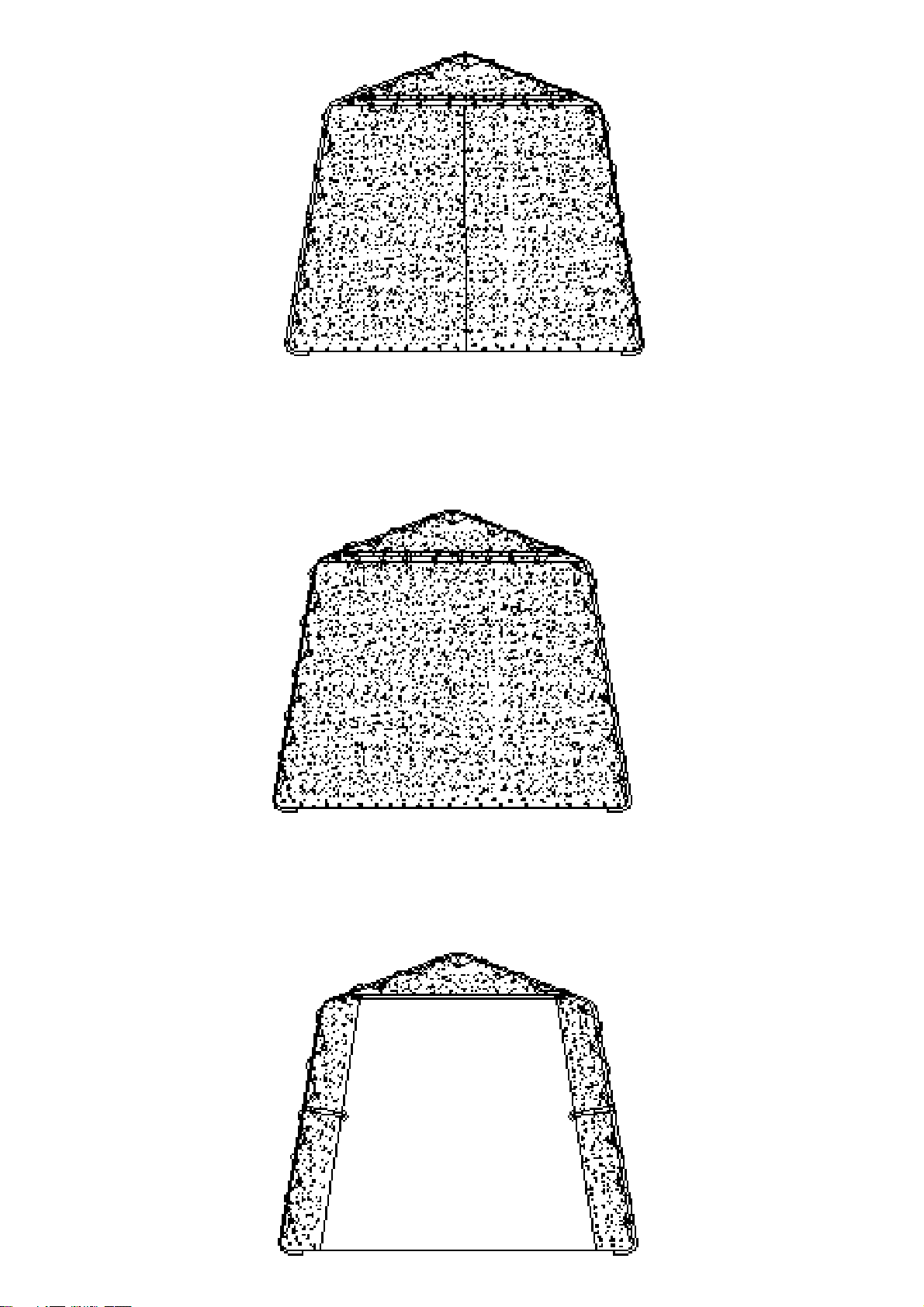

Figure 7 Hang Door

cover with S-hooks on

part 5. Close the door

with the zipper.

Fasten the door and

the roof cover to the

frame.

Figure 9 open door cover

Use part 16 to keep

door open

Figure 8 Fasten the

endwall and the roof

cover to the frame.

Use rope (part 14)
