Danfoss ERC 214 Bedienungsanleitung

Installation Guide

ERC 214

Digital controller for refrigeration and defrost, 4 relays.

| 2 DKRCE.PI.RL0.H7.MLInstallation Guide | ERC 214

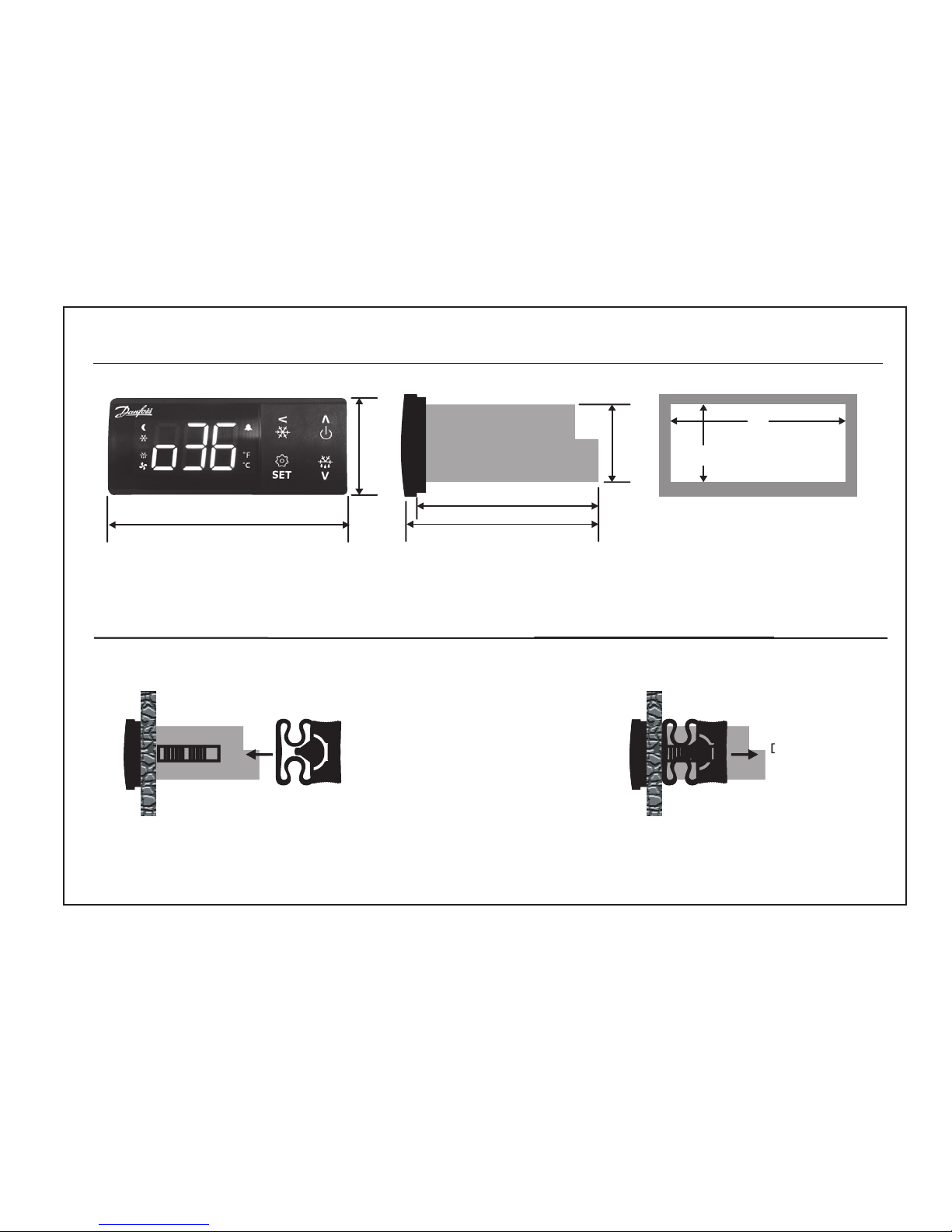

Dimensions (mm) and Mounting

83 66

Rear mounting (lock with clips)

Drilling template

Mounting Dismounting

61.2

| 3DKRCE.PI.RL0.H7.ML Installation Guide | ERC 214

Electrical Connections

DO1

SairS5Sc/DI

DO2 DO3 DO4

3L 4N 567891011121

~~~~

Sair

DI1

DI2

DO4

DO2

DO3

DO1

Power supply

(according to the product code number)

Connectors:

Max. Torque = 0.4 Nm

Quick programming tool: EKA 183B

| 4 DKRCE.PI.RL0.H7.MLInstallation Guide | ERC 214

ENGLISH

1 - Technical Highlights

yEase of use: Four buttons, easy menu structure, pre-installed application solutions ensure superior usability.

ySimple installation:

High Eﬀect 16 A relay enable direct connection of heavy loads without use of intermediate relay: up to 2 hp

compressors depending on its power factor and motor eﬃciency (greater than 0.65 for 230 V and greater than 0.85

for 115 V).

A wide range of compatible types of sensors and screw connection terminals ensure highly ﬂexible installation.

yUnit protection: Special software features like compressor protection from ﬂuctuation in the power supply or from

high condensing temperature ensure the safe operation of the unit.

yEnergy eﬃciency: Defrost on demand, day/night mode and smart evaporator fan management ensure energy

eﬃciency.

The ERC 214 is a smart, multipurpose integrated refrigeration controller with temperature and defrost

management, available with 4 relays.

This controller is for Operating temperature sensing control, suitable for refrigeration and heating

applications.

Incorporated control has been designed to fulﬁl today’s requirements for commercial refrigeration

applications.

| 5DKRCE.PI.RL0.H7.ML Installation Guide | ERC 214

2 - User Interface

Press for one second: BACK

Press and hold: PULL-DOWN

Press for one second: UP

Press and hold: ON/OFF

Press for one second:

TEMPERATURE SETPOINT/OK

Press and hold: MENU

Press for one second: DOWN

Press and hold: DEFROST

Key Function

Press and hold at power up:

FACTORY RESET

(“FAC”is displayed)

Display Icons

Night mode

(Energy saving) Fan running Defrost

Compressor running

Flashes in pull-down mode Active alarm Unit (°C or °F)

ENGLISH

| 6 DKRCE.PI.RL0.H7.MLInstallation Guide | ERC 214

3 - Quick Conﬁguration at Power Up

ySTEP 1: Power on

ySTEP 2: Select the quick conﬁguration menu

Within 30 seconds of power on, press “<”BACK for 3 seconds.

The main switch“r12”is automatically set to OFF.

ySTEP 3: Select pre-installed application “o61”

The display automatically shows the application selection parameter“o61”.

Press SET to select the pre-installed application.

The display shows the default value (eg. “AP0” ﬂashing).

Choose the application type by pressing UP/DOWN and press SET to conﬁrm.

The controller presets parameter values according to the selected application and does not hide relevant parameters.

Tip: you can easily move from AP0 to AP6, and thus select the simpliﬁed list of parameters, by pressing the UP key

(circular list).

App Description

App 0 None (no preset application)

App 1Medium temperature (2 – 6 °C), ventilated ref. units with timed natural defrost

App 2Medium temperature (0 – 4 °C), ventilated ref. units with timed electrical defrost

App 3Low temperature (-26 – -20 °C), ventilated ref. units with timed electrical defrost

App 4Medium temperature (0 – 4 °C), ventilated ref. units with electrical defrost (by temperature)

App 5Low temperature (-26 – -20 °C), ventilated ref. units with electrical defrost (by temperature)

App 6 None (no preset application) with simpliﬁed parameter list

ENGLISH

| 7DKRCE.PI.RL0.H7.ML Installation Guide | ERC 214

Quick Conﬁguration at Power Up

ySTEP 4: Select sensor type“o06”

The display automatically shows sensor selection parameter“o06”.

Press SET to select the sensor type.

The display shows the default value (eg. “n10”ﬂashing).

Choose sensor type by pressing UP/DOWN (n5=NTC 5 K, n10=NTC 10 K, Ptc=PTC, Pt1=Pt1000) and press SET to

conﬁrm.

NOTE: All sensors must be the same type.

ySTEP 5: Conﬁgure DO4 output“o36”

The display automatically shows the“o36” parameter to conﬁgure“DO4”output.

Select light (“Lig”) or alarm (“ALA”) as per the application and press SET to conﬁrm.

The display returns to normal display mode and the control is started.

ENGLISH

| 8 DKRCE.PI.RL0.H7.MLInstallation Guide | ERC 214

4 - Menu structure

1) Parameter groups

2) Parameter name

Scroll through the

parameter groups

SET: press for 3 seconds to access

status, setup and service

Password (if enabled)

Status input

Conﬁguration

Main switch

Application

Sensor type

DO4 conﬁguration

SET

Scroll through the

parameter names

SET

3) Value

Application 0

Application

6-5-4-3-2-1

Application

1-2-3-4-5-6

ENGLISH

| 9DKRCE.PI.RL0.H7.ML Installation Guide | ERC 214

5 - Quick Conﬁguration via “cFg” Menu

yPress SET for three seconds to access the parameters groups.

ySelect “CFg” menu and press SET to enter. The ﬁrst menu“r12”(main switch) is displayed.

ySwitch OFF main switch (r12=0) for changing the pre-installed application.

yPress UP/DOWN to scroll through the parameter list.

yConﬁgure the “o61”parameter to select a pre-installed application:

- Press SET to access the “o61” parameter.

- Press UP/DOWN to select an application (AP0= no application selected).

- Press SET to conﬁrm, “o61”is displayed.

yContinue to set the next parameters (“o06”sensor type and “o36” DO4 conﬁguration) in the “cFg”menu.

ENGLISH

| 10 DKRCE.PI.RL0.H7.MLInstallation Guide | ERC 214

6 - Basic operation

Initiate a manual defrost

Adjust the setpoint temperature

DEFROST: press for 3 seconds to initiate a defsost.

The DEFROST icon is shown during defrost.

DEFROST: press for 3 seconds to stop manual defrost.

(short press) SET: adjust setpoint temperature.

UP/DOWN: change the temperature setpoint

(in setting mode the setpoint ﬂashes).

SET: save the temperature setpoint.

ENGLISH
