Dante DLH4200B Bedienungsanleitung
DLH4200B
Matrix Switcher
Installation and Operations Manual
Model Number: DLH4200B
Description: Enclosure Style
Matri Video Switcher
TABLE OF CONTENTS
IMPORTANT SAFEGUARDS AND WARNINGS ...........................................................5
DESCRIPTION...................................................................................................6
MODELS ..........................................................................................................9
INSTALLATION................................................................................................ 10

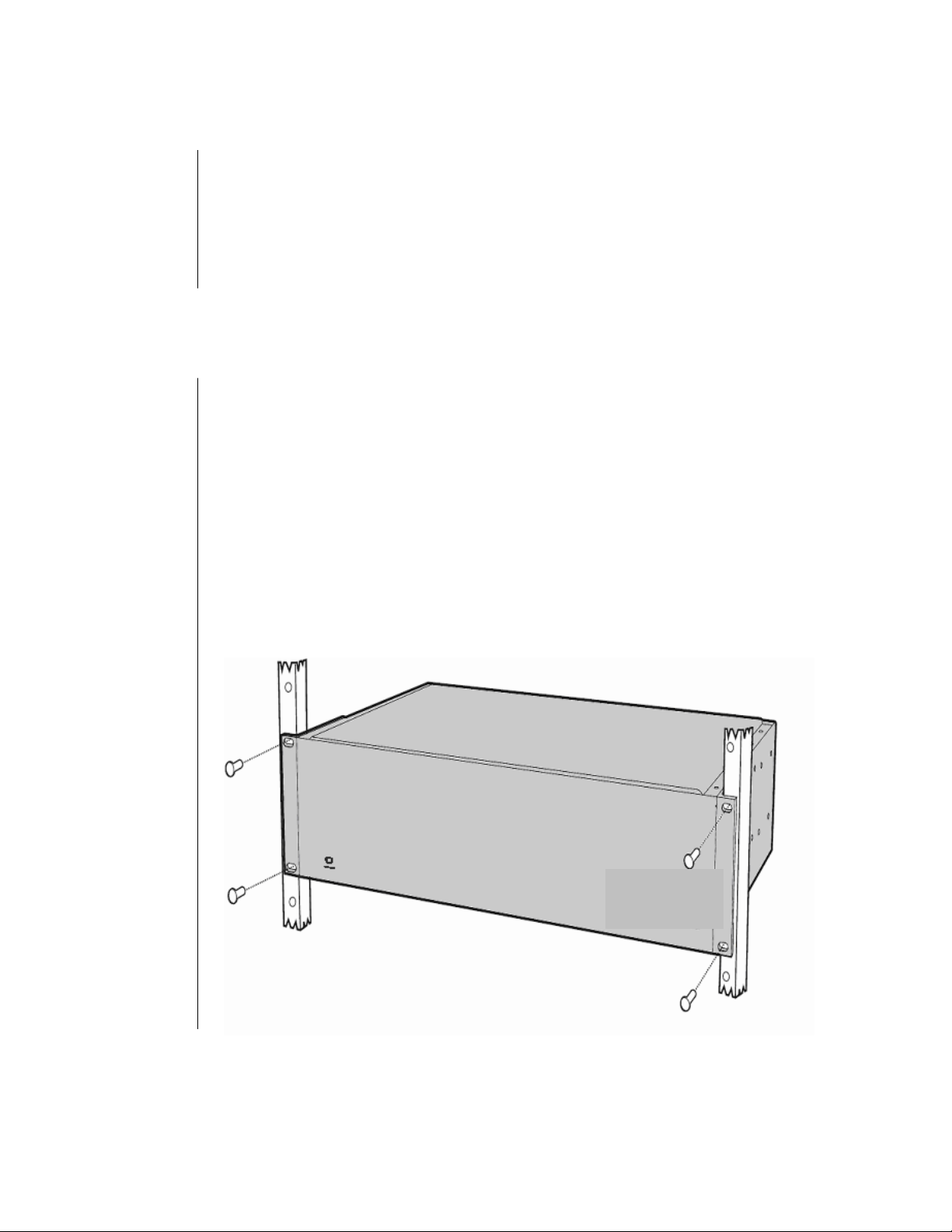

MOUNTING .............................................................................................10
AUDIO VIDEO SOURCES .........................................................................11
CONTROL LINES ......................................................................................13
MONITORS..............................................................................................14
CONNECTING A SINGLE RELAY INTERFACE UNIT......................................15
ALARMS ..................................................................................................16
CONNECTING DEVICES THROUGH THE COMMUNICATION PORTS ..............17
KEYBOARDS ............................................................................................20
SYSTEM START-UP .......................................................................................... 21
POWER-UP THE SYSTEM ..........................................................................21
INITIALIZE KEYBOARDS..........................................................................21
CONFIGURE THE SYSTEM.........................................................................22
Time and date ................................................................................ 22
Camera titles.................................................................................. 22
Monitor titles .................................................................................. 22
PTZ............................................................................................... 22
ALARM .......................................................................................... 22
PORT............................................................................................. 22
PROGRAMMING THE DLH4200B SERIES .............................................................. 23
PROGRAMMING FROM THE KEYBOARDS ...................................................24
DLH4200B SERIES PROGRAMMING MODE ................................................25
EXIT PROGRAMMING MODE .....................................................................26
NAVIGATE AND SELECT OPTIONS FIELD ENTRIES IN PROGRAMMING MODE
..............................................................................................................26
CAMERA PROGRAMMING .........................................................................27
PORT PROGRAMMING..............................................................................30
MONITOR PROGRAMMING .......................................................................32
PRIORITY ...............................................................................................33
ALARM ....................................................................................................34
ACCESS...................................................................................................36
SEQUENCE ..............................................................................................37
DISPLAY .................................................................................................38
TIME & DATE .................................................................................................. 39
PASSWORD .............................................................................................40
SYSTEM ..................................................................................................41
ETHERNET...............................................................................................42
WATCH ...................................................................................................43
ABOUT ....................................................................................................44
OPERATING THE DLH4200B SERIES ................................................................... 45
◆
◆◆
◆ INSTALL THE DLH4200B SERIES ..........................................................45
◆
◆◆
◆ SWITCH MONITORS.............................................................................45
◆
◆◆
◆ SELECT CAMERAS ................................................................................45
◆
◆◆
◆ SELECT Audio Input .............................................................................45
◆
◆◆
◆ CREATE AND RUN A PRESET .................................................................45
◇Create a Preset ............................................................................ 45
◇Run a Preset................................................................................ 45
◆
◆◆
◆ PTZ CONTROL......................................................................................46
◆
◆◆
◆ CREATE AND RUN A PATTERN ..............................................................46
◇ Create a Pattern .......................................................................... 46
◇Run a Pattern............................................................................... 46
◆
◆◆
◆ OPERATE AUXILIARIES RELAYS ..........................................................47
◆
◆◆
◆ OPERATE SEQUENCES ..........................................................................48
◆
◆◆
◆ ACKNOWLEDGE AN ALARM...................................................................50
◆
◆◆
◆ KEYBOARD OFF LINE ...........................................................................51
MATRIX NETWORK SYSTEM............................................................................... 52
LINK METHOD ................................................................................ 52
SYSTEM SETTING ....................................................................................53
APPENDIX A ................................................................................................... 55
2000 SERIES MATRIX IS THE SATELLITE MATRIX OF THE PELCO SYSTEM
MATRIX TO CONNECT THE SETUP.............................................................55
LINK METHOD .........................................................................................55
SYSTEM SETTING ....................................................................................56
DLH4200B SERIES matri parameter setup ......................................... 56
CM97XX matri parameter setup ....................................................... 57
CONNECTING DEVICES THROUGH THE COMMUNICATION PORTS ..............61
DLH4200B SERIES Matri RJ45 Communication Port Inputs .................... 61
PELCO-CM97XX-CC1 RJ45 Communication Port Inputs........................... 62
APPENDIX B ................................................................................................... 63
CONNECTING MV96e MULTIPLEXERS .......................................................63
LINK METHOD ................................................................................ 63
SETTING THE MUTEX COMMUNICATE PORT.......................................... 63
OPERATING THE MV96e.................................................................... 64
APPENDIX C ................................................................................................... 65
The Ethernet Communication Module .......................................................65
1. IP address setup in Matri ............................................................. 65
2. WEB Browser .............................................................................. 66
3. DEVICE MANAGEMENT SOFTWARE ................................................. 71
4. Data Station Monitor .................................................................... 72
5. Matri Networking Control........................................................... 733
Updated version of Manual with Manchester Control code………………..….74
Manchester Code Communication……………………………………………………………………………………..75
Control Description…………………………………………………………………..………………………………………..76
APPENDIX D ................................................................................................... 74
DLH4200B SERIES DIP SWITCHES ...........................................................76
TROUBLESHOOTING ................................................................................76
GAINING INITIAL CONTROL .............................................................. 77
SOFTWARE RESET........................................................................... 77
ASCII CHARACTER........................................................................................... 77
SPECIFICATIONS.............................................................................................79
GENERAL ................................................................................................79
ELECTRICAL ............................................................................................79
AUDIO VIDEO.........................................................................................79
MECHANICAL ..........................................................................................79
IMPORTANT SAFEGUARDS AND WARNINGS
1. Read, keep, and follow these instructions.
2. Heed all warnings.
3. There are no user-serviceable parts inside this unit. Only authorized service
personnel may open the unit.
4. Installation and servicing should only be done by qualified service personnel
and conform to all local codes.
5. WARNING: To reduce the risk of fire or electric shock, do not e pose this
unit to rain or moisture if this unit is designed for indoor use only.
6. Unless this unit is specifically marked as a NEMA Type 3, 3R, 3S, 4, 4X, 6 or
6P enclosure, it is designed for indoor use only and it must not be installed
where e posed to rain or moisture.
7. Do not e pose this unit to dripping or splashing. Do not place objects filled
with liquids, such as vases, on this unit.
8. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
9. The installation method and materials should be capable of supporting four
times the weight of the unit and equipment.
10. Do not install near any heat source.
11. Only use attachments/accessories specified by the manufacturer.
12. Clean only with dry cloth.
13. Do not defeat the safety purpose of the polarized or grounding-type plug.
14. Protect the power cord from being walked on or pinched, particularly at
plugs, convenience receptacles, and the point where they e it from the unit.
15. Unplug this unit during lightning storms or when unused for long periods of
time.
The product and or manual may bear the following marks:
This symbol indicates that dangerous voltage constituting a risk of
electric shock is present within unit.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this unit.
Please thoroughly familiarize yourself with the information in this manual
prior to installation and operation.
FOR QUALIFIED SERVICE PERSONNEL ONLY
1. Only use replacement parts recommended by the manufacturer.
2. After replacement/repair of this unit’s electrical components, conduct a
resistance measurement between line and e posed parts to verify the
e posed parts have not been connected to line circuitry.
3. CAUTION: Danger of e plosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Battery should only be replaced by authorized service personnel.
6
DESCRIPTION
DLH4200B SERIES Matri Switcher/Controller is a cross-point Audio/video
matri switcher. The DLH4200B SERIES provides switching and control for 48
Audio/video inputs and 16 Audio/video outputs from any one of up to 16
keyboards, and other devices.
The DLH4200B SERIES features easy programming through on-screen menus. All
programming is password-protected.

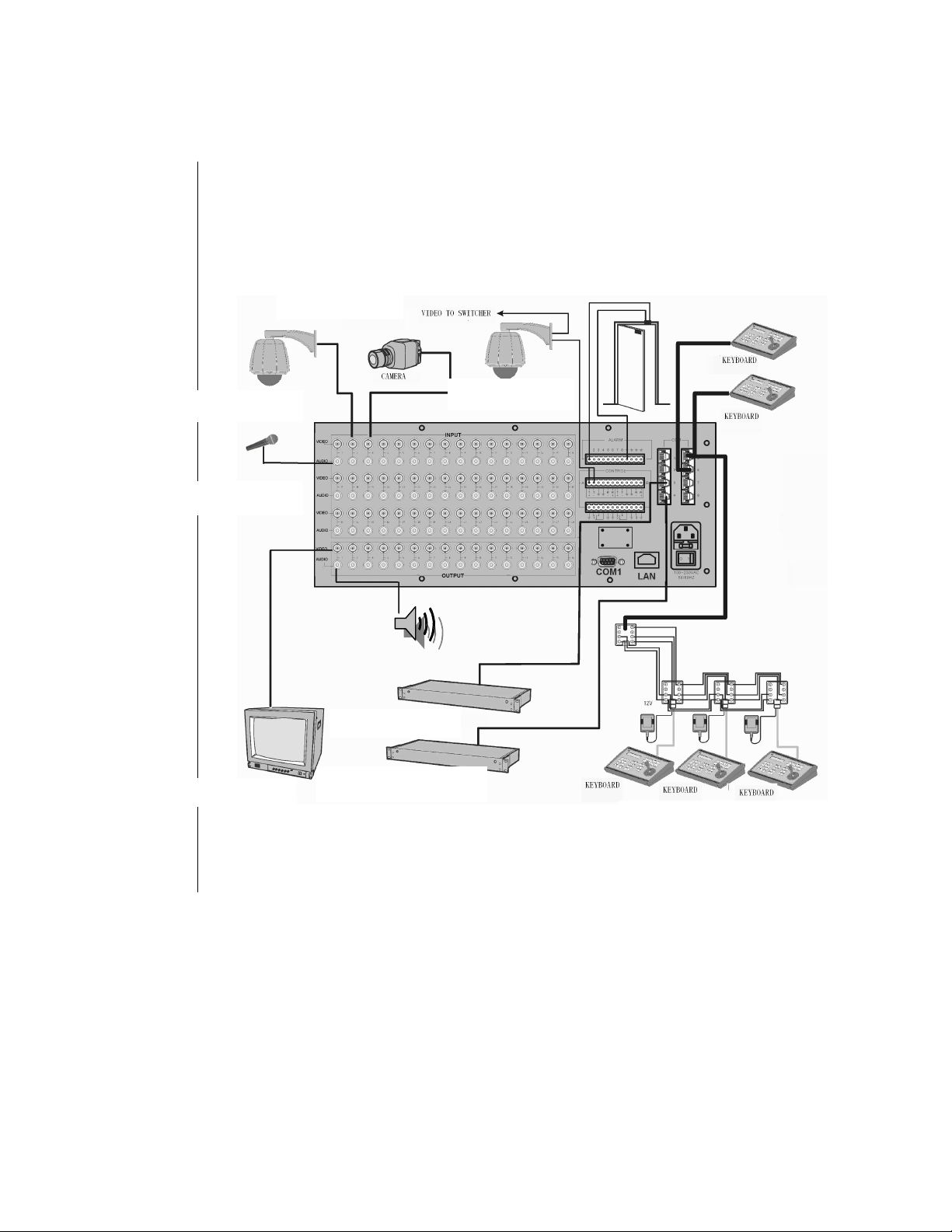

Figure 1. Sample DLH4200B SERIES System
DLS1125 Camera
DLS1972 PTZ Dome
DLS1972 PTZ Dome
DLH4200B48x16A Switcher
DLH6220 Monitors
DLH6630 Alarm Relay
DLH63300 Keyboards
DLH6620 Alarm Interface
7
Keyboards
Up to 16 keyboards can be connected to the DLH4200B SERIES. Camera
positioning can be programmed and controlled from keyboards. Refer to
Associated Equipment for keyboard descriptions.
Sequences, Presets, Patterns,
All programming is password-protected.
A preset allows operators to direct a PTZ (camera positioning system) to move to
a predetermined scene on keyboard command or as a result of an alarm. In
addition, a preset can place a descriptive title on the monitor screen. The number
of presets available is determined by the camera positioning system.
With a pattern operators can program a camera positioning system to move around
its viewing area in a repeating pattern. The number and length of patterns varies
with different positioning systems.
System Access and Priority
The DLH4200B SERIES provides eight levels of priority control. Each level defines
the ability of a keyboard to control a camera positioning system and to access
programming screens.
NOTE: PTZ is a camera positioning system with pan, tilt, and zoom capabilities.
8
Alarm Inputs
Eight internal alarm inputs are provided on the rear panel of the matri
switcher/controller. These internal alarm inputs are programmable to associate
any camera to any input. A DLH4200B SERIES system provides 8 internal alarm
inputs and 128 e ternal alarm inputs.
Auxiliary Outputs
Two internal au iliary outputs are provided on the back of the DLH4200B SERIES.
They are relay outputs,
You can connect up to two Relay Interface Units to the DLH4200B SERIES.
Power, Mounting Methods
The DLH4200B SERIES operates on 120VAC (NTSC) 60Hz or 230VAC (PAL) 50Hz.
The case mounts in 4U of vertical space in a universal mount, or to a wall or
tabletop.
Continuous Operating Device
The DLH4200B SERIES is a self-contained audio/video surveillance system
designed for continuous duty operation. Once installed, no user or service
technician items require the power to be turned off under normal operation.
Direct menu control and indirect control, the communication ports use standard
low voltage interfaces (RS-232, RS-422 and RS-485), and all connections and
disconnections do not require rebooting or power cycling. Audio/Video connections
or changes of termination state do not require rebooting or power cycling.
9
MODELS
DLH4200B SERIES Matri switcher/controller with up to 48 audio/video
inputs and 16 audio/video outputs, 120VAC; 230VAC,
50/60Hz。
ASSOCIATED EQUIPMENT
DLH6330 Desktop keyboard, with full switching and programming
capabilities, 12VDC or 12VAC 50/60 Hz.
DLH6620 Alarm interface unit, provides alarm monitoring capabilities
for up to 64 alarm inputs, 100-240 VAC, 50/60 Hz
DLH6630 Relay interface unit, provides 64 relays for operating
peripheral equipment, 100-240 VAC, 50/60 Hz
DLH6300 Wiring kit for connecting keyboards to remote keyboard port;
includes two port and a transformer for keyboard power.
10
INSTALLATION
NOTE: There are no user-serviceable parts inside this unit. Only authorized
service personnel may open the unit.
Unpack and inspect all parts carefully. The following parts are supplied:
1 DLH4200B SERIES Switcher/Controller
2. Power cord
3. 5m straight data cables with RJ-45 connectors.
MOUNTING
1 Select a suitable location for the DLH4200B SERIES. Mount the DLH4200B
SERIES in a standard equipment rack. Follow proper installation practices
and leave 1 RU above and below the DLH4200B SERIES for ventilation. Do
not connect the power until the installation is complete. Refer to the System
Start-Up section.
2. The DLH4200B SERIES is shipped with the rack ears installed at the front.
Reposition or remove ears as needed for your application.
3. Use supplied pan head screws and washers to mount the DLH4200B SERIES
in a standard equipment rack or wood or sheet metal screws to mount against
a flat surface, according to your installation requirements.
Figure 2. Mounting the DLH4200B SERIES Matri Switcher/Controller
Inhaltsverzeichnis
Andere Dante Matrix-Umschalter Handbücher
