Datalogic JOYA X2 Single Slot Dock Bedienungsanleitung

X2 Single Slot Dock

The Joya Single Slot Dock paired with one Joya X2 mobile computer builds a reading

system for the collection, decoding and transmission of barcoded data.

Figure 1 - Joya X2 Single Slot Dock

MOBILE COMPUTER INSERTION/ REMOVAL

Figure 2 - Joya X2 Battery Charging

A. LED Indicator

B. Mobile Computer Contacts

C. Power Jack

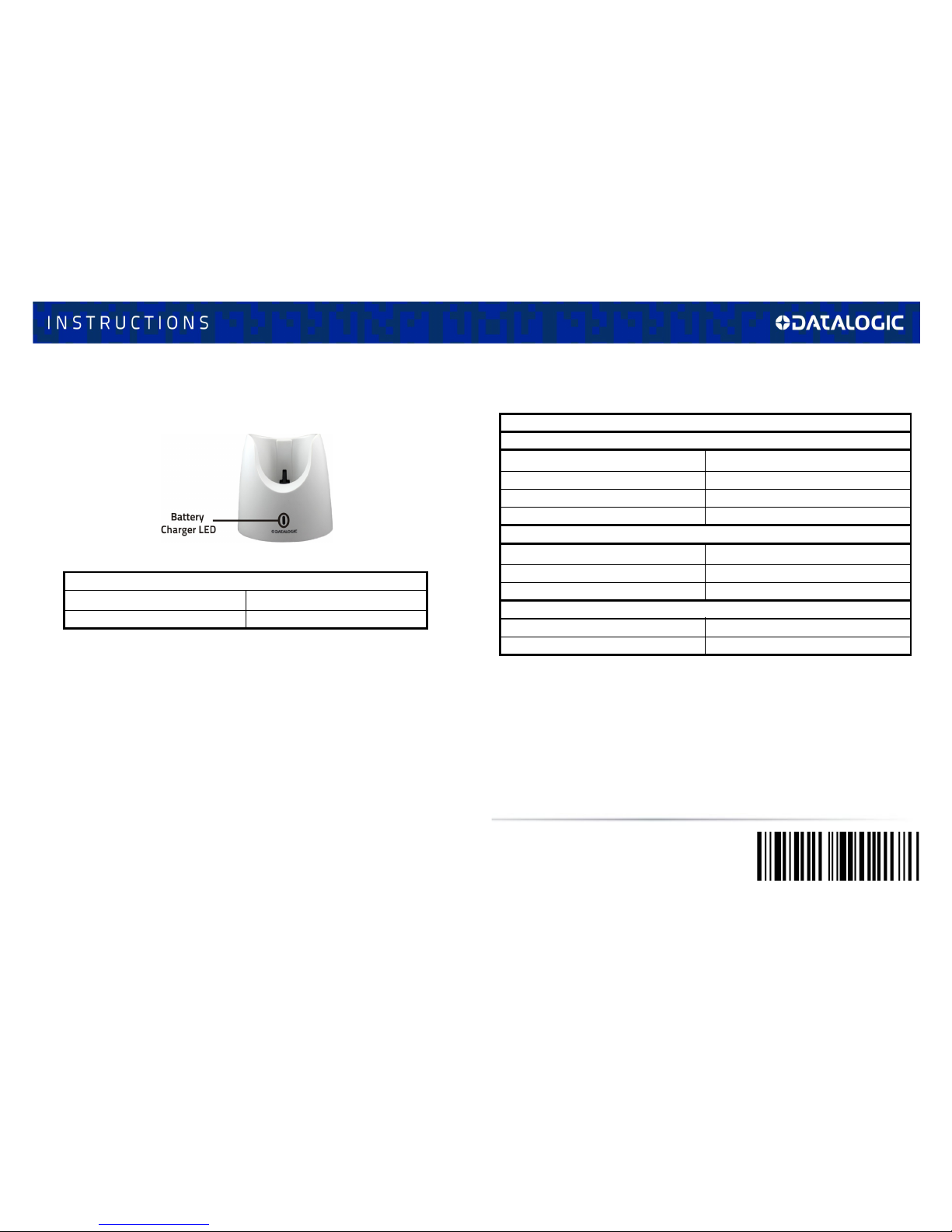

LED INDICATOR

The LED positioned on the front part of the Joya X2 Single Slot Dock indicates the dock

battery charger status.

Figure 3 - LED Indicator

TECHNICAL FEATURES

LED STATUS

Red costant Battery charging1

1. During charging, the LED may turn off to indicate a temporary suspension of

charging.

Green costant Battery charge completed

JOYA X2 SINGLE SLOT DOCK

Electrical Features

Power Supply1

1. Recommended power supply: 94ACC1381 (included in the box). Use of any other power

supply voids all certifications and warranties.

From 5 VDC ± 5%

Consumption Max. 1.2 A

Indicator Battery charge LED (bi-colored)

Charge Time 2300 mAh Battery: max. 5 hours

Environmental Features

Working Temperature2

2. Battery must be charged at a temperature ranging from 0° to +30 °C (+32° to +86 °F).

0° to +40 °C (+32° to +104 °F)

Storage Temperature -20° to +70 °C (-4° to +158 °F)

Humidity 90% non condensing

Mechanical Features

DImensions 107 X 92 X 108 mm (4.21 X 3.62 X 4.25 in)

Weight 320 g (11.29 oz)

©2015 Datalogic ADC S.r.l. • ALL RIGHTS RESERVED. •

Datalogic and the Datalogic logo are registered trademarks of

Datalogic S.p.A. in many countries, including the U.S.A. and the E.U.

Joya is a trademark of Datalogic ADC S.r.l. and the Joya logo is a

registered trademark of Datalogic ADC S.r.l. in the U.S.A. and the

E.U.

www.datalogic.com 822001781 (Rev A) Marc 2015
