Datamax H Class Bedienungsanleitung

92-2424-01 Rev. A

Present Sensor Option

Installation Instructions

Datamax Corporate Headquarters

4501 Parkway Commerce Boulevard

Orlando, Florida USA 32808

Phone (407) 578-8007

Fax (407) 578-8377

customercare@datamaxcorp.com

Datamax International

Phone +44 1279 772200

rbyrne@datamaxcorp.com

Datamax Latin America

Phone (407) 523-5520

tdelgado@datamaxcorp.com

Datamax Asia Pacific

Phone +65-6542-2611

datamax@pacific.net.sg

Datamax China

Phone +86-21-64952882

datamax_cn@china.com

Overview

This document describes the contents, installation, and use of the Present Sensor option for the H-Class

printer. After verifying the contents of the kit, follow the steps below to install and begin using the option.

A maintenance procedure is also included, so keep this documentation for future reference.

CAUTION

For your safety and to avoid equipment damage, always turn ‘Off’ power and unplug the

printer’s power cord before beginning this installation and when performing service.

Contents of the Present Sensor Option (DPO78-2619-01)

This kit contains the following item:

 Present Sensor Assembly (P/N 15-3106-01)

Step 1: Preparing the Printer

A) Turn ‘Off’ the Power Switch and unplug the

power cord from the AC Receptacle.

AC Receptacle

Power Switch

B) Press down on the Catch, then pull forward to

remove the Door.

Door

Catch

C) Raise the Access Cover and remove your

media from the printer.

D) Loosen and remove the Thumbscrew and

then remove the Tear Plate. (Alternately, if

equipped with an Arc Plate, Cutter, or Peel and

Present option, remove that device.)

Tear Plate

Thumbscrew

Access

Cover

Step 2: Installing the Present Sensor

A) Carefully press the Present Sensor Assembly

into the Front Plate Connector.

B) Secure the Present Sensor Assembly to the

printer using the previously removed

Thumbscrew.

Front Plate

Connector

Thumbscrew

Present Sensor

Assembly

C) Place the Tabs of the Door into the Base

Plate,and then press the Catch into the

Present Sensor Assembly.

Tabs

Door

Catch

Base Plate

Present Sensor

Assembly

Step 3: Using the Option

During operation, labels will be dispensed “on-demand” – that is, subsequent printing will occur only after a

previously printed label has been removed from the printer. As a reminder, “REMOVE LABEL” will be

displayed to prompt you when a label awaits removal. Begin using the option as follows:

A) Load media and close the Access Cover (see the Operator’s Manual for details).

B) Plug the power cord into the AC Receptacle and turn ‘On’ the Power Switch.

C) Ensure that READY is displayed on the Front Panel then press the FEED Key, and proceed

according to your observations:

 If REMOVE LABEL is displayed on the Front Panel, this completes the installation; or,

 If REMOVE LABEL is not displayed on the Front Panel, proceed to Step 4: “Configuring the

Printer.”

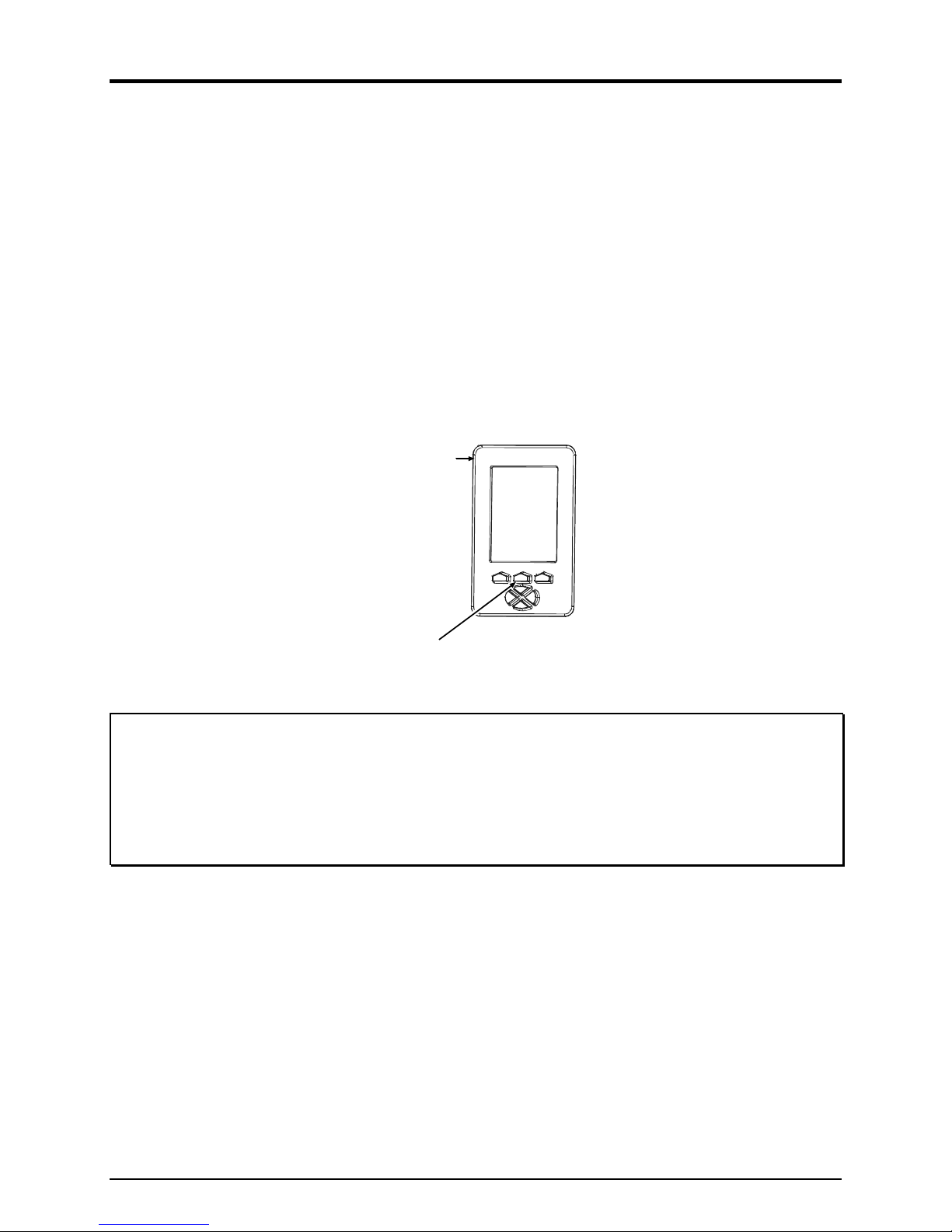

FEED

Key

Front Panel



Notes: (1) The operation of the Present Sensor can also be controlled by host software commands,

so ensure that your labeling program is properly configured for use when sending label

formats to the printer.

(2) If the Present Sensor is removed with power applied, the printer will behave as if a label

awaits removal; to restore normal operation, cycle power to the printer.

Step 4: Configuring the Printer

While the Present Sensor is a plug and play device, this step may be necessary if the printer’s default

configuration has been changed. Follow the steps below to configure the printer:



Note: In the following procedure, consult the Operator’s Manual for detailed front panel instructions.

A) Press the MENU Button on the printer’s front panel.

B) Using the DOWN Button, scroll to PRINTER OPTIONS then press the RIGHT Button.

C) Using the DOWN Button, scroll to PRESENT SENSOR then press the ENTER Key.

D) Using the DOWN Button,scroll to MODE then press the ENTER Key.

E) Using the DOWN Button,scroll to AUTO then press the ENTER Key.

F) Press the EXIT Key then, at the SAVE CHANGES? prompt, select YES to complete the installation.

G) Turn the Power Switch ‘Off’ and ‘On’ to reset the printer and complete the configuration.

Maintaining the Option

To ensure trouble free operation, the Present Sensor should be cleaned after every 100,000 inches

(254,000 cm) of media use. (To easily track label usage, go to SYSTEM SETTINGS MEDIA

COUNTERS in the printer’s menu system.)

Clean the assembly as follows:

1. Turn ‘Off’ the Power Switch and unplug the power cord from the AC Receptacle. Raise the Access

Cover and remove the media from the printer.

2. Remove the Door, the Thumbscrew and the Present Sensor Assembly from the printer.

3. Clean the Sensors on the Present Sensor Assembly using compressed air or a soft brush.

Present Sensor

Assembly

Sensors



Note: For cleaning heavy deposits, isopropyl alcohol can be used – provided it is carefully

applied using a cotton swab, and allowed to dry before reattaching the device.

4. Carefully press the Present Sensor Assembly into the Front Plate Connector and, using the

Thumbscrew, secure the assembly to the printer. Reload media, close the Access Cover, and

reinstall the Door to complete the cleaning procedure.
