1.General Description

The iPIO is a network attached, web enabled digital input and output device. The iPIO can be controlled

and monitored with a standard web browser. Multiple iPIO devices can communicate amongst

themselves to transport I/O information across the network. Each iPIO has controllable form C relays,

and digital inputs.

Each channel of the iPIO is independently configurable, allowing selection of what IP addresses to

deliver to and on what channel. Highly flexible telemetry systems can be developed with these simple

devices.

iPIO-2, iPIO-8, iPIO-16

Monitor and Control of Digital I/O

iPIO-2816_v180808n

iPIO-2816_v180808n iPIO-2, iPIO-8, iPIO-16 Users Guide Page 2

2.Table of Contents

1. General Description....................................1

2. Table of Contents........................................2

3. Model Identification and Features.............3

3.1. iPIO-2.....................................................3

3.2. iPIO-8.....................................................3

3.3. iPIO-16...................................................3

3.4. Optional Accessories..............................3

4. Hardware Installation..................................4

4.1. Inputs and Outputs.................................4

4.2. Inputs......................................................4

4.3. Relays ....................................................5

4.4. Switching Higher Current........................6

4.5. Power.....................................................6

4.6. Network ..................................................7

4.7. LED Indicators........................................7

4.8. Wall and DIN Mounting...........................8

5. Communications Options.........................11

5.1. Web Browser........................................11

5.2. Telnet ...................................................11

5.3. SNMP...................................................11

5.4. Email Notifications................................12

5.5. Dataprobe Exchange Protocol (DxP)....13

6. Web Browser Operation............................14

6.1. Operation.............................................. 14

6.2. Setup and Administration Menu Bar..... 14

7. Web Browser Setup...................................15

7.1. Device Setup........................................ 15

7.2. Network Setup...................................... 15

7.3. Email Setup.......................................... 17

7.4. SNMP Setup......................................... 17

7.5. Input Setup........................................... 18

7.6. Relay Setup.......................................... 19

7.7. Remote Setup ...................................... 19

7.8. Remote Setup Applications.................. 21

8. Web Browser Administration...................22

8.1. System Info .......................................... 22

8.2. Backup and Restore............................. 22

8.3. Factory Defaults................................... 23

8.4. Reboot.................................................. 23

9. Telnet and CLI............................................24

10. Firmware Upgrades...................................25

11. Specifications ............................................26

12. Technical Support and Warranty.............28

iPIO-2816_v180808n iPIO-2, iPIO-8, iPIO-16 Users Guide Page 3

3.Model Identification and Features

This manual covers three versions of the iPIO product family. Each model has similar features and is

functionally differentiated by the number of Inputs and Outputs each supports.

3.1. iPIO-2

Inputs

Outputs

Power:

PoE 4 WattsMax

Height

1.74”

Width

5.63”

Depth

3.03”

3.2. iPIO-8

Inputs

Outputs

Power:

A/C Power Supply

Height

1.25”

Width

5.00”

Depth

7.32”

3.3. iPIO-16

Inputs

Outputs

Power:

A/C Power Supply

Height

2.02”

Width

5.00”

Depth

7.32”

3.4. Optional Accessories

Mounting Kit

# 1920034. See Section 4.8

High Current Relay Module

# 1340076. See Section 4.4

Replacement Power Supply

# 1930085

iPIO-2816_v180808n iPIO-2, iPIO-8, iPIO-16 Users Guide Page 4

4.Hardware Installation

4.1. Inputs and Outputs

Connections to the iPIO Inputs and Outputs are made using screw terminal blocks. The screw terminal

blocks are on removable connectors for easy cable fabrication.

Make sure screw terminals are tightened securely and that there are no loose strands of cable or excessive

stripped wires.

4.2. Inputs

Connect the inputs to the iPIO using the screw terminals. Inputs can be either dry relay or switch contacts,

or a +VDC voltage (3 to 30 V), referenced to a common ground.

Screw terminals are removable for easy installation. Terminals for each circuit are marked + and G. When

connecting dry relay contacts, the polarity is not significant.

Connecting to +VDC Inputs

The iPIO is factory configured for dry contact closure inputs only. To configure for +VDC inputs, jumpers

must be removed.

Disconnect power and all cables prior to input configuration.

When connecting +VDC, connect the positive voltage to the terminal marked + and the negative or ground to

the terminal marked G.

Status DC Voltage

Open >3VDC

Closed <=0VDC

Poor Screw Terminal

Connections.

Note Loose Wires and

Excessive Stripping

Proper Screw Terminal

Connections

iPIO-2816_v180808n iPIO-2, iPIO-8, iPIO-16 Users Guide Page 5

iPIO-8 and iPIO-16

Open the iPIO by removing the screws on the

underside of the iPIO-8 and 16.

There are eight jumpers representing inputs 1-8 on

the iPIO-8 and iPIO-16. Jumpers 9-16 on the iPIO-

16 are located on the daughter board for the inputs.

An arrow indicates jumper 1 and 9. See photo:

IPIO-2

Open the iPIO-2 by removing the screws on the

side of the unit.

The jumpers are located on the lower PC board.

Remove the top board by removing the four screws

holding the top board in place and gently lifting the

top board off its headers.

The two Jumpers are shown in the photo. They are

marked 1 and 2. Replace the top board, secure it

with the four screws and replace the cover with 4

screws.

4.3. Relays

Connect to the iPIO Form C relays using the screw terminals as illustrated. Connect to the Common (C),

Normally Closed (NC) and Normally Open (NO) as marked. When the iPIO relay is in the Open Condition,

the Common is connected to the Normally Open. In the Closed state, the Common and Normally Closed are

connected.

Relay Specifications

Relay Type Form C

Rating (resistive) 0.5 A 120 VAC or 1 A 24 VDC

Maximum Carrying Current 2 A

Maximum Switching Power 60 AV, 24 W

Maximum Switching Voltage 120 VAC/60 VDC

Maximum Switching Current 1A

Life Expectancy

5 Million Operations Mechanical.

100K Operations at rated load

iPIO-2816_v180808n iPIO-2, iPIO-8, iPIO-16 Users Guide Page 6

4.4. Switching Higher Current

The ELK-912-2 (Item # 1340076) is a two relay board to

provide higher current switching for several of Dataprobe’s

remote control products. Each ELK-912-2 is two independent

relays, each with screw terminal connections. The relay

boards can be separated in to individual relays as required for

mounting.

To use the ELK-912-2 with the iPIO, connect the relay board to

the Output connections of the iPIO as shown below.

4.5. Power

The iPIO-2, iPIO-8 and iPIO-16 are provided with a power supply, item 1930085. The supply is rated for 100-

240VAC 50/60 Hz. and is supplied with a line cord for North America. For locations outside of North America,

use an appropriate power adaptor or replace the cord with a suitable cord for your location. Power Supply

connection for the linecord is standard IEC C7.

Connect the power supply to the +5VDC connection on the iPIO. An LED next to the connector indicates

power on. The iPIO requires an approximately 1 minute boot-up process.

Power Supply 1930085

Input

100-240 VAC 50-60Hz

Output

5 VDC 4A

Linecord

NEMA 1-15P to IEC C7 2 meters

iPIO-2

The iPIO-2 can also be powered with Power over Ethernet (PoE) instead of the power supply.

PoE Specifications

4 Watts Maximum @ 48VDC

ELK-912-2 to iPIO

Connection

Specifications – ELK-912-2

Operating Voltage : 12 VDC Nominal

Current Draw: 30 mA

Minimum Pull-in Voltage: 9VDC

Diode Protection Across Relay

Contact Rating:

7 Amps @ 30 VDC

10 Amps @ 125 VAC

Physical: 2.2” x 1.55” (56mm x 39mm)

iPIO-2816_v180808n iPIO-2, iPIO-8, iPIO-16 Users Guide Page 7

4.6. Network

Connect the network to the iPIO with the Cat 5 cable, provided, or suitable replacement. The Network

connector on the iPIO has two LED indicators. The orange LINK LED indicates a successful connection to

the network. The Green ACT LED blinks to display network activity.

4.7. LED Indicators

See Section 3 for LED locations for each model.

Pwr Power On indication

Rmt Remote Communication Status indication

OFF No Remote Units Programmed

ON All Remotes Communicating Normally

Flash One or More Remotes with Communication Error

Input The iPIO has eight LED indicators, displaying the status of the Inputs. User settings define the On

or Off State of the LED relative to the inputs. The Factory Default is:

OFF Input Open

ON Input Closed

During power up sequence, LEDs will be off until boot complete, then flash once, and then set to

their current status.

Output The iPIO has eight LED indictors, displaying the status of the Relay Outputs. User settings define

the On or Off State of the LED relative to the inputs. The Factory Default is:

OFF Relay Open (C connected to NO)

ON Relay Closed (C connected to NC)

During power up sequence, LEDs will be off until boot complete, then flash once, and then set to

their current status.

Link Network Connected

Act Network Activity. During power up sequence, Act LED will be solid on until boot process is

complete. After boot, LED blinking indicates network activity

iPIO-2816_v180808n iPIO-2, iPIO-8, iPIO-16 Users Guide Page 8

4.8. Wall and DIN Mounting

A mounting kit for wall and DIN rail mounting is available.

Part # 1920034 Wall and DIN Mounting Kit

Wall Mounting iPIO-8 and iPIO-16

Install the wall mounting ears to the

unit using the four silver screws.

Mount to wall using appropriate

hardware

Remove all cables from the unit prior to installing or

removing any mounting hardware.

iPIO-2816_v180808n iPIO-2, iPIO-8, iPIO-16 Users Guide Page 9

Wall Mounting iPIO-2

Use the ear tabs on the Unit to

directly mount to wall or backboard

Mount to wall or backboard with

proper hardware.

DIN Rail Mounting iPIO-8 and iPIO-16

Install the Intermediate bracket onto

the bottom of the unit using the 4

silver screws.

iPIO-2816_v180808n iPIO-2, iPIO-8, iPIO-16 Users Guide Page 10

Install the DIN rail clips using the

black screws as shown

Mount to DIN Rail

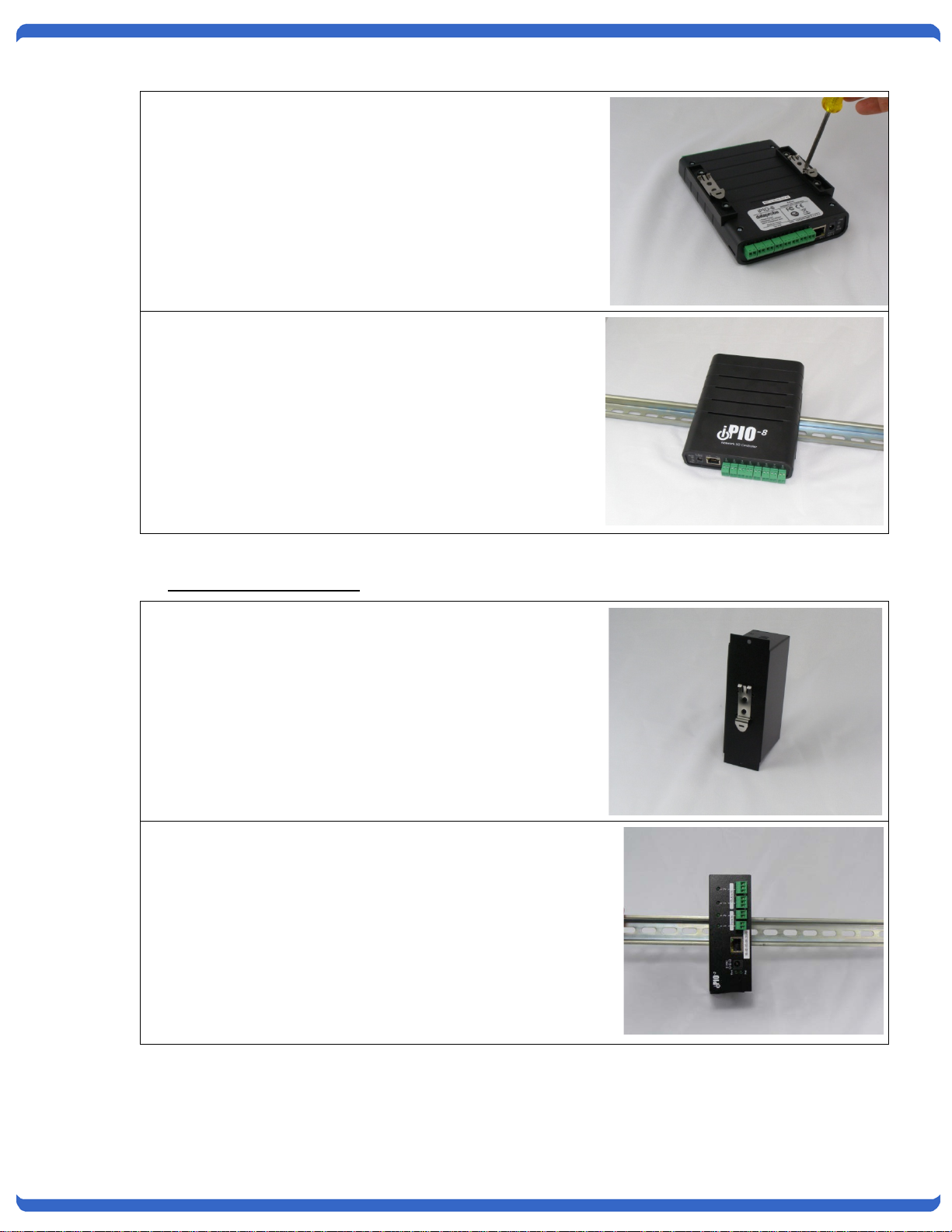

DIN Rail Mounting iPIO-2

Install the DIN rail clips using the

four black screws. Clips can be

mounted for either vertical or

horizontal aspect.

Mount to DIN Rail

Andere Handbücher für iPIO-8

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dataprobe E/A-System Handbücher

Dataprobe

Dataprobe iPIO-8 Bedienungsanleitung

Beliebte E/A-System Handbücher anderer Marken

WAGO

WAGO 750-344 Bedienungsanleitung

Teknim

Teknim TWM-1887 Bedienungsanleitung

Intelligent Appliance

Intelligent Appliance IA-2662-E Bedienungsanleitung

BERGHOF

BERGHOF ECC DIO 16/16 Bedienungsanleitung

Advantech

Advantech PCM-27J3AU Installations- und Betriebshandbuch

Festo

Festo CP-E08-M12-CL Bedienungsanleitung

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Bedienungsanleitung

Hitachi

Hitachi HX-RIO3 Series Bedienungsanleitung

NUUO

NUUO SCB-A08 Bedienungsanleitung

M-system

M-system R3Y-RS8 Bedienungsanleitung

jablotron

jablotron JB-110N Bedienungsanleitung

Omron

Omron SYSMAC C200H Bedienungsanleitung

DOLD

DOLD SAFEMASTER M Bedienungsanleitung

ABB

ABB OPT-MF-001 Bedienungsanleitung

Omron

Omron SYSMAC C2000H Bedienungsanleitung

Helmholz

Helmholz TB20 Bedienungsanleitung

ICP DAS USA

ICP DAS USA tM-AD2 Bedienungsanleitung

Automationdirect.com

Automationdirect.com DL305 Bedienungsanleitung
