Model: DA240R User Manual

240W

70V/100V

DA240R

TABLE OF CONTENTS2

1. SAFETY PRECAUTIONS ...........................................................................32. FEATURES................................................................................................53. FEATURES AND FUNCTION...................................................................................................6...................................................................................................7CONNECTIONS ..................................................................................85. ..............................................................................................9........................................................................................10APPLICATION DIAGRAM..........................................................................11....................................................................................12.........................................................................13 3.1 Front panel 3.2 Rear panel4. 4.1 OPERATION6. APPLICATIONS7. 8. SPECIFICATIONS9. DIMENSIONAL DIAGRAMSpeaker Connections

1. SAFETY PRECAUTIONS3

Be sure to carefully read all the safety instructions in this manual before use. Be sure to follow all safety instructions in this manual. Please keep this instruction manual for future reference.Safety Warning and CautionsSafety Cautions and Warnings are used in this manual to prevent bodily injury and property damage. Beforeoperating this product please read and follow all safety precautions to avoid potential safety risks. Indicates a potentially hazardous situation which could result inserious personal injury or death.Indicates a potentially hazardous situation which could result inminor or major personal injury or property damage.When Installing the UnitDo not expose this product to rain or an environment where it could be splashed by water or other liquids.Only use this product with the voltage specified. Using higher voltage may result in fire or electric shock. Be sure to replace the speaker terminal cover after the speaker connections are complete. High voltage is applied to the speaker terminals. To avoid electric shock never touch these terminals. Be sure you ground the amplifier using the safety ground (earth) terminal to avoid electric shock. Never ground this product to a gas pipe or other flammable items. Avoid installing or mounting this product on an unstable or slanted surface. Doing so may cause the unit to fall, resulting in personal injury or property damage.When the Unit is in Use Should any of the following issues occur during use, immediately switch off the power and disconnect the power cord from the AC outlet. Make no further attempt to operate the malfunctioning product, doing so may cause fire or electric shock. Contact

your Dayton Audio dealer for service and repair. To prevent a fire or electric shock, never open or

remove the product cover; there are high voltage

components inside. Refer all servicing and repair

to your nearest Dayton Audio dealer.

Do not place cups, bowls, or anything containing liquid or metal objects on top of the product. To prevent fire or electric shock, do not insert metal objects or flammable materials in the cover or vents of this product.Do not cut, kink, damage or modify the power cord. Avoid using the power cord in close proximity to heaters, and never place heavy objects on the cord. This could result in electric shock or fire.

1. If you detect smoke or a strange smell coming

from the unit.

2. If any liquid or metal gets inside the product.

3. If the product is dropped or falls and case is

broken.

4. If the power cord is cut or damaged.

5. If the sound becomes distorted.

SAFETY PRECAUTIONS

4An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated inthe electrical installation of the building.Never plug in or remove the power cord with wet hands, doing so may cause electric shock.When unplugging the power cord, be sure to grasp the power cord plug; never pull on the cord itself. Operating the unit with a damaged power cord may cause a fire or electric shock.When moving the unit, be sure to remove thepower cord from the wall outlet. Moving the unitwith the power cord connected to the outlet maycause damage to the power cord or cause youto accidentally drop the product, resulting inpersonal or property damage.Do not block the ventilation areas in the cover.Doing so may cause heat to build up inside theproduct, resulting in product failure and possibly fire.Avoid installing the unit in humid or dusty locations, direct sunlight, near heaters or in locations generating sooty smoke/steam.

Do not place heavy objects on top of the product.

This can result in the product or object to fall,

causing personal injury or property damage.Before powering on the product make sure that

the master volume control is set to the lowest

setting. Loud or high volume noise can damage

or impair hearing.Do not operate the unit if the sound is distorting.

This is an indication of a product malfunction,

immediately unplug the power and contact your

Dayton Audio dealer for service or repair.Dust allowed to accumulate inside the product

this could result in fire or electrical damage.

Be sure to consult your Dayton Audio dealer for

cleaning service and repair. Periodically clean

dust buildup from the power cord plug and wall

outlet to avoid electrical fire. Ensure the power

cord plug is securely inserted in the wall outlet.For safety when cleaning or leaving the unit

unattended for long periods of time, switch the

power off, unplug the power cord plug from the

wall outlet. Doing otherwise may cause a fire or

electric shock.

2. FEATURES1. Rated Power: 240W.

2. 100V,70V constant voltage outputs and 4~16 ohms constant resistance output.

3. Commercial-grade toroidal transformers produce high performance audio on a wide range of

frequencies with minimum noise and high fidelity, even at high volume.

4. Protection against overload, short circuit, and power fluctuation for optimum reliability.

5. VOX feature mutes AUX inputs when input is detected on MIC 1. Time Adjust control allows

resumption of music to be sharp or gradual.

6. Phantom power available on MIC 1 input for condenser-type microphones.

7. TEL priority: TEL override AUX1-2 and MIC(2-3).

3.1 FRONT PANEL 6982345761012111 1. MIC1 INPUT MIC1 1/4" phone jack input2. MIC1/MIC2/MIC3 MIC volume control (MIC1/MIC2/MIC3)3. AUX1/AUX2 AUX volume control(AUX1/AUX2)4. TEL TEL volume control5. BASS Bass response adjustment. Rotate clockwise to increase bass output and counterclockwise to reduce it.6. TREBLE Treble response adjustment. Rotate clockwise to increase treble output and counterclockwise to reduce it. 7. MASTER Master volume control8. POWER SWITCH ON/OFF toggle switch9. POWER Power indicator10. LEVEL INDICATORS Signal output level indicators11. PROT 12. TEMP High temperature status indicator. Indicator will be illuminated if the temperature inside the unit becomes too high for normal operation.Protection mode status indicator. This indicator will illuminate if the product is in protection mode due to overheating or overload.3. FEATURES AND FUNCTIONS

DA240R

3.2 REAR PANEL

7141315161819202117FEATURES AND FUNCTIONS13. ~110V 60Hz POWER INPUT14. SPEAKER TERMINALS Connectors for 4-16 ohms or 70V and 100V speaker15. Mute adjustment Adjusts the mute level from 0-20 dB during signal override of all channels by MIC1 input.16. MIC1 input compatible with XLR and 1/4" phono plugs17. Phantom power ON/OFF switch18. (MIC2/ MIC3) MIC input MIC 2-3 inputs 1/4" Phono plug19. TEL INPUT Ground, Negative, Positive20. (AUX1/AUX2) AUX input AUX 1-2 inputs Auxiliary inputs for additional audio equipment.21. LINE OUT L/R RCA outputs for sending audio to additional equipment

70V 100VCOM 4-16 70V 100VCOM 4-16 100V LINE70V 100VCOM 4-16 70V LINE4.2 XLR CONNECTIONS 4-16Ω4. CONNECTIONS

84.1 SPEAKER CONNECTIONS Be sure to replace the speaker terminal cover after speaker connections have been made.

2041

The 4-16 ohm and 70V/100V terminals cannot bothbe used at the same time.Impedances indicated in the figures represent thetotal speaker system (load) impedances.

5. OPERATION

91.Product is in protection mode due to high temperature or malfunction.2.Wrong wiring or connectionsTROUBLESHOOTINGNo outputAll wires are connectedproperly but there is noaudio output.Cause1.No power or wrong connection2.Fuse is blown3.Volume is turned off4.No input signalAlarm sounds whenpower is turned on1.Overloading or short circuit2.Voltage is not stable, too high or lowProblemsMUTE FUNCTIONOPERATION 1. TEL has priority over all inputs.2. MIC 1 is second priority, adjusting the mute level can override all other input signals except for the TEL signal. You can choose only two of the four output connectors towork together. If voltage is 70V/100V the speakers musthave a transformer, make sure the total power wattage ofspeaker is 15% less than the power wattage of amplifier.

6. APPLICATIONS

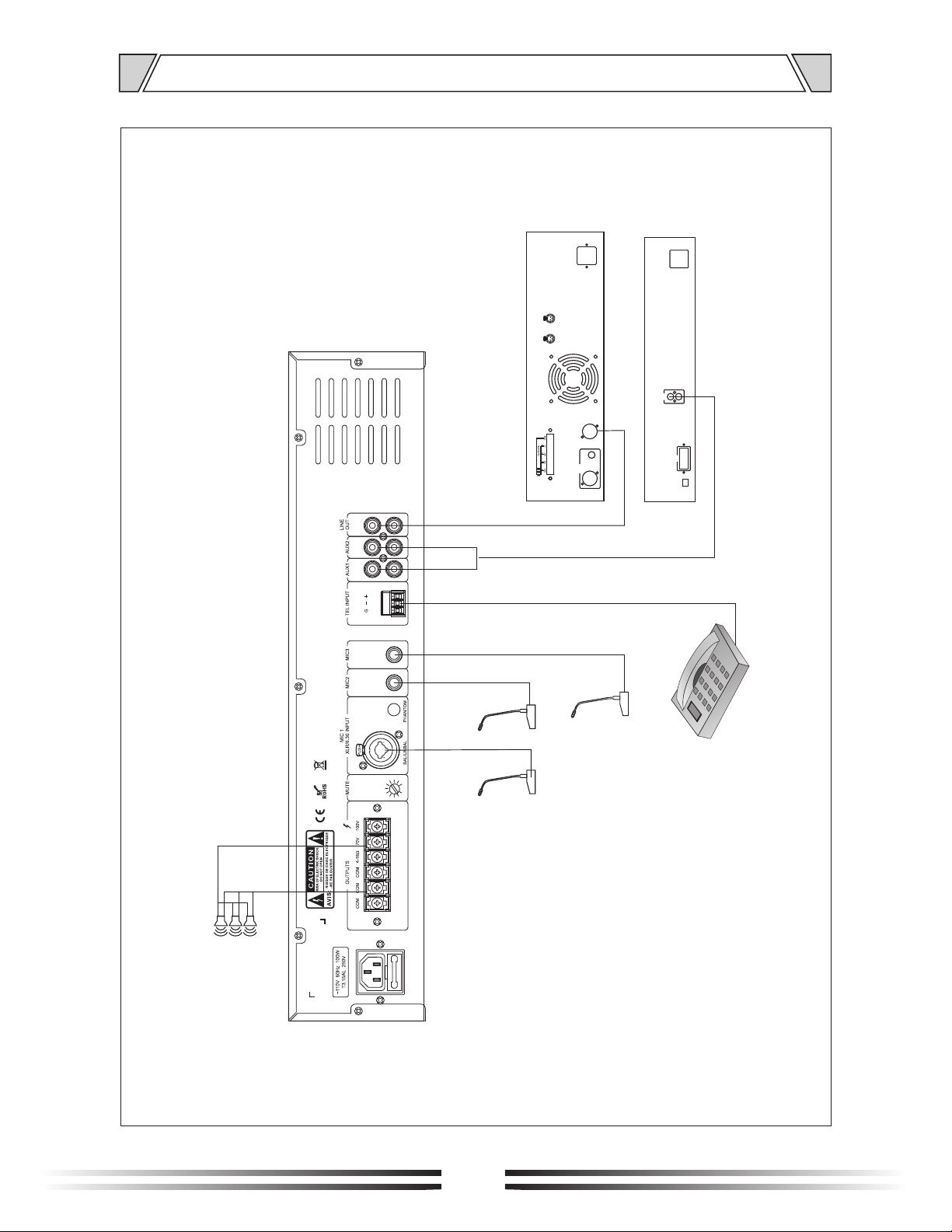

AUDIOOUTRLCOMADRE SS TAG

AUDIO SOURCES

LINKINPUTS

XLR BA L1-GND2-HOT+3-COLD123123

OUTPUTSINPUTS

POWER AMPLIFIERSPEAKERSMIC 2MIC1MIC 3TEL INPUT
