DaytonAudio WF150A Bedienungsanleitung

1 2 3

VOL+

VOL-

PLAY

ALL

EQ/BAL

WIFI

OPT

LINE 1 LINE 2

PHO

1 2

4 5

Smart Integrated Amplifier

PLA

AL L

4 5 6

LINE

OPT

PHON O

WF150A

Wi-Fi INTEGRATED AMPLIFIER

for purchasing the

WF150A

W i - F i I N T E G R A T E D A M P L I F I E R

We are conﬁdent that it will provide reliable,

high

performance sound for many years to

come.

To set up, please...

Download the DaytonAudio

app:

Follow the instructions on screen

Sign

up for news and software

updates:

http://Daytonaudio.com

Play &

Enjoy!

Smart Integrated Amplifier

PLA

AL L

LINE

OPT

4 5 6

LINE

PHONO

512 4 9 6

4. Light Button:

Change

the color of the outer ring

surrounding

the

central

dial

Daytonaudio

Smart Integrated

Amplifier

SPE AK ER S OU T

1 2 3 4 5 6 7 8 9 10 11

Rear Panel

WPS

Button: Press to connect to Wi-Fi

2. Ethernet / LAN Port: For connecting directly to a router

3. RCA Line In 1: Left / Right. For your

devices

4. RCA Line In 2: Left / Right. For your

devices

5. Phono In: Left / Right. For connecting a turntable

6. Sub Out: For connecting a subwoofer

7. Optical In: For connecting CD player / TV

8. Left / Right speaker out binding posts: For connecting

spe

akers

9. AC Select

10. Mains Power Input

11. Power Button: On / Off

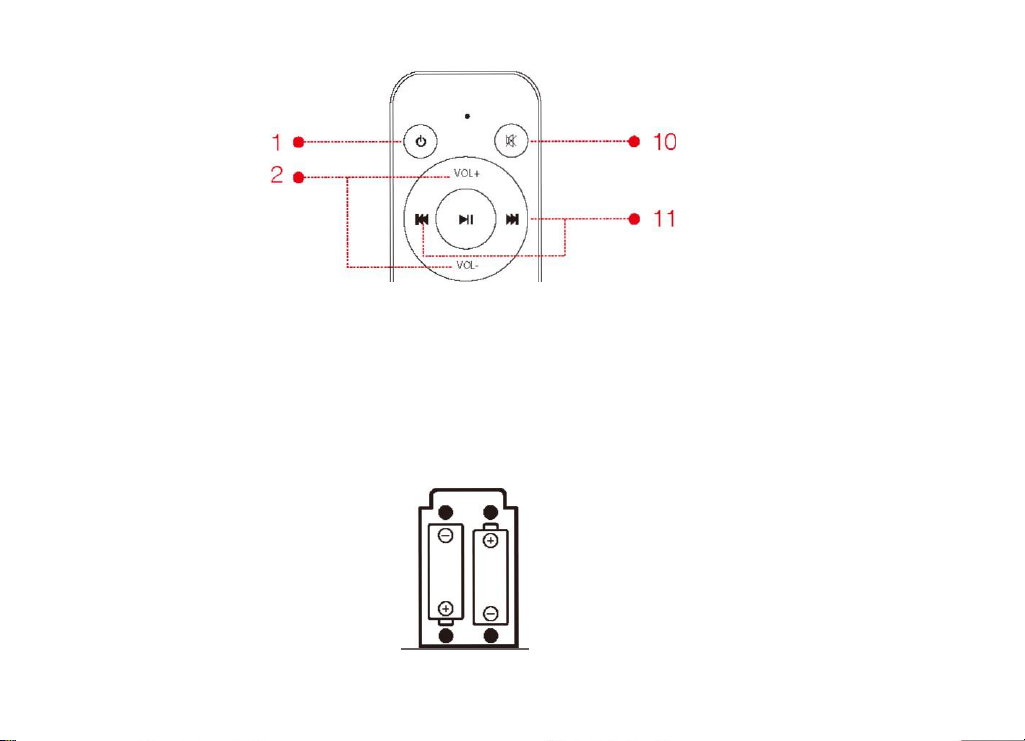

R031

AAA

1. Power On/ Standby

2. volume Up (+) / Down (-)

3. Group Button: Press to group to other Daytonaudio

Smart Audio

products

4. Bass and treble Down(-)

WIFI

Button

6. Bluetooth Button

7. Line 1 Button

8. Line 2 Button

9. Preset Buttons 1-9: Recall direct pre-sets

10. Mute Button

11. Play / Pause Button

12. Light Button: Change the colour of the outer ring surrounding

the central

dial

13. Brass/Treble/Blance control Button

14. Bass and treble

Up(+)

15. Optical Mode Button

16. Phono Mode Button

Connecting the WF150A to

speakers

The WF150A uses screw terminals. Unscrew the terminal and insert the bare end of the cable

into the hole at the base of the terminal. Then tighten securely. Ensure positive + and negative

- are matched with the amplifier /speakers.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-- Consult the dealer or an experienced radio/TV technician for help.
