Dayton Audio®Last Revised: 8/5/2016
daytonaudio.com
tel + 937.743.8248
info@daytonaudio.com
705 Pleasant Valley Dr.
Springboro, OH 45066
USA
Specifications
Wiring:
• Use standard wire nuts to join wires
• If possible, always pre-wire prior to permanent mounting

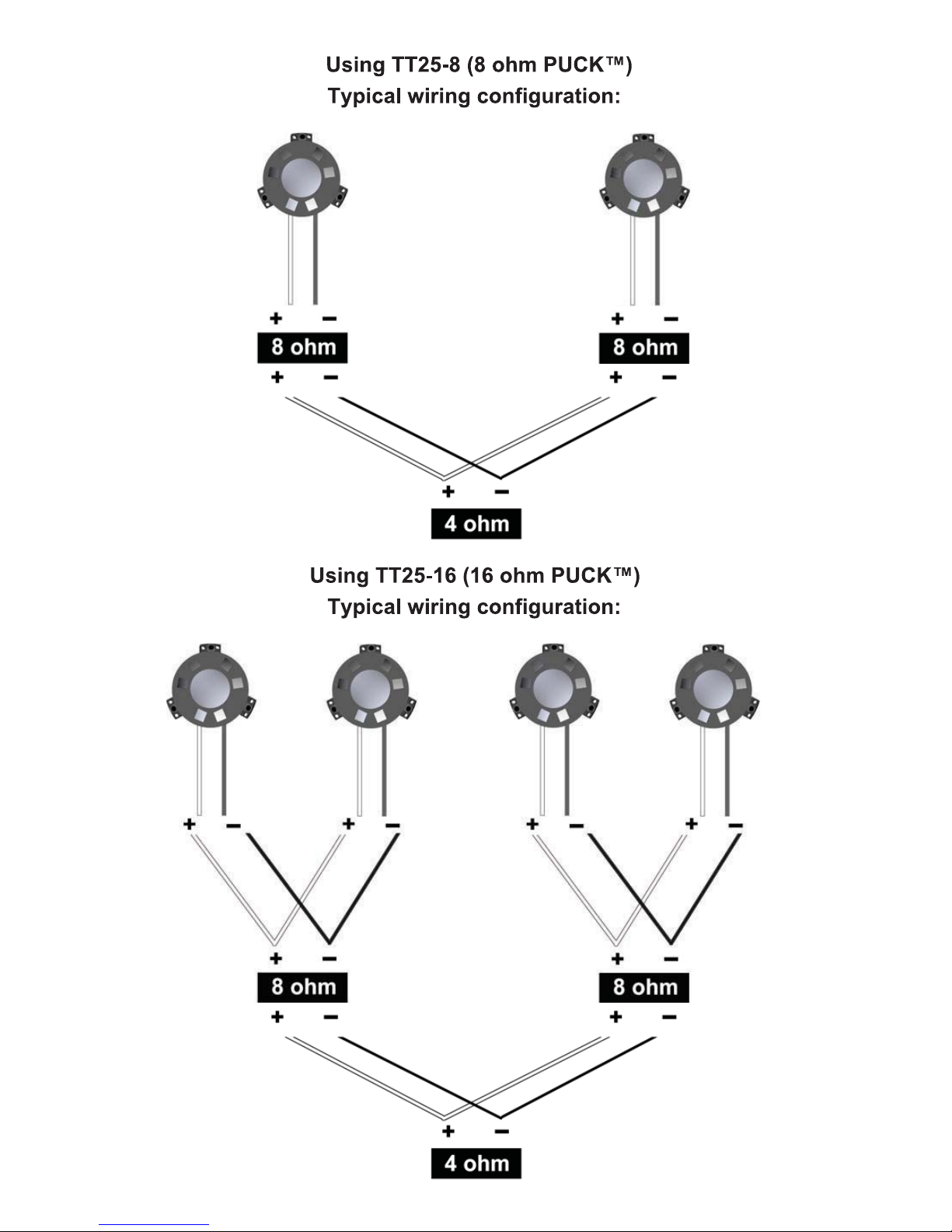

• Verify and match the impedance of any receiver/amplifier shown in the
wiring configuration diagrams
• Should you have any questions regarding wiring or installation, contact
your place of purchase
Model number TT25-8 TT25-16
Power handling (RMS/Peak) 20/30 20/30
Impedance 8 ohm 16 ohm
Frequency response (Hz) 20-80 20-80
Fs (Hz) 40 40
Force Peak (lbs./ft.)* 30 30
Dimensions Diameter x H (in) 3-1/2" dia x 1" H 3-1/2" dia x 1" H
Cut-out size (in) 70 mm dia. with 25 mm slot 70 mm dia. with 25 mm slot
* When used in four PUCK configuration
Warranty Information
Dayton Audio products are warranted free from defects in material and workmanship for 5 years from date of
purchase (see exceptions below). In the rare case of a product failure, please contact your place of purchase
or call our Customer Support Department at (937) 743-8248.
Warranty Limitations
There are no other warranties, either express or implied, that extend the foregoing, and there are no warranties
of merchantability or fitness for any particular purpose. Dayton Audio is not responsible for any consequential
on inconsequential damage to any other unit or component or the cost for installation or extraction of any
component of the audio system, or for the improper use of products. This includes but is not limited to burnt
voice coils, overheating, bent frames, holes in the cone, or broken lead wires. Warranty does not apply to
misuse, abuse, neglect, accident, improper use, etc. Dayton Audio reserves the right to repair or replace the
products with either a new or factory refurbished unit.
Exception: Dayton Audio HDMI Cables -- No registration, no questions asked LIFETIME warranty.
Replacement of Dayton Audio HDMI cables is with equal or better quality HDMI cables. Unassembled Kits - A
45-day return policy applies to unassembled kits. Once assembly has been started or completed, kits are
deemed used and are nonreturnable for refund/exchange. This does not limit the manufacturers' warranty
policies on any kit component.
This warranty gives you specific legal rights and you may also have other rights that vary from state to state.
Non-Warranty Service: If non-warranty service is required, the product may be sent to the Company for
repair/replacement, transportation prepaid, by calling (937) 743-8248 for details, complete instructions, and
service fee charges.
