DB Drive PRO2004 Bedienungsanleitung

Due to continuous improvement of the product the Specifications are subject to change without notice.

PRO2004, PRO3004, PRO1.5K, PRO3.0K

DB DRIVE warrants any products purchased in the U.S.A.

from an authorized DB DRIVE dealer.All products are warranted to be

free from defects in material and workmanship under normal use and

service for a period of (1) year when the unit installed by an authorized

DB DRIVE dealer. Non-authorized dealer installed products carry a (1)

year parts and labor limited warranty.This warranty applies to the origi-

nal purchase only.

DB DRIVE will either repair or replace (as its option) any unit

that has been found to be defective and under warranty provided the

defect occurs within:

One (1) year if purchased through an authorized DB DRIVE dealer.

This limited warranty does not extend to units that have been

subjected to misuse, abuse, neglect, or accident. Products that in DB

DRIVE’s judgment shows evidence of having been altered, modified,

or serviced without DB DRIVE’s authorization, will be ineligible under

this warranty.

To obtain warranty service please contact your retailer or see

our website www.dbdrive.net for more details.

All warranty claims must be handled directly through the

authorized DB Research dealer they were originally purchased from

Low Impedance Stability

PRO2004 - 2 Ohm Stereo (4 Channel)

PRO3004 - 2 Ohm Stereo (4 Channel)

PRO1.5K - 1 Ohm Full Range Mono

PRO3.0K - 1 Ohm Full Range Mono

Bass Boost

For added low frequency performance the amplifiers are equipped with a variable 0dB-18dB

bass boost @ 45Hz

The DB Drive PRO Series amplifiers feature a state of the art variable 12dB per octave

crossover. The DB Pro Series Amplifiers include a Highpass, Lowpass, and Bandpass

filter.

PROAUDIO 2600 WATTS

PRO2600

2 CHANNEL STEREO AMPLIFIER

PROAUDIO 2000 WATTS

PRO2004

4 CHANNEL STEREO AMPLIFIER

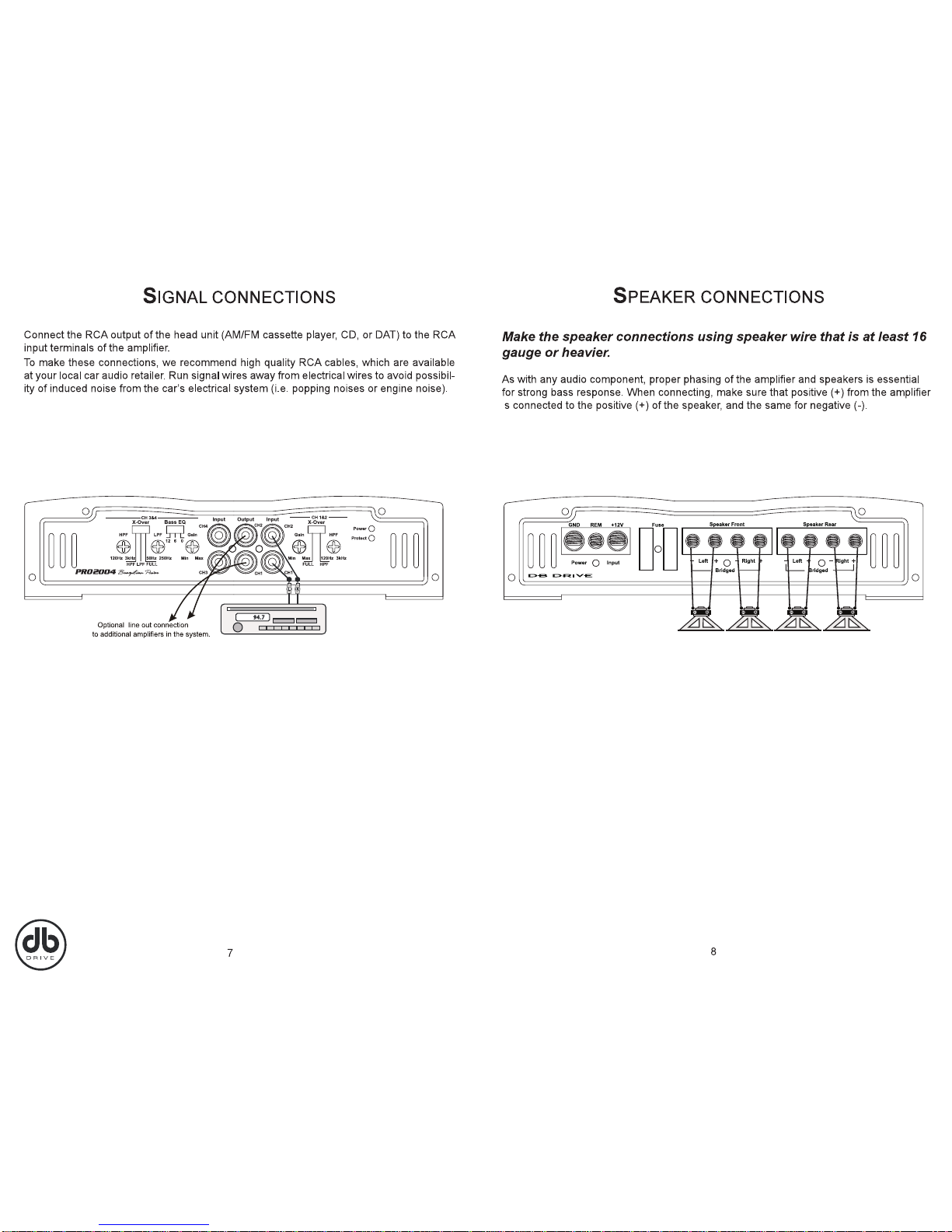

4 CHANNEL SIGNAL CONNECTION 4 CHANNEL STEREO SPEAKER CONNECTIONPRO2004, PRO3004 PRO2004, PRO3004

(2 Ohm minimum)(2 Ohm minimum)

( PRO1.5K, PRO3.0K )

The PRO1.5K and PRO3.0K amplifiers are Mono Full Range amplifiers.

This feature allows the flexibility of using either model amplfier to drive a subwoofer

configuration or a single type pro audio component speaker configuration.

Please note: The amplfier speaker terminal connections have dual + and - outputs,

these outputs are summed left and right mono audio. The use of either connection will

result in mono audio.

The minimum load recommended across the total terminal is 1 ohm. Loads under the

recommended 1 ohm load will result in overheating and will cause internal damage to

the amplfier.

Please note: the bass remote function is only active when the amplfier is set up to run

a subwoofer configuration

Overall 1 Ohm Mono Load

(Using 4 - 4 Ohm woofers )

Input Voltage @ 14.4 Volts

@ 4 Ohm Stereo

@ 2 Ohm Stereo

@ 4 Ohm Bridged

THD at Rated Power:

Bandwidth:

Signal to Noise Ratio:

Input Sensitivity:

Minimum Load Impedance:

X-Over Slope:

Variable Bass Boost:

PRO2004

4 x 50W

4 x 100W

2 x 200W

0.05%

20Hz- 28KHz

>95 dB

285Mv - 6V

2Ω Stereo

12 dB

45Hz

PRO3004

4 x 90W

4 x 180W

2 x 300W

0.05%

20Hz- 28KHz

>95 dB

285Mv - 6V

2Ω Stereo

12 dB

45Hz

Input Voltage @ 14.4 Volts

@ 1 Ohm MONO

@ 2 Ohm MONO

THD at Rated Power:

Bandwidth:

Signal to Noise Ratio:

Input Sensitivity:

Minimum Load Impedance:

X-Over Slope:

Variable Bass Boost:

Dimensions

PRO2004

PRO3004

PRO1.5K

PRO3.0K

10.23in/260mm

13.5in/343mm

16.75in/425mm

20.75in/527mm

19.68in/400mm

Length Height Width

PRO1.5K

1 x 850W

1 x 500W

0.05%

20Hz- 28KHz

>90 dB

285Mv - 6V

1Ω

12 dB

45Hz

PRO3.0K

1 x 1200W

1 x 800W

0.05%

20Hz- 28KHz

>90 dB

285Mv - 6V

1Ω

12 dB

45Hz

Due to continuous improvement of the product the Specifications are subject to change without notice.
