Definitive Technology W Studio Micro Bedienungsanleitung

Setup Guide

2English

1. Sound bar

2. Wireless subwoofer

3. Power cable for sound bar

4. Power supply for sound bar

5. Power cable for subwoofer

6. Optical cable

7. Remote control

8. Setup guide & important product

information booklet

What’s in the Box

7 8

For more information visit our website at www.definitivetech.com

How to Set Up and Connect Your W Studio Micro

1. Carefully unbox the W Studio Micro sound bar and subwoofer.

2. Place the sound bar on a at surface below your TV, connect the sound bar power

cable to the power supply and plug the power supply into a wall socket.

3. The W Studio Micro subwoofer is wireless, so place it anywhere in your room

that is convenient and plug it in. For optimal performance, we recommend

placing the subwoofer in a corner.

Note: While the subwoofer comes wirelessly pre-paired to the sound bar,

we provide a SUB OUT option if hard wiring is needed.

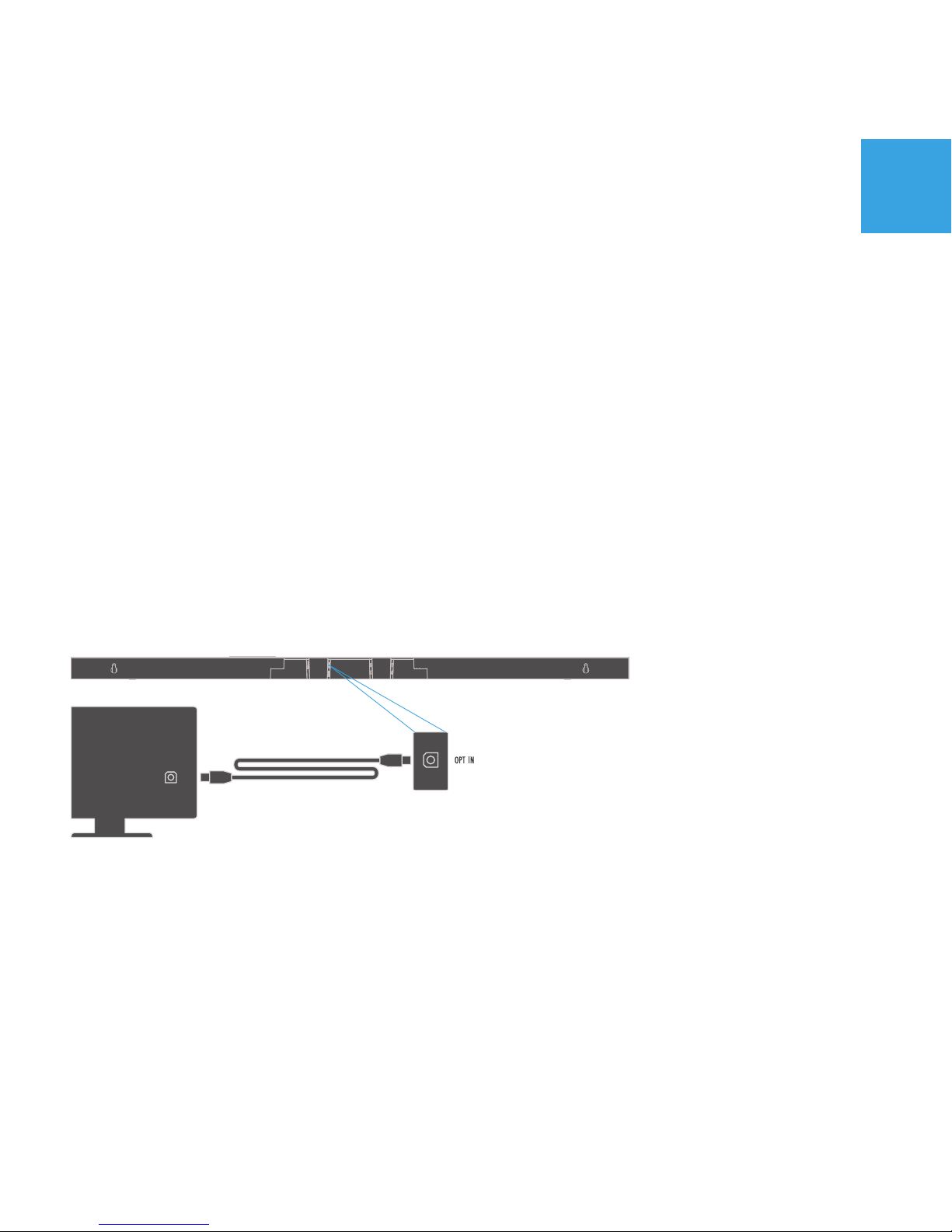

4. Now, connect the included optical cable from your TV to the back of the sound bar.

5. Adjust your TV’s audio settings to ensure it sends the audio signal to

external speakers.

6. Power on the sound bar and subwoofer. Enjoy!

Note: More inputs available for your preferred setup.

OPT

OUT

Wireless Music Setup

By connecting your W Studio Micro sound bar to your network, you can enjoy streaming

music services like Pandora, Spotify, and SiriusXM, internet radio, and your personal

digital music library.

Minimum System Requirements

To connect your W Studio Micro to your Wi-Fi®network, you will need:

• A Wi-Fi network connected to the internet with an 802.11n router or better.

Note: For optimal streaming performance, we recommend using an 802.11ac or newer router in the 5GHz band.

• An Android device with version 2.2 operating system or greater

or an iOS device with version 6.0 operating system or greater.

• The password for your wireless network (if required).

Wi-Fi Setup

1. Download the free

Denitive Technology app

•Make sure your smartphone, tablet or computer is also connected to your Wi-Fi network.

2. Connect your W Studio Micro

•The W Studio Micro automatically comes in pairing mode, which is confirmed by the pulsing

white light at the front of the bar. (Figure 1)

Figure 1

Wi-Fi LED pulses slowly

For more information visit our website at www.definitivetech.com

Note: If you don’t see the pulsing white light, simply press and hold the blue Wi-Fi button

(Figure 2) on the back of the sound bar for 8 seconds, or until you hear a second “beep” to put

it into pairing mode.

3. Launch the Denitive Technology app

• Please ensure that your smartphone, tablet or computer is

connected to your Wi-Fi network. Then follow the instructions in

the app to connect your wireless product to your Wi-Fi network.

• A solid Wi-Fi LED means your product has successfully

connected. Enjoy!

Note: If you have trouble connecting to your network, move the speaker

near your router, then relocate it when setup is complete.

Play Your Music

From the main menu on the Denitive Technology app, you can listen to:

• Online services—stream the most popular online music services

• Internet radio—enjoy free music from around the world in virtually any genre

• Your personal music library—play music from your phone, tablet or computer;

it never sounded better

Your W Studio Micro is equipped to use Spotify Connect.

Please refer to the separate information card for more details.

The Spotify software is subject to third party licenses found here:

www.spotify.com/connect/third-party-licenses

Figure 2

Press Wi-Fi Button on

back panel for 8 seconds

Using Your W Studio Micro Remote Control

Power on/off

OPT 1

Volume up

Volume down

Center channel

volume up/down

Optimized listening

mode for music

OPT 2

Mute

AUX 3

Optimized listening

mode for TV & movies

Subwoofer volume

up/down

For more information visit our website at www.definitivetech.com

Definitive Technology Utility App

For access to extended functionality, including Product Firmware Updates, Source

Selection (if applicable) and EQ Settings (W Amp), download

the free Definitive Technology Utility App from the Apple App Store or Google Play Store.

Getting More From Your W Studio Micro

Your W Studio Micro has a wide range of other features not listed in the Setup Guide. Find out more

by downloading the full online Owner’s Manual at www.definitivetech.com/education/documents.

Technical Assistance

If you have any questions, please contact us directly at (800) 228-7148 (North America),

+1 (410) 363-7148 or email info@DefinitiveTech.com.

Definitive Technology

1 Viper Way, Vista, CA 92081 USA

Call (800) 228-7148 or email info@DefinitiveTech.com.

Google Play is a trademark of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc., registered in

the U.S. and other countries. App Store is a service mark of Apple Inc.

All other trademarks are the property of their respective owners.

8Français

1. Barre de son

2. Caisson de graves sans fil

3. Bloc d’alimentation pour la barre

4. Cordon d’alimentation pour la barre

5. Cordon d’alimentation pour le

caisson de graves

6. Câble optique

7. Télécommande

8. Guide d’installation rapide avec

information sur le produit

Contenu de la boîte

7 8

For more information visit our website at www.definitivetech.com

Comment installer et connecter votre W Studio Micro

1. Déballez soigneusement la barre et le caisson de graves W Studio Micro.

2. Placez la barre de son sur une surface plate en dessous de votre télé, connectez

le cordon de la barre au bloc d’alimentation puis branchez le bloc d’alimentation

dans une prise de courant.

3. Le caisson de graves du W Studio Micro est sans l; placez-le n’importe où

dans la pièce puis branchez-le. Pour une performance optimale, placez-le

dans un coin.

Note: quoique le caisson soit configuré à l’usine pour fonctionner sans fil

avec la barre, il est muni d’une sortie SUB OUT pour connexion filaire.

4. Raccordez maintenant la barre de son à votre télé avec le câble optique.

5. Réglez la sortie audio de votre télé à « haut-parleurs externes ».

6. Allumez la barre de son et le caisson de graves.

Note: D’autres entrées sont disponibles pour une configuration personnalisée.

OPT

OUT

Configuration sans fil

En connectant votre barre de son W Studio Micro à votre réseau, vous pouvez écouter

les services musicaux en continu tels que Pandora et Spotify, la radio Internet telle que

Sirius XM et votre propre collection musicale numérique.

Exigences système

Pour connecter votre W Studio Micro à votre réseau Wi-Fi, vous aurez besoin de :

• un réseau sans fil connecté à l’Internet par un routeur 802.11n ou plus récent

Note: pour une diffusion en continu optimale, utilisez un routeur 802.11ac 5GHz ou plus récent.

• un dispositif Android avec système d’exploitation 2.2 ou plus récent ou un dispositif iOS avec

système d’exploitation 6.0 ou plus récent

• le mot de passe de votre réseau (si requis).

Configuration Wi-Fi

1. Téléchargez l’app

Denitive Technology gratuite.

•Assurez-vous que votre téléphone, tablette ou ordi est aussi connecté à votre réseau.

2. Connectez votre W Studio Micro

•Le W Studio Micro est livrée en mode d’appariement automatique qui est confirmé par la

DEL pulsante située à l’avant de la barre. (fig.1)

Figure 1

Wi-Fi LED impulsions lentement
