Short Form Specifications

Top is constructed of one-piece 16-gauge stainless steel, with integral 2.12”

(5.4 cm) square nosing on front and 10.4” (26.3 cm) full length raised refrig-

erated syrup rail. Refrigerated rail is furnished with syrup pump, chocolate

pump and fruit jars. Top to be insulated and have raised rim opening(s) provid-

ed with cover. Cover(s) are insulated, folding and removable.

Interior is constructed of 22-gauge stainless steel. Liner is insulated with

2.5” (6.4 cm) foamed-in-place polyurethane. Unit has a cold wall refriger-

ation system provided with adjustable expansion valves. Rail has an

adjustable evaporator pressure regulator valve located in the 6” (15.2 cm)

mechanical area at right end. Unit is designed to maintain 0°F (-18°C) to

5°F (-15°C) in the tank and 33°F (1°C) to 40°F (4°C) in the rail.

Exterior front has 22-gauge stainless steel front panel(s). Exterior ends are

constructed of 18-gauge galvanized steel.

Electrical connections are 115 volt, 60 Hertz, single phase.

Unit is mounted on 6.13” (15.6 cm) high adjustable stainless steel legs.

Refrigerant System Components — HFC-404A.

Optional Accessories and Modifications

505B Stainless steel back

906A Stainless steel end

505F Laminate facing

505A Laminate back

906E Laminate end

120F Drain with gate valve for rail

Built to NSF7 standards.

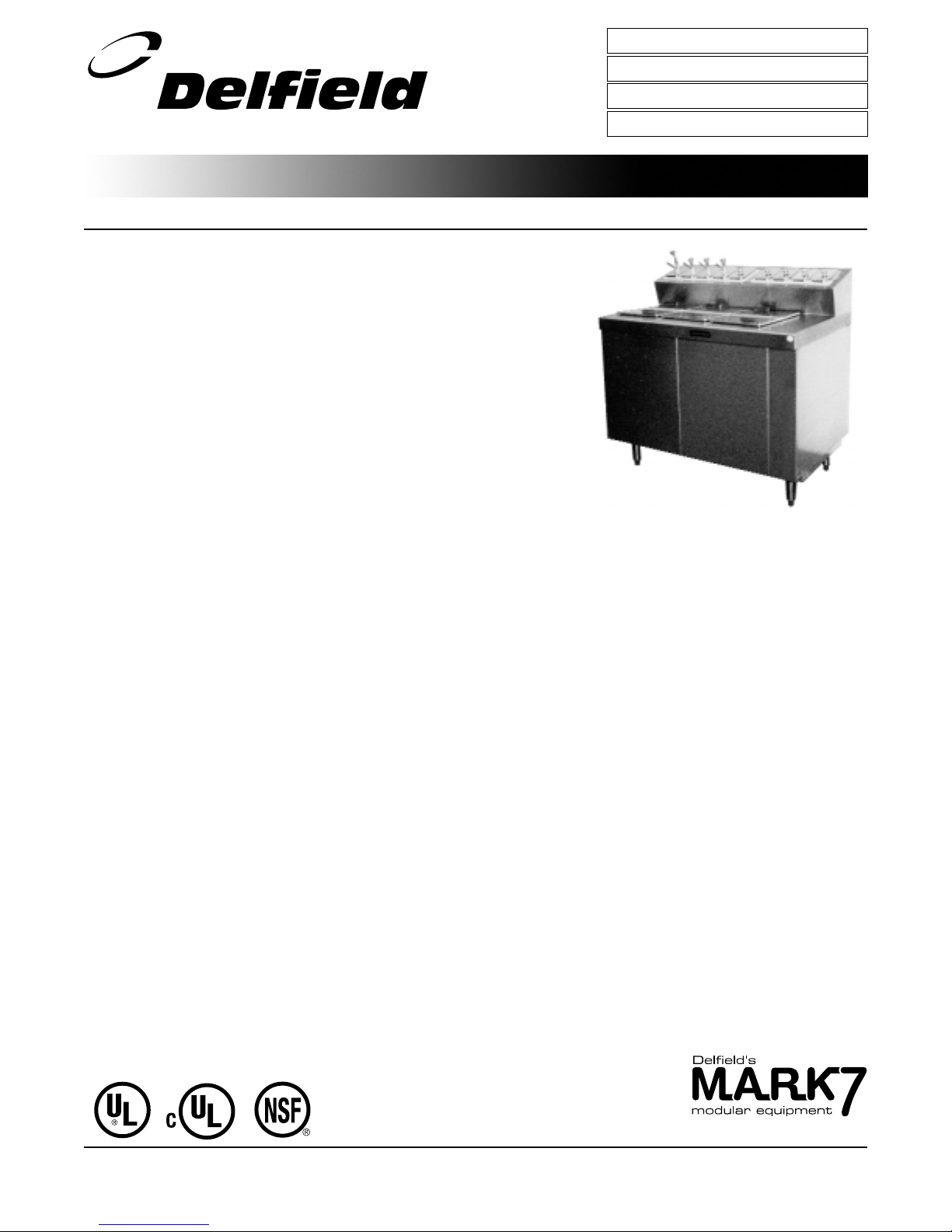

Model 13BR48

31.5”(80cm)DeepRemoteLowTemp,IceCreamCabinetsWithSyrupRail

The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

PROJECT

ITEM #

QUANTITY DATE

APPROVAL

F13BR

Mechanical Data–Standard Unit

MODEL GALLON NUMBER OF VOLTS, HERTZ BTU DESIGN LOAD EVAP. CAP. SHIP

NUMBER CAPACITY COVERS H.P. PHASE AMPS FRZR/RAIL BTU/°TD WEIGHT

F13BR36

24 4 1/3* 115/60/1 1.5 506/192 38/11 285 lbs/ 129 kg

F13BR48

36 6 1/3* 115/60/1 1.5 638/250 46/14 340 lbs/ 154 kg

F13BR60

48 8 1/2* 115/60/1 1.5 796/307 56/17 400 lbs/ 182 kg

*Recommended

(15.2)

30" (76.2)

36" (91.4)

42" (106.7)

48" (121.9)

54" (137.2)

60" (152.4)

PLAN VIEW

F13BR48

PLAN VIEW

F13BR36

PLAN VIEW

F13BR60

ELEVATION VIEW

F13BR48

ELEVATION VIEW

F13BR36

ELEVATION VIEW

F13BR60

SIDE VIEW

ALL MODELS

46.37"

(117.8)

31.5"

(80)

(15.2)

SMALL LID

ALL UNITS

9.25"

(23.5)

17"

(43.2)

36" (91.4)

48" (121.9)

60" (152.4)

V V

Expansion valves for base and rail

Refrigeration lines are 1/4" liquid, 3/8" suction

J BOX INFO

6.12"

(15.6)

7.62"

(19.4) 21.31"

(54.1)

36"

(91.4)

23.75"

(60.3)

31.5"

(80)

12"

(30.5)

46.37"

(117.8)

F13BR

The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

DS13BR 02/01

31.5”(80cm)DeepRemoteLowTemp,IceCreamCabinetsWithSyrupRail
