Delfield F18FR35 Bedienungsanleitung

Short Form Specifications

Exterior Top to be constructed of one piece 16-gauge stainless

steel, with integral 2.12” (5.4cm) square nosing on front and 4”

(10.2cm) high by 2” (5.1cm) thick backsplash on rear. Top to be

insulated with 2” (5.1cm) high density insulation.

Base interior to have 22-gauge stainless steel back and bottom.

Interior ends and door frames to be thermoformed ABS plastic.

Base to be insulated with 1.50” (3.8cm) high density foamed in

place polyurethane.

Exterior back and bottom of base to be 24-gauge galvanized

steel. Exterior ends to be constructed of 18-gauge galvanized

steel.

Door(s) have a thermoformed ABS plastic interior liner and 22

gauge stainless steel exterior front. Door(s) have black recessed

handle(s) and a snap-in magnetic gasket which is easily replace-

able. Unit to be furnished with (1) epoxy coated wire shelf for

each door section.

Base to be furnished with blower coil with coil housing to enclose

expansion valve and fans. Unit is provided with defrost timer, ther-

mostat and solenoid valve in mechanical section. Unit is designed

to maintain 0°F (-18°C) to -5°F (21°C).

Unit is mounted on 6.13” (15.6cm) high adjustable stainless steel

legs.

Refrigeration System Components— HFC-404A

Electrical connections are 115 volt, 60 Hertz, single phase.

Unit must be hard wired.

Optional Accessories & Modifications

906A Stainless steel end

505H Stainless steel back

505F Laminate facing (full front)

906E Laminate end

905A Laminate back

1030A Cutting board (.5” x 10” composite)

107F Tray rack

102 Drawers

A-(2) 19” in lieu of one door

B-(2) 27” in lieu of one door

C-(2) 32” in lieu of one door

E-(3) 19”, 27” or 32” in lieu of one door

108 Locks

213 *220V/50 cycle

* Inclusion of this option will alter the

electrical specifications of the unit

Model F18FR66

31.5” (80cm) Deep Remote Freezer Base Work Tables

The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

PROJECT

ITEM #

QUANTITY DATE

APPROVAL

F18FR

MODEL NUMBER OF STORAGE SHELF AREA BTU EVAP. CAPACITY VOLTS/HERTZ/ SHIP WEIGHT

NUMBER DOORS CU. FT. SQ. FT. LOAD BTU/°TD H.P.* PHASE AMPS LBS / KG

F18FR35

(1) 19” 5.58 2.56 943 160 1/3 115/60/1

10.0 310/140

F18FR50

(2) 19” 12.21 5.12 1471 160 1/2 115/60/1

10.0 370/168

F18FR58

19” & 27” 15.00 6.51 1844 160 3/4 115/60/1

10.0 400/181

F18FR66

(2) 27” 17.79 7.90 2020 160 3/4 115/60/1

10.0 425/193

F18FR76

(2) 32” 21.28 9.64 2437 160 3/4 115/60/1

10.0 450/204

*Recommended horsepower

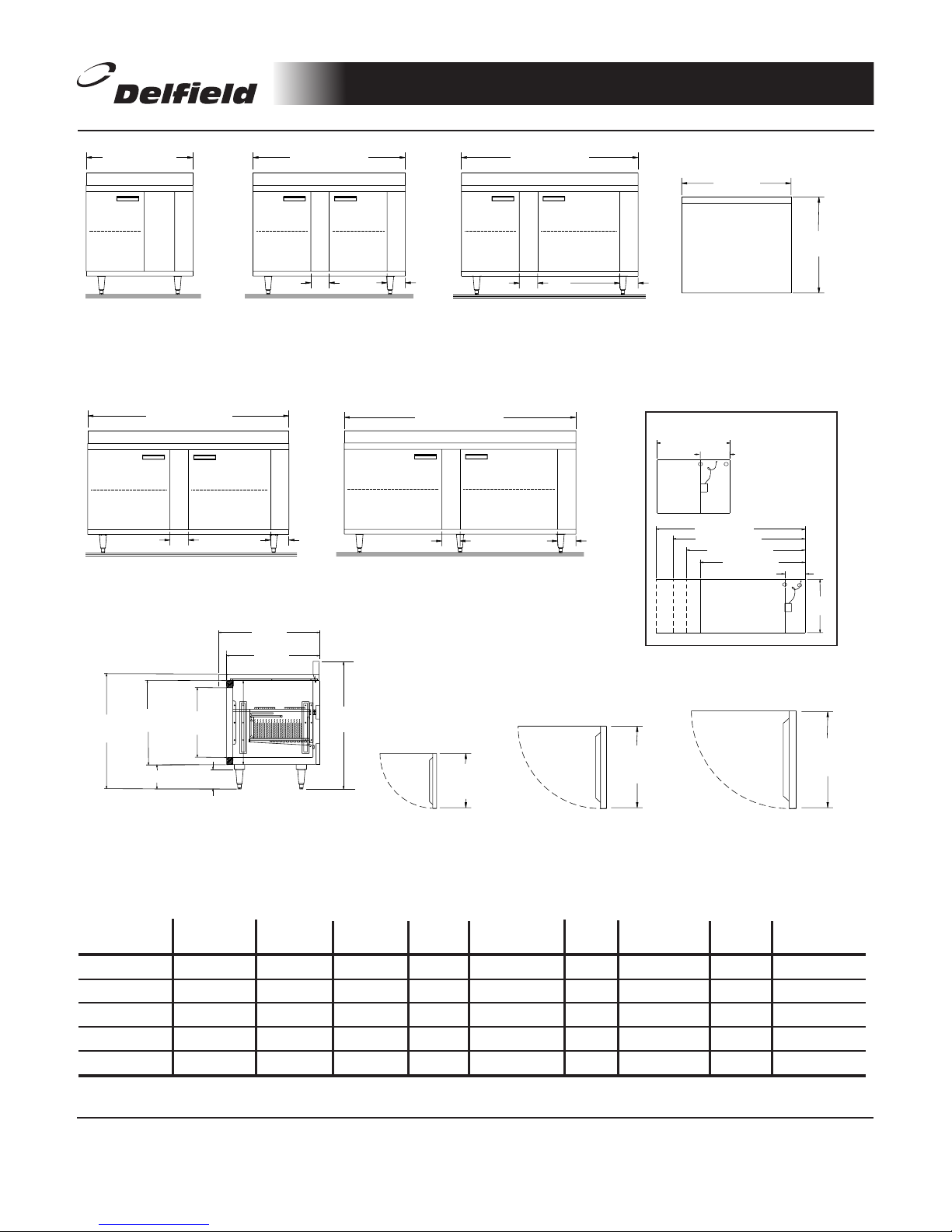

Mechanical Data–Standard Unit

19" (48.3cm)

FREEZER

35" [88.9cm] 50" [127cm]

66" [167.64cm]

58" [147.32cm]

VARIES

76" [193.04cm]

19" (48.3cm)

FREEZER

19" (48.3cm)

FREEZER

19" (48.3cm)

FREEZER

27" (68.6cm)

FREEZER

31.5"

[80cm]

6" [15.2cm]

30"

[76.2cm]

CLEARANCE

27" (68.6cm)

FREEZER

27" (68.6cm)

FREEZER

32" (81.3cm)

FREEZER

32" (81.3cm)

FREEZER

25"

[63.5cm]

CLEARANCE

17"

[43.1cm]

CLEARANCE

6" [15.2cm] 6"

[15.2cm]

[15.2cm] 6"

[15.2cm]

ELEVATION VIEW

F18FR35

ELEVATION VIEW

F18FR50

ELEVATION VIEW

F18FR58

ELEVATION VIEW

F18FR66

END VIEW

ALL MODELS 19" [48.3cm]

DOOR

27" [68.6cm]

DOOR

32" [81.3cm]

DOOR

ELEVATION VIEW

F18FR76

PLAN VIEW

ALL MODELS

35" [88.9cm]

50" [137cm]

58" [147.3cm]

66" [167.6cm]

76" [193cm]

16" [40.6cm]

6" [15.2cm]

31.5"

[80cm]

J = Junction box

R = Refrigeration lines

1/4" liquid, 3/8" suction

D = Drains 1/2"

MECHANICAL DATA

26.31"

[66.8cm]

29"

[73.4cm]

24"

[61cm]

21.8"

[55.4cm]

36"

[91.4cm]

7.62" [19.4 cm]

6.13" [15.6cm]

31.5"

[80cm]

R D

40"

[101.6cm]

6" (15.2CM) FRONT PANEL

10" (25.4CM) FRONT PANEL

The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

DS18FR 07/01

31.5” (80cm) Deep Remote Freezer Base Work Tables

F18FR
