Dell Networking W-IAP210 Series
Wireless Instant Access Point
Installation Guide
www.dell.com
Dell Networking W-IAP210 Series Wireless Instant Access Point | Installation Guide
Part Number 0511572-01 | September 2014
Contacting Dell
Website Support
Main Website dell.com
Contact Information dell.com/contactdell
Support Website dell.com /support
Documentation Website dell.com /support/manuals
Copyright
© 2014 Aruba Networks, Inc. Aruba Networks trademarks include , Aruba Networks®,
Aruba Wireless Networks®, the registered Aruba the Mobile Edge Company logo, and Aruba Mobility
Management System®. Dell™, the DELL™ logo, and PowerConnect™ are trademarks of Dell Inc.
All rights reserved. Specifications in this manual are subject to change without notice.
Originated in the USA. All other trademarks are the property of their respective owners.
Open Source Code
Certain Aruba products include Open Source software code developed by third parties, including software code
subject to the GNU General Public License (GPL), GNU Lesser General Public License (LGPL), or other Open
Source Licenses. The Open Source code used can be found at this site:
http://www.arubanetworks.com/open_source
Includes software from Litech Systems Design. The IF-MAP client library copyright 2011 Infoblox, Inc. All rights
reserved. This product includes software developed by Lars Fenneberg, et al.
Legal Notice
The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate
other vendors’ VPN client devices constitutes complete acceptance of liability by that individual or corporation for
this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken against
it with respect to infringement of copyright on behalf of those vendors.
4. If necessary, connect the console cable to the console port on the back of the IAP.
5. Hold the IAP next to the ceiling tile rail with the ceiling tile rail mounting slots at
approximately a 30-degree angle to the ceiling tile rail (see Figure 7). Make sure that
any cable slack is above the ceiling tile.
6. Pushing toward the ceiling tile, rotate the IAP clockwise until the device clicks into
place on the ceiling tile rail.

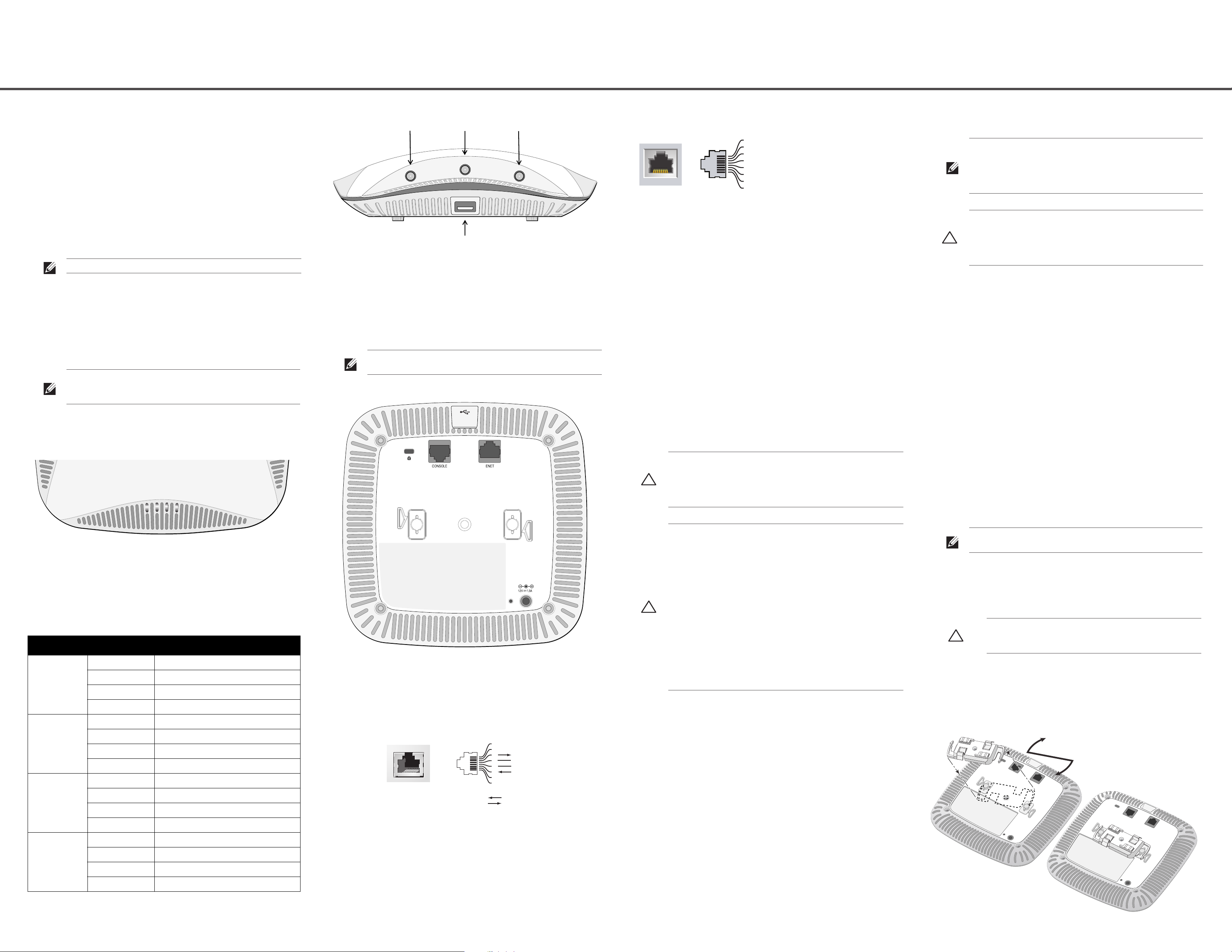

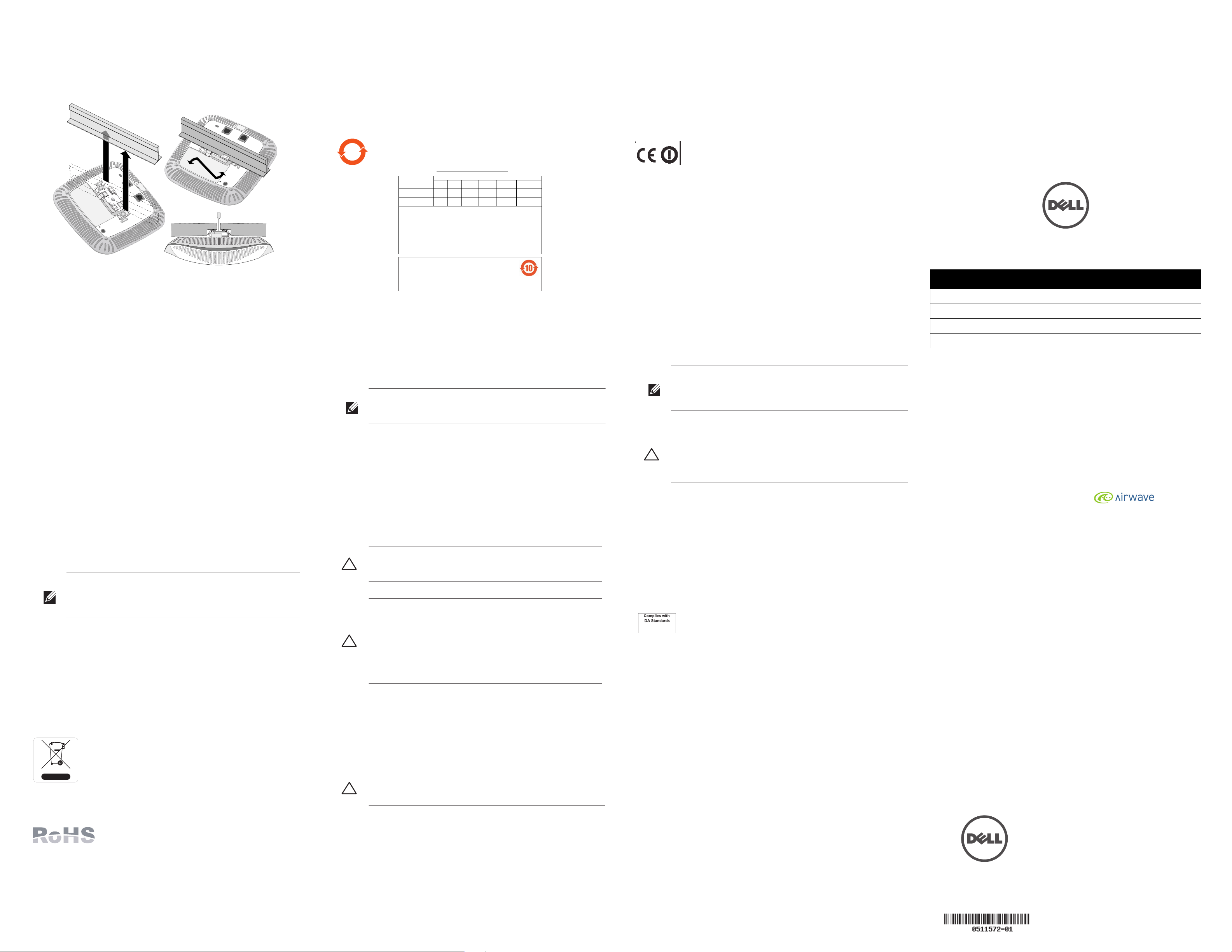

Figure 7
Mounting the IAP
7. On the W-IAP214 Instant access point, install the external antennas according to the
manufacturer’s instructions, and connect the antennas to the antenna interfaces on
the IAP.
Connecting Required Cables
Install cables in accordance with all applicable local and national regulations and
practices.
Verifying Post-Installation Connectivity
The integrated LEDs on the IAP can be used to verify that the IAP is receiving power and
initializing successfully (see Table 1). Refer to the Dell Networking W-Series Instant Quick
Start Guide for further details on verifying post-installation network connectivity.
Product Specifications
Electrical
Ethernet:
1x 10/100/1000 auto-sensing Ethernet RJ-45 Interface
MDI/MDX
IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-T). IEEE 802.3ab (1000Base-T)
Power over Ethernet (IEEE 802.3at and 802.3af compliant), 48V DC (nominal)
and 56V DC (maximum)/350mA (see Figure 5 for pin configuration)
Power:
12 VDC power interface, supports powering through an AC-to-DC power adapter
POE support on Ethernet ports: 802.3at-compliant and 802.3af-compliant POE
sourcing devices
For additional specifications on this product, please refer to the product data sheet on
dell.com.
Proper Disposal of Dell Equipment
Dispose Dell products per local regulations. For the most current information about
Global Environmental Compliance and Dell products, visit dell.com.
Waste of Electrical and Electronic Equipment
Dell products at end of life are subject to separate collection and
treatment in the EU Member States, Norway, and Switzerland and
therefore are marked with the symbol shown at the left (crossed-out
wheelie bin). The treatment applied at end of life of these products
in these countries shall comply with the applicable national laws of
countries implementing Directive 2002/96/EC on Waste of Electrical
and Electronic Equipment (WEEE).
European Union RoHS
Dell products comply with the EU Restriction of Hazardous
Substances Directive 2011/65/EC (RoHS). EU RoHS restricts
the use of specific hazardous materials in the manufacture of
electrical and electronic equipment. Specifically, restricted
materials under the RoHS Directive are Lead (including Solder used in printed circuit
assemblies), Cadmium, Mercury, Hexavalent Chromium, and Bromine. Some Dell
products are subject to the exemptions listed in RoHS Directive Annex 7 (Lead in solder
used in printed circuit assemblies). Products and packaging will be marked with the
“RoHS” label shown at the left indicating conformance to this Directive.
A copy of the Declaration of Conformity may be obtained upon request from:
Aruba Networks International Ltd.
Building 1000,
Citygate Mahon
Cork Ireland
Please include the regulatory model number located on the product’s regulatory
nameplate with the request.
China RoHS
Dell products comply with China environmental declaration
requirements and are labeled with the “EFUP 10” label shown at the left.
India RoHS
This product complies with RoHS requirements as prescribed by E-Waste (Management
& Handling) Rules, governed by the Ministry of Environment & Forests, Government of
India.
Safety and Regulatory Compliance
Regulatory Model Names
The following regulatory model names apply to the W-IAP210 Series Instant access point:
W-IAP214: APIN0214
W-IAP215: APIN0215
정소출력 무선기기 ( 무선데이터통신시스템용 무선기기 )
FCC
The device is electronically labeled and the FCC ID is displayed via the WebUI under the
About menu.
FCC Class B Part 15
This device complies with Part 15 of the Federal Communications Commission (FCC)
Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
manufacturer’s instructions, may cause interference harmful to radio communications.
If this equipment does cause interference, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio or TV technician for help.
Complies with the Class B limits for radio noise emissions as set out in the interference-
causing equipment standard entitled “Digital Apparatus,” ICES-003 of Industry Canada.
Cet apareil numerique de la classe B respecte toutes les exigencies du Reglement sur le materiel brouilleur
du Canada.
Users are advised that high power Radars are allocated as primary users of the bands 5250-5350 MHz and
5650-5850 MHz and these Radars could cause interference and/or damage to Licensed Exempt WLAN
devices.
EU Regulatory Conformance
This product is CE marked according to the provisions of the R & TTE
Directive (1999/5/EC) - CE(!). Dell, hereby declares that the APIN0114
/ APIN0115 device models are in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC -CE(!)
The Declaration of Conformity made under Directive 1999/5/EC is available on dell.com
Canada
(i)les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement
pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux
systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350
MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.;
(iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5 825
MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et
non point à point, selon le cas.
De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute
puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les
bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourraient causer du
brouillage et/ou des dommages aux dispositifs LAN-EL.
This radio transmitter 4567A-APIN0214215 has been approved by Industry Canada to
operate with the antenna types listed below with the maximum permissible gain and
required antenna impedance for each antenna type indicated. Antenna types not included
in this list, having a gain greater than the maximum gain indicated for that type, are
strictly prohibited for use with this device.
The following antenna types have been approved for use with this device:
AP-ANT-1B; AP-ANT-1W; AP-ANT-13B; AP-ANT-16; AP-ANT-17; AP-ANT-18;
AP-ANT-19; AP-ANT-20
The Maximum permissible antenna gain is 7.5dBi and the antenna impedance is 50 ohms.
Singapore
Korean EMC Class B Warning
이기기는 가정용(B급) 전자파적합기기로서 주로 가정에서 사용하는 것을 목적으로
하며, 모든 지역에서 사용할 수있습니다.
Medical
1. Equipment not suitable for use in the presence of flammable mixtures.
2. Connect to only IEC 60950-1 or IEC 60601-1 3rd edition certified products and power
sources. The end user is responsible for the resulting medical system complies with the
requirements of IEC 60601-1 3rd edition.
3. Wipe with a dry cloth, no additional maintenance required.
4. No serviceable parts, the unit must be sent back to the manufacturer for repair.
5. No modifications are allowed without Dell approval.
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自
變更頻率、加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有
干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電
機設備之干擾。
Note: If a power adapter other than the one provided by Dell is used in the US or
Canada, it should be cULus (NRTL) Listed, with an output rated 12 VDC, minimum
1.5A, marked “LPS” or “Class 2,” and suitable for plugging into a standard power
receptacle in the US and Canada.
Note: For country specific restrictions and additional safety and regulatory
information, refer to the multi-language
Dell Networking W-Series Safety,
Environmental, and Regulatory Information
document included with this product
Caution: Dell Instant access points must be installed by a professional installer.
The professional installer is responsible for ensuring that grounding is available
and it meets applicable local and national electrical codes.
Caution: RF Radiation Exposure Statement: This equipment complies with FCC RF
radiation exposure limits. This equipment should be installed and operated with a
minimum distance of 7.9 inches (20 cm) between the radiator and your body for
2.4 GHz and 5 GHz operations. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter. When operated in
the 5.15 to 5.25 GHz frequency range, this device is restricted to indoor use to
reduce the potential for harmful interference with co-channel Mobile Satellite
Systems.
Caution: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate this
equipment.
᳝↦᳝ᆇ⠽䋼ໄᯢ
Hazardous Materials Declaration
᳝↦᳝ᆇ⠽䋼ܗ㋴(Hazardous Substance)
䚼ӊৡ⿄
(Parts) 䪙
3E
∲
+J
䬝
&G
݁Ӌ䫀
&U
⒈㘨㣃
3%%
⒈Ѡ㣃䝮
3%'(
⬉䏃ᵓ
(PCA Boards) hƻ ƻ ƻ ƻ ƻ
ᴎẄ㒘ӊ
(Mechanical Sub-Assemblies) hƻ ƻ ƻ ƻ ƻ
ƻ˖ 㸼⼎䆹᳝↦᳝ᆇ⠽䋼䆹䚼ӊ᠔᳝ഛ䋼ᴤ᭭Ёⱘ䞣ഛ SJ/T11363-2006 ޚ㾘ᅮⱘ䰤䞣㽕∖ҹϟDŽ
Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is
below the relevant threshold of the SJ/T11363-2006 standard.
h˖ 㸼⼎䆹᳝↦᳝ᆇ⠽䋼㟇ᇥ䆹䚼ӊⱘᶤϔഛ䋼ᴤ᭭Ёⱘ䞣䍙ߎ6-7ޚ㾘ᅮⱘ䰤䞣㽕∖DŽ
Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials
in the parts is above the relevant threshold of the SJ/T11363-2006 standard.
ᇍ䫔ଂП᮹ⱘ᠔ଂѻકᴀ㸼ᰒ⼎կᑨ䫒ⱘ⬉ᄤֵᙃѻકৃ㛑ࣙ䖭ѯ⠽䋼DŽ
This table shows where these substances may be found in the supply chain of electronic information
products, as of the date of sale of the enclosed product.
ℸᖫЎ䩜ᇍ᠔⍝ঞѻકⱘ⦃ֱՓ⫼ᳳᖫᶤѯ䳊䚼ӊӮ᳝ϔϾϡৠⱘ⦃ֱՓ⫼ᳳ
՟བ⬉∴ܗഫ䌈݊ѻકϞ
ℸ⦃ֱՓ⫼ᳳ䰤া䗖⫼ѢѻકᰃѻકݠЁ᠔㾘ᅮⱘᴵӊϟᎹ
The Environment- Friendly Use Period (EFUP) for all enclosed products and their parts are
per the symbol shown here. The Environment- Friendly Use Period is valid only when the
product is operated under the conditions defined in the product manual.
Note: Aucune émission n’est permise dans la bande 5 600-5 650 MHz. Jusqu’à
nouvel avis, les dispositifs visés par la présente annexe ne doivent pas être en
mesure d’émettre dans la bande 5 600-5 650 MHz, afin de protéger les radars
météorologiques d’Environnement Canada exploités dans cette bande.
Caution: RF Déclaration sur la radioexposition: Cet équipement est conforme aux
normes IC Limites d'exposition aux rayonnements RF. Cet équipement doit être
installé et utilisé à une distance minimum de 7,9 pouces (20 cm) entre l'radiateur et
votre corps pour 2,4 GHz et 5 GHz opérations. cet émetteur ne doit pas être co-
localisées ou opérant en conjonction avec une autre antenne ou émetteur.
