Dell Vostro 270s Betriebsanleitung

Dell Vostro 270S

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Front And Back View

Figure 1. Front And Back View

1. power button

2. hard drive activity light

3. media card reader

4. headphone connector

5. microphone connector

6. USB 2.0 connectors (2)

7. optical drive eject button

8. optical drive

9. padlock ring

10. security cable slot

Regulatory Model: D06S

Regulatory Type: D06S001

2012 - 02

11. power connector

12. voltage selector switch

13. power supply diagnostic light

14. expansion card slots (2)

15. back panel connectors

Back Panel

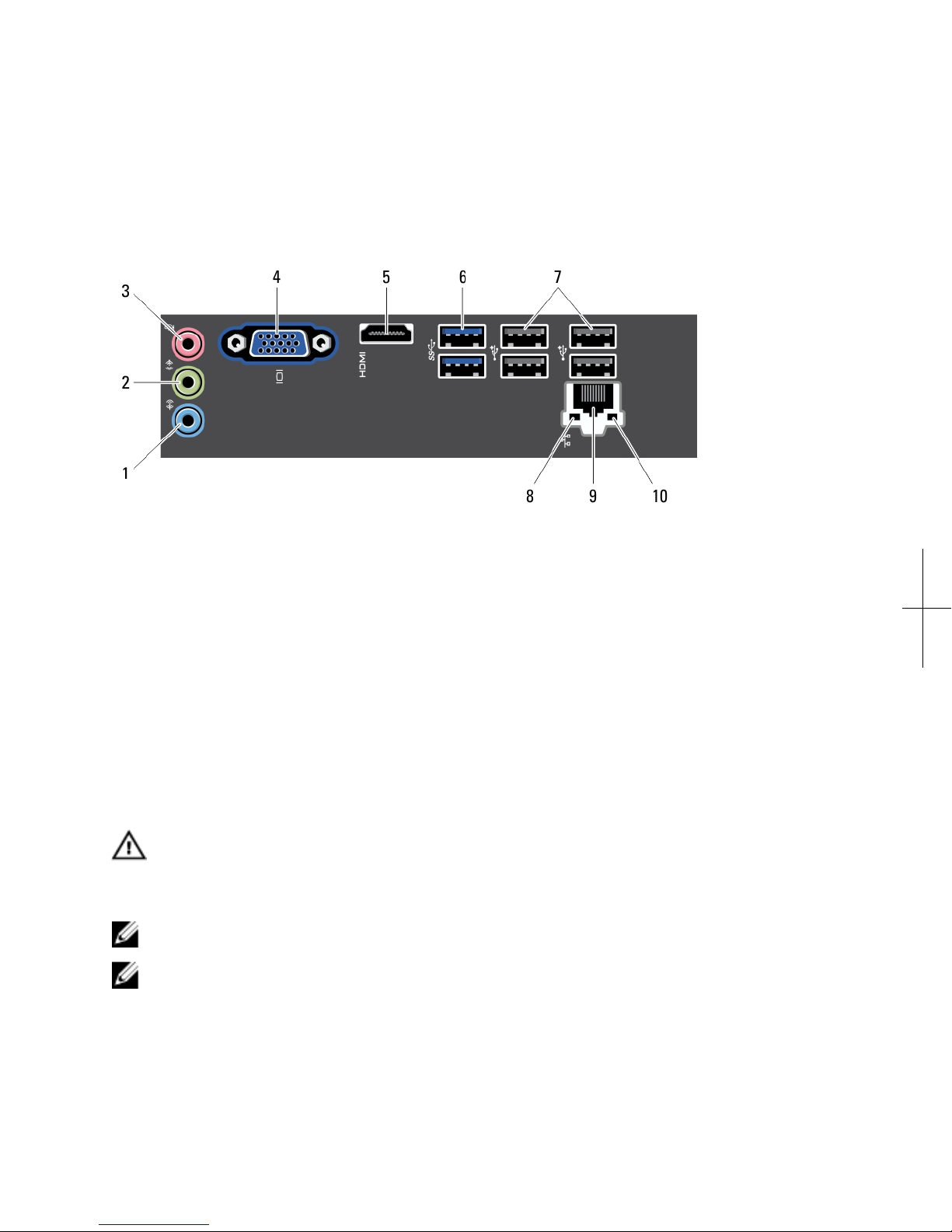

Figure 2. Back Panel

1. line-in connector

2. line-out connector

3. microphone connector

4. VGA connector

5. HDMI connector

6. USB 3.0 connectors (2)

7. USB 2.0 connectors (4)

8. network link integrity light

9. network adapter connector

10. network activity light

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance

NOTE: Some devices may not be included if you did not order them.

NOTE: Some cables may not be shipped with your computer.

1. Connect the network cable (optional).

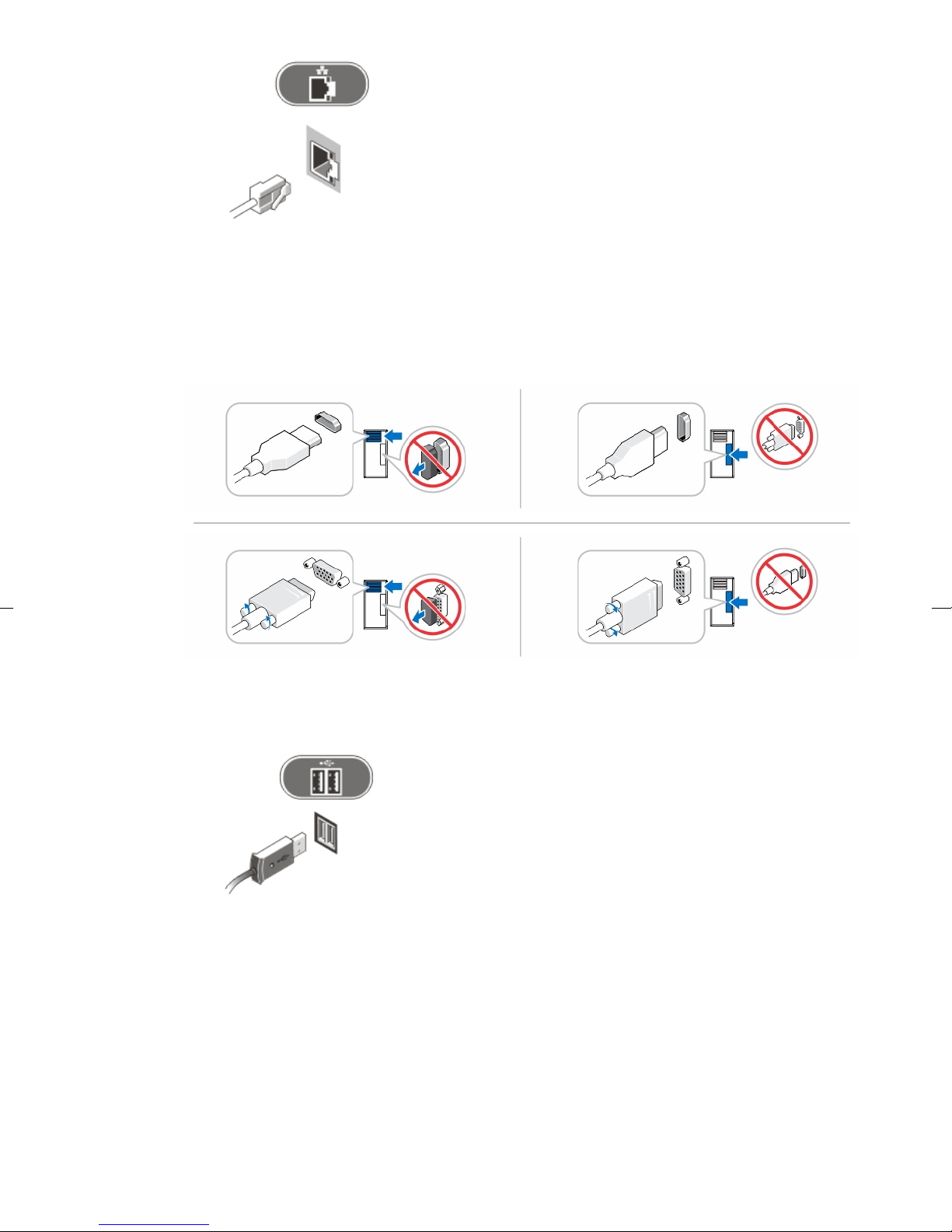

Figure 3. Network Connection

2. If you purchased the optional discrete graphics card, connect the display to the

connector on the discrete graphics card. Otherwise, connect the display using

either the integrated VGA or HDMI connector. Connect the monitor using only one

of the following cables:

Figure 4. VGA Connector And HDMI Connector

3. Connect the USB keyboard or mouse (optional).

Figure 5. USB Connection

4. Connect the power cable(s).

Figure 6. Connecting Power

5. Press the power buttons on the monitor and the computer.

Figure 7. Turning On Power

Specifications

NOTE: The following specifications are only those required by law to ship with your

computer. For a complete and current listing of the specifications for your

computer, go to support.dell.com.

Power

Wattage 220 W

Voltage (see the safety information that

shipped with your computer for important

voltage–setting information)

100 V - 127 V/ 200 V - 240 V

Coin-cell battery 3 V, CR2032 lithium coin cell

Physical

Height 271.00 mm (10.67 inches)

Width 100.00 mm (3.94 inches)

Depth 376.20 mm (14.81 inches)

Weight 5.90 kg (13.01 lb)

Environmental

Operating Temperature: 10 °C to 35 °C (50 °F to 95 °F)

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the

regulatory compliance website at www.dell.com/regulatory_compliance for more

information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at support.dell.com/manuals.

Information para NOM (únicamente para México)

The following information is provided on the device described in this document in

compliance with the requirements of the official Mexican standards (NOM).

Voltaje de alimentación 100 V CA – 127 V CA/ 200 V– 240 V CA

Frecuencia 50–60 Hz

Consumo eléctrico 6,00 A/3,00 A

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell

Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,

ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™are

trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®are

registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®is a

registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™,

ATI Radeon™, and ATI FirePro™are trademarks of Advanced Micro Devices, Inc. Microsoft®,

Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook®are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or

other countries. Blu-ray Disc™is a trademark owned by the Blu-ray Disc Association (BDA) and

licensed for use on discs and players. The Bluetooth®word mark is a registered trademark and

owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is

a registered trademark of Wireless Ethernet Compatibility Alliance, Inc.

Other trademarks and trade names may be used in this publication to refer to either the entities

claiming the marks and names or their products, Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.
