Dell™ D/Port Advanced Port Replicator User's Guide

Using the APR

Regulatory Notices

Limited Warranties and Return Policy

Glossary

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Abbreviations and Acronyms

For a complete list of abbreviations and acronyms, see the Glossary.

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Computer Corporation is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Computer Corporation; Microsoft and Windows are registered

trademarks of Microsoft Corporation; EMC is a trademark of EMC Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names other than its own.

Model PR01X

January 2003 P/N J0834 Rev A00

Initial release: 22 Oct 2002

Back to Contents Page

Using the APR

Dell™ D/Port Advanced Port Replicator User's Guide

Safety Instructions

APR Overview

Before You Dock for the First Time

Docking the Computer

Connecting External Devices to the APR

Securing the APR

Undocking the Computer

Dell Diagnostics

Specifications

Safety Instructions

CAUTION: For precautions on safely handling and using your Advanced Port Replicator (APR) and

preventing electrostatic discharge, see the safety instructions in the D/Port Advanced Port Replicator

Setup Guide.

APR Overview

NOTE: Alert your network administrator before you connect the APR to a network.

The APR integrates your Dell computer quickly and easily into a desktop environment. Use the instructions in this document to

connect, or dock, the computer to the APR and to attach external devices.

The Dell D/Port APR supports Dell D-Family portable computers and runs with the AC adapter provided with the APR.

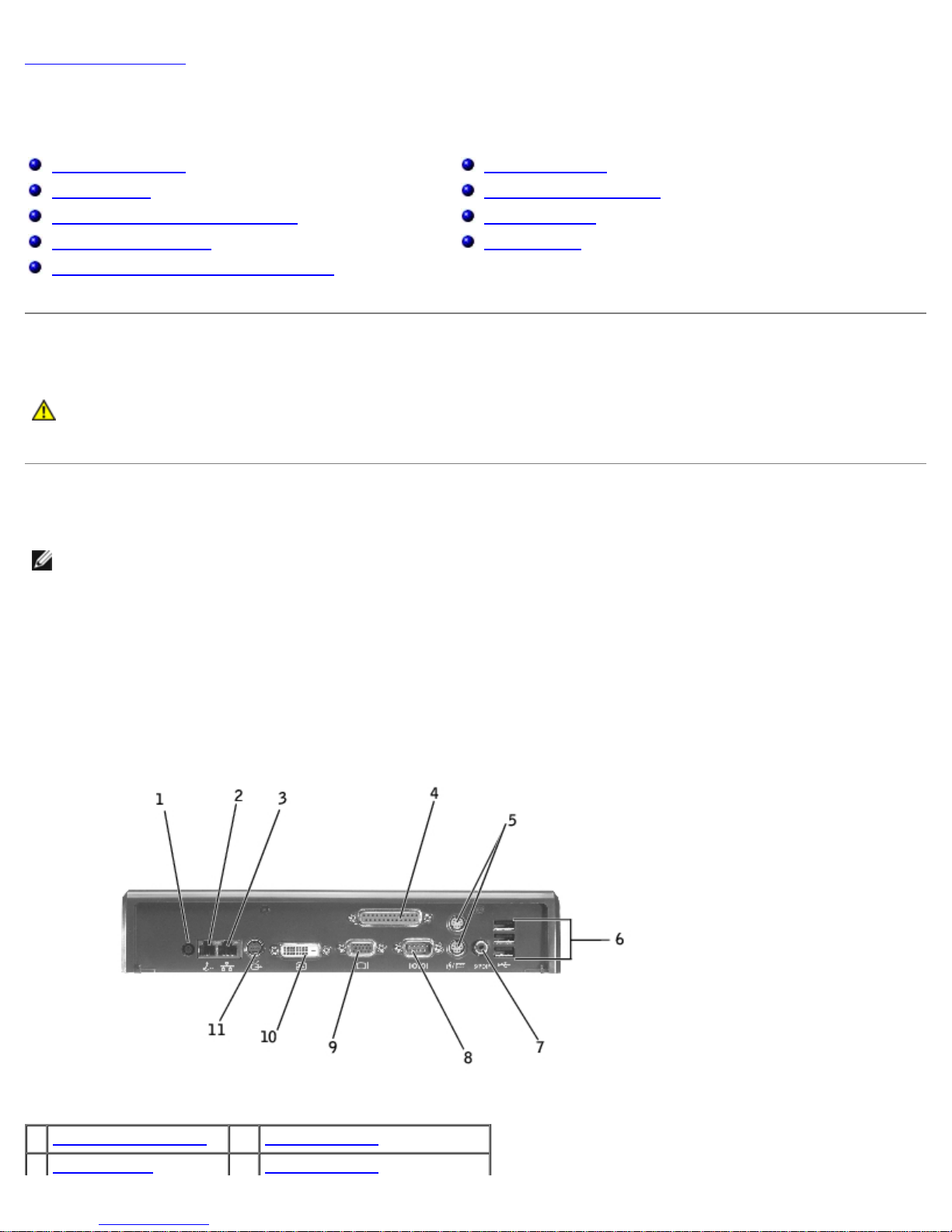

APR I/O Connectors

The I/O connectors on the back and side of the APR duplicate the primary connectors on the back and side of your computer.

1AC adapter connector 8serial connector

2RJ-11 modem 9video connector

connector

3RJ-45 network

connector 10 digital-video interface

connector

4parallel connector 11 S-video connector

5PS/2 connectors (2)

6USB 2.0 connectors

7S/PDIF connector

The following table shows the icons for each of the connectors on the back of the APR and indicates the type of external

device(s) that you can attach to each connector.

Connector Description

AC adapter connector — Connects the AC adapter.

RJ-11 modem connector — Connects a telephone line.

RJ-45 network connector — Connects a network interface cable.

S-video connector — Connects a television or devices such as a camera or VCR.

digital-video interface connector — Connects an external monitor equipped with a digital video interface.

video connector — Connects an external monitor.

serial connector — Connects serial devices, such as a mouse or handheld device.

PS/2 connectors (2) — Connect PS/2-compatible devices, such as a mouse, keyboard, or external numeric

keypad. Shut down the computer before attaching or removing a PS/2-compatible device. If the device does

not work, install the device drivers from the floppy disk or CD that came with the device, and restart the

computer. You can use the integrated keyboard and an external keyboard at the same time. When you attach a

PS/2 keyboard or PS/2 numeric keypad, the integrated keypad is disabled.

S/PDIF connector — Connects an audio (S/PDIF) cable.

USB 2.0 connectors — Connect up to three USB 2.0 compliant devices, such as a USB mouse.

parallel connector — Connects a parallel device such as a printer.

Docking Controls and Lights

1power button

2undock request button

3eject button

power button — Press to turn a docked computer on or off. The power button light indicates the power status of the

APR or a docked computer as follows:

Off — The APR is either not connected to electrical power or, if a computer is docked, the computer is turned off or in

hibernate mode.

Amber — The APR is connected to an electrical outlet but the computer is not docked.

Green — Indicates the status of a docked computer:

Steady green — The computer is turned on.

Slow-pulsing green (breathing) — The computer is in standby mode.

undock request button — When green, you can press the button to prepare the computer for physical undocking. The

button blinks during the preparation for undocking and turns off when ready to undock.

eject button — The eject button indicates the status of the APR as follows:

Off — The computer is either not docked or is not ready to be ejected.

Green — The computer is ready to be undocked. Ensure that the slide lock is in the unlocked position, and then press

the eject button to disconnect the computer from the APR.

NOTICE: Do not eject the computer unless the eject button light is green. Ejecting the computer while the light is off

may cause loss of data and damage to the computer or the APR.

Left View

1backstop 3audio connector

2docking connector 4USB connector for Dell D/Bay

backstop — Lets you correctly position the computer for docking.

docking connector — Lets you connect the portable computer to the APR.

audio connector — Lets you attach headphones to the APR.

USB connector — Lets you connect a Dell D/Bay external module bay. The lower portion of the connector also accepts a

standard USB 2.0 cable.

Right View

1slide lock

2security cable slot

slide lock — Lets you lock the APR to secure the computer in the APR.

security cable slot — Lets you attach an antitheft device to the APR. when the slide lock is in the locked position. The red

color in the security cable slot indicates the unlocked position.

Monitor Stand (Optional)

NOTICE: The stand supports monitors that weigh up to 45.3 kg (100 lb). Heavier monitors may damage the stand,

computer, or APR.

Bottom View

NOTE: For information on the optional monitor stand or the D/View portable-computer stand, see the documentation

that came with the stand.

1monitor stand connector

monitor stand connector — Connects the APR to the optional monitor stand.

Before You Dock for the First Time

NOTE: Alert your network administrator before you connect the APR to a network.

Before you initially connect your computer to the APR, the operating system must complete its setup process. To verify that

the operating system has completed the setup process:

1. Ensure that the computer is not connected to the APR (docked).

2. Turn on the computer.

3. Verify that your computer operating system completes the setup process and that the Microsoft® Windows® desktop

appears.

4. Shut down the computer.

Docking the Computer

You must attach an AC adapter to the APR before you dock and turn on the computer. The AC adapter powers the APR and

the computer at the same time. Any battery installed in the computer charges while you are using the APR.

NOTICE: Always use the Dell AC adapter that came with the APR. If you use any other commercially available AC

adapter, you may damage the APR or the computer.

1AC adapter

2AC adapter connector

1. Complete the steps in "Before You Dock for the First Time."

2. Save and close any open files and exit any open programs.

3. If you have not already done so, connect the AC adapter to the AC adapter connector on the APR, and plug the AC

adapter power cable in to an electrical outlet.

4. Place the APR so that there is enough flat space in front of it to completely support the computer when the computer is

docked.

5. Ensure that the slide lock is in the unlocked position (toward the back of the APR).

6. Hold the computer by its sides and center it against the backstop at the front of the APR.

7. Lower the computer and move it slightly from side to side until you feel it seated on the alignment posts.

NOTICE: To avoid damaging the computer display, press down only over the hinges.

8. Push over the hinges until the computer until the docking connector clicks into place.

NOTICE: Do not pick up the computer or the APR when the computer is docked. Doing so can damage the connectors

on the computer and on the APR.

After docking, if the computer is turned on, the power button light on the APR turns from amber to green. See the

following table for more information on docking control lights. If the light behavior does not match the table, perform

the undock process and then dock the computer again.

Docking Control-Light Activity

States Power Light Undock Request

Light Eject

Light

Computer undocked and APR not connected to an electrical

outlet Off Off Off

Computer undocked but APR connected to an electrical outlet Amber Off Off

Computer docked and turned off Off Off Green

Computer docked and turned on Green Green Off

Computer docked and in hibernate mode Off Off Green

Computer is docked and undock is requested On Blinks Off

Computer is docked and in standby mode Pulses

(breathes) Off Off

Computer is docked, in standby mode, and undock has been

requested Pulses

(breathes) Blinks and turns off Green

9. If the computer was not already turned on, turn it on by pressing the power button on either the computer or the APR.

10. If the computer does not turn on or awaken successfully, undock and reseat the computer. Ensure that the undock

request light is off and the eject button light is green before ejecting the computer (see "Undocking the Computer").

Connecting External Devices to the APR

NOTE: If the cable connector of the external device has thumbscrews, tighten them to ensure a proper connection.

1. Connect the device's cable to the appropriate connector on the APR.

2. Attach the cable cover to the back of the APR after you connect all the devices so that the cables remain hidden under

the cable cover. See the engraved instructions inside the cable cover.

3. Connect any external devices to electrical outlets.

If you attach an external monitor to the APR, you may need to press one or more times to switch the

screen image to the desired location. If the computer cover is closed, you can press on an attached

external keyboard to switch the image.

Securing the APR

Antitheft devices usually include a segment of metal-stranded cable with an attached locking device and associated key. For

instructions on installing this kind of antitheft device, see the documentation that came with the device.

1slide lock

2security cable slot

The APR has the following security features:

slide lock — Move the lock toward the front of the APR (locked position) to secure the computer in the APR. Move the lock

toward the back of the APR (unlocked position) before using the eject button. The red color in the security cable slot indicates

the unlocked position.

security cable slot — Lets you attach an antitheft device to the APR when the slide lock is in the locked position.

A commercially available antitheft device usually includes a metal cable with an attached locking device and key. For

instructions on installing an antitheft device, see the documentation that came with the device.

Undocking the Computer

NOTICE: If the computer is not receiving power from a battery, the computer turns off when you undock it and you

will lose any unsaved data.

1. Save and close any open files and exit any open programs.

NOTICE: Never undock the computer without first preparing the computer to undock. If you undock before preparing

the computer, you will lose data. If you accidentally undock the computer without first preparing to undock and your

computer stops responding, press the power button until the computer turns off and restart the computer. Any

unsaved data will be lost.

2. You can undock the computer from the APR while the computer is either in a power management mode or turned off.

3. Before you physically remove the computer from the APR, prepare the computer for undocking:

If you are using the Windows 2000 operating system, click the Start button and click Eject PC. If you are using

Windows XP, click the Start button and click Undock Computer.

Press the undock request button on the APR. The undock request light turns from steady green to blinking green and

then turns off.

When the eject button light turns green, the computer is ready to be undocked.

1undock request button

2eject button

3slide lock

4. Push the slide lock back to the unlocked position, press the eject button to undock the computer from the APR, and

then lift the computer away from the APR.

Andere Handbücher für PR01X - Advanced Port Replicator 2U442

Inhaltsverzeichnis

Andere Dell Dockingstation Handbücher

Dell

Dell D6000 Bedienungsanleitung

Dell

Dell WD19 Dual Cable Bedienungsanleitung

Dell

Dell E-Port Plus Bedienungsanleitung

Dell

Dell K10A Bedienungsanleitung

Dell

Dell PR01X - Advanced Port Replicator 2U442 Bedienungsanleitung

Dell

Dell K10A Bedienungsanleitung

Dell

Dell E-Port Plus Gebrauchsanweisung

Dell

Dell E-Port Plus II Gebrauchsanweisung

Dell

Dell LATITUDE ST K04M Gebrauchsanweisung

Dell

Dell WD19S 90w Bedienungsanleitung

Dell

Dell D6000 Bedienungsanleitung

Dell

Dell Legacy Adapter LD17 Bedienungsanleitung

Dell

Dell WD19DCS Bedienungsanleitung

Dell

Dell D3100 Bedienungsanleitung

Dell

Dell DS1000 Bedienungsanleitung

Dell

Dell 04YJJ6A00 Bedienungsanleitung

Dell

Dell D6000 Bedienungsanleitung

Dell

Dell D5000 Bedienungsanleitung

Dell

Dell K10A Bedienungsanleitung

Dell

Dell Venue Cradle Bedienungsanleitung

Dell

Dell SUPER SPEED USB 3.0 Bedienungsanleitung

Dell

Dell E-Port Bedienungsanleitung

Dell

Dell 310-8556 - D/Dock Expansion Station Docking Bedienungsanleitung

Dell

Dell K10A Bedienungsanleitung

Beliebte Dockingstation Handbücher anderer Marken

Sony

Sony Dream Machine XDR-DS12iP Bedienungsanleitung

Acer

Acer USB Type-C Dock II Bedienungsanleitung

ATEN

ATEN UC-2000 Bedienungsanleitung

Xcellon

Xcellon HDD-202 Bedienungsanleitung

Dok

Dok CR09 Bedienungsanleitung

Philips

Philips BTM630/12 Bedienungsanleitung

IOGear

IOGear Travel Pro GUD3C09 Bedienungsanleitung

RKI

RKI SDM-E2 Bedienungsanleitung

iHome

iHome iP15 Bedienungsanleitung

VITURE ONE

VITURE ONE MOBILE DOCK Bedienungsanleitung

Lindy

Lindy 42984 Bedienungsanleitung

CipherLab

CipherLab 8001 Bedienungsanleitung

Pyle

Pyle PIPDSP2 Bedienungsanleitung

Avol

Avol AS2350 Bedienungsanleitung

Datalogic

Datalogic JoyaTouch Bedienungsanleitung

Philips

Philips DC190/79 Bedienungsanleitung

Targus

Targus DOCK315EUZ Bedienungsanleitung

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Bedienungsanleitung
