Dell™Inspiron™1011ServiceManual

Notes, Cautions, and Warnings

Information in this document is subject to change without notice.

©2009DellInc.Allrightsreserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell

under license; Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model PP19S

April 2009 Rev. A00

Before You Begin

Battery

Keyboard

Hard Drive

Palm Rest

Palm Rest Bracket

Communication Cards

Power/Battery Status Light Board

Speakers

Internal Card With Bluetooth®Wireless Technology

Power Button Board

USB and SIM Card Board

AC Adapter Connector

System Board

Memory

Coin-Cell Battery

Display

Camera

Flashing the BIOS

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page

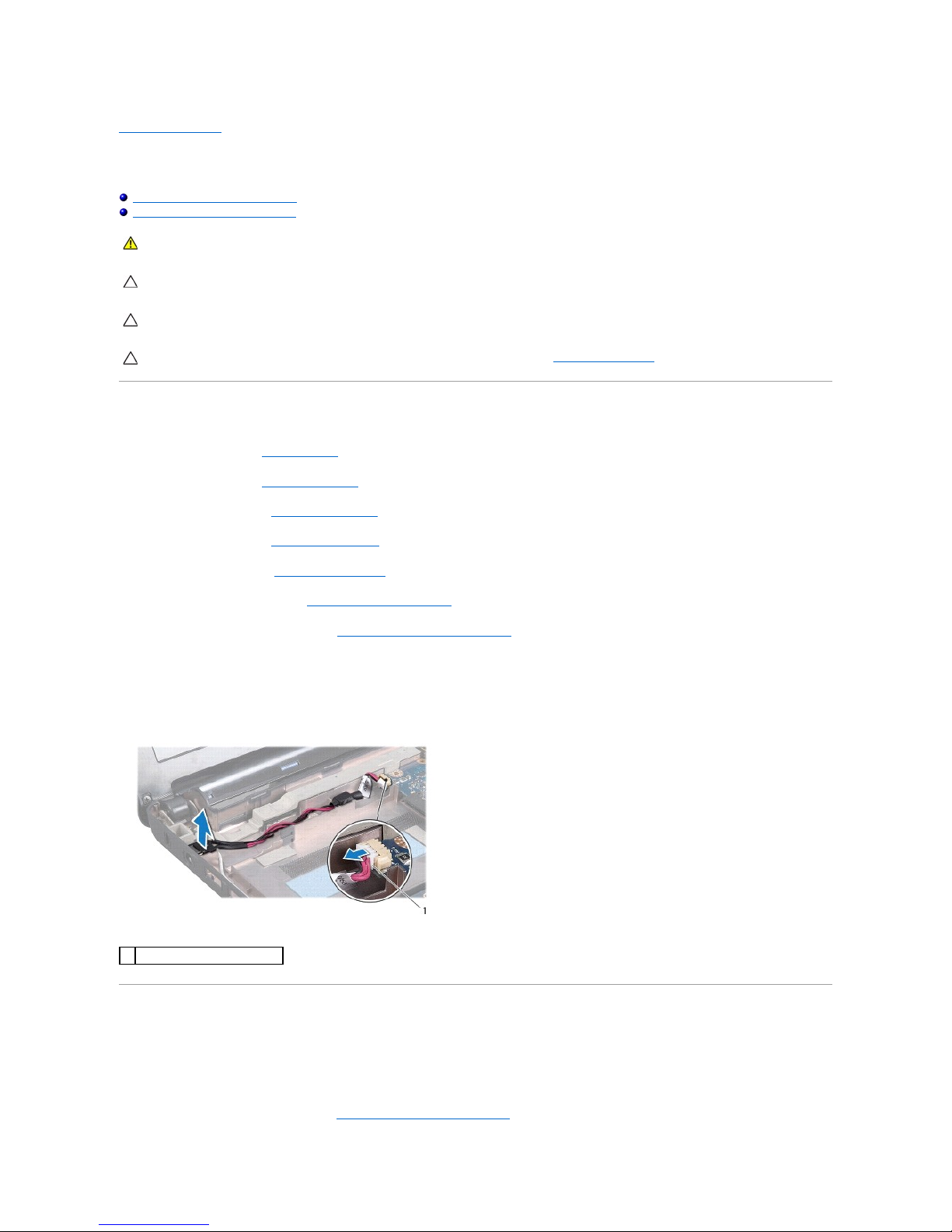

AC Adapter Connector

Dell™Inspiron™1011ServiceManual

Removing the AC Adapter Connector

Replacing the AC Adapter Connector



Removing the AC Adapter Connector



1. Follow the instructions in Before You Begin.



2. Remove the battery (see Removing the Battery).



3. Remove the keyboard (see Removing the Keyboard).



4. Remove the palm rest (see Removing the Palm Rest).



5. Remove the hard drive (see Removing the Hard Drive).



6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).



7. Remove the USB and SIM card board (see Removing the USB and SIM Card Board).



8. Disconnect the AC adapter connector cable from the system board connector.



9. Lift the AC adapter connector out of the computer base.

Replacing the AC Adapter Connector



1. Place the AC adapter connector on the system board.



2. Connect the AC adapter connector cable to the system board connector.



3. Replace the USB and SIM card board (see Replacing the USB and SIM Card Board).

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the

computer.

AC adapter cable connector



4. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).



5. Replace the hard drive (see Replacing the Hard Drive).



6. Replace the palm rest (see Replacing the Palm Rest).



7. Replace the keyboard (see Replacing the Keyboard).



8. Replace the battery (see Replacing the Battery).

Back to Contents Page



Back to Contents Page

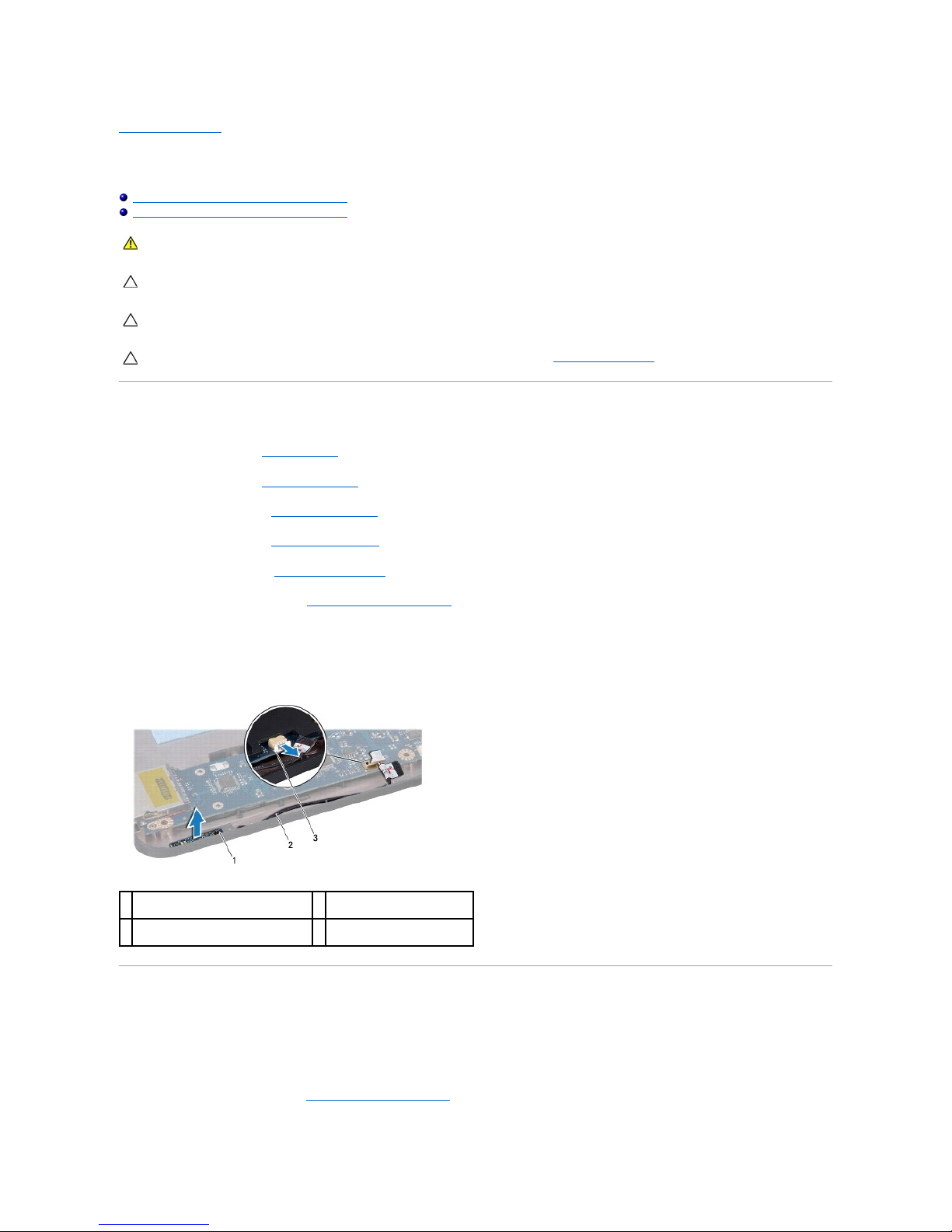

Power/Battery Status Light Board

Dell™Inspiron™1011ServiceManual

Removing the Power/Battery Status Light Board

Replacing the Power/Battery Status Light Board



Removing the Power/Battery Status Light Board



1. Follow the instructions in Before You Begin.



2. Remove the battery (see Removing the Battery).



3. Remove the keyboard (see Removing the Keyboard).



4. Remove the palm rest (see Removing the Palm Rest).



5. Remove the hard drive (see Removing the Hard Drive).



6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).



7. Disconnect the power/battery status light board cable from the system board connector, if you have not already done so while removing the palm rest

bracket.



8. Lift the power/battery status light board off the computer base.

Replacing the Power/Battery Status Light Board



1. Align the holes on the power/battery status light board to the protrusion on the computer base and keep it in place.



2. Connect the power/battery status light board cable to the system board connector.



3. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).



WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the

computer.

power/battery status light board

power/battery status light

board cable

power/battery status light board cable

connector



4. Replace the hard drive (see Replacing the Hard Drive).



5. Replace the palm rest (see Replacing the Palm Rest).



6. Replace the keyboard (see Replacing the Keyboard).



7. Replace the battery (see Replacing the Battery).

Back to Contents Page



Back to Contents Page

Before You Begin

Dell™Inspiron™1011ServiceManual

Recommended Tools

Turning Off Your Computer

Before Working Inside Your Computer

This section provides procedures for removing and installing components in your computer. Unless otherwise noted, each procedure assumes that the

following conditions exist:

lYou have performed the steps in Turning Off Your Computer and Before Working Inside Your Computer.

lYou have read the safety information that shipped with your computer.

lA component can be replaced or—if purchased separately—installed by performing the removal procedure in the reverse order.

Recommended Tools

The procedures in this document may require the following tools:

lSmall flat-blade screwdriver

lPhillips screwdriver

lPlastic scribe

lBIOS upgrade CD or the BIOS executable update program available on the Dell Support website at support.dell.com

Turning Off Your Computer



1. Save and close all open files and exit all open programs.



2. Shut down the operating system:

Windows®XP:

Click Start®ShutDown®Shut down.

Ubuntu®Dell Desktop:

Click ®Quit ®Shut down.

Ubuntu Classic Desktop:

Click ®Shut down.



3. Ensure that the computer and all attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut

down your operating system, press and hold the power button until the computer turns off.

Before Working Inside Your Computer

Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.



CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal

mounting bracket. Hold a component such as a processor by its edges, not by its pins.

CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is

not covered by your warranty.

CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking

tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep



1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.



2. Turn off your computer. See Turning Off Your Computer.



3. Disconnect all telephone or network cables from the computer.



4. Press and eject any installed cards from the Memory Card Reader.



5. Disconnect your computer and all attached devices from their electrical outlets.



6. Remove the battery (see Removing the Battery).



7. Turn the computer top-side up, open the display, and press the power button to ground the system board.

Back to Contents Page



them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented

and aligned.

CAUTION: To avoid damaging the computer, perform the following steps before you begin working inside the computer.

CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.

Back to Contents Page

Flashing the BIOS

Dell™Inspiron™1011ServiceManual

Flashing the BIOS From a CD

Flashing the BIOS From the Hard Drive

Flashing the BIOS in Ubuntu

If a BIOS-update program CD is provided with the new system board, flash the BIOS from the CD. If you do not have a BIOS-update program CD, flash the

BIOS from the hard drive.

Flashing the BIOS From a CD



1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.



2. Insert the BIOS-update program CD, and restart the computer.

Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the

computer will automatically restart.



3. Press <F2> during POST to enter the system setup program.



4. Press <F9> to reset the computer defaults.



5. Press <Esc>, select Save changes and reboot, and press <Enter> to save configuration changes.



6. Remove the BIOS-update program CD from the drive and restart the computer.

Flashing the BIOS From the Hard Drive



1. Ensure that the AC adapter is plugged in, the main battery is properly installed, and a network cable is attached.



2. Turn on the computer.



3. Locate the latest BIOS update file for your computer at support.dell.com.



4. Click Download Now to download the file.



5. If the Export Compliance Disclaimer window appears, click Yes, I Accept this Agreement.

The File Download window appears.



6. Click Save this program to disk and then click OK.

The Save In window appears.



7. Click the down arrow to view the Save In menu, select Desktop, and then click Save.

The file downloads to your desktop.



8. Click Close if the Download Complete window appears.

The file icon appears on your desktop and is titled the same as the downloaded BIOS update file.



9. Double-click the file icon on the desktop and follow the instructions on the screen.

Flashing the BIOS in Ubuntu



1. Ensure that the AC adapter is plugged in, the main battery is properly installed, and a network cable is attached.



2. Turn on the computer.



NOTE: Your computer does not have an internal optical drive. Use an external optical drive or any external storage device for the procedures that

involve discs.

NOTE: If you use a BIOS-update program CD to flash the BIOS, set up the computer to boot from a CD before inserting the CD.

3. Select ®Places®Documents.



4. Create a new folder and name it BIOS.



5. Locate the latest BIOS update file for your computer at support.dell.com.



6. Click Download Now to download the file.



7. If the Export Compliance Disclaimer window appears, click Yes, I Accept this Agreement.

The File Download window appears.



8. Click Save this program to disk and then click OK.

The Save In window appears.



9. Click the down arrow to view the Save In menu, select Documents®BIOS, and then click Save.



10. Click Close if the Download Complete window appears.

The file icon appears on your BIOS folder and is titled the same as the downloaded BIOS update file.



11. Open the terminal command line application and proceed as follows:

a. Type sudo -s

b. Type your password

c. Type cd Documents

d. Type cd BIOS

e. Type ./1011a00

flash start... string appears.

The computer will restart automatically once the BIOS flash is complete.

Back to Contents Page



Back to Contents Page

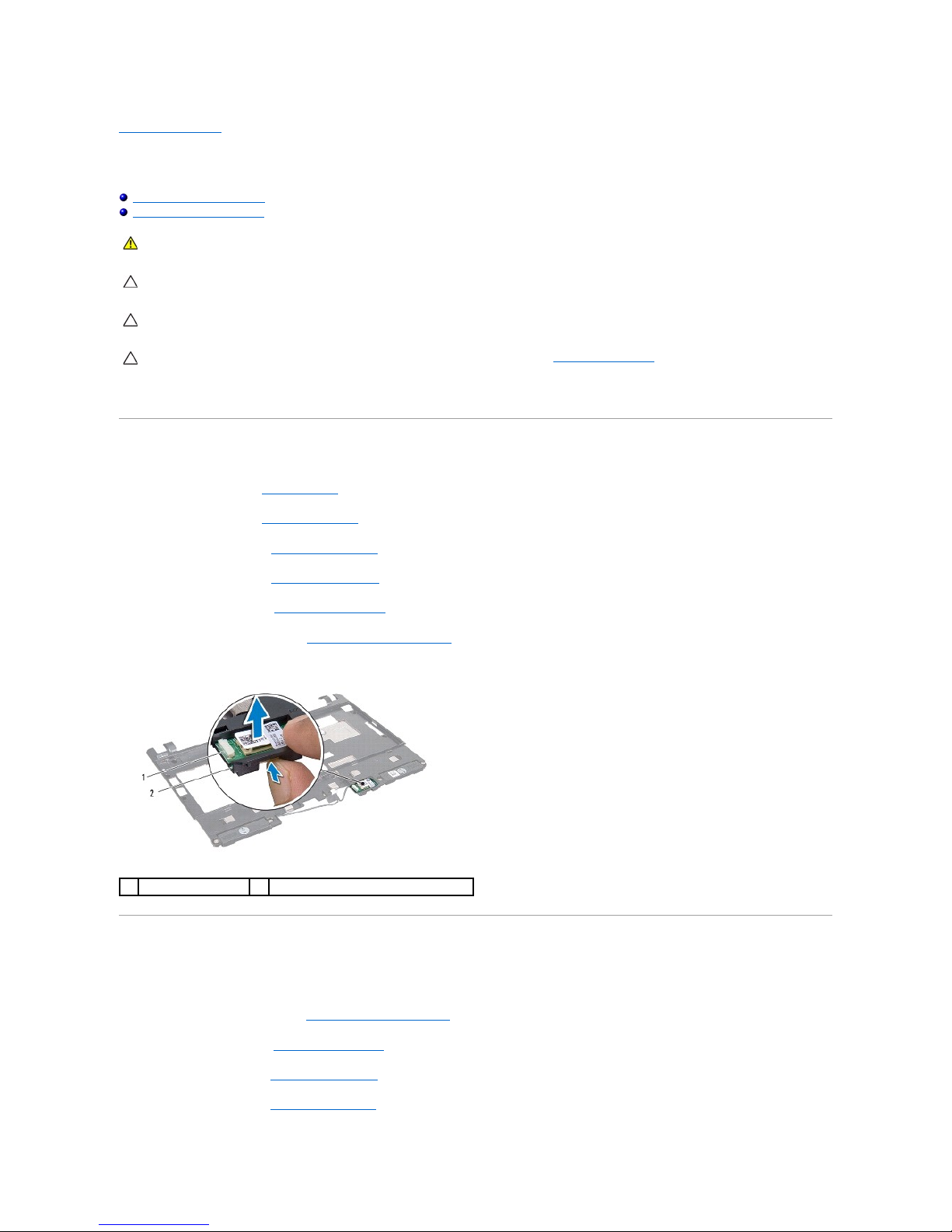

Internal Card With Bluetooth®Wireless Technology

Dell™Inspiron™1011ServiceManual

Removing the Bluetooth Card

Replacing the Bluetooth Card



If you ordered a card with Bluetooth wireless technology with your computer, it is already installed.

Removing the Bluetooth Card



1. Follow the instructions in Before You Begin.



2. Remove the battery (see Removing the Battery).



3. Remove the keyboard (see Removing the Keyboard).



4. Remove the palm rest (see Removing the Palm Rest).



5. Remove the hard drive (see Removing the Hard Drive).



6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).



7. Push the card out of the Bluetooth card compartment in the palm rest bracket.

Replacing the Bluetooth Card



1. Place the card in the Bluetooth card compartment and snap it into place.



2. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).



3. Replace the hard drive (see Replacing the Hard Drive).



4. Replace the palm rest (see Replacing the Palm Rest).



5. Replace the keyboard (see Replacing the Keyboard).

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the

computer.

Bluetooth card

Bluetooth card compartment

Andere Handbücher für Inspiron Mini 10v

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dell Laptop Handbücher

Dell

Dell Vostro 1200 Bedienungsanleitung

Dell

Dell C600 - Latitude Intel P-4 1.4GHz Bedienungsanleitung

Dell

Dell Inspiron 7437 Bedienungsanleitung

Dell

Dell Inspiron Inspiron 17R Bedienungsanleitung

Dell

Dell Inspiron 14 7430 2-in-1 Bedienungsanleitung

Dell

Dell Inspiron 13-7375 Bedienungsanleitung

Dell

Dell P114G Bedienungs- und Wartungshandbuch

Dell

Dell P01S Referenzhandbuch

Dell

Dell Latitude 7414 Bedienungsanleitung

Dell

Dell Vostro 3405 Bedienungsanleitung

Dell

Dell Inspiron 11 Bedienungsanleitung

Dell

Dell VOSTRO 1000 PP23LB Bedienungsanleitung

Dell

Dell Alienware m15 R6 Bedienungsanleitung

Dell

Dell Inspiron 14 5000 Series Bedienungsanleitung

Dell

Dell Inspiron 15 3000 Series Bedienungs- und Wartungshandbuch

Dell

Dell Inspiron 15 5000 Series Bedienungs- und Wartungshandbuch

Dell

Dell Studio XPS 9000 Bedienungsanleitung

Dell

Dell Chromebook 5190 Bedienungs- und Wartungsanleitung

Dell

Dell Inspiron 7390 2n1 Bedienungsanleitung

Dell

Dell Inspiron 7405 2n1 Bedienungs- und Wartungshandbuch

Dell

Dell P82G Bedienungsanleitung

Dell

Dell INSPIRON PP05XB Bedienungsanleitung

Dell

Dell Inspiron 14 7420 2-in-1 Bedienungs- und Wartungshandbuch

Dell

Dell XPS 13 Bedienungs- und Wartungshandbuch

Beliebte Laptop Handbücher anderer Marken

HP ze2401xt - Pavilion Notebook PC Bedienungsanleitung

Velocity

Velocity NoteMagix M10 Bedienungsanleitung

Toshiba

Toshiba A105-S2236 Bedienungsanleitung

HP ENVY 17 Handbuch

Winbook

Winbook LM Bedienungsanleitung

HP PROBOOK 4520S Handbuch

Sony

Sony VAIO PCG-FX270 Bedienungsanleitung

Sony

Sony VAIO PCG-R505JLK Bedienungsanleitung

Lenovo

Lenovo THINKPAD X32 Bedienungsanleitung

HP Compaq tc4200 Kurzanleitung

Toshiba

Toshiba mini NB300 Bedienungsanleitung

Lenovo

Lenovo ThinkPad X201 Tablet Handbuch

Lenovo

Lenovo THINKPAD X31 Handbuch

Sony

Sony VGN-T240P VAIO Bedienungsanleitung

Compaq

Compaq Armada E700 Series Bedienungsanleitung

Fujitsu

Fujitsu Lifebook A6230 Bedienungsanleitung

Acer

Acer Aspire ONE 722 Bedienungsanleitung

Toshiba

Toshiba L300-EZ1524 Bedienungsanleitung
