Dell Latitude 13 Betriebsanleitung

Setup and Features Information

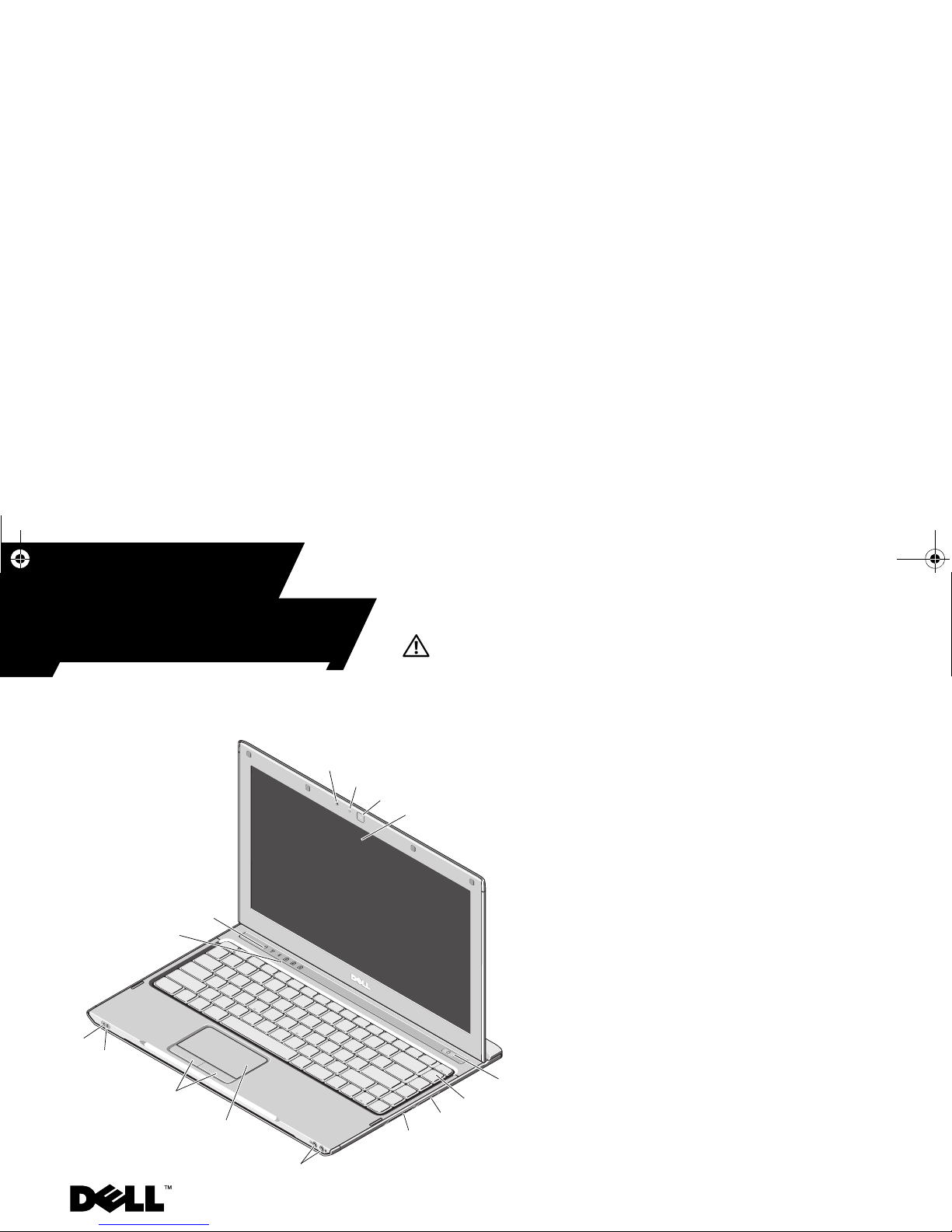

Front View

1microphone

2camera-status light

3camera

4display

5power button

6keyboard

73-in-1 media-card reader

8ExpressCard slot

9audio connectors (2)

10 touchpad

11 touchpad buttons (2)

12 battery-status lights

13 power-status lights

14 keyboard-status lights

15 device-status lights

Regulatory Model: P08S Regulatory Type: P08S001

Dell™Latitude™13

About Warnings

WARNING: A WARNING indicates a potential for

property damage, personal injury, or death.

December 2009

T7K43am0.fm Page 1 Thursday, February 4, 2010 10:14 AM

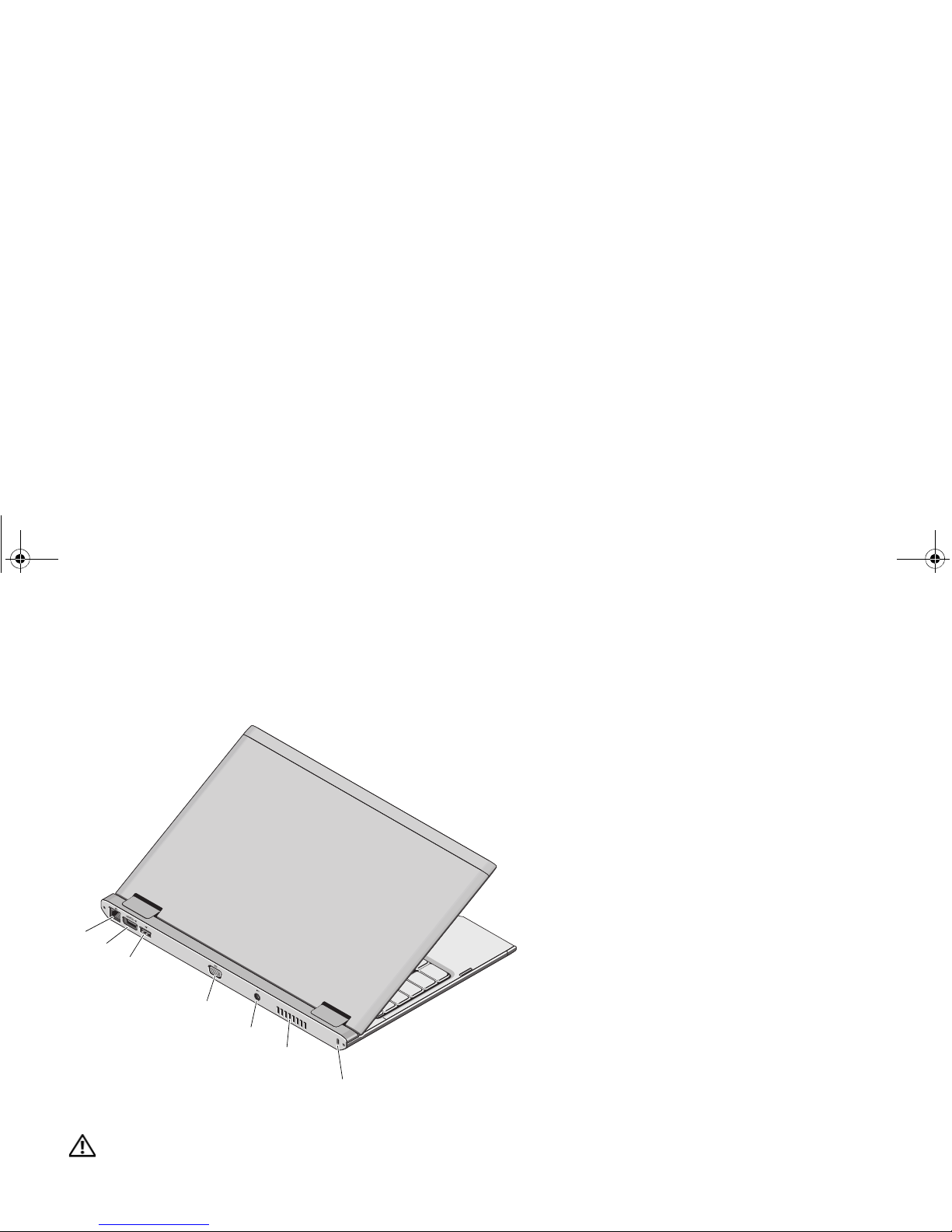

Back View

WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow

environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire. The computer

turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.

1network connector

2eSATA/USB 2.0 connector

3USB 2.0 connector

4video connector (VGA)

5AC-adapter connector

6cooling vent

7security-cable slot

T7K43am0.fm Page 2 Thursday, February 4, 2010 10:14 AM

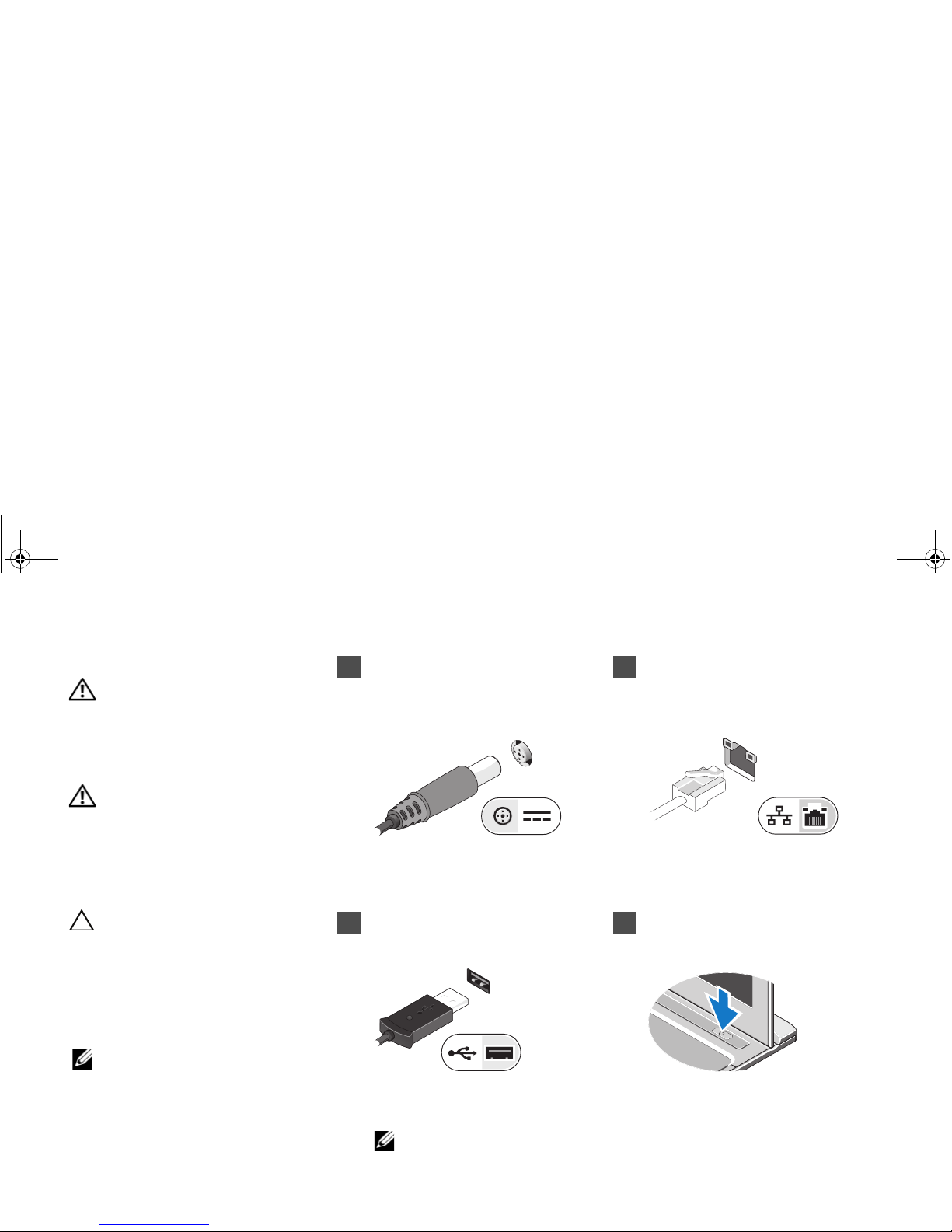

1Connect the AC adapter to the

AC-adapter connector on the

portable computer and to the

electrical outlet.

2Connect the network cable

(optional).

3Connect USB devices, such as a

mouse or keyboard (optional).

4Open the computer display and

press the power button to turn on

the computer.

NOTE: It is recommended that you turn on and shut down your computer at least

once before you install any cards or connect the computer to a docking device or

other external device, such as a printer.

Quick Setup

WARNING: Before you begin any of the

procedures in this section, read the safety

information that shipped with your

computer. For additional best practices

information, see

www.dell.com/regulatory_compliance.

WARNING: The AC adapter works with

electrical outlets worldwide. However,

power connectors and power strips vary

among countries. Using an incompatible

cable or improperly connecting the cable

to the power strip or electrical outlet may

cause fire or equipment damage.

CAUTION: When you disconnect the

AC adapter cable from the computer,

grasp the connector, not the cable itself,

and pull firmly but gently to avoid

damaging the cable. When you wrap the

AC adapter cable, ensure that you follow

the angle of the connector on the

AC adapter to avoid damaging the cable.

NOTE: Some devices may not be

included if you did not order them.

T7K43am0.fm Page 3 Thursday, February 4, 2010 10:14 AM

Specifications

NOTE: Offerings may vary by region. For more information regarding

the configuration of your computer, click Start→Help and Support

and select the option to view information about your computer.

System Information

Processor type Intel®Core™2 Duo Ultra-Low

Voltage (ULV), Intel Core2

Solo ULV, Intel Celeron®ULV

Chipset Mobile Intel GS45 Express Chipset

Memory

Memory module connector one SODIMM slot

Memory module capacity 1 GB, 2 GB, or 4 GB

Memory type 1067 MHz DDR3

Minimum memory 1 GB

Maximum memory 4 GB

Video

Video type integrated on system board

Video controller Intel GMA 4500MHD

Battery

Type 6-cell "smart" lithium-ion (30 WHr)

Dimensions:

Depth

155.20 mm (6.11 inches)

Height

5.35 mm (0.21 inches)

Width

177.60 mm (6.99 inches)

Weight 265 +/– 6 g (0.58 +/– 0.01 lb)

Voltage 11.1 VDC

Temperature range:

Operating

0 °C to 35 °C (32 °F to 95 °F)

Storage

–40 °C to 65 °C (–40 °F to 149 °F)

Coin-cell battery 3 V CR2032 lithium

AC Adapter

Input voltage 100–240 VAC

Input current (maximum) 1.5 A

Input frequency 50–60 Hz

Output power 65 W

Output current 4.34 A (maximum at 4-second pulse)

3.34 A (continuous)

Rated output voltage 19.5 +/– 1.0 VDC

Dimensions:

Height

16 mm (0.63 inches)

Width

66 mm (2.60 inches)

T7K43am0.fm Page 4 Thursday, February 4, 2010 10:14 AM

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer

and the regulatory compliance website at

www.dell.com/regulatory_compliance for more information on:

• Safety best practices

• Warranty

• Terms and Conditions

• Regulatory certification

• Ergonomics

• End User License Agreement

________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written

permission of Dell Inc. is strictly forbidden.

Trademarksusedin this text:Dell, the DELL logo, and Latitudearetrademarks

ofDellInc.;IntelandCeleronareregisteredtrademarksandCoreisatrademark

of Intel Corporation in the U.S. and other countries.

Other trademarks and trade names may be used in this document to refer to

either the entities claiming the marks and names or their products. Dell Inc.

disclaims any proprietary interest in trademarks and trade names other

than its own.

Depth

127 mm (5.00 inches)

Temperature range:

Operating

0 °C to 35 °C (32 °F to 95 °F)

Storage

–40 °C to 65 °C (–40 °F to 149°F)

Physical

Height 18.7 mm (0.74 inches)

Width 330 mm (12.99 inches)

Depth 230 mm (9.06 inches)

Weight (with 6-cell battery) <1.6 kg (<3.53 lb)

Environmental

Temperature range:

Operating

0 °C to 35 °C (32 °F to 95 °F)

Storage

–40 °C to 65 °C (–40 °F to 149 °F)

Relative humidity (maximum):

Operating

10 % – 90 % (noncondensing)

Storage

5 % – 95 % (noncondensing)

Altitude (maximum):

Operating

–15.2 m to 3048 m (–50 ft to 10,000 ft)

Storage

–15.2 m to 10,668 m (–50 ft to 35,000 ft)

AC Adapter (continued)
