Dell Latitude D500 Bedienungsanleitung

Dell Latitude D500 Service Manual

Dell™ Latitude™ D500 Service Manual

Before You Begin

Preparing to Work Inside the Computer

Recommended Tools

Computer Orientation

Screw Identification

Memory Module, Mini PCI Card, and Devices

Memory Module

Mini PCI Card

Devices

System Components

Reserve Battery

Hard Drive

Keyboard

Display Assembly and Display Latch

Display Assembly

Display Bezel

Display Panel

Display Latch

Palm Rest

Docking Doors

Fan

Bluetooth™ Card

Microprocessor Thermal-Cooling Assembly

System Board

Microprocessor Module

Flashing the BIOS

Speakers

Base Latch

Modem

Pin Assignments for I/O Connectors

USB Connector

Video Connector

Parallel Connector

file:///F|/Service%20Manuals/Dell/Latitude/d500/index.htm (1 of 2) [2/28/2004 8:08:10 AM]

Dell Latitude D500 Service Manual

S-Video TV-Out Connector

Serial Connector

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use

of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of

data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage,

personal injury, or death.

Trademarks used in this text: Dell, the DELL logo, and Latitude are trademarks of Dell Computer

Corporation; Intel is a registered trademarks of Intel Corporation; Microsoft and Windows are

registered trademarks of Microsoft Corporation; Bluetooth is a trademark owned by Bluetooth SIG, Inc.

and is used by Dell Computer Corporation under license.

Other trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. Dell Computer Corporation disclaims any proprietary

interest in trademarks and trade names other than its own.

Model PP05L

April 2003 Rev. A00

file:///F|/Service%20Manuals/Dell/Latitude/d500/index.htm (2 of 2) [2/28/2004 8:08:10 AM]

Before You Begin: Dell Latitude D500 Service Manual

Back to Contents Page

Before You Begin

Dell™ Latitude™ D500 Service Manual

Preparing to Work Inside the Computer

Recommended Tools

Computer Orientation

Screw Identification

Preparing to Work Inside the Computer

CAUTION: Only a certified service technician should perform repairs on

your computer. Damage due to servicing that is not authorized by Dell

is not covered by your warranty. Read and follow the safety instructions

in the System Information Guide that came with the computer.

CAUTION: To prevent static damage to components inside your

computer, discharge static electricity from your body before you touch

any of your computer's electronic components. You can do so by

touching an unpainted metal surface.

CAUTION: Handle components and cards with care. Do not touch the

components or contacts on a card. Hold a card by its edges or by its

metal mounting bracket. Hold a component such as a microprocessor by

its edges, not by its pins.

NOTICE: To avoid damaging the computer, perform the following steps before

you begin working inside the computer.

1. Ensure that the work surface is flat and clean to prevent scratching the

computer cover.

2. Save any work in progress and exit all open programs.

3. Turn off the computer and all attached devices.

file:///F|/Service%20Manuals/Dell/Latitude/d500/begin.htm (1 of 7) [2/28/2004 8:08:20 AM]

Before You Begin: Dell Latitude D500 Service Manual

NOTE: Ensure that the computer is off and not in a power management mode.

If you cannot shut down the computer using the computer operating system,

press and hold the power button for 4 seconds.

4. If the computer is connected to a docking device (docked), undock it.

5. Disconnect the computer from the electrical outlet.

6. To avoid possible damage to the system board, wait 10 to 20 seconds and then

disconnect any attached devices.

7. Disconnect all other external cables from the computer.

8. Remove any installed PC Cards from the PC Card slot.

9. Close the display and turn the computer upside down on a flat work surface.

NOTICE: To avoid damaging the system board, you must remove the main

battery before you service the computer.

10. Slide and hold the battery-bay latch release on the bottom of the computer, and

then remove the battery from the bay.

file:///F|/Service%20Manuals/Dell/Latitude/d500/begin.htm (2 of 7) [2/28/2004 8:08:20 AM]

Before You Begin: Dell Latitude D500 Service Manual

11. Remove any installed memory modules, Mini PCI cards, and devices, including a

second battery if one is installed.

12. Remove the hard drive.

Recommended Tools

The procedures in this manual require the following tools:

●#1 Phillips screwdriver

●¼-inch flat-blade screwdriver

●Small plastic scribe

●Flash BIOS update program floppy disk or CD

file:///F|/Service%20Manuals/Dell/Latitude/d500/begin.htm (3 of 7) [2/28/2004 8:08:20 AM]

Before You Begin: Dell Latitude D500 Service Manual

Computer Orientation

1 back

2 right

3 front

4 left

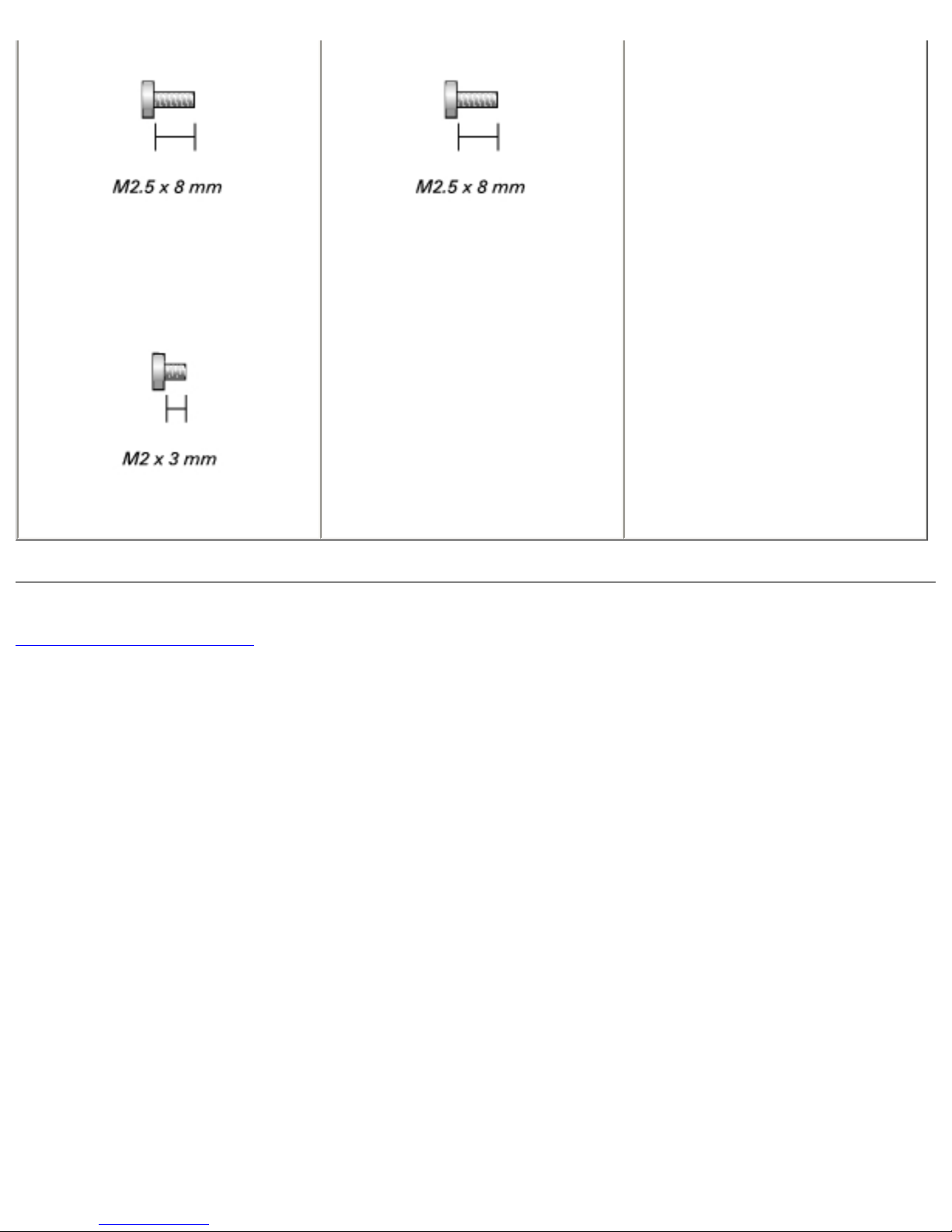

Screw Identification

When you are removing and replacing components, photocopy "Screw Identification"

as a tool to lay out and keep track of the screws. The placemat provides the number

of screws and their sizes.

file:///F|/Service%20Manuals/Dell/Latitude/d500/begin.htm (4 of 7) [2/28/2004 8:08:20 AM]

Before You Begin: Dell Latitude D500 Service Manual

Optional Device:

(1 each)

Hard Drive:

(1 each)

Keyboard:

(2 each)

Display Assembly:

(3 each)

Display Bezel:

(display bumpers, 6 each)

(6 each)

Display Panel:

(4 each)

file:///F|/Service%20Manuals/Dell/Latitude/d500/begin.htm (5 of 7) [2/28/2004 8:08:20 AM]

Before You Begin: Dell Latitude D500 Service Manual

Display Latch:

(3 each)

Palm Rest:

(3 each)

(9 each)

Fan:

(2 each)

System Board:

(1 each)

Speakers:

(1 each)

Modem:

(1 each)

file:///F|/Service%20Manuals/Dell/Latitude/d500/begin.htm (6 of 7) [2/28/2004 8:08:20 AM]

Before You Begin: Dell Latitude D500 Service Manual

(4 each)

Back to Contents Page

file:///F|/Service%20Manuals/Dell/Latitude/d500/begin.htm (7 of 7) [2/28/2004 8:08:20 AM]

Memory Module, Mini PCI Card, and Devices: Dell Latitude D500 Service Manual

Back to Contents Page

Memory Module, Mini PCI Card, and

Devices

Dell™ Latitude™ D500 Service Manual

Memory Module

Mini PCI Card

Devices

Memory Module

CAUTION: Before working inside your Dell™ computer, read the safety

instructions in your System Information Guide.

CAUTION: To prevent static damage to components inside your

computer, discharge static electricity from your body before you touch

any of your computer's electronic components. You can do so by

touching an unpainted metal surface.

NOTE: Memory modules purchased from Dell are covered under your computer

warranty.

1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Turn the computer over, loosen the captive screw from the memory module

cover, and lift the cover.

file:///F|/Service%20Manuals/Dell/Latitude/d500/upgrades.htm (1 of 10) [2/28/2004 8:08:21 AM]
