Dell Latitude E5430 Betriebsanleitung

Dell Latitude E5430/E5530

Setup and Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Latitude E5430 — Front And Back View

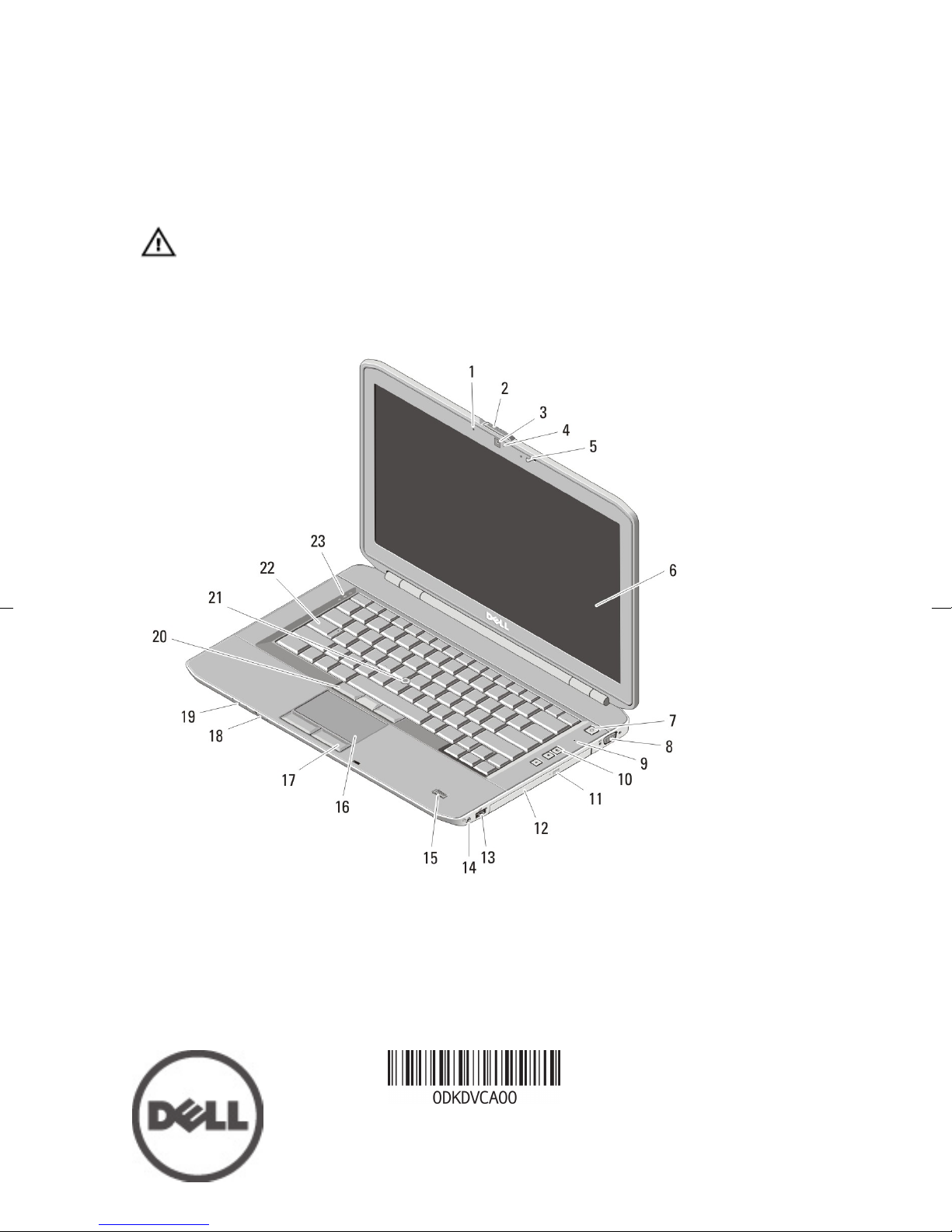

Figure 1. Front View

1. microphone (optional)

2. display release latch

3. camera (optional)

4. camera status light (optional)

Regulatory Model: P27G, P28G

Regulatory Type: P27G001, P28G001

2011 - 09

5. display latch

6. display

7. power button

8. VGA connector

9. microphone

10. volume control buttons

11. optical-drive eject button

12. optical drive

13. USB 2.0 connector

14. audio connector

15. fingerprint reader (optional)

16. touchpad

17. touchpad buttons

18. wireless switch

19. device status indicators

20. trackstick buttons (optional)

21. trackstick (optional)

22. keyboard

23. device status lights

Figure 2. Back View

1. network connector

2. USB 2.0 connector

3. modem connector (optional)

4. power connector

5. security cable slot

6. cooling vents

7. HDMI connector

8. eSATA/USB 3.0 connector

9. USB 3.0 connector

10. Secure Digital (SD) memory-card

slot

11. ExpressCard slot (optional)

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the

computer or cause a fire. The computer turns on the fan when the computer gets

hot. Fan noise is normal and does not indicate a problem with the fan or the

computer.

Latitude E5530 — Front And Back View

Figure 3. Front View

1. display latch

2. microphone (optional)

3. display release latch

4. camera (optional)

5. camera status light (optional)

6. display

7. microphone

8. power button

9. VGA connector

10. optical-drive eject button

11. optical drive

12. USB 2.0 connector

13. audio connector

14. fingerprint reader (optional)

15. wireless switch

16. device status indicators

17. touchpad buttons

18. touchpad

19. trackstick buttons (optional)

20. trackstick (optional)

21. keyboard

22. device status lights

23. volume control buttons

Figure 4. Back View

1. network connector

2. USB 2.0 connector

3. modem connector (optional)

4. power connector

5. security cable slot

6. cooling vents

7. HDMI connector

8. eSATA/USB 3.0 connector

9. USB 3.0 connector

10. Secure Digital (SD) card slot

11. ExpressCard slot (optional)

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the

computer or cause a fire. The computer turns on the fan when the computer gets

hot. Fan noise is normal and does not indicate a problem with the fan or the

computer.

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance.

WARNING: The AC adapter works with electrical outlets worldwide. However,

power connectors and power strips vary among countries. Using an incompatible

cable or improperly connecting the cable to the power strip or electrical outlet may

cause fire or equipment damage.

CAUTION: When you disconnect the AC adapter cable from the computer, grasp

the connector, not the cable itself, and pull firmly but gently to avoid damaging the

cable. When you wrap the AC adapter cable, ensure that you follow the angle of the

connector on the AC adapter to avoid damaging the cable.

NOTE: Some devices may not be included if you did not order them.

1. Connect the AC adapter to the AC adapter connector on the computer and to the

electrical outlet.

Figure 5. AC Adapter

2. Connect the network cable (optional).

Figure 6. Network Connector

3. Connect USB devices, such as a mouse or keyboard (optional).

Figure 7. USB Connector

4. Open the computer display and press the power button to turn on the computer.

Figure 8. Power Button

NOTE: It is recommended that you turn on and shut down your computer at least

once before you install any cards or connect the computer to a docking device or

other external device, such as a printer.

Specifications

NOTE: Offerings may vary by region. The following specifications are only those

required by law to ship with your computer. For more information regarding the

configuration of your computer, click Start → Help and Support and select the

option to view information about your computer.

Power

AC Adapter 65 W and 90 W

Input voltage 100 VAC to 240 VAC

Coin-cell battery 3 V CR2032 lithium coin cell

Physical

Latitude E5430

Height 29.9 mm to 32.5 mm (1.17 inches to 1.27 inches)

Width 350.00 mm (13.70 inches)

Physical

Depth 240.00 mm (9.44 inches)

Weight 2.04 kg (4.50 lb)

Latitude E5530

Height 30.20 mm to 33.2 mm (1.18 inches to 1.30

inches)

Width 388.00 mm (15.27 inches)

Depth 251.00 mm (9.88 inches)

Weight 2.38 kg (5.25 lb)

Environmental

Operating Temperature:

Latitude E5430 / E5530 0 °C to 35 °C (32 °F to 95 °F)

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the

regulatory compliance website at www.dell.com/regulatory_compliance for more

information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at support.dell.com/manuals.

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell

Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,

ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™are

trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®are

registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®is a

registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™,

ATI Radeon™, and ATI FirePro™are trademarks of Advanced Micro Devices, Inc. Microsoft®,

Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook®are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or

other countries. Blu-ray Disc™is a trademark owned by the Blu-ray Disc Association (BDA) and

licensed for use on discs and players. The Bluetooth®word mark is a registered trademark and

owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is

a registered trademark of Wireless Ethernet Compatibility Alliance, Inc.

Other trademarks and trade names may be used in this publication to refer to either the entities

claiming the marks and names or their products, Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.
