Dell™ Latitude™ E6400 XFR

Setup and Features Information

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

CAUTION:A CAUTION indicates either potential damage to hardware or loss of data

and tells you how to avoid the problem.

NOTE: A NOTE indicates important information that helps you make better use of your

computer.

Front View

Model U315K

Dell™Latitude™ E6400 XFR Setup and Features Information

Page 2

Microphone

16 PC or PC-Express card slot (optional) ( )

Camera light (optional)

17 IEEE 1394a connector ( )

3 Display latch and release 18 Fingerprint reader (optional)

4 Camera (optional) 19 Contactless smart-card reader

(see Smart Cards) ( )

5 DirectVue™ Outdoor-Readable Display

(optional touchscreen) 20 Optional touchscreen stylus tether

Keyboard status lights

Secure Digital (SD) memory-card reader

( )

7 Volume control buttons 22 Handle (with optional touchscreen stylus and

tether)

8 Power button 23 Touch pad buttons / Track stick buttons

9 USB connectors (2) ( )

Touch pad

10 Wi-Fi Catcher™ Network Locator ( )

Left speaker

Wireless switch

Track stick (not available on sealed rubber

keyboard)

12 Audio connectors (2) ( ) 27 Backlit Keyboard (optional rubber backlit

keyboard available)

13 Right speaker 28 Device status lights

14 SIM card reader ( )

Ambient light sensor

15 Media bay (with optical drive) ( )

Dell™Latitude™ E6400 XFR Setup and Features Information

Page 3

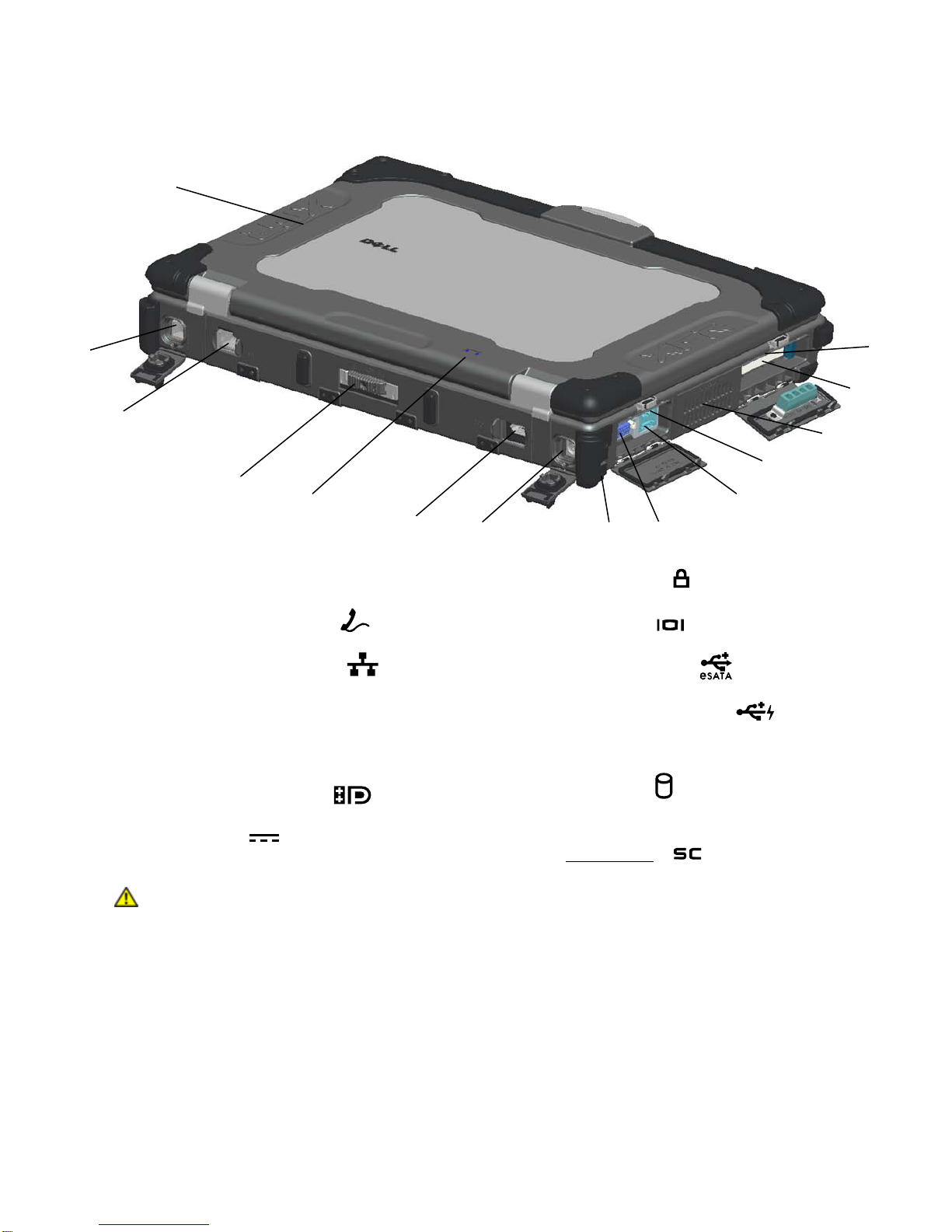

Back View

PR-481™ Ultra-Performance Chassis Material

8 Security cable slot ( )

2 RJ-11 modem connector ( )

Video connector ( )

3 RJ-45 network connector ( )

10 eSATA/USB connector ( )

Battery access panel

11 USB PowerShare connector ( )

Battery/power lights

Sealed QuadCool™ thermal management

Multimode Display Port ( )

Hard Disk Drive ( )

7 AC adapter ( ) 14 Enclosed Smart-card reader

(see Smart Cards) ( )

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell™ computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the computer

or cause a fire. The computer turns on the fan when the computer gets hot. Fan noise

is normal and does not indicate a problem with the fan or the computer.

6 7 8 9

Dell™Latitude™ E6400 XFR Setup and Features Information

Page 4

Bottom View

1 Sealed QuadCool™ thermal management 3 Battery release latches

2 Sliding cover to docking device connector

( )

Battery Removal

WARNING: Before working inside your computer, read the safety information that

shipped with your computer. For additional safety best practices information, see the

Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

WARNING: Using an incompatible battery may increase the risk of fire or explosion.

Replace the battery only with a compatible battery purchased from Dell. The battery is

designed to work with your Dell computer. Do not use a battery from other computers

with your computer.

WARNING: Before removing or replacing the battery, turn off the computer, disconnect

the AC adapter from the electrical outlet and the computer, disconnect the modem

from the wall connector and computer, and remove any other external cables from the

computer.

Dell™Latitude™ E6400 XFR Setup and Features Information

Page 5

1. Release the rear panel.

a. Push the latch to the right, to its unlocked position.

b. Then, press the latch down.

2. Lower the rear panel.

NOTE: See the battery removal instructions adhered to the edge of the battery.

3. With the battery door open, press in the two battery release latches on the bottom of the

computer.This releases the battery locks.

Dell™Latitude™ E6400 XFR Setup and Features Information

Page 6

4. Use the tab on the edge of the battery to remove the battery from the computer.

Battery Installation

1. Insert battery until you hear a click and a mechanical stop.

2. Rotate the door into place and push shut.

3. Ensure the door is in the fully closed and locked position.

Hard Drive Removal

1. Open the hard drive access door located on the left side panel by pushing the latch towards

the rear of the computer,

Dell™Latitude™ E6400 XFR Setup and Features Information

Page 7

NOTE:

See hard drive removal instructions adhered to the edge of the hard drive.

2. Press in the blue locking button on the right side of the compartment.

3. While pressing in the blue locking button, use the tab on the edge of the hard drive to pull the

hard drive from the compartment.

Hard Drive Installation

1. Insert hard drive until you hear a click and a mechanical stop.

2. Rotate the door into place and press until it clicks into its closed position.

Operation of the PrimoSeal™ Doors

Docking Device Connector Door

The docking device connector door is opened by sliding the door towards the front of the computer to

its fully open position. Reverse this procedure to close the door.

Dell™Latitude™ E6400 XFR Setup and Features Information

Page 8

Back Press-Fit Doors

A press-fit door is opened by inserting a finger into the door slot and pulling the door away from the

computer. To close the door, rotate the door back towards the computer and press until it is in its

fully closed position.

Side Latch Doors

The latch door is opened by sliding the latch towards the rear of the computer, and then rotating the

door down. To close the door, rotate the door back into its closed position and press until you hear it

click into position.

Back Slide Doors

A back slide door is opened by sliding the door to its open position until it clicks into position. Reverse

the procedure to close the door.

Dell™Latitude™ E6400 XFR Setup and Features Information

Page 9

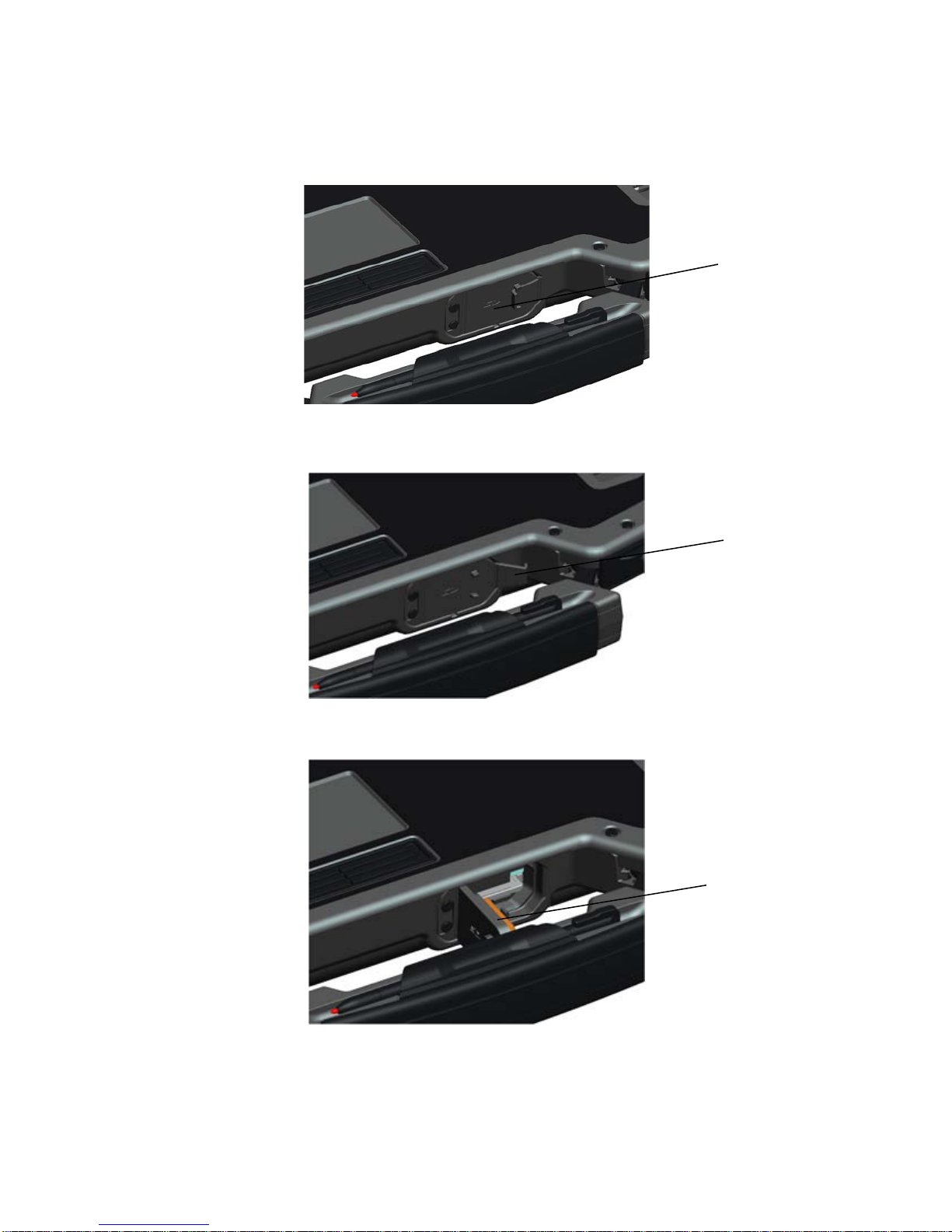

Front Secure Digital Door

The secure digital door is located at the front of the computer behind the handle.

1 Secure digital door

To open the secure digital door, extend the small handle that is built in to the door front.

Secure digital door handle in extended position

Use the small handle on the door to pull the door open.

1 Secure digital door in its open position

Dell™Latitude™ E6400 XFR Setup and Features Information

Page 10

The Secure Digital card can be fully inserted, allowing the protective door to be closed. Insert the

card into the secure digital slot until it is fully seated in its connector. To release the secure digital

card, press in on the card edge and the reader will eject the card.

Reverse the procedure to close the protective door.

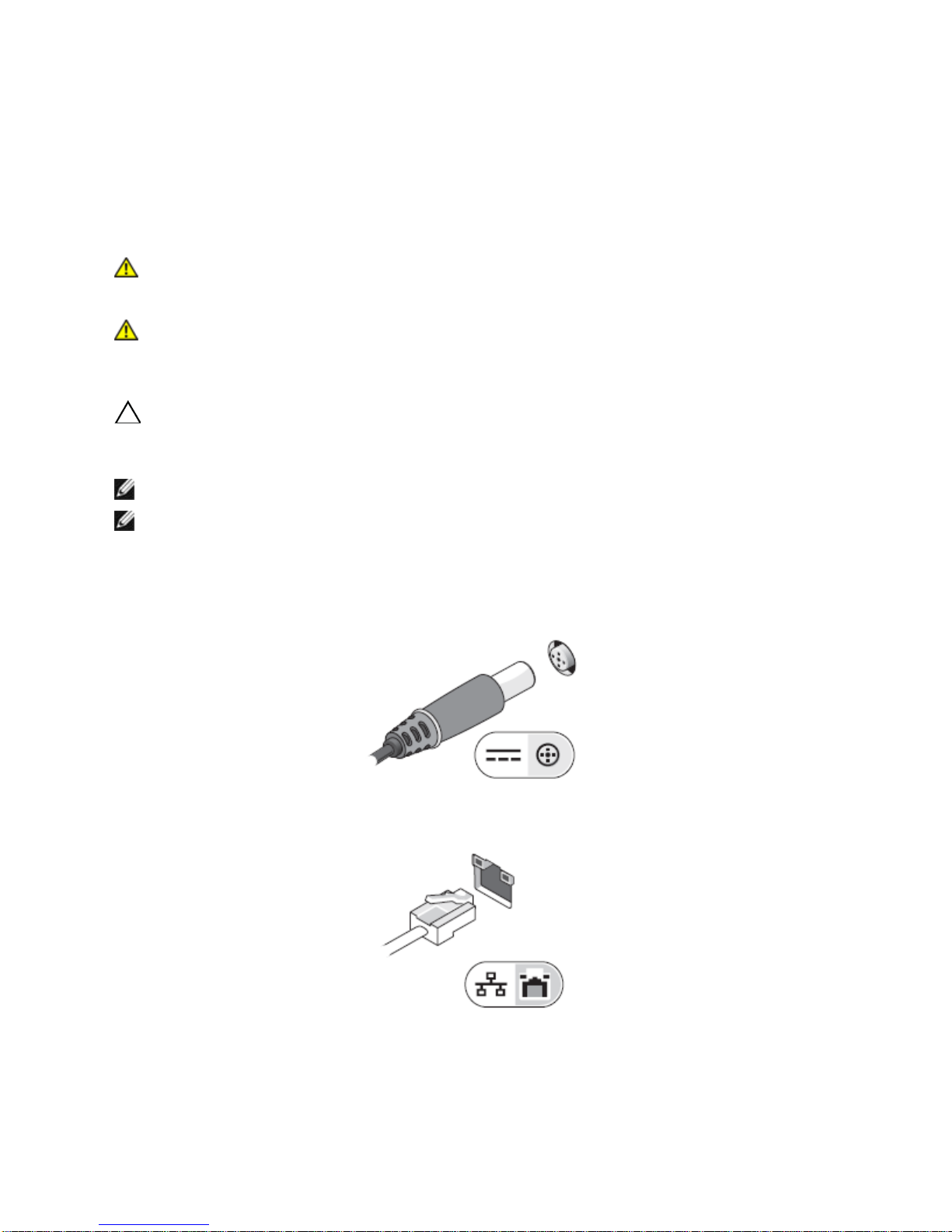

Setup

WARNING: Before working inside your computer, read the safety information that

shipped with your computer. For additional safety best practices information, see the

Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

WARNING: The AC adapter works with electrical outlets worldwide. However, power

connectors and power strips vary among countries. Using an incompatible cable or

improperly connecting the cable to the power strip or electrical outlet may cause fire

or equipment damage.

CAUTION: When you disconnect the AC adapter cable from the computer, grasp the

connector, not the cable

itself, and pull firmly but gently to avoid damaging the cable.

When you wrap the AC adapter cable, ensure that you follow the angle of the

connector on the AC adapter to avoid damaging the cable.

NOTE: Some devices may not be included if you did not order them.

NOTE: It is recommended that you turn on and shut down your computer at least once before

you install any cards or connect the computer to a docking device or other external device, such

as a printer.

1. Connect the AC adapter to the AC adapter connector on the computer and to the electrical

outlet.

2. Connect the network cable.
