Dell Latitude XT Bedienungsanleitung

LATITUDE™|XT

Multi-Touch Gestures Upgrade

Nadogradnja Multi-Touch naredbi

Opgradering af multi-touch gestures

Multi-Touch Gestures Upgrade

Kosketuselepäivitys

Mise à niveau pour prendre en charge les gestes Multi-Touch

Multi-Touch Gestures – Upgrade

Aggiornamento dei movimenti multitocco

Aktualizacja sterowania wielodotykowego gestami

Обновление жестов с многократным касанием

Actualización de gestos multitáctiles

Multi-rörelse uppgradering

ﺲﻤﻠﻟ ﺪﻌﺘﻣ ﺎﺷﻹ ﺚﻳﺪﺤﺗ

www.dell.com | support.dell.com

Dell™ Latitude™ XT

Multi-Touch Gestures Upgrade

Model PP12S

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data

and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

____________________

Information in this document is subject to change without notice.

Reproduction of this material in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and Latitude are trademarks of Dell Inc.; Microsoft,

Windows, Windows Vista. Outlook, Excel, OneNote, Windows Live, PowerPoint, and Virtual Earth

are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or

other countries; N-TRIG and the N-TRIG logo and the Gesture Icons are trademarks or registered

trademarks of N-Trig, Ltd.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Model PP12S

June 2008 P/N P450G Rev. A00

Dell Latitude XT Multi-Touch Gestures Upgrade 3

Dell™ Latitude™ XT

Multi-Touch Gestures Upgrade

The multi-touch gestures upgrade enables your Dell Latitude XT computer

to respond to several touch-screen gestures to extend the touch-input

computing features of your Tablet-PC.

Your Tablet-PC responds to gesture commands in all digitizer modes, except

for pen-only mode, when the multi-touch gestures option is enabled.

Operating system and application software determine which commands are

interpreted. See the "Application Matrix" on page 10 for more information.

Installation

NOTICE: Installation and use of this software requires compliance with the Dell

N-Trig

™

End User License Agreement (EULA).

NOTICE: During installation of this software, your Tablet-PC must be powered with

its AC adapter and must not be attached to a media base (undocked).

The multi-touch gestures upgrade software is downloadable from the Dell

website. To acquire and install this software:

Access the Dell support website at

support.dell.com.

Under

Drivers and Downloads

, click

Search for Drivers.

Click either

Select Model

Enter a Tag

to select an option for locating

drivers for your Tablet-PC.

If you clicked

Select Model

, complete the following sub-steps, and

continue to step 6. Otherwise, skip to step 5.

In the

Select Your Product Family

column, click

Laptops

In the

Select Your Product Line

column, click

Latitude

In the

Select Your Product Model

column, click

Click

Continue

If you clicked

Enter a Tag

, complete the following steps:

In the entry field, enter the Service Tag number assigned to your

Tablet-PC. This number (for example, 4MFBCF1) can usually be

found on the Service Tag label on the underside of your Tablet-PC.

Click

4Dell Latitude XT Multi-Touch Gestures Upgrade

In the

Drivers and Downloads

screen, select your operating system and

driver language using the drop-down menus.

Click the icon that is beside the

Input Device Drivers

option on the

screen.

In the list that opens, find

N-trig - Driver

, and click

Download Now

In the

File Download - Security N-trig Warning

popup window, click

Save

and specify the directory location on your Tablet-PC where you want to

save the file.

NOTE: Wait for the download to complete before continuing.

Close your Internet browser and all other applications that are running on

your Tablet-PC.

Using Windows

Explorer, locate the file you downloaded and double-

click the filename to run the file.

If you are using Windows Vista

, a

User Account Control

window opens.

Click

Allow

to close this window and start the installation.

Dell Latitude XT Multi-Touch Gestures Upgrade 5

In the first

N-trig Software Bundle

... window, click

to continue.

Read carefully the End User License Agreement that appears next on your

Tablet-PC screen, click

I accept the terms of the license agreement

, and

then click

to continue.

In the

Ready to Install the Program

window, click

Install

At the next window, ensure that your AC adapter is powering your

Tablet-PC and it is not attached to a media base (it is undocked).

Click

to begin installing the N-trig™ software bundle.

NOTE: In the Setup Status window, a progress bar appears showing the download

status of the host driver first, followed by the device firmware. When the install files

finish downloading, the InstallSheild Wizard Complete window opens.

6Dell Latitude XT Multi-Touch Gestures Upgrade

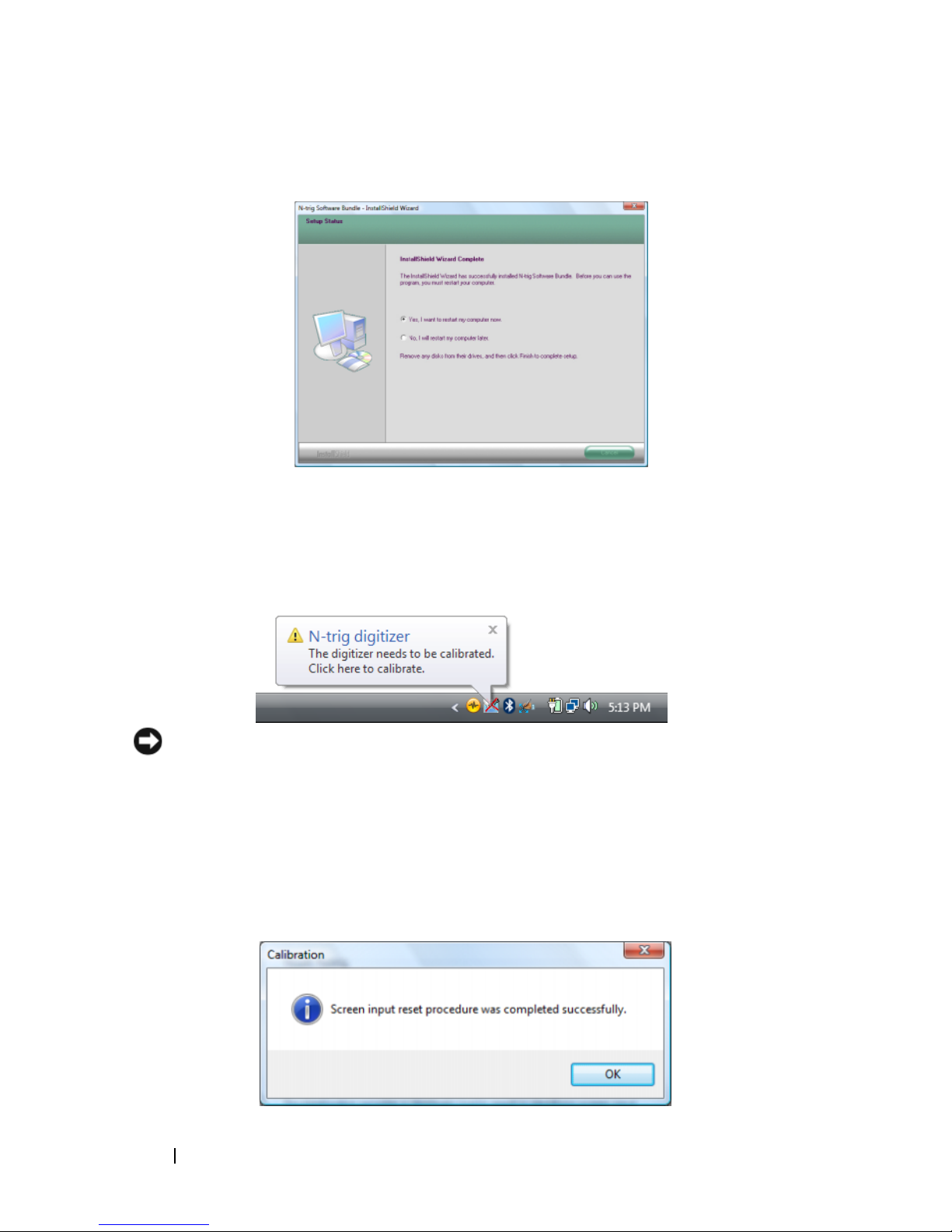

Select

Yes, I want to restart my computer now

, and then click

Finish

After your Tablet-PC restarts, the N-trig icon in the system tray contains a

red "X", with the balloon message

...The digitizer needs to

be calibrated...

Tap the balloon to start the calibrator.

NOTICE: While the calibrator is running, do not touch the Tablet-PC screen.

Follow the instructions in the

Calibrator

window.

When the calibration is complete, a pop-up window appears with a

message confirming that the

...procedure was completed

successfully.

Tap the

button.

Dell Latitude XT Multi-Touch Gestures Upgrade 7

Gesture Features

Gestures are expressions made while touching the screen of your Tablet PC

with two fingers. They are interpreted as user commands to the operating

system or active application software. When the operating system recognizes

a gesture, an icon confirming the gesture appears on the screen. This multi-

touch update includes three gestures: a scroll gesture, a zoom gesture, and a

two-finger double-tap gesture.

Gestures icons shown herein are sourced by N-trig Ltd.

Scroll Gesture

Placing two fingers on the screen and moving them horizontally or vertically

generates scrolling in the direction of movement: right, left, up, or down.

Zoom Gesture

Touching the screen with two fingers and moving them together or apart

generates a zoom-in or zoom-out command to the screen.

8Dell Latitude XT Multi-Touch Gestures Upgrade

Two-Fingers Double-Tap Gesture

Tapping the screen twice with two fingers sends an operating system

command that you can configure. It can be used to perform actions, such as

turning the display off and disabling touch gestures (default), or run an

executable program, such as one that opens Internet Explorer.

Sensitivity Setup

To adjust the sensitivity for the two-finger gestures, double-click the N-trig

icon ( )in the system tray, and tap the Multi-Touch Gestures tab. Set the

sliders for each gesture as desired.
