Dell Precision Workstation M6400 Betriebsanleitung
About Warnings
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Dell Precision™ Workstation M6400
Setup and Features Information Tech Sheet

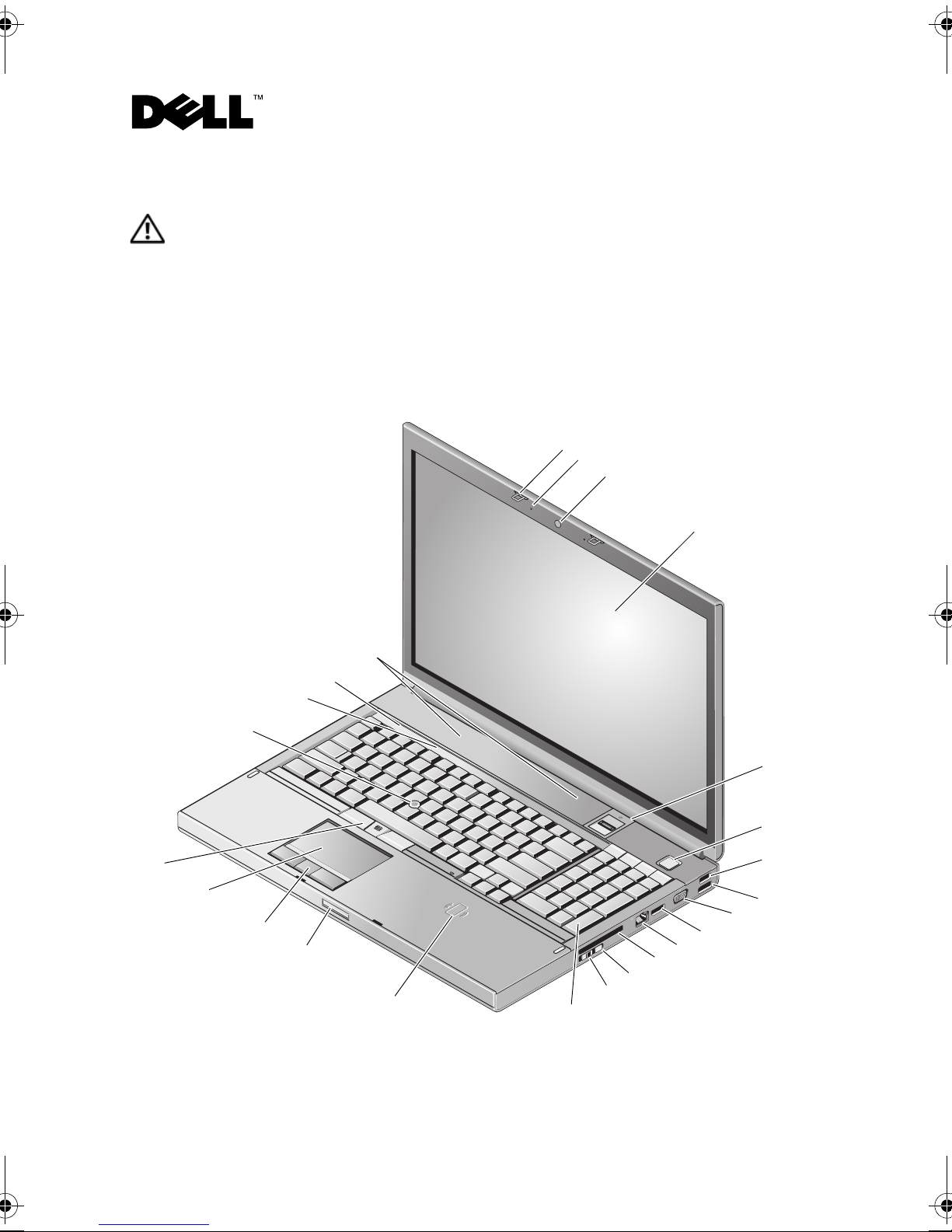

Front View
3
4
24
7
1
9
10
12
16
18
23
5
11
13
19
20
17
22
15
6
2
8
14
21
June 2009 Model: PP08X
M22V4am0.fm Page 1 Thursday, August 13, 2009 1:20 PM

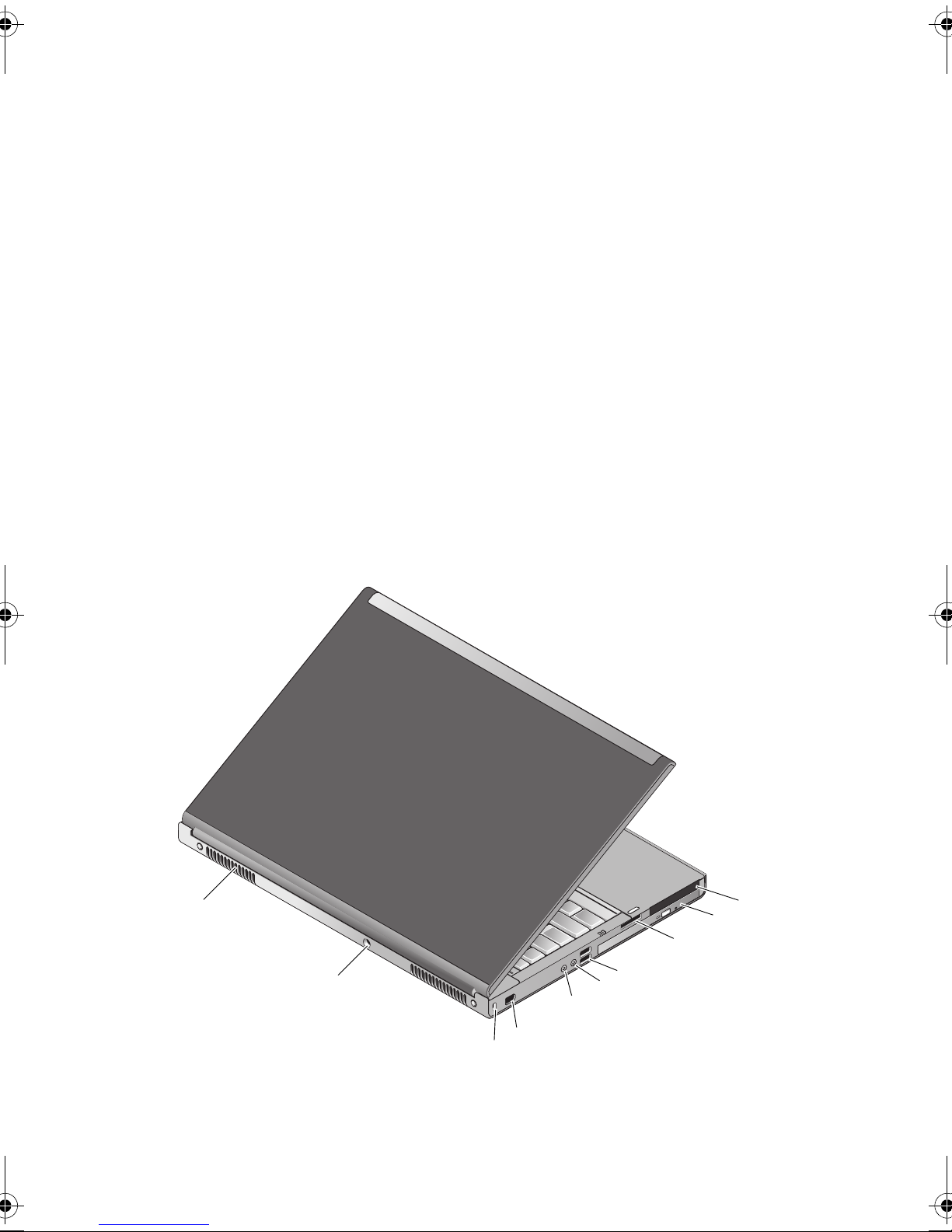

Back View
1display latches (2) 2microphones (2)
3camera (optional) 4display
5fingerprint swipe/FIPS reader 6power button
7USB 2.0 connector 8USB2.0/eSATA connector
9VGA connector 10 DisplayPort
11 network connector 12 ExpressCard slot
13 Wi-Fi Catcher™ 14 wireless switch
15 keyboard 16 wireless smart card reader
17 display release latch 18 touch pad buttons (3)
19 touch pad 20 track stick buttons (3)
21 track stick 22 keyboard status lights
23 device status lights 24 speakers (2)
1
3
7
6
8
2
4
5
9
10
M22V4am0.fm Page 2 Thursday, August 13, 2009 1:20 PM
WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents.
Do not store your Dell™ computer in a low-airflow environment, such as a closed briefcase,
while it is running. Restricting the airflow can damage the computer or cause a fire.
The computer turns on the fan when the computer gets hot. Fan noise is normal and
does not indicate a problem with the fan or the computer.
Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety
information that shipped with your computer. For additional best practices information,
see www.dell.com/regulatory_compliance.
WARNING: The AC adapter works with electrical outlets worldwide. However,
power connectors and power strips vary among countries. Using an incompatible cable or
improperly connecting the cable to the power strip or electrical outlet may cause fire or
equipment damage.
CAUTION: When you disconnect the AC adapter cable from the computer, grasp the connector,
not the cable itself, and pull firmly but gently to avoid damaging the cable. When you wrap the
AC adapter cable, ensure that you follow the angle of the connector on the AC adapter to avoid
damaging the cable.
NOTE: Some devices may not be included if you did not order them.
1PC Card and Smart Card slot 2optical drive bay
38-in-1 card reader slot 4USB 2.0 connectors (2)
5headphone connector 6microphone connector
76-pin IEEE 1394 connector (powered) 8security cable slot
9AC adapter connector 10 air vents (2)
M22V4am0.fm Page 3 Thursday, August 13, 2009 1:20 PM
NOTE: It is recommended that you turn on and shut down your computer at least once before
you install any cards or connect the computer to a docking device or other external device,
such as a printer.

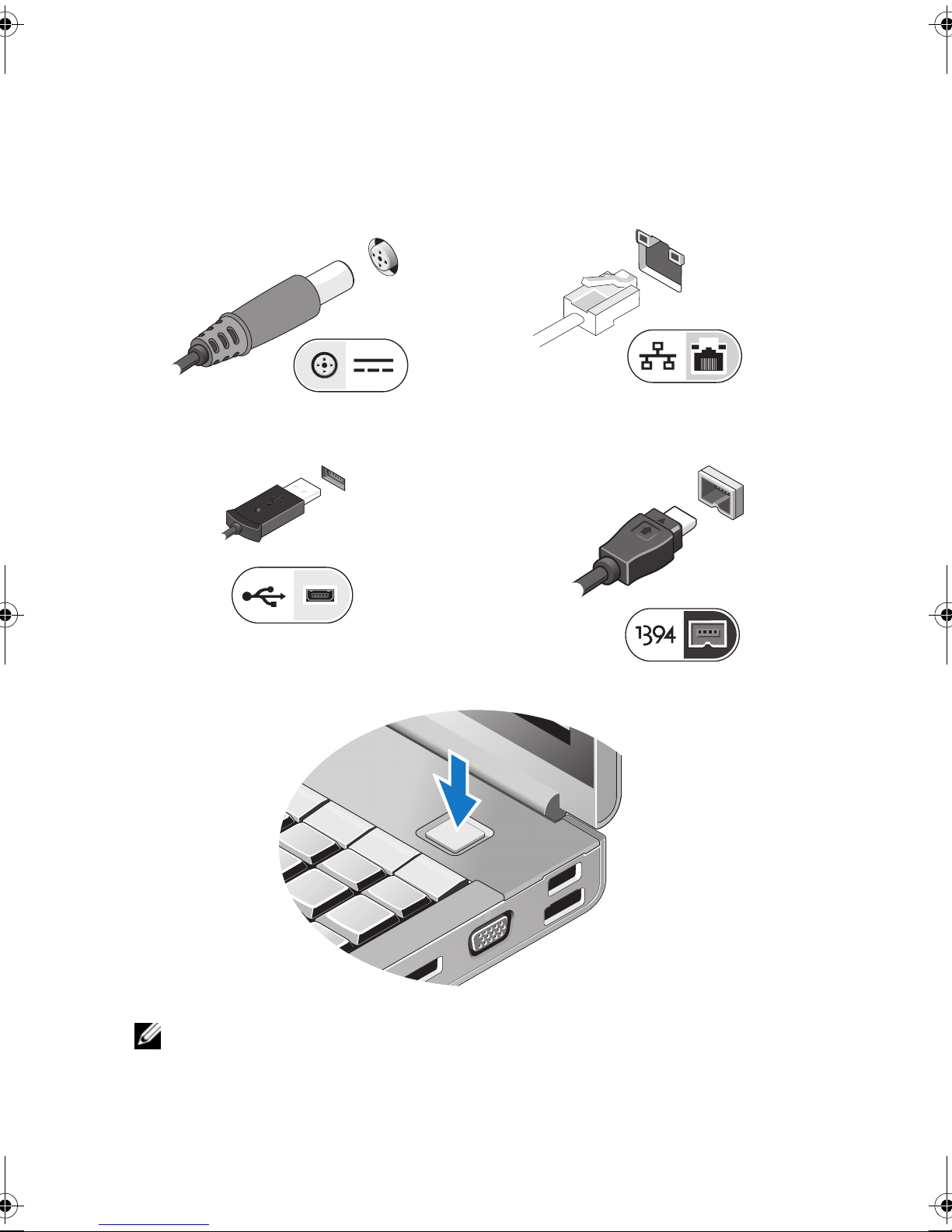

1
Connect the AC adapter to the AC adapter
connector on the computer and to the
electrical outlet.
2
Connect the network cable (optional).
3
Connect USB devices, such as a mouse or
keyboard (optional).
4
Connect IEEE 1394 devices, such as a
DVD player (optional).
5
Open the computer display and press the power button to turn on the computer.
M22V4am0.fm Page 4 Thursday, August 13, 2009 1:20 PM
Specifications
NOTE: Offerings may vary by region. The following specifications are only those required by law
to ship with your computer. For more information regarding the configuration of your computer,
click Start→Help and Support and select the option to view information about your computer.
System Information
Chipset Intel®Q43 GMCH, ICH9M-E
Processor
Processor Intel Core™2 Duo
Intel Core 2 Duo Extreme Edition
Intel Core 2 Duo Quad Core
Intel Core 2 Duo Extreme Edition Quad Core
Video
Video type Discrete graphics card
Data bus PCI Express graphics
Video controller NVIDIA Quadro®FX 2700M/3700M
ATI FirePro™ V7740
Video memory NVIDIA Quadro FX 2700M — 512 MB
NVIDIA Quadro FX 3700M — 1 GB
ATI FirePro V7740 — 1 GB
Memory
Memory module connector four user-accessible SODIMM slots
Memory module capacity 1 GB, 2 GB, or 4GB
Memory type DDR3 1066 MHz
Minimum memory 1 GB
Maximum memory 16 GB
M22V4am0.fm Page 5 Thursday, August 13, 2009 1:20 PM
Battery
Type 9-cell "smart lithium ion"
Temperature range
Operating
0to 35°C (32 to 95°F)
Storage
−40 to 60°C (−40 to 140° F)
Coin-cell battery CR2032
AC Adapter
Type 210 W/ 240 W
Input voltage 100–240 VAC
Input current (maximum) 2.50 A/ 3.50 A
Input frequency 50–60 Hz
Output current 6.70 A/ 10.80 A
Rated output voltage 19.50 VDC
Temperature range
Operating
0 to 35°C (32 to 95°F)
Storage
−40 to 60°C (−40 to 149°F)
Physical
Height 38.50 mm (1.52 inches)
Width
393.00 mm (15.50 inches)
Depth
280.00 mm (11.04 inches)
Weight
3.87 kgs (8.54 lbs)
with a 9-cell battery and CD drive
Environmental
Temperature range
Operating
0 to 35°C (32 to 95°F)
Storage
−40 to 65°C (–40 to 149°F)
Relative humidity (maximum)
Operating
10% to 90% (noncondensing)
Storage
5% to 95% (noncondensing)
M22V4am0.fm Page 6 Thursday, August 13, 2009 1:20 PM
Finding More Information and Resources
__________________
Information in this document is subject to change without notice.
© 2009 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell,the DELL logo, and Dell Precision are trademarks of Dell Inc.;
ATI FirePro is a trademark of Advanced Micro Devices Inc.; Intel is a registered trademark and Core is a
trademark of Intel Corporation in the U.S. and other countries.; NVIDIA Quadro is a registered trademark
of NVIDIA Corporation in the U.S and other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the
marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade
names other than its own.
If you need to: See:
Find safety best practices information for your
computer, review
Warranty information, Terms and
Conditions(U.S only), Safety instructions,
Regulatory information, Ergonomics
information, and End User License Agreement.
The safety and regulatory documents that shipped
with your computer and the Regulatory
Compliance Homepage at
www.dell.com/regulatory_compliance.
M22V4am0.fm Page 7 Thursday, August 13, 2009 1:20 PM
M22V4am0.fm Page 8 Thursday, August 13, 2009 1:20 PM
