Dell™Studio1535/1536ServiceManual
Before You Begin
Base Cover
Coin-Cell Battery
Memory
Hard Drive
Processor Thermal-Cooling Assembly
Processor Module
Center Control Cover
Keyboard
Wireless Mini-Card
Display
Camera
Palm Rest
Speaker Assembly
Optical Drive
USB/Audio Board
Microphone
System Board Assembly
Battery Latch Assembly
Flashing the BIOS
Notes, Notices, and Cautions
IfyoupurchasedaDell™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.

Information in this document is subject to change without notice.
©2008DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model: PP33L
May2008Rev.A00
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates potential for property damage, personal injury, or death.

Great user manuals database on UserManuals.info

Back to Contents Page

Base Cover

Dell™Studio1535/1536ServiceManual



Removing the Base Cover



1. Ensure that the computer is turned off.



2. Remove the battery (see Before Working Inside Your Computer).



3. Loosen the seven captive screws on the base cover and lift the cover off the computer at an angle as shown in the figure.



Replacing the Base Cover



1. Align the tabs on the base cover to the bottom of the computer.



2. Replace and tighten the seven captive screws on the base cover.



3. Slide the battery into the battery bay until it clicks into place.

Back to Contents Page



CAUTION: Before working inside your computer, follow the safety instructions that shipped with your computer.

CAUTION: Before performing this procedures, turn off the computer, disconnect the AC adapter from the electrical outlet and the computer,

disconnect the modem from the wall connector and the computer, and remove any other external cables from the computer.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as a connector on the back of the computer).

CAUTION: Do not touch the processor thermal-cooling assembly. Processor components should be removed only by trained support personnel.

base cover

captive screws (7)

tabs



Great user manuals database on UserManuals.info

Back to Contents Page

Before You Begin

Dell™Studio1535/1536ServiceManual

Recommended Tools

Before Working Inside Your Computer

This document provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that:

lYou have performed the steps in Before Working Inside Your Computer.

lYou have read the safety information that shipped with your computer.

lWhen replacing a component, you have already removed the original component, if installed.

Recommended Tools

The procedures in this document may require the following tools:

lSmall flat-blade screwdriver

lPhillips screwdriver

lSmall plastic scribe

lFlash BIOS update media (see the Dell Support website at support.dell.com)

Before Working Inside Your Computer

Use the following safety guidelines to help protect your computer from potential damage and to help ensure your own personal safety.



1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.



2. Click Start , click the arrow , and then click Shut Down.

The computer turns off after the operating system shutdown process finishes.



3. Disconnect your computer and all attached devices from their electrical outlets.



4. Disconnect any telephone or network cables from the computer.



5. Press and eject any installed cards from the ExpressCard slot and the 8-in-1 memory card reader.



6. Turn the computer over.



7. Slide the battery release latch until it clicks into place.



8. Slide the battery out of the battery bay.

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.

NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not

covered by your warranty.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface, such

as a connector on the back of the computer.

NOTICE: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal

mounting bracket. Hold a component such as a processor by its edges, not by its pins.

NOTICE: When disconnecting a cable, pull on the cable's connector or on its strain-relief loop, not on the cable itself. For cable connectors with locking

tabs, press inward on the locking tabs to release the connector. When connecting a cable, ensure that the connectors are correctly oriented and

aligned to avoid damage to the connector and/or the connector's pins.

NOTICE: To disconnect a network cable, first unplug the cable from your computer, and then unplug it from the network wall jack.

NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you service the computer.

NOTICE: To avoid damage to the computer, use only the battery designed for this particular Dell computer. Do not use batteries designed for other Dell

computers.

Great user manuals database on UserManuals.info



9. Turn the computer top side up, open the display, and press the power button to ground the system board.

Back to Contents Page



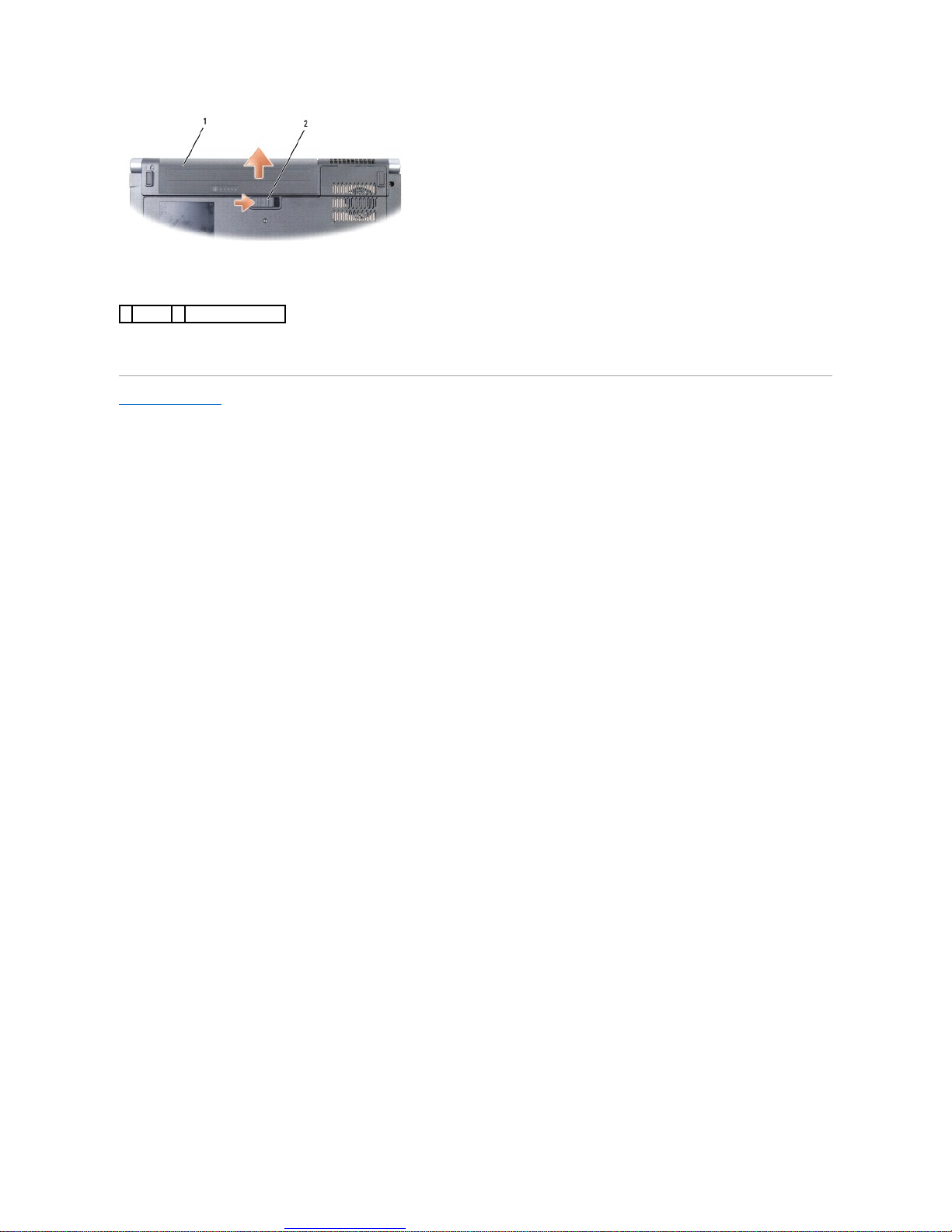

battery

battery release latch

Great user manuals database on UserManuals.info

Back to Contents Page

Flashing the BIOS

Dell™Studio1535/1536ServiceManual

If a BIOS-update program CD is provided with a new system board, flash the BIOS from the CD. If you do not have a BIOS-update program CD, flash the BIOS

from the hard drive.



Flashing the BIOS From a CD



1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.



2. Insert the BIOS-update program CD and turn on the computer.

Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the

computer will automatically reboot.



3. Press <F2> during POST to enter the system setup program.



4. Press <Alt> and <f> to reset the computer defaults.



5. Press <Esc>, select Save/Exit, and press <Enter> to save configuration changes.



6. Remove the flash BIOS-update program CD from the drive and restart the computer.



Flashing the BIOS From the Hard Drive



1. Ensure that the AC adapter is plugged in, the main battery is properly installed, and a network cable is attached.



2. Turn on the computer.



3. Locate the latest BIOS update file for your computer at support.dell.com.



4. Click Download Now to download the file.



5. If the Export Compliance Disclaimer window appears, click Yes, I Accept this Agreement.

The File Download window appears.



6. Click Save this program to disk, and then click OK.

The Save In window appears.



7. Click the down arrow to view the Save In menu, select Desktop, and then click Save.

The file downloads to your desktop.



8. Click Close if the Download Complete window appears.

The file icon appears on your desktop and is titled the same as the downloaded BIOS update file.



NOTICE: Plug the AC adapter into a known, good power source to prevent loss of power. Failure to do so may cause system damage.

NOTE: If you use the BIOS-update program CD to flash the BIOS, press <F12> before inserting the CD so that you can set up the computer to boot from

a CD for one time only. Otherwise, you must enter the system setup program to change the default boot order.

NOTICE: Do not interrupt this process once it begins. Doing so may cause system damage.

NOTICE: Plug the AC adapter into a known, good power source to prevent loss of power. Failure to do so may cause system damage.

NOTICE: Do not interrupt this process once it begins. Doing so may cause system damage.

Great user manuals database on UserManuals.info

9. Double-click the file icon on the desktop and follow the instructions on the screen.

Back to Contents Page



Great user manuals database on UserManuals.info

Back to Contents Page

USB/Audio Board

Dell™Studio1535/1536ServiceManual



Removing the USB/Audio Board



1. Follow the procedures in Before You Begin.



2. Remove the optical drive (see Removing the Optical Drive).



3. Disconnect the two cables of the USB/Audio board from the connectors on the system board.



4. Remove the adhesive tapes from the cables securing it to the system board.



5. Remove the screw securing the USB/Audio board to the computer base cover and remove the board.



Replacing the USB/Audio Board



1. Connect the USB/Audio board cables to the system board connectors.



2. Place the USB/Audio board in position and replace and tighten the screw to secure the board.



3. Replace the optical drive (see Replacing the Optical Drive).

Back to Contents Page



CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as a connector on the back of the computer).

NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you begin working inside the

computer.

USB board

USB/Audio cables

Great user manuals database on UserManuals.info

Back to Contents Page

Camera

Dell™Studio1535/1536ServiceManual



Removing the Camera Module



1. Follow the instructions in Before You Begin.



2. Remove the display bezel (see Removing the Display Bezel).



3. Loosen the two screws connecting the camera to the display cover.



4. Disconnect the camera cable and take out the camera module.



Replacing the Camera Module



1. Follow the instructions in Before You Begin.



2. Replace and tighten the two screws securing the camera to the display cover.



3. Connect the camera cable to the connector.



4. Replace the display bezel (see Replacing the Display Bezel).

Back to Contents Page



CAUTION: Before working inside your computer, follow the safety instructions that shipped with your computer.

CAUTION: Before performing this procedures, turn off the computer, disconnect the AC adapter from the electrical outlet and the computer,

disconnect the modem from the wall connector and the computer, and remove any other external cables from the computer.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as a connector on the back of the computer).

screws (2)

camera cable

Great user manuals database on UserManuals.info

Back to Contents Page

Center Control Cover

Dell™Studio1535/1536ServiceManual



Removing the Center Control Cover



1. Follow the procedures in Before You Begin.



2. Remove the two screws securing the center control cover from the battery bay.



3. Turn the computer over and open the display as far as possible.



4. Pry out the center control cover with your fingers starting from the battery bay location at the back of the system.



5. Ease the center control cover up.



6. Remove the keyboard surround by easing it out using a scribe (see Removing the Keyboard).



7. Remove the two screws from the top of the keyboard.

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as a connector on the back of the computer).

NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you begin working inside the

computer.

NOTICE: To avoid damage to the data cable connected to the system board, ensure that you do not pull hard when you are lifting the center control

cover.

center control cover

NOTICE: The key caps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the

keyboard.

Great user manuals database on UserManuals.info



8. Lift the keyboard and hold it up and slightly forward to access the media control buttons connector on the system board.



9. Disconnect the media control buttons cable from the connector on the system board.



Replacing the Center Control Cover



1. Follow the procedures in Before You Begin.



2. Reconnect the media control buttons cable to the connector below the keyboard on the system board.



3. Align the tabs along the bottom of the keyboard and slide them under the palm rest.



4. Replace the keyboard surround.



5. Press on the corner edges near the top to snap the keyboard into place.



6. Replace the two screws on the top of the keyboard.



7. Slide the center control cover into the keyboard surround and press at both the edges of the cover until it snaps into place.



8. In the battery bay, replace the two screws that secure the center control cover.

Back to Contents Page



media control buttons cable

media control buttons connector

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dell Laptop Handbücher

Dell

Dell P143G Bedienungs- und Wartungshandbuch

Dell

Dell XPS P09E Bedienungsanleitung

Dell

Dell E5400 - Latitude - Core 2 Duo 2.4 GHz Bedienungsanleitung

Dell

Dell Latitude D530 Bedienungsanleitung

Dell

Dell Latitude 7290 Bedienungsanleitung

Dell

Dell Latitude X1 Bedienungsanleitung

Dell

Dell Inspiron 1501 - Turion X2 TL-60 2GB DDR2 Bedienungsanleitung

Dell

Dell Vostro 3300 Betriebsanleitung

Dell

Dell Inspiron 13 7000 Series Bedienungsanleitung

Dell

Dell D630 - LATITUDE ATG NOTEBOOK Bedienungsanleitung

Dell

Dell P95F002 Bedienungsanleitung

Dell

Dell Latitude E6540 Bedienungsanleitung

Dell

Dell Inspiron 14 3420 Bedienungs- und Wartungshandbuch

Dell

Dell G16 7620 Bedienungsanleitung

Dell

Dell Inspiron 17 5000 Series Bedienungsanleitung

Dell

Dell Latitude 5300 Bedienungsanleitung

Dell

Dell XPS L401X Bedienungsanleitung

Dell

Dell Vostro 15 3530 Bedienungsanleitung

Dell

Dell P135G Bedienungsanleitung

Dell

Dell Inspiron 7400 Bedienungs- und Wartungshandbuch

Dell

Dell Latitude D410 Bedienungsanleitung

Dell

Dell Inspiron 3520 Bedienungsanleitung

Dell

Dell Latitude E6400 ATG Bedienungsanleitung

Dell

Dell Inspiron 14 5000 Series Bedienungsanleitung

Beliebte Laptop Handbücher anderer Marken

HP ze2401xt - Pavilion Notebook PC Bedienungsanleitung

Velocity

Velocity NoteMagix M10 Bedienungsanleitung

Toshiba

Toshiba A105-S2236 Bedienungsanleitung

HP ENVY 17 Handbuch

Winbook

Winbook LM Bedienungsanleitung

HP PROBOOK 4520S Handbuch

Sony

Sony VAIO PCG-FX270 Bedienungsanleitung

Sony

Sony VAIO PCG-R505JLK Bedienungsanleitung

Lenovo

Lenovo THINKPAD X32 Bedienungsanleitung

HP Compaq tc4200 Kurzanleitung

Toshiba

Toshiba mini NB300 Bedienungsanleitung

Lenovo

Lenovo ThinkPad X201 Tablet Handbuch

Lenovo

Lenovo THINKPAD X31 Handbuch

Sony

Sony VGN-T240P VAIO Bedienungsanleitung

Compaq

Compaq Armada E700 Series Bedienungsanleitung

Fujitsu

Fujitsu Lifebook A6230 Bedienungsanleitung

Acer

Acer Aspire ONE 722 Bedienungsanleitung

Toshiba

Toshiba L300-EZ1524 Bedienungsanleitung
