Access Panel

Dell™Vostro™1088ServiceManual

Removing the Access Panel

1. Follow the procedures in Before Working Inside Your Computer.

2. Remove the battery from the computer.

3. Remove the six screws that secure the access panel to the computer.

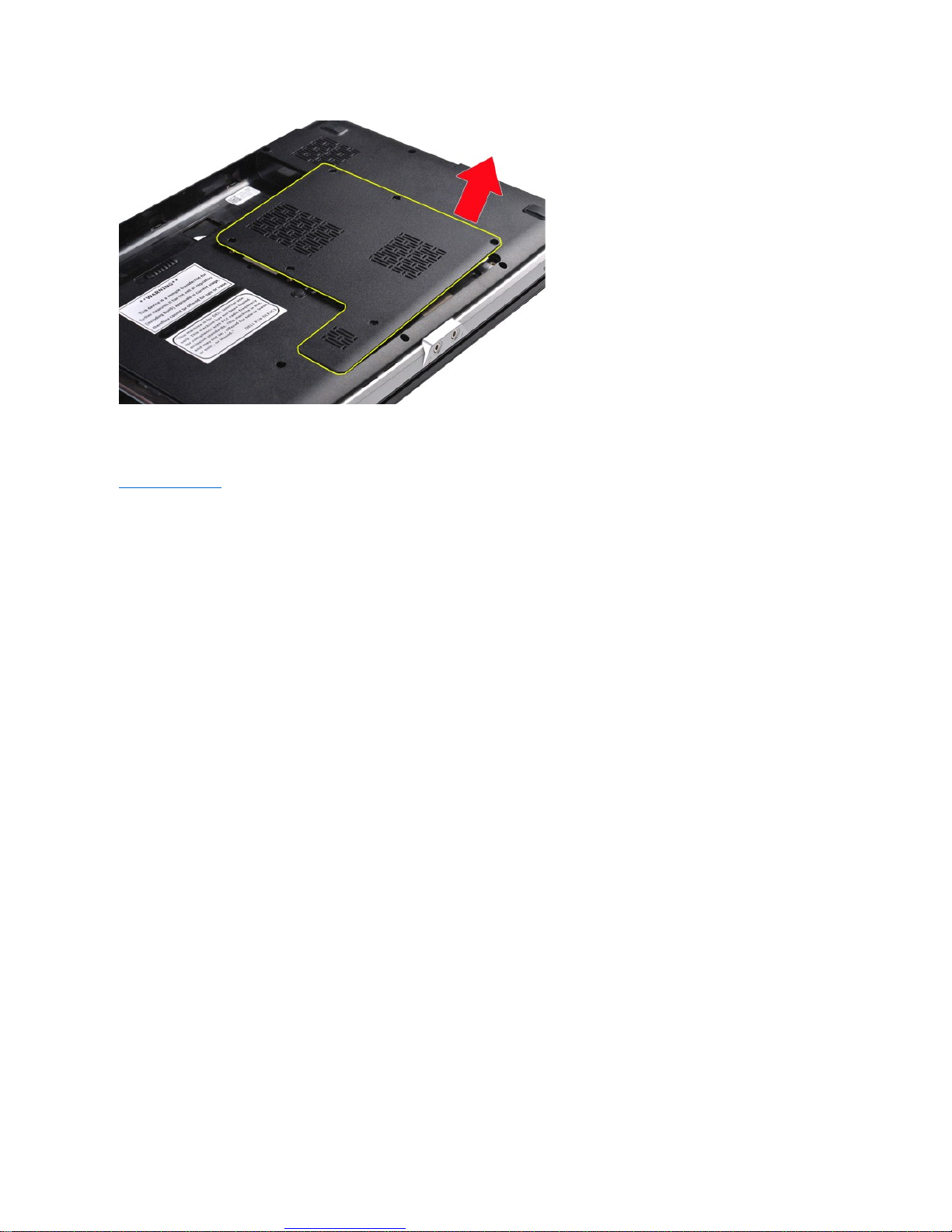

4. Remove the access panel from the computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info

Replacing the Access Panel

Perform the steps described above in reverse order to replace the access panel on your computer.

Back to Contents Page

Great user manuals database on UserManuals.info

Back to Contents Page

Battery

Dell™Vostro™1088ServiceManual

Removing the Battery

1. Follow the procedures in Before Working Inside Your Computer.



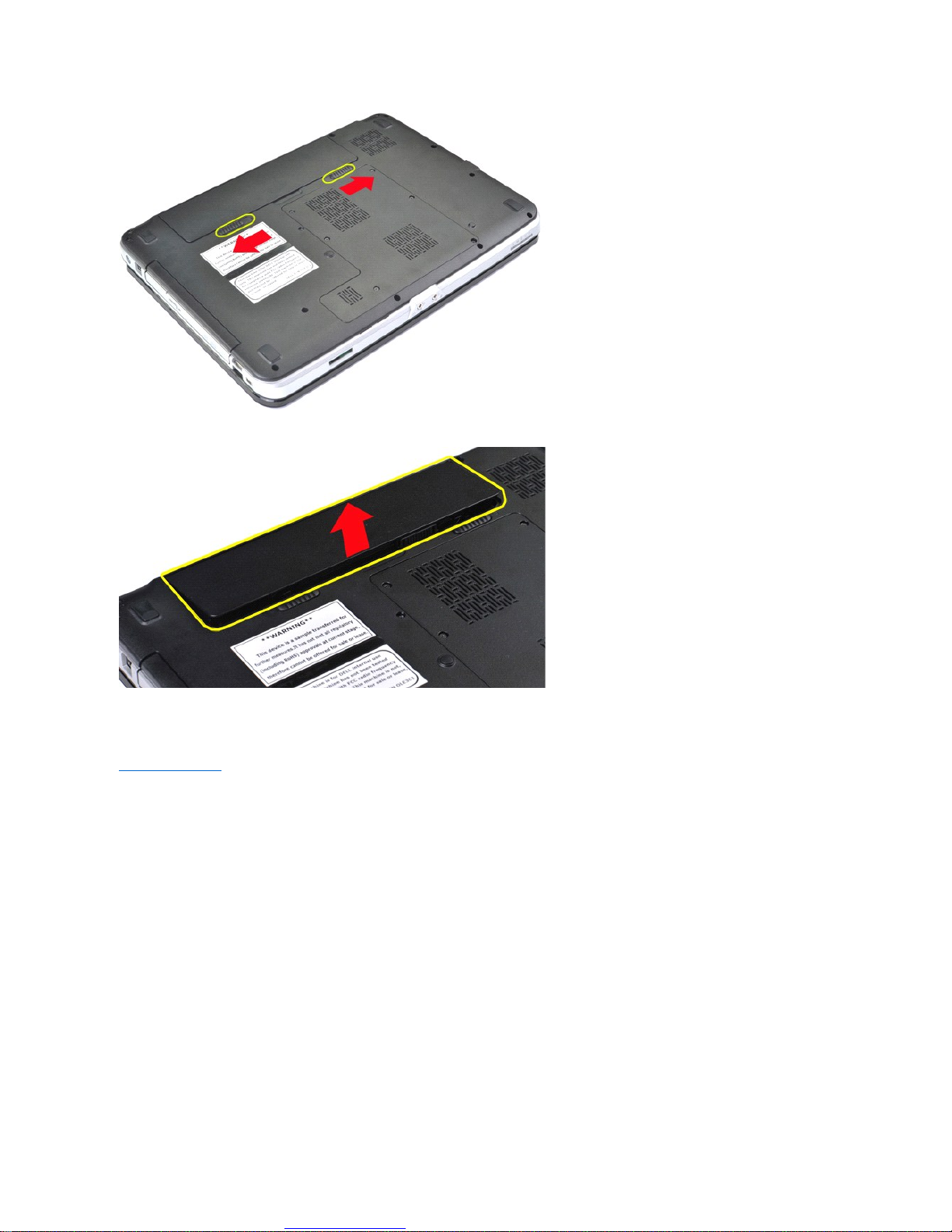

2. Slide the battery latches apart while at the same time slipping your forefingers into the groove at the center of the battery and pushing outward to

disengage the battery from the computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info

3. Lift the battery from the computer.

Replacing the Battery

Perform the steps described above in reverse order to replace the battery in your computer.

Back to Contents Page

Great user manuals database on UserManuals.info
Back to Contents Page
Internal Card With Bluetooth®Wireless Technology
Dell™Vostro™1088ServiceManual



Removing the Internal Card With Bluetooth Wireless Technology
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the access panel from the computer.
4. Remove the hard drive from the computer.
5. Remove the WLAN card from the computer.
6. Remove the control panel cover from the computer.
7. Remove the keyboard from the computer.
8. Remove the display assembly from the computer.
9. Remove the palm rest from the computer.
10. Remove the I/O board from the computer.

11. Disconnect the Bluetooth card cable from the connector on the system board.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info

12. Disengage the Bluetooth card cable from its routing groove, then lift and remove the Bluetooth card from the computer.

Replacing the Internal Card With Bluetooth Wireless Technology

Perform the steps described above in reverse order to replace the Bluetooth card in your computer.

Back to Contents Page

Great user manuals database on UserManuals.info
Back to Contents Page
Coin-Cell Battery
Dell™Vostro™1088ServiceManual



Removing the Coin-Cell Battery
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the access panel from the computer.
4. Remove the hard drive from the computer.
5. Remove the WLAN card from the computer.
6. Remove the control panel cover from the computer.
7. Remove the keyboard from the computer.
8. Remove the display assembly from the computer.
9. Remove the palm rest from the computer.

10. Pull the coin-cell battery from the plastic sleeve.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info

11. Disconnect the coin-cell battery cable from the connector on the system board, then lift and remove the coin-cell battery from the computer.



Replacing the Coin-Cell Battery

Perform the steps described above in reverse order to replace the coin-cell battery in your computer.

Back to Contents Page

Great user manuals database on UserManuals.info
Back to Contents Page
Processor Fan
Dell™Vostro™1088ServiceManual



Removing the Processor Fan
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the access panel from the computer.
4. Remove the hard drive from the computer.
5. Remove the WLAN card from the computer.
6. Remove the control panel cover from the computer.
7. Remove the keyboard from the computer.
8. Remove the display assembly from the computer.
9. Remove the palm rest from the computer.

10. Disconnect the processor fan cable from the connector on the system board.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
