Dell Vostro 15-7570

Owner's Manual

Regulatory Model: P71F

Regulatory Type: P71F001

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

may be trademarks of their respective owners.

2017 - 09

Rev. A00

Chassis

This chapter illustrates the multiple chassis' view along with the ports and connectors and also explains the function hot key combinations.

Topics:

• Front open view

• Left view

• Right view

• Palmrest view

• Back view

• Bottom view

• Keyboards hot key denitions

Front open view

1Dual array microphones 2 Camera

Chassis 3

3 Camera status light 4 Dual array microphones

5 Display panel 6 LED status light

Left view

1 Nobel Wedge lock slot 2 Power connector

3 Network connector 4 USB 3.1 Gen 1 port

5 SD card reader

Right view

1Headset/Mic port 2 USB 3.1 Gen 1 port

3 USB 3.1 Gen 1 port 4 USB Type-C port with Thunderbolt 3

5 HDMI port 6 VGA port

4 Chassis

Palmrest view

1 Power button/Fingerprint reader 2 Keyboard

3 Palmrest 4 Touchpad

Chassis 5

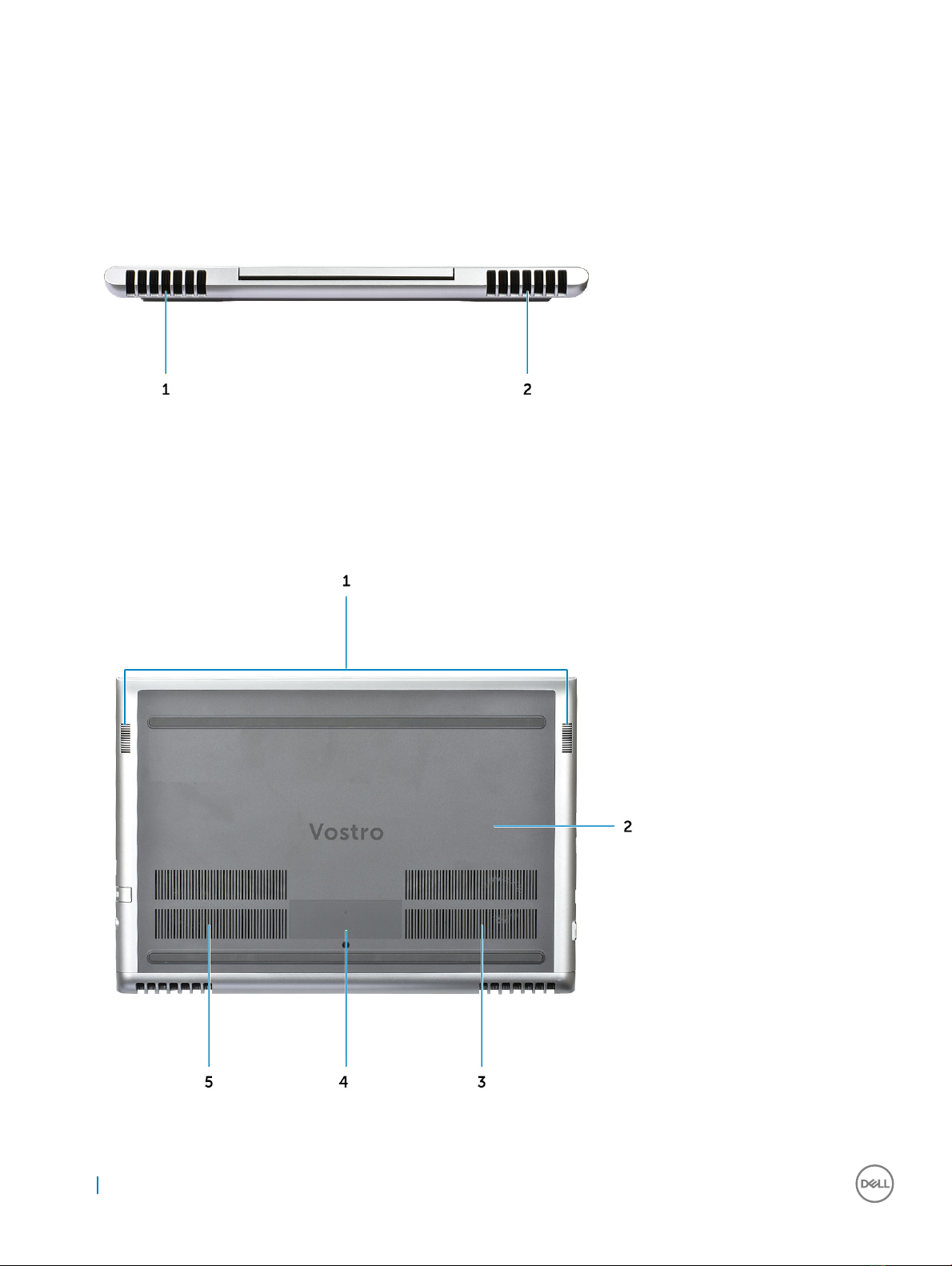

Back view

1 Air vent 2 Air vent

Bottom view

6Chassis

1 Speakers 2 Back cover

3 Air vent 4 Service tag label

5 Air vent

Keyboards hot key denitions

Table 1. Keyboard hot key combination

Fn Key Combination Function

Fn+ESC Fn Toggle

Fn+ F1 Speaker Mute

Fn + F2 Volume Down

Fn + F3 Volume Up

Fn + F4 Previous track

Fn + F5 Play/Pause

Fn + F6 Next track

Fn + F8 Extend display

Fn + F9 Search

Fn + F10 Increase Keyboard Backlight Brightness

(Pressing this function cycles keyboard backlight to the next level in

the sequence: 50%, 100%, o)

Fn + F11 Decrease brightness

Fn + F12 Increase brightness

Fn + PrtScr Turn o/on wireless

Chassis 7

Removing and installing components

This section provides detailed information on how to remove or install the components from your computer.

Recommended tools

The procedures in this document require the following tools:

• Phillips #0 screwdriver

• Phillips #1 screwdriver

• Plastic scribe

NOTE: The #0 screw driver is for screws 0-1 and the #1 screw driver is for screws 2-4

Before working inside your computer

1 Ensure that your work surface is at and clean to prevent the computer cover from being scratched.

2 Turn o your computer.

3 If the computer is connected to a docking device (docked), undock it.

4 Disconnect all network cables from the computer (if available).

CAUTION: If your computer has an RJ45 port, disconnect the network cable by rst unplugging the cable from your

computer.

5 Disconnect your computer and all attached devices from their electrical outlets.

6 Open the display.

7 Press and hold the power button for few seconds, to ground the system board.

CAUTION: To guard against electrical shock unplug your computer from the electrical outlet before performing Step #

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching

an unpainted metal surface at the same time as touching a connector on the back of the computer.

8 Remove any installed ExpressCards or Smart Cards from the appropriate slots.

After working inside your computer

After you complete any replacement procedure, ensure that you connect external devices, cards, and cables before turning on your

computer.

CAUTION: To avoid damage to the computer, use only the battery designed for this particular Dell computer. Do not use batteries

designed for other Dell computers.

1 Connect any external devices, such as a port replicator or media base, and replace any cards, such as an ExpressCard.

2 Connect any telephone or network cables to your computer.

CAUTION: To connect a network cable, rst plug the cable into the network device and then plug it into the

computer.

3 Connect your computer and all attached devices to their electrical outlets.

4 Turn on your computer.

8 Removing and installing components

Base cover

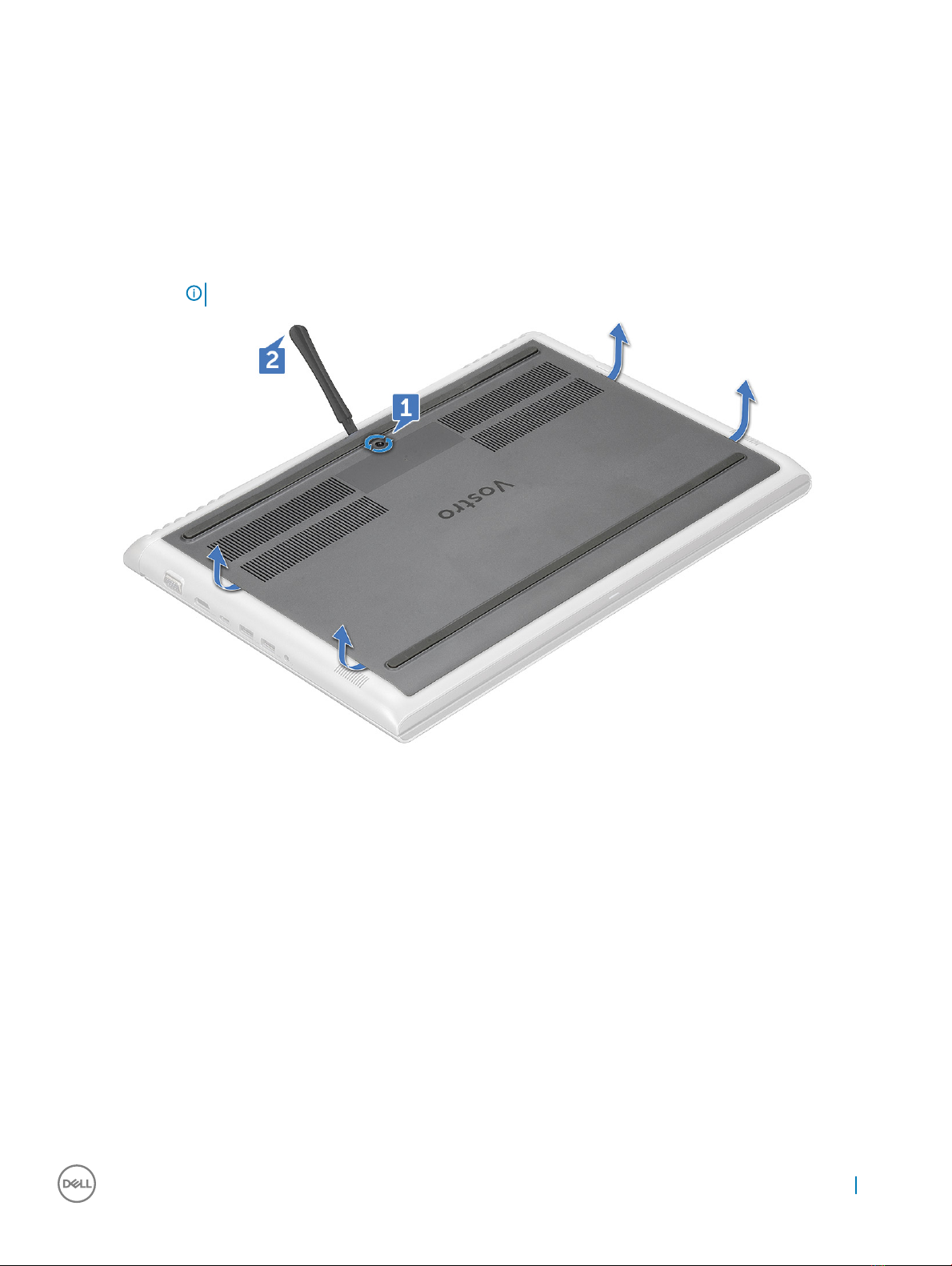

Removing the base cover

1 Follow the procedure in Before working inside your computer.

2 To remove the base cover:

a Loosen the M2.5x2+3.5 captive screws that secure the base cover to the computer [1].

b Pry the base cover from the edge [2].

NOTE: You may need a plastic scribe to pry the base cover from the edge.

3 Lift the base cover away from the computer.

Removing and installing components 9

Installing the base cover

1 Align the base cover with the screw holders on the computer.

2 Press the edges of the cover until it clicks into place.

3 Tighten the M2.5x2+3.5 screws to secure the base cover to the computer.

4 Follow the procedure in After working inside your computer.

Battery

Removing the battery

1 Follow the procedure in Before working inside your computer.

2 Remove the base cover.

3 To remove the battery:

a Disconnect the battery cable from the connector on the system board [1].

b Remove the M2x3L screws that secure the battery to the computer [2].

10 Removing and installing components
