Dell Latitude 5480

Quick Start Guide

Language: ENGLISH

Regulatory Model: P72G

Regulatory Type: P72G001

This document is for regulatory purpose only.

Warnings

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

CAUTION:A CAUTION indicates either potential damage to hardware or loss of

data and tells you how to avoid the problem.

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

international copyright and intellectual property laws. Dell™ and the Dell logo are trademarks of

Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned

herein may be trademarks of their respective companies.

Rev: A01

1 | Page This document is for regulatory purpose only.

Setting up Your Computer

This section provides information about setting up your Dell computer.

Before Setting up Your Computer

When positioning your computer, ensure that you allow easy access to a power source,

adequate ventilation, and a level surface to place your computer.

Restricting airflow around your computer may cause it to overheat. To prevent overheating

ensure that you leave at least 10.2 cm (4 inches) at the back of the computer and a minimum of

5.1 cm (2 inches) on all other sides. You should never place your computer in an enclosed

space, such as a cabinet or drawer when it is powered on.

WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents.

Do not store your Dell™ computer in a low-airflow environment, such as a closed briefcase,

while it is powered on. Restricting the airflow can damage the computer or cause a fire. The

computer turns on the fan when the computer gets hot. Fan noise is normal and does not

indicate a problem with the fan or the computer.

CAUTION: Placing or stacking heavy or sharp objects on the computer may result in

permanent damage to the computer.

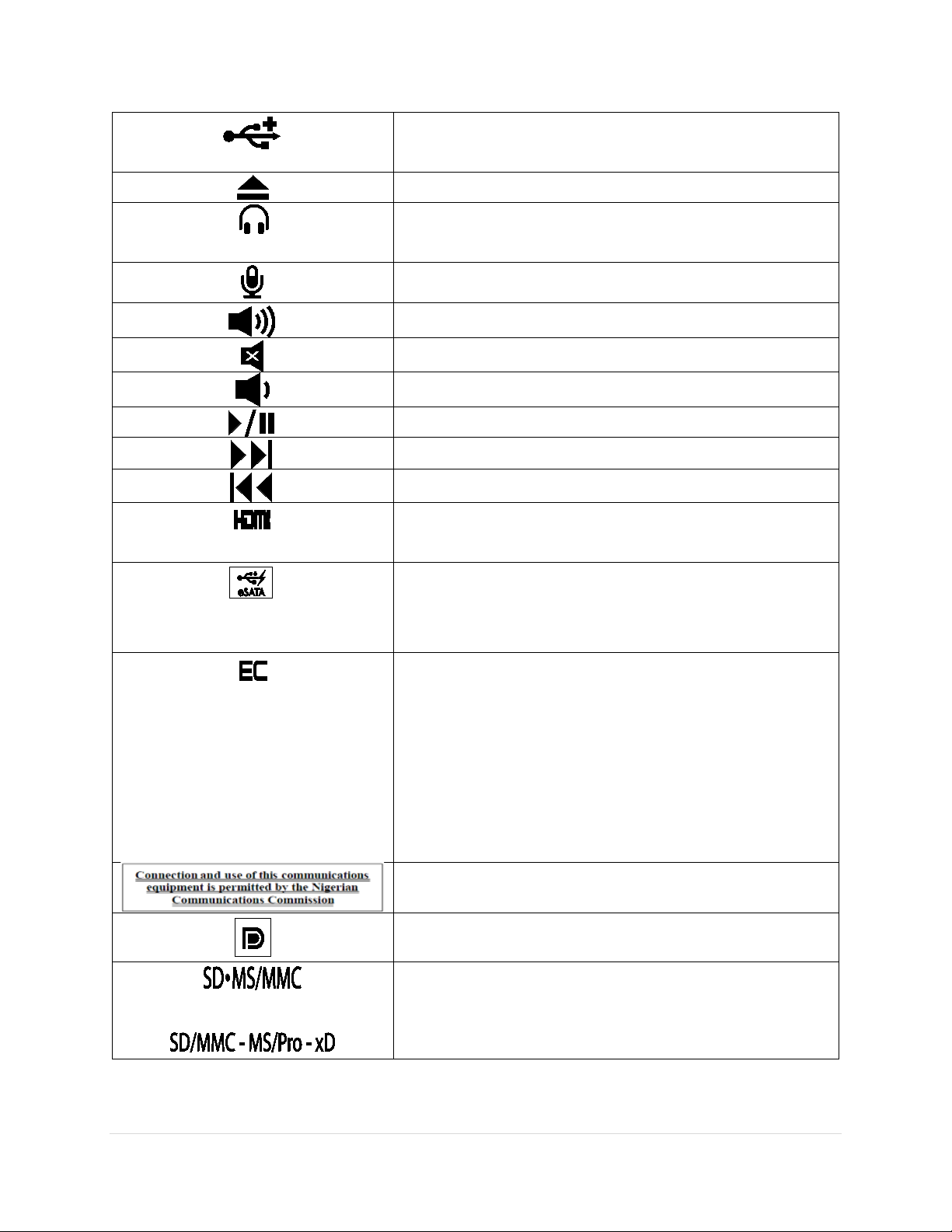

Icons, Status Lights and Indicators

Icons are used to label all connectors and buttons on Dell computers. Check the following table

for a description of those found on your computer.

Power/battery status light – Indicates the power state

and battery status.

AC adapter connector - Connects to the AC adapter to

power the computer and charge the battery when the

computer is not in use.

Battery status light – if the power status light does not

provide information on battery charge status, this light

provides information on charge status.

Wireless switch - used to either turn wireless

communication on or off.

-Or-

used to scan the local area for available wireless

signals.

Network connector – Connects your computer to a

network or a broadband device if you are using a wired

network.

VGA connector – Connects to a monitor or projector.

2 | Page This document is for regulatory purpose only.

USB 2.0 connector – Connects to USB devices, such

as a mouse, keyboard, printer, external drive, or MP3

player.

Eject the disc

Audio out/Headphone connector – Connects one pair

of headphones, or sends audio to a powered speaker or

sound system.

Audio in/Microphone connector – Connects to a

microphone or input signal for use with audio programs.

Turn up the volume

Mute the sound

Turn down the volume

Play or pause

Play the next track or chapter

Play the previous track or chapter

HDMI connector

– connects to a monitor, projector, or

television.

eSATA

– connects to external devices such as hard

drives and media bays, this connector also supports

standard USB devices.

ExpressCard slot

– Supports one 34 mm wide

ExpressCard. The computer ships with a plastic blank

installed in the slot.

NOTE

: Blanks protect unused slots from dust and other

particles. Save the blank for use when no ExpressCard

is installed in the slot; blanks from other computers may

not fit your computer.

Nigeria statement

Display Port

- connects to a monitor or projector

Provides a fast and convenient way to view and share

digital photos, music, videos, and documents stored on

digital memory cards.

3 | Page This document is for regulatory purpose only.

1394

Firewire – used for high-speed data connections to

external storage and digital media devices, such as still-

and video cameras.

Line in

– connects to audio devices such as receivers

and MP3 players

Line out

– connects to audio devices such as stereos

and speakers

USB connector

– connects to peripheral devices such as

printers, mice, and keyboards.

Wireless sync

– used to synchronize connections with

wireless input devices such as keyboards and mice (for

select systems only).

DVI connector

– used to connect monitors, projectors,

and televisions.

activity light

– lights when the hard drive is writing or

reading data.

Removing and Replacing a Laptop Computer Battery

If your Dell laptop computer is shipped without the battery, install the battery before your

proceed.

WARNING: Before you begin any of the procedures in this section, follow the safety

instructions that shipped with your computer.

WARNING: Using an incompatible battery may increase the risk of fire or explosion. This

computer should only use a battery purchased from Dell. Do not use batteries from other

computers.

WARNING: Before removing the battery, shut down the computer, and remove external

cables (including the AC adapter).

To install the battery

1. Slide the battery into the battery bay until it clicks into place.

For some computers, this requires that the battery be inserted at a 45-degree angle.

4 | Page This document is for regulatory purpose only.

To remove the battery

1. Turn off the computer and turn it over.

2. Slide the battery release latch or latches to the unlock position until it clicks into

place.

3. Slide the battery out.

Connecting the Power Supply

Computers With External AC Adapters (Notebooks and All-in-One Models)

Connect the AC adapter to the computer and then plug it into an electrical outlet or surge

protector. Be sure to leave your AC adapter connected throughout the setup process to ensure

consistent power for your operating system to complete all configurations, and to charge your

battery.

WARNING: The AC adapter works with electrical outlets worldwide. However, power

connectors and power strips vary among countries. Using an incompatible cable or improperly

connecting the cable to a power strip or electrical outlet may cause fire or permanent damage to

your computer.

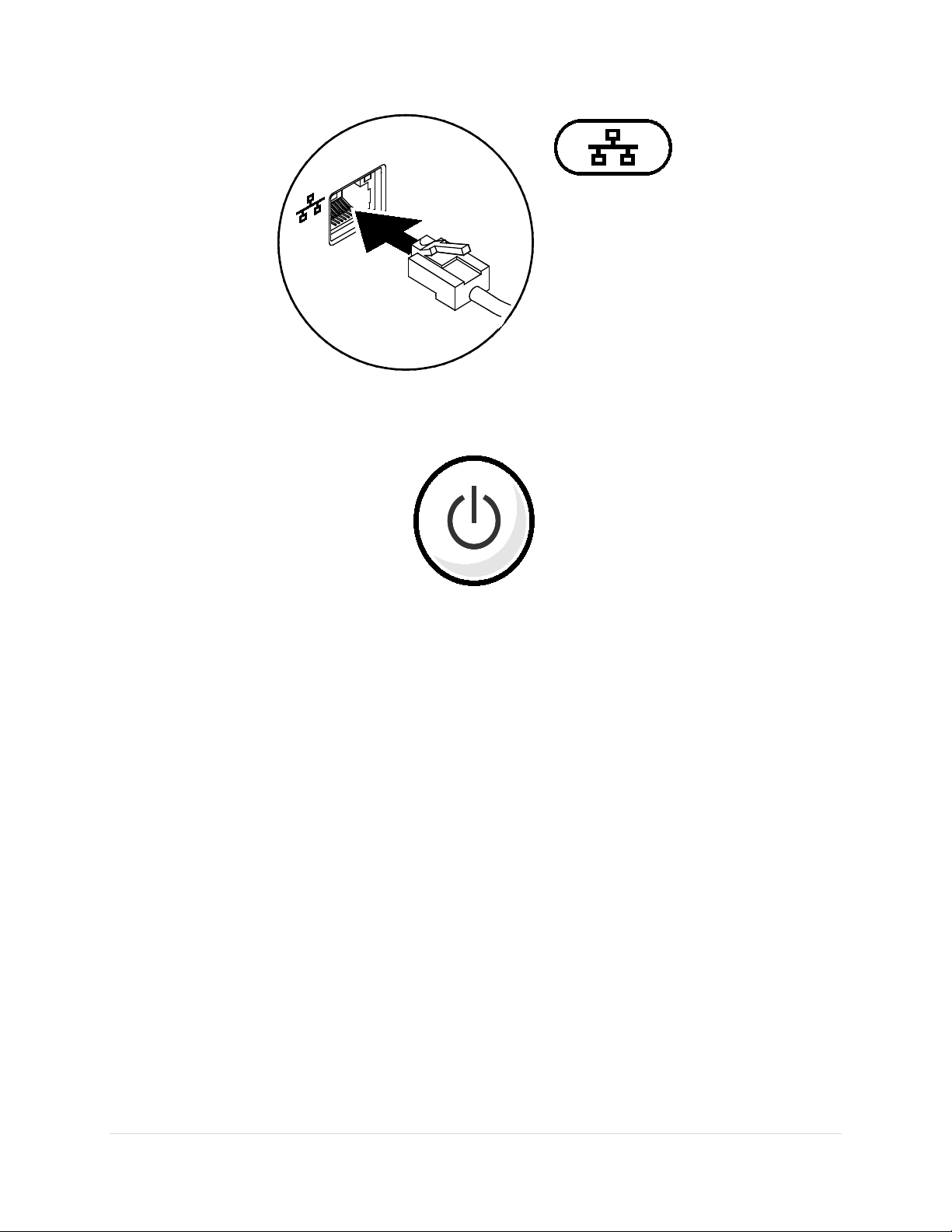

Connect the Network Cable (Optional)

To use a wired network connection, connect the network cable.

5 | Page This document is for regulatory purpose only.

Press the Power Button on the Computer.

6 | Page This document is for regulatory purpose only.

Specifications

This section provides information that you may need when setting up, updating drivers for, and

upgrading your computer.

NOTE: Offerings may vary by region. For more information regarding the configuration of

your computer, go to dell.com/support.

AC Adapter

Type 60 W

Input voltage 100-240 VAC

Input current (maximum) 1.7 A/2.50 A

Input frequency 50-60 Hz

Output current 3.34 A/4.62 A

Rated output voltage 19.5 ± 1 VDC

7 | Page This document is for regulatory purpose only.

Appendix

Information for NOM, or Official Mexican Standard (Only for Mexico)

The following information is provided in the device(s) described in this document in accordance

with the requirements of the Official Mexican Standard (NOM):

Importer:

Dell México S.A. de C.V.

Paseo de la Reforma 2620 – Flat 11°

Col. Lomas Altas

11950 México, D.F.

For details, read the safety information that shipped with your computer.

India RoHS

“This product complies with RoHS requirements as prescribed by E-Waste (Management &

Handling) Rules, by the Ministry of Environment & Forests, Government of India”.

For additional safety best practices information, see the Regulatory Compliance

Homepage at www.dell.com/regulatory_compliance.

8 | Page This document is for regulatory purpose only.
