Dell Vostro V131 Bedienungsanleitung

Dell Vostro V131 Owner's Manual

Regulatory Model P18S

Regulatory Type P18S001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your

computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or

death.

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is

strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,ExpressCharge™,

Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™are trademarks of Dell Inc. Intel®,

Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®are registered trademarks or trademarks of Intel

Corporation in the U.S. and other countries. AMD®is a registered trademark and AMD Opteron™,

AMD Phenom™, AMD Sempron™, AMD Athlon™, ATI Radeon™, and ATI FirePro™are trademarks of

Advanced Micro Devices, Inc. Microsoft®, Windows®, MS-DOS®, Windows Vista®, the Windows Vista start

button, and Office Outlook®are either trademarks or registered trademarks of Microsoft Corporation in the

United States and/or other countries. Blu-ray Disc™is a trademark owned by the Blu-ray Disc Association

(BDA) and licensed for use on discs and players. The Bluetooth®word mark is a registered trademark and

owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is a

registered trademark of Wireless Ethernet Compatibility Alliance, Inc.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming the

marks and names or their products, Dell Inc. disclaims any proprietary interest in trademarks and trade

names other than its own.

2011 – 8

Rev. A00

Contents

Notes, Cautions, and Warnings..................................................................2

1 Working on Your Computer......................................................................7

Before Working Inside Your Computer.............................................................................7

Recommended Tools.........................................................................................................8

Turning Off Your Computer................................................................................................9

After Working Inside Your Computer................................................................................9

2 Removing The Secure Digital (SD) Card...............................................11

Installing The Secure Digital (SD) Card...........................................................................11

3 Removing The Battery.............................................................................13

Installing The Battery......................................................................................................14

4 Removing The Subscriber Identity Module (SIM) Card.....................15

Installing The Subscriber Identity Module (SIM) Card...................................................16

5 Removing The Keyboard.........................................................................17

Installing The Keyboard..................................................................................................18

6 Removing The Base Cover......................................................................19

Installing The Base Cover...............................................................................................20

7 Removing The Memory...........................................................................21

Installing The Memory.....................................................................................................22

8 Removing The Hard Drive.......................................................................23

Installing The Hard Drive.................................................................................................24

9 Removing The Palm Rest........................................................................25

Installing The Palm Rest..................................................................................................26

10 Removing The Wireless Local Area Network (WLAN) Card...........29

Installing The Wireless Local Area Network (WLAN) Card............................................30

11 Removing The Wireless Wide Area Network (WWAN) Card.........31

Installing The Wireless Wide Area Network (WWAN)...................................................32

12 Removing The Display Assembly.........................................................33

Installing The Display Assembly.....................................................................................35

13 Removing The Display Bezel................................................................37

Installing Display Bezel...................................................................................................38

14 Removing The Display Panel................................................................39

Installing the Display Panel.............................................................................................41

15 Removing The Camera..........................................................................43

Installing The Camera.....................................................................................................44

16 Removing The Display Hinges..............................................................45

Installing The Display Hinges..........................................................................................47

17 Removing The Thermal Fan..................................................................49

Installing The Thermal Fan..............................................................................................50

18 Removing The System Board...............................................................51

Installing The System Board...........................................................................................53

19 Removing The Coin-Cell Battery..........................................................55

Installing The Coin-Cell Battery.......................................................................................56

20 Removing The Heat Sink.......................................................................57

Installing The Heat Sink..................................................................................................59

21 Removing The HDMI Board..................................................................61

Installing The High-Definition Multimedia Interface (HDMI) Board...............................62

22 Removing The Speakers.......................................................................63

Installing The Speakers...................................................................................................64

23 Removing The Input/Output (I/O) Board.............................................65

Installing The Input/Output (I/O) Board...........................................................................66

24 Removing the DC-In Port.......................................................................67

Installing The DC-In Port.................................................................................................69

25 Removing The LVDS Cable...................................................................71

Installing The Low-Voltage Differential Signalling (LVDS) Cable....................................72

26 System Setup..........................................................................................73

System Setup Overview..................................................................................................73

Entering System Setup....................................................................................................73

System Setup Screens....................................................................................................73

System Setup Menu Options...........................................................................................75

27 Diagnostics..............................................................................................79

Device Status Lights........................................................................................................79

LED Status.......................................................................................................................79

Diagnostic Beep Codes...................................................................................................80

Keyboard Status Lights...................................................................................................82

28 Technical Specifications......................................................................83

29 Contacting Dell.......................................................................................89

Contacting Dell................................................................................................................89

Working on Your Computer 1

Before Working Inside Your Computer

Use the following safety guidelines to help protect your computer from potential

damage and to help to ensure your personal safety. Unless otherwise noted,

each procedure included in this document assumes that the following

conditions exist:

• You have performed the steps in Working on Your Computer.

• You have read the safety information that shipped with your computer.

• A component can be replaced or--if purchased separately--installed by

performing the removal procedure in reverse order.

WARNING: Before working inside your computer, read the safety information that

shipped with your computer. For additional safety best practices information, see

the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Many repairs may only be done by a certified service technician. You

should only perform troubleshooting and simple repairs as authorized in your

product documentation, or as directed by the online or telephone service and

support team. Damage due to servicing that is not authorized by Dell is not covered

by your warranty. Read and follow the safety instructions that came with the

product.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist

grounding strap or by periodically touching an unpainted metal surface, such as a

connector on the back of the computer.

CAUTION: Handle components and cards with care. Do not touch the components

or contacts on a card. Hold a card by its edges or by its metal mounting bracket.

Hold a component such as a processor by its edges, not by its pins.

CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not

on the cable itself. Some cables have connectors with locking tabs; if you are

disconnecting this type of cable, press in on the locking tabs before you disconnect

the cable. As you pull connectors apart, keep them evenly aligned to avoid bending

any connector pins. Also, before you connect a cable, ensure that both connectors

are correctly oriented and aligned.

NOTE: The color of your computer and certain components may appear differently

than shown in this document.

To avoid damaging your computer, perform the following steps before you begin

working inside the computer.

1. Ensure that your work surface is flat and clean to prevent the computer

cover from being scratched.

2. Turn off your computer (see

Turning Off Your Computer

3. If the computer is connected to a docking device (docked) such as the

optional Media Base or Battery Slice, undock it.

CAUTION: To disconnect a network cable, first unplug the cable from your

computer and then unplug the cable from the network device.

4. Disconnect all network cables from the computer.

5. Disconnect your computer and all attached devices from their electrical

outlets.

6. Close the display and turn the computer upside-down on a flat work

surface.

NOTE: To avoid damaging the system board, you must remove the main battery

before you service the computer.

7. Remove the main battery.

8. Turn the computer top-side up.

9. Open the display.

10. Press the power button to ground the system board.

CAUTION: To guard against electrical shock, always unplug your computer from the

electrical outlet before opening the display.

CAUTION: Before touching anything inside your computer, ground yourself by

touching an unpainted metal surface, such as the metal at the back of the

computer. While you work, periodically touch an unpainted metal surface to

dissipate static electricity, which could harm internal components.

11. Remove any installed ExpressCards or Smart Cards from the appropriate

slots.

Recommended Tools

The procedures in this document may require the following tools:

• Small flat-blade screwdriver

• #0 Phillips screwdriver

• #1 Phillips screwdriver

• Small plastic scribe

• Flash BIOS update program CD

Turning Off Your Computer

CAUTION: To avoid losing data, save and close all open files and exit all open

programs before you turn off your computer.

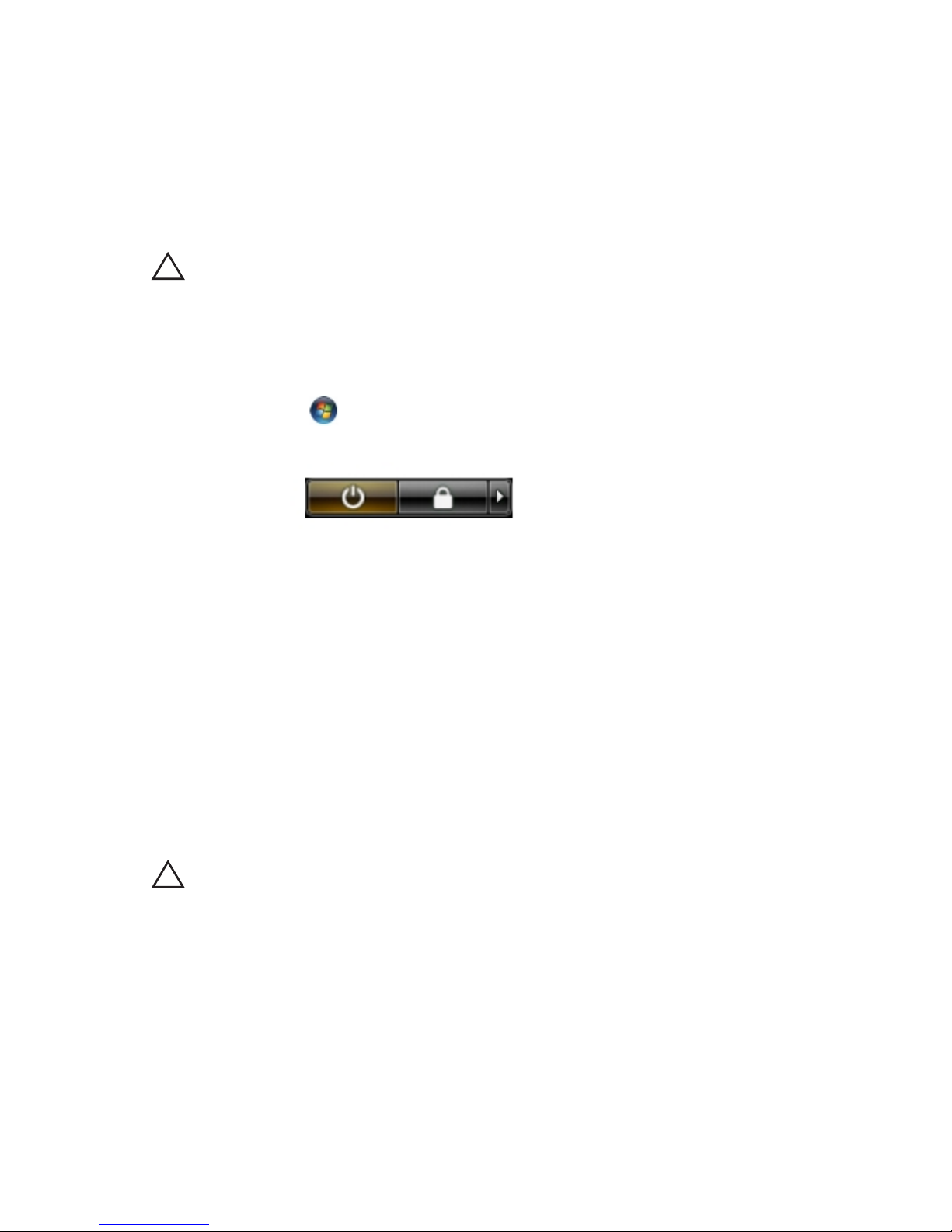

1. Shut down the operating system:

• In Windows Vista :

Click Start , then click the arrow in the lower-right corner of the

Start menu as shown below, and then click Shut Down.

• In Windows XP:

Click Start → Turn Off Computer → Turn Off . The computer turns off

after the operating system shutdown process is complete.

2. Ensure that the computer and all attached devices are turned off. If your

computer and attached devices did not automatically turn off when you

shut down your operating system, press and hold the power button for

about 4 seconds to turn them off.

After Working Inside Your Computer

After you complete any replacement procedure, ensure you connect any

external devices, cards, and cables before turning on your computer.

CAUTION: To avoid damage to the computer, use only the battery designed for this

particular Dell computer. Do not use batteries designed for other Dell computers.

1. Connect any external devices, such as a port replicator, battery slice, or

media base, and replace any cards, such as an ExpressCard.

2. Connect any telephone or network cables to your computer.

CAUTION: To connect a network cable, first plug the cable into the network device

and then plug it into the computer.

3. Replace the battery.

4. Connect your computer and all attached devices to their electrical outlets.

5. Turn on your computer.

Andere Handbücher für Vostro V131

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dell Laptop Handbücher

Dell

Dell Inspiron 7520 Bedienungsanleitung

Dell

Dell Inspiron 13 7000 Series Bedienungsanleitung

Dell

Dell P154G Bedienungsanleitung

Dell

Dell Inspiron 1501 - Turion X2 TL-60 2GB DDR2 Bedienungsanleitung

Dell

Dell Inspiron 3583 Bedienungsanleitung

Dell

Dell Latitude 5300 2-in-1 Chrome Bedienungs- und Wartungshandbuch

Dell

Dell D800 - Latitude 15.4" Notebook Bedienungsanleitung

Dell

Dell Inspiron PP09L Bedienungsanleitung

Dell

Dell XPS 13 9305 Bedienungs- und Wartungshandbuch

Dell

Dell Latitude 5300 2-in-1 Chrome Bedienungs- und Wartungshandbuch

Dell

Dell Latitude XT Bedienungsanleitung

Dell

Dell Latitude CP Bedienungsanleitung

Dell

Dell Latitude 7320 Detachable Bedienungsanleitung

Dell

Dell Latitude E4200 Administratorhandbuch

Dell

Dell Inspiron 1210 Bedienungsanleitung

Dell

Dell G5 5500 Bedienungsanleitung

Dell

Dell Inspiron 1764 Bedienungsanleitung

Dell

Dell Latitude E6530 Bedienungsanleitung

Dell

Dell Latitude ATG D620 Bedienungsanleitung

Dell

Dell Latitude E5250 Bedienungsanleitung

Dell

Dell Latitude 14 Rugged - 5414 Bedienungsanleitung

Dell

Dell Vostro 420 Bedienungsanleitung

Dell

Dell Latitude 7480 Bedienungsanleitung

Dell

Dell P55F Bedienungsanleitung

Beliebte Laptop Handbücher anderer Marken

HP ze2401xt - Pavilion Notebook PC Bedienungsanleitung

Velocity

Velocity NoteMagix M10 Bedienungsanleitung

Toshiba

Toshiba A105-S2236 Bedienungsanleitung

HP ENVY 17 Handbuch

Winbook

Winbook LM Bedienungsanleitung

HP PROBOOK 4520S Handbuch

Sony

Sony VAIO PCG-FX270 Bedienungsanleitung

Sony

Sony VAIO PCG-R505JLK Bedienungsanleitung

Lenovo

Lenovo THINKPAD X32 Bedienungsanleitung

HP Compaq tc4200 Kurzanleitung

Toshiba

Toshiba mini NB300 Bedienungsanleitung

Lenovo

Lenovo ThinkPad X201 Tablet Handbuch

Lenovo

Lenovo THINKPAD X31 Handbuch

Sony

Sony VGN-T240P VAIO Bedienungsanleitung

Compaq

Compaq Armada E700 Series Bedienungsanleitung

Fujitsu

Fujitsu Lifebook A6230 Bedienungsanleitung

Acer

Acer Aspire ONE 722 Bedienungsanleitung

Toshiba

Toshiba L300-EZ1524 Bedienungsanleitung
