Dell™XPS™M1210ServiceManual



Notes, Notices, and Cautions

Abbreviations and Acronyms

For a complete list of abbreviations and acronyms, see "Glossary" in the Owner's Manual.

IfyoupurchasedaDell™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.

Information in this document is subject to change without notice.

©2006DellInc.Allrightsreserved.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and XPS are trademarks of Dell Inc.; Microsoft and Windows are registered trademarks of Microsoft Corporation; Bluetooth is a

registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

May 2006 Rev. A00

Before You Begin

Coin-Cell Battery

Optical Drive

Palm Rest

Hard Drive

Modem

Memory Module(s)

Processor Module

Hinge Cover

Fan

Keyboard

Thermal-Cooling Assembly

Mini-Cards

Hard Drive Bay/ExpressCard Cage Assembly

Internal Card With Bluetooth®Wireless Technology

System Board

Display

Flashing the BIOS

Camera (Optional)

Pin Assignments for I/O Connectors

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page

Before You Begin

Dell™XPS™M1210ServiceManual

Recommended Tools

Turning Off Your Computer

Before Working Inside Your Computer

This section provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the

following conditions exist:

lYou have performed the steps in Turning Off Your Computer and Before Working Inside Your Computer.

lYouhavereadthesafetyinformationintheDell™Product Information Guide.

lA component can be replaced or—if purchased separately—installed by performing the removal procedure in reverse order.

Recommended Tools

The procedures in this document may require the following tools:

lSmall flat-blade screwdriver

lPhillips screwdriver

lSmall plastic scribe

lFlash BIOS update program CD

Turning Off Your Computer



1. Shut down the operating system:

Save and close any open files, exit any open programs, and click Start®Shut Down®Shut down.

The computer turns off after the operating system shutdown process is complete.



2. Ensure that the computer and any attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut

down your operating system, press and hold the power button for 4 seconds.

Before Working Inside Your Computer

Use the following safety guidelines to help protect your computer from potential damage and to help ensure your own personal safety.



1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.



2. Turn off your computer (see Turning Off Your Computer).



NOTICE: To avoid losing data, save and close any open files and exit any open programs before you turn off your computer.

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

NOTICE: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal

mounting bracket. Hold a component such as a processor by its edges, not by its pins.

NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not

covered by your warranty.

NOTICE: Unless otherwise noted, each procedure in this document assumes that a part can be replaced by performing the removal procedure in

reverse order.

NOTICE: When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. Some cables have a connector with

locking tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep

them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and

aligned.

NOTICE: To help prevent damage to the computer, perform the following steps before you begin working inside the computer.

NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network device.



3. Disconnect any telephone or network cables from the computer.



4. Disconnect your computer and all attached devices from their electrical outlets.



5. Close the display and turn the computer upside down on a flat work surface.



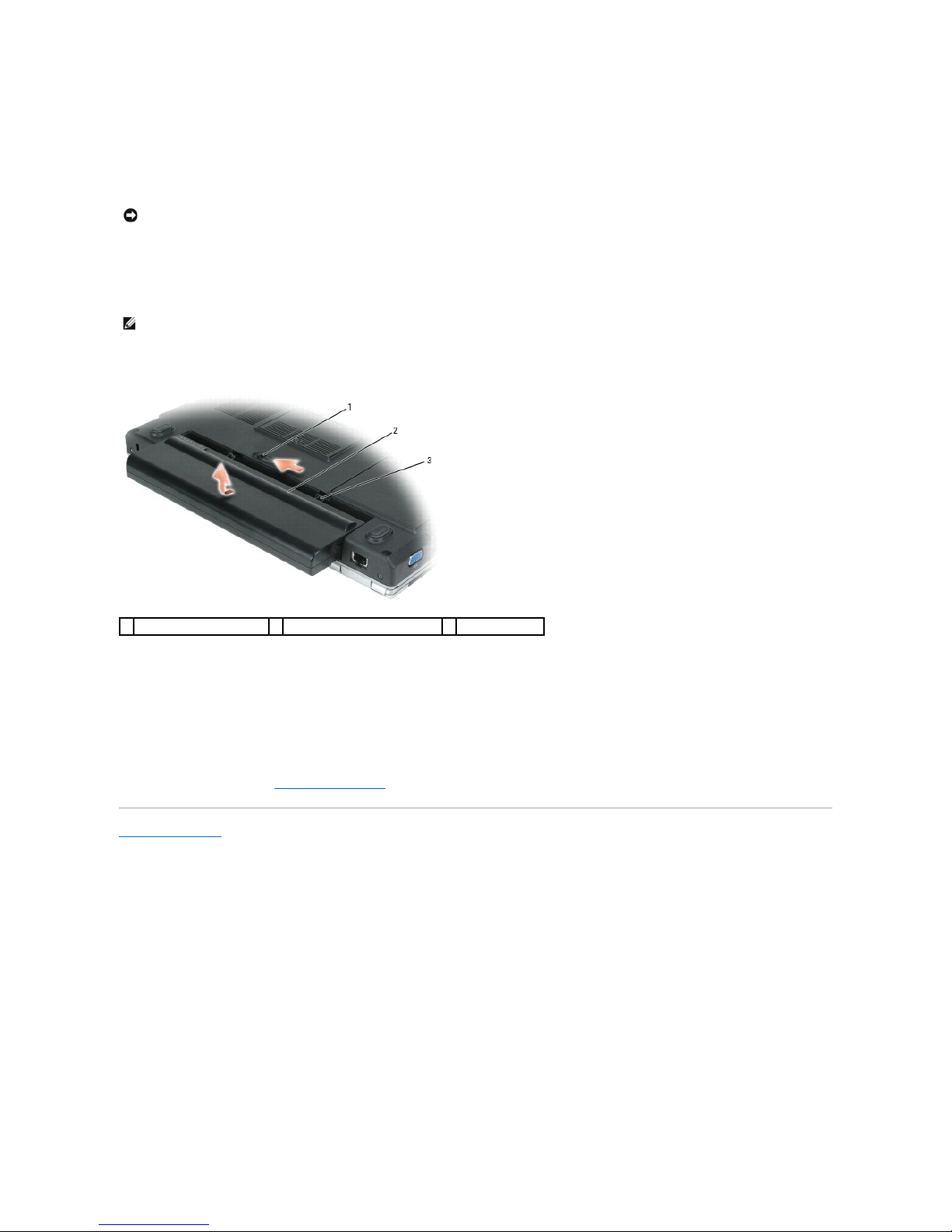

6. Remove the main battery:

a. Slide the battery-bay latch release on the bottom of the computer until it clicks.

b. Slide the battery out toward the back of the computer and lift to remove the battery from the bay.



7. Turn the computer top-side up and open the display.



8. Press the power button to ground the system board.



9. Remove any installed ExpressCard from the ExpressCard slot.



10. Remove any media from the optical drive, if installed.



11. Remove the hard drive (see Removing the Hard Drive).

Back to Contents Page



NOTICE: To help prevent damage to the system board, remove the main battery before working inside the computer.

NOTE: To replace the battery, follow the removal procedure in reverse order. When you are replacing the battery, ensure that you properly insert the

two battery tabs into the corresponding slots in the base of the computer.

battery-bay latch release

battery (9-cell battery shown)

battery tabs (2)

Back to Contents Page

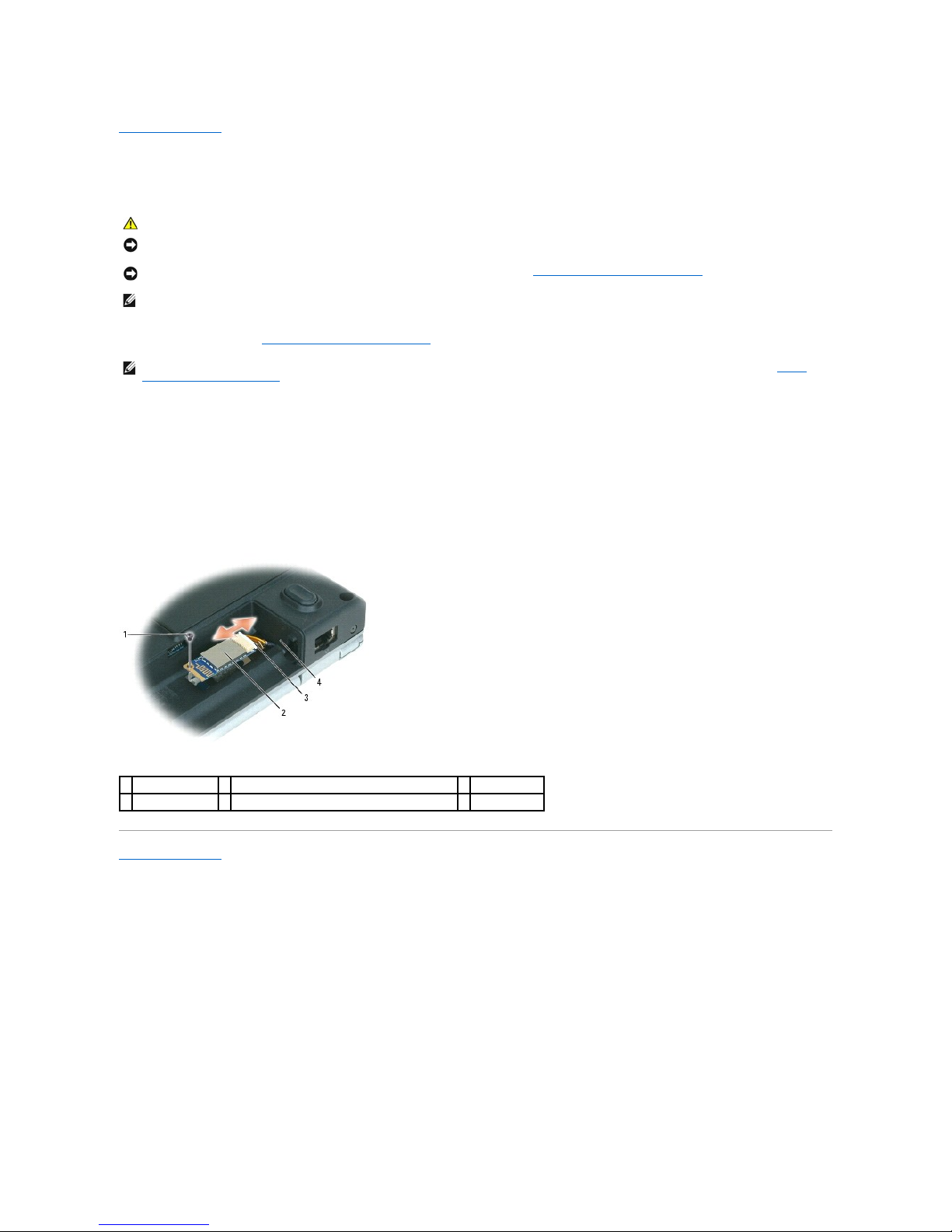

Internal Card With Bluetooth®Wireless Technology

Dell™XPS™M1210ServiceManual



1. Follow the instructions in Before Working Inside Your Computer.



2. Remove the M2 x 3-mm screw that secures the card in place.



3. Using your fingers or a plastic scribe, carefully pull the card out of the compartment and lift the mylar tape, if present, so that you can disconnect the

card from its cable and remove it from the computer.



4. To replace the card:

a. Connect the card to the cable and then carefully insert the card into the compartment.

b. Replace the M2 x 3-mm screw.

Back to Contents Page



CAUTION: Before you begin the following procedure, follow the safety instructions in the Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the

computer.

NOTE: If you ordered an internal card with Bluetooth wireless technology with your computer, the card is already installed.

NOTE: The internal card with Bluetooth wireless technology is located in the battery bay. You must remove the main battery (as instructed in Before

Working Inside Your Computer) before you can access the card.

M2 x 3-mm screw

internal card with Bluetooth wireless technology

card connector

battery bay



Back to Contents Page

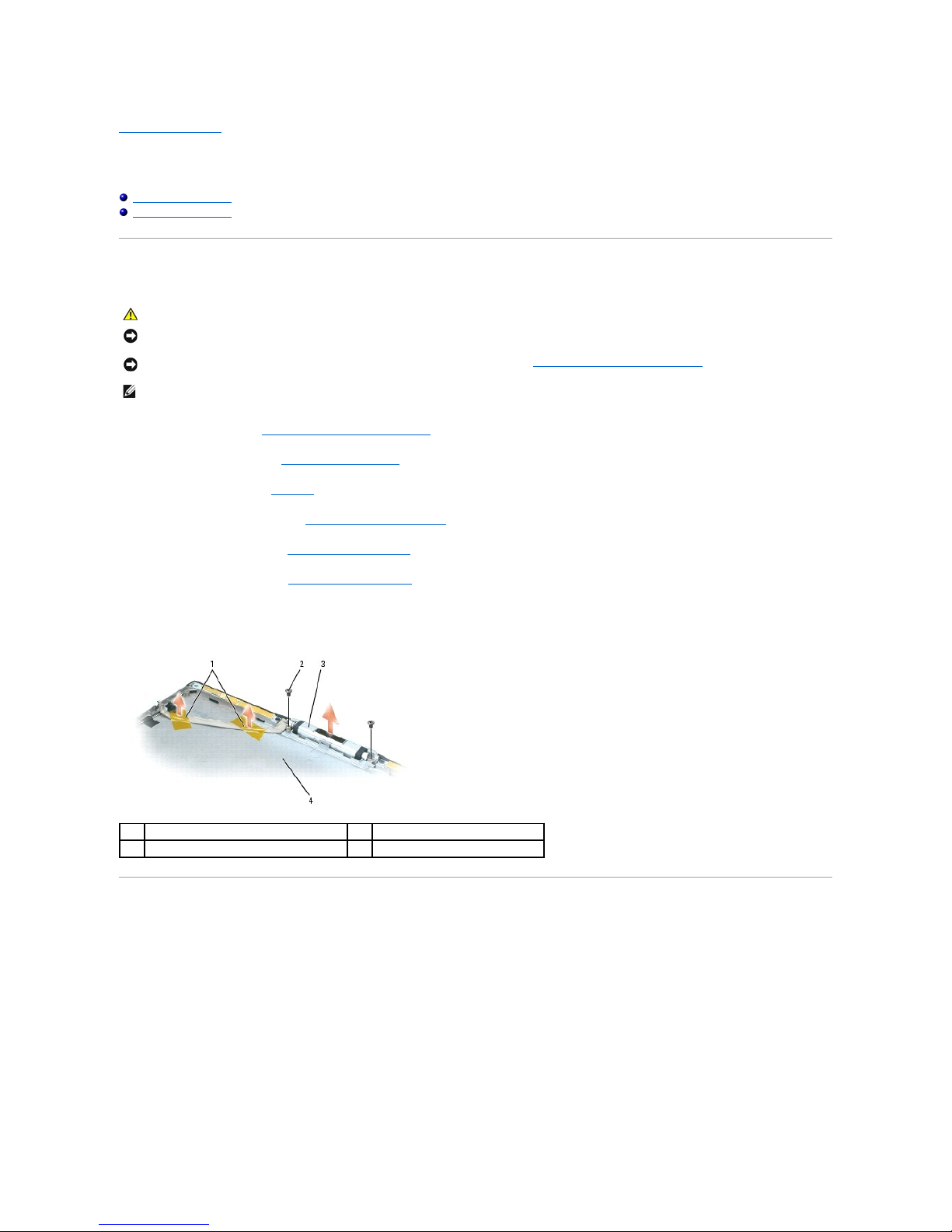

Camera (Optional)

Dell™XPS™M1210ServiceManual

Removing the Camera

Replacing the Camera

Removing the Camera



1. Follow the instructions in Before Working Inside Your Computer.



2. Remove the hinge cover (see Removing the Hinge Cover).



3. Remove the keyboard (see Keyboard).



4. Remove the display assembly (see Removing the Display Assembly).



5. Remove the display bezel (see Removing the Display Bezel).



6. Remove the display panel (see Removing the Display Panel).



7. Remove the two M2 x 3-mm screws that attach the camera to the display back cover.



8. Detach the camera cable from the display back cover by lifting the tape that secures it to the cover.

Replacing the Camera



1. With the camera lens facing up, insert the tab at the top-left of the camera into the detent at the bottom-left edge of the camera bezel.

CAUTION: Before you begin the following procedure, follow the safety instructions in the Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the

computer.

NOTE: The camera is an optional feature.

tape

camera

M2 x 3-mm screws (2)

display back cover



2. Replace the two M2 x 3-mm screws that attach the camera to the display back cover.



3. Re-adhere the tape on the camera cable to attach the cable to the display back cover.

Back to Contents Page



tab

detent in camera bezel

Back to Contents Page

Mini-Cards

Dell™XPS™M1210ServiceManual

WLAN Card

Mobile Broadband (WWAN) Card

Subscriber Identity Module (SIM) Card

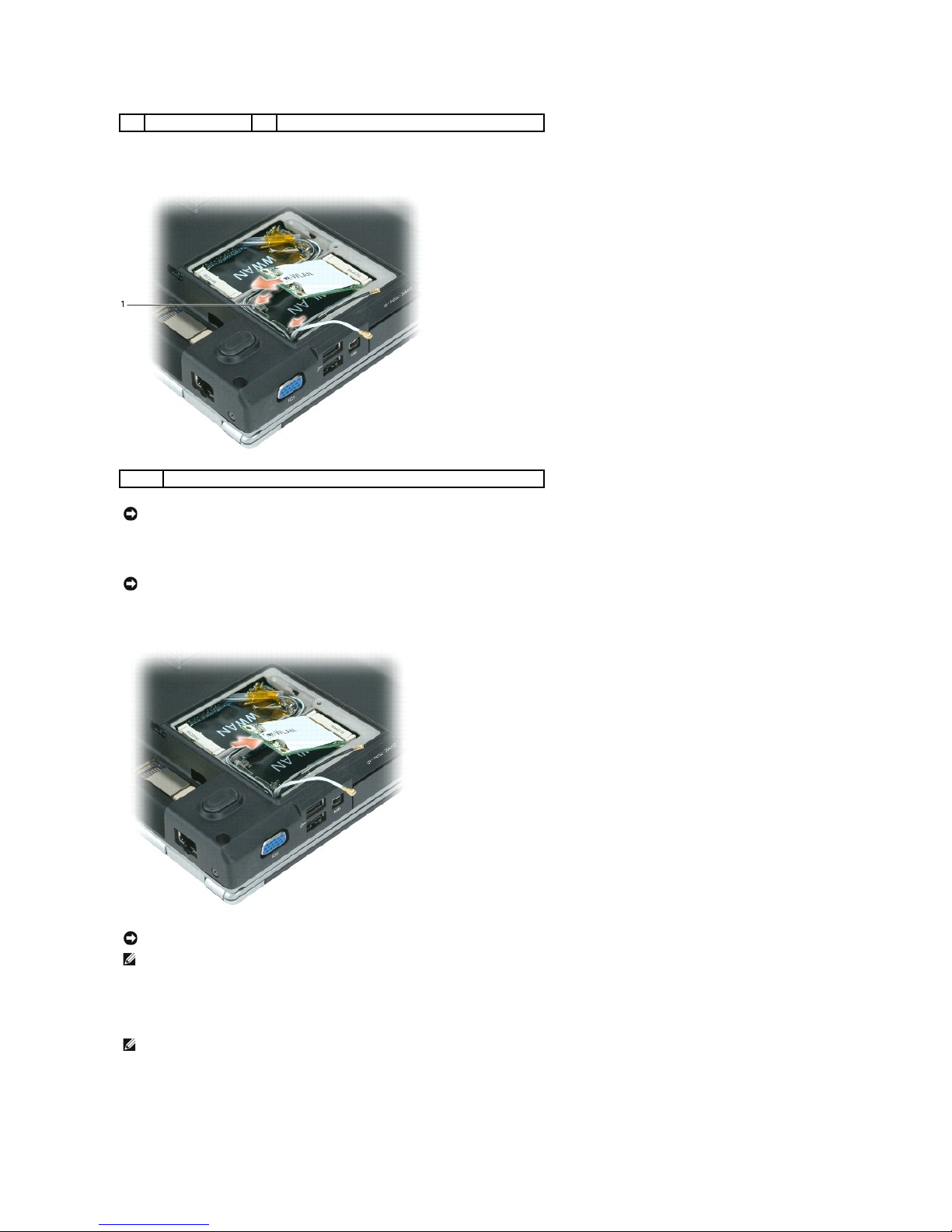

WLAN Card



1. Follow the procedures in Before Working Inside Your Computer.



2. Turn the computer upside down and loosen the captive screw to remove the communications card cover.



3. If a WLAN card is not already installed, go to step 4. If you are replacing a WLAN card, remove the existing card:

a. Disconnect the two antenna cables from the WLAN card.

CAUTION: Before you begin the following procedure, follow the safety instructions in the Product Information Guide.

CAUTION: Only products approved for use in your portable computer may be installed.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

NOTICE: To prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the

computer.

b. Release the WLAN card by pushing the metal securing tabs toward the back of the computer until the card pops up slightly.

c. Lift the WLAN card out of its system board connector.



4. Install the replacement WLAN card:

a. Insert the WLAN card connector into the system board connector at a 45-degree angle, and then press the other end of the WLAN card down

into the securing tabs until the card clicks into place.

b. Connect the antenna cables to the antenna connectors on the WLAN card by matching the color of the cable to the color of the triangle beside

the connector. Connect the main antenna cable (white) to the antenna connector with the white triangle. Connect the auxiliary antenna cable

(black) to the antenna connector with the black triangle.

WLAN card

antenna cable connectors (2)

metal securing tabs (2)

NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors and realign the card.

NOTICE: Do not install a Mobile Broadband card in the WLAN card slot.

NOTICE: To avoid damage to the WLAN card, never place cables under the card.

NOTE: If you are installing a WLAN card for the first time, you will find a clear-plastic protective sleeve on each antenna cable connector. Before you

connect the antenna cables to the WLAN card, slide the sleeves off of the cable connectors.

NOTE: Your WLAN card may have two or three antenna connectors, depending on the type of card you ordered. If your computer has a gray antenna

cable, attach it to the connector with the gray triangle, if one is available on your card.



5. Replace the communications card cover.



6. If the WLAN card you just replaced is being installed in this computer for the first time, see "Using Networks" and "Drivers" in the Owner's Manual for

your computer for instructions on connecting to a wireless network and installing drivers.

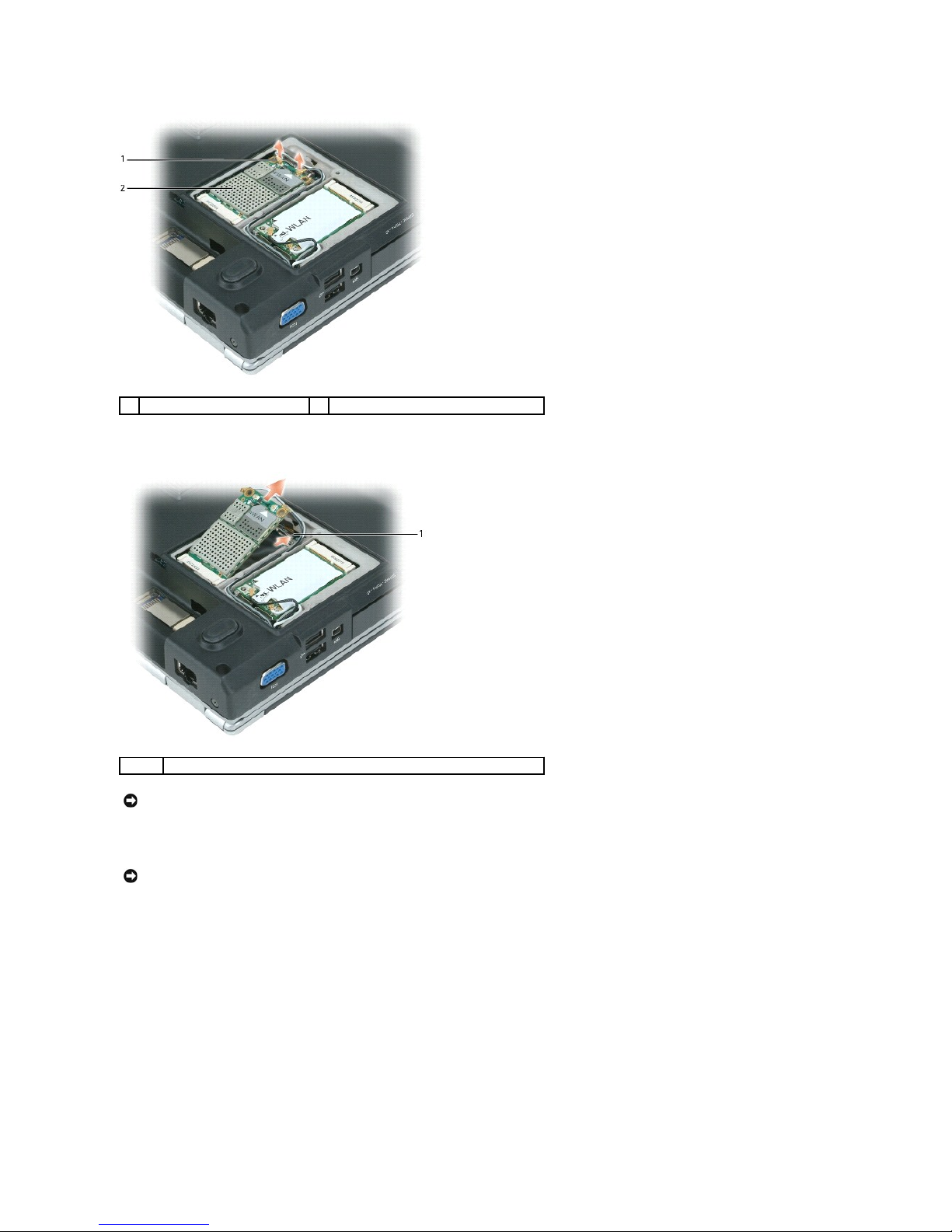

Mobile Broadband (WWAN) Card



1. Follow the procedures in Before Working Inside Your Computer.



2. Turn the computer upside down and loosen the captive screw to remove the communications card cover.



3. If a Mobile Broadband card is not already installed, go to step 4. If you are replacing a Mobile Broadband card, remove the existing card:

a. Disconnect the antenna cables from the Mobile Broadband card.

antenna cable connectors (2)

triangles (2)

CAUTION: Before you begin the following procedure, follow the safety instructions in the Product Information Guide.

CAUTION: Only products approved for use in your portable computer may be installed.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

NOTICE: To prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the

computer.

NOTE: Mobile Broadband cards are also known as WWAN cards.

b. Release the Mobile Broadband card by pushing the metal securing tabs toward the front of the computer until the card pops up slightly.

c. Lift the Mobile Broadband card out of its system board connector.



4. Install the replacement Mobile Broadband card:

a. Insert the Mobile Broadband card connector into the system board connector at a 45-degree angle, and then press the other end of the Mobile

Broadband card down into the securing tabs until the card clicks into place.

Mobile Broadband card

antenna cable connectors (2)

metal securing tabs (2)

NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors on the card and on the system board, and

realign the card.

NOTICE: Do not install a WLAN card in the Mobile Broadband card slot.

Andere Handbücher für XPS M1210

Inhaltsverzeichnis

Andere Dell Laptop Handbücher

Dell

Dell Inspiron 15 5501 Bedienungs- und Wartungshandbuch

Dell

Dell 5447 Series Bedienungs- und Wartungshandbuch

Dell

Dell Inspiron 3585 Bedienungs- und Wartungshandbuch

Dell

Dell Alienware M17x-R2 Bedienungsanleitung

Dell

Dell D620 - Latitude Laptop Computer System Core Duo Processor Wireless XP... Bedienungsanleitung

Dell

Dell Latitude E5430 Bedienungsanleitung

Dell

Dell Studio 0KWJH0A01 Bedienungsanleitung

Dell

Dell Latitude 7410 Bedienungsanleitung

Dell

Dell Inspiron 15 3000 Series Bedienungsanleitung

Dell

Dell Precision M65 Bedienungsanleitung

Dell

Dell Inspiron M4040 Bedienungsanleitung

Dell

Dell Latitude MD991 Bedienungsanleitung

Dell

Dell P91F Bedienungs- und Wartungshandbuch

Dell

Dell Inspiron 5508 Bedienungsanleitung

Dell

Dell Latitude 5430 Bedienungsanleitung

Dell

Dell Vostro 3501 Benutzerhandbuch

Dell

Dell Latitude 7280 Bedienungsanleitung

Dell

Dell Inspiron 2350 Bedienungsanleitung

Dell

Dell M4400 - Precision Mobile Workstation Bedienungsanleitung

Dell

Dell Latitude E6540 Bedienungsanleitung

Dell

Dell P139G Bedienungsanleitung

Dell

Dell P108F Bedienungsanleitung

Dell

Dell Inspiron 14 7430 2-in-1 Bedienungsanleitung

Dell

Dell Latitude XPi CD Bedienungsanleitung

Beliebte Laptop Handbücher anderer Marken

HP ze2401xt - Pavilion Notebook PC Bedienungsanleitung

Velocity

Velocity NoteMagix M10 Bedienungsanleitung

Toshiba

Toshiba A105-S2236 Bedienungsanleitung

HP ENVY 17 Handbuch

Winbook

Winbook LM Bedienungsanleitung

HP PROBOOK 4520S Handbuch

Sony

Sony VAIO PCG-FX270 Bedienungsanleitung

Sony

Sony VAIO PCG-R505JLK Bedienungsanleitung

Lenovo

Lenovo THINKPAD X32 Bedienungsanleitung

HP Compaq tc4200 Kurzanleitung

Toshiba

Toshiba mini NB300 Bedienungsanleitung

Lenovo

Lenovo ThinkPad X201 Tablet Handbuch

Lenovo

Lenovo THINKPAD X31 Handbuch

Sony

Sony VGN-T240P VAIO Bedienungsanleitung

Compaq

Compaq Armada E700 Series Bedienungsanleitung

Fujitsu

Fujitsu Lifebook A6230 Bedienungsanleitung

Acer

Acer Aspire ONE 722 Bedienungsanleitung

Toshiba

Toshiba L300-EZ1524 Bedienungsanleitung
