Getting Started Guide

Dell SonicWALL E-Class NSA Appliances

NETWORK SECURITY

NSA E6500

Notes, Cautions, and Warnings

Trademarks: Dell™, the DELL logo, SonicWALL™, SonicWALL GMS™, Reassembly-Free Deep Packet Inspection™, Dynamic Security

for the Global Network™, SonicWALL Dynamic Support 24x7™, SonicWALL Comprehensive Gateway Security Suite™, SonicWALL

McAfee Client/Server Anti-Virus Suite™, and all other SonicWALL product and service names and slogans are trademarks of Dell, Inc.

Microsoft Windows, Internet Explorer, and Active Directory are trademarks or registered trademarks of Microsoft Corporation.

Other product and company names mentioned herein may be trademarks and/or registered trademarks of their respective companies

and are the sole property of their respective manufacturers.

2013 – 03 P/N 232-001051-54 Rev. A

NOTE: A NOTE indicates important information that helps you make better use of your system.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

3| In this Guide

In this Guide

This Getting Started Guide provides instructions for basic installation and configuration of the Dell SonicWALL Network Security

Appliance (NSA) E6500 running SonicOS. After you complete this guide, computers on your Local Area Network (LAN) will have secure

Internet access.

Dell SonicWALL NSA E6500

Note: Always observe proper safety and regulatory guidelines when removing administrator-serviceable parts from the Dell

SonicWALL NSA E6500. Proper guidelines can be found in the Product Safety and Regulatory Information, on page 68.

PML

Front

Back

1U rack-mountable

17 x 16.75 x 1.75 in

43.18 x 42.54 x 4.44 cm

17.30 lbs/7.9 kg

E5500

Network Security Appliance

Form Factor

Dimensions

Weight

WEEE Weight

Chapter 1 Sections Include

Pre-Configuration Tasks - page 6 • Check Package Contents - page 7

•Obtain Configuration Information - page 8

•The Front Panel - page 10

•The Back Panel - page 11

•Front Bezel Control Features - page 12

•Front Bezel Configuration Example - page 16

Chapter 2 Sections Include

Registering the Appliance - page 18 • Before You Register - page 19

•Creating a MySonicWALL Account - page 20

•Registering and Licensing the Appliance on MySonicWALL - page 20

Chapter 3 Sections Include

Deployment Scenarios - page 24 • Selecting a Deployment Scenario - page 25

•Initial Setup - page 29

•Configuring a Stateful HA Pair - page 37

•Configuring L2 Bridge Mode - page 42

5| In this Guide

Chapter 4 Sections Include

Additional Deployment Configuration - page 46 • An Introduction to Zones and Interfaces - page 47

•Creating a NAT Policy - page 48

•Enabling Security Services in SonicOS - page 51

•Applying Security Services to Zones - page 52

•Troubleshooting Diagnostic Tools - page 52

•Deployment Configuration Reference Checklist - page 55

Chapter 5 Sections Include

Support and Training Options - page 56 • Customer Support - page 57

•Knowledge Portal - page 57

•User Forums - page 58

•Training - page 59

•Related Documentation - page 60

•Dynamic Tooltips - page 61

•Dell SonicWALL Live Product Demos - page 61

Chapter 6 Sections Include

Rack Mounting Instructions - page 62 • Rack Mounting Instructions - page 63

Chapter 7 Sections Include

Product Safety and Regulatory Information -

page 68

•Safety and Regulatory Information - page 69

•Warranty Information - page 73

•Copyright Notice - page 73

Pre-Configuration Tasks

In this Section:

This section provides pre-configuration information. Review this section before setting up your Dell SonicWALL NSA E6500.

•Check Package Contents - page 7

•Obtain Configuration Information - page 8

•The Front Panel - page 10

•The Back Panel - page 11

•Front Bezel Control Features - page 12

•Front Bezel Configuration Example - page 16

7| Check Package Contents

Check Package Contents

Before setting up your Dell SonicWALL NSA E6500, verify that your package contains the following parts:

1. Dell SonicWALL NSA E6500

2. DB9 -> RJ45 (CLI) Cable

3. Ethernet Cable

4. Standard Power Cord*

5. Rack Kit

6. Getting Started Guide

*The included power cord(s) are approved for use only in specific countries or regions. Before using a power cord, verify that it is rated and approved for use in your location. The

power cords are for AC mains installation only.

Missing Items? If any items are missing from your package, contact Dell SonicWALL Support:

Web: http://www.sonicwall.com/us/Support.html

Email: customer_service@sonicwall.com

257

Getting Started Guide

Dell SonicWALL E-Class NSA Appliances

NETWORK SECURITY

NSA E6500

E6500

Network Security Appliance

Obtain Configuration Information | 8

Obtain Configuration Information

Please record and keep for future reference the following setup

information:

Registration Information

Networking Information

Administrator Information

Serial Number:

Record the serial number found on the

bottom panel of your SonicWALL

appliance.

Authentication

Code:

Record the authentication code found on

the bottom panel of your SonicWALL

appliance.

LAN IP Address:

. . .

Select a static IP address for your

SonicWALL appliance that is within the

range of your local subnet. If you are

unsure, you can use the default IP

address (192.168.168.168).

Subnet Mask:

. . .

Record the subnet mask for the local

subnet where you are installing your

SonicWALL appliance.

Ethernet WAN IP

Address:

. . .

Select a static IP address for your

Ethernet WAN. This setting only applies

if you are already using an ISP that

assigns a static IP address.

Admin Name:

Select an administrator account name.

(default is admin)

Admin Password:

Select an administrator password.

(default is password)

9| Obtain Configuration Information

Obtain Internet Service Provider (ISP)

Information

Record the following information about your current Internet

service:

Note: If you are not using one of the network configurations

above, refer to the SonicOS Administrator’s Guide:

http://www.sonicwall.com/us/support.html

If You connect

using Please record

DHCP No information is usually required: Some

providers may require a Host name:

Static IP

IP Address: . . .

Subnet Mask: . . .

Default Gateway: . . .

Primary DNS: . . .

DNS 2 (optional): . . .

DNS 3 (optional): . . .

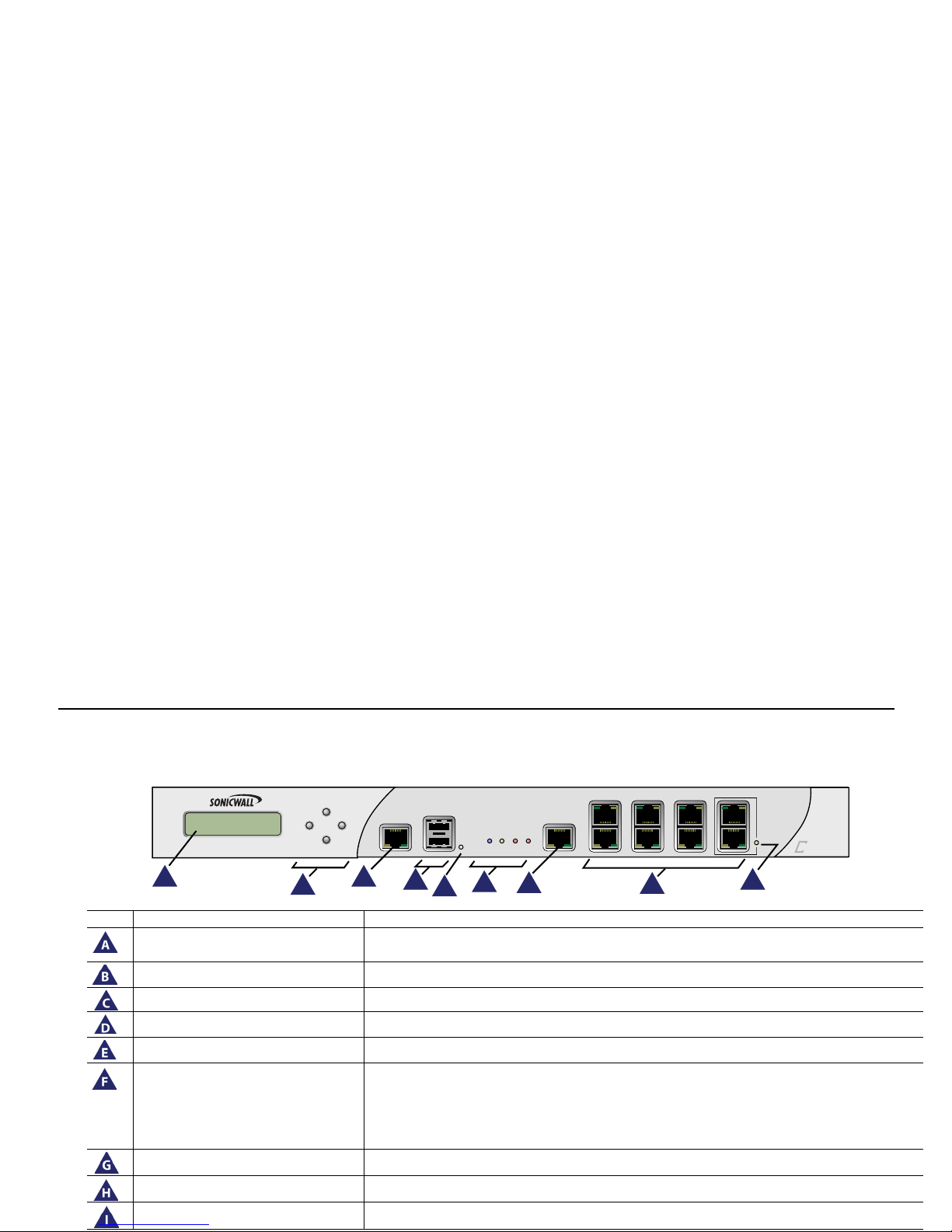

The Front Panel

Icon Feature Description

LCD Screen Displays the front panel bezel interface which can be used to display status information, make

certain configuration changes, restart the appliance or boot the appliance in SafeMode.

Control Buttons Used to navigate the front panel bezel interface.

Console Port Used to access the SonicOS Command Line Interface (CLI) via the DB9 -> RJ45 cable.

USB Ports (2) Future extension.

Reset Button Press and hold the button for a few seconds to manually reset the appliance.

LED (from left to right) Power LED: Indicates the Dell SonicWALL NSA E6500 is powered on.

Test LED: Flickering: Indicates the appliance is initializing. Steady blinking: Indicates the

appliance is in SafeMode. Solid: Indicates that the appliance is in test mode.

Alarm LED: Indicates an alarm condition.

HD LED: Future extension.

HA Port High Availability port.

X0-X7 (Copper) Gigabit Ethernet ports.

Bypass Status LED Future extension. Please check Release Notes for future availability.

E6500

Network Security Appliance

A C

BDFGHI
