Dell S520 Kurzanleitung



Dell Interactive Projector S520

Firmware Upgrade

Setup Guide

Released date: June 2015 Rev.D

1



Contents

1. Projector Firmware Upgrade Setup.......................................................................................... 2

Part A: Connect the Mini USB Cable and Enter Download Mode...............................................2

Part B: Launch the Firmware Downloader Tool to Upgrade Projector Firmware....................3

2. Multimedia Firmware Upgrade Setup ...................................................................................... 5

Part A: Enable Wireless or LAN on the Projector............................................................................5

Part B: Connect Your Computer to the Projector and Login Web Management.....................6

Part C: Upgrade Multimedia Firmware..............................................................................................7

3. Camera MCU Firmware Upgrade Setup .................................................................................. 9

Part A: Connect the Mini USB Cable.................................................................................................9

Part B: Launch the Camera MCU Upgrade Tool...........................................................................10

Part C: Upgrade Camera MCU Firmware.......................................................................................11

4. Camera Driver Firmware Upgrade Setup................................................................................12

Part A: Connect the Mini USB Cable...............................................................................................12

Part B: Launch the Camera Driver Upgrade Tool..........................................................................13

Part C: Upgrade Camera Driver Firmware......................................................................................14

2



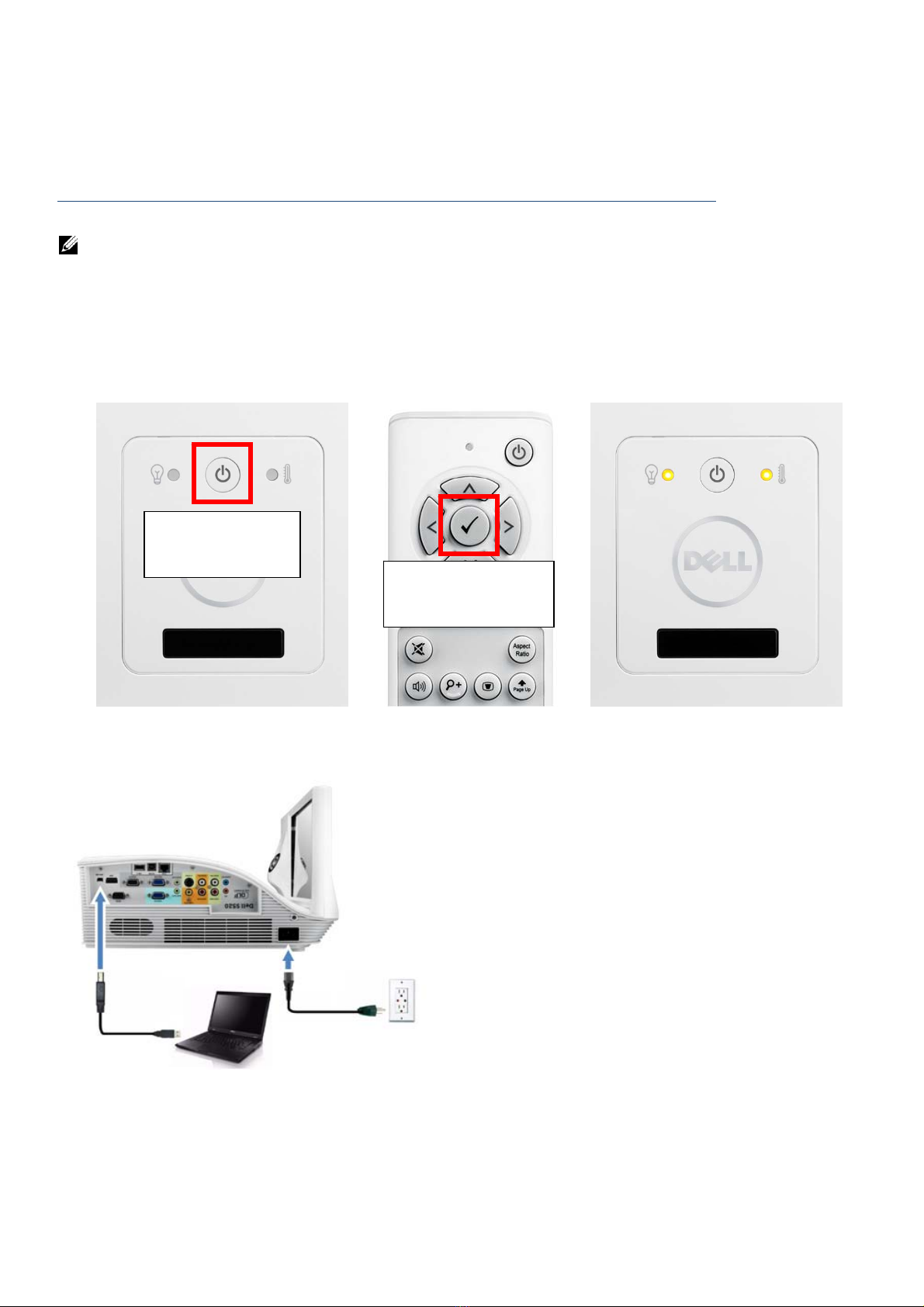

1. Projector Firmware Upgrade Setup

Part A: Connect the Mini USB Cable and Enter Download Mode

1. Plug in the power cord and perform following steps to enter download mode.

NOTE: Please DON’T press power button to turn on the projector when entering download

mode.

Step A: Press the Power button and hold it.

Step B: Continuously hold the Power button, once the power LED flashes, press the Enter

button on the remote control.

Step C: Release the buttons after Temp and Error LED LEDs are both lighted up.

2. Connect the Mini USB (type A to Mini-B) cable to the projector and the computer.

Step A: Press and hold

the “Power” button.

Step B: Press the “Enter”

button for a second.

3



Part B: Launch the Firmware Downloader Tool to Upgrade Projector Firmware

3. Double-click DDP442X Firmware Downloader.exe from downloader Projector FW folder.

NOTE: The DDP442X Firmware Downloader tool does not support Mac OS.

4. DDP442X Firmware Downloader is executing and please checks USB status is Connected

(Projector found) before upgrade firmware.

5. Follow these steps to upgrade firmware:

Step A: Click “Browse” to find the firmware (*.img) from downloaded Projector FW folder.

Step B: Click “DownLoad Image” to start the upgrade projector firmware.

4



Step C: Start to Erasing old projector firmware.

Step D: Download and upgrade firmware.

WARNING: When you are in downloading mode, PLEASE do not press the keyboard.

Step E: Firmware download completed, click “OK” and plug out the Min USB cable from

projector.

6. Unplug and re-plug in the power cord to turn on S520 projector.

5



2. Multimedia Firmware Upgrade Setup

Part A: Enable Wireless or LAN on the Projector

1. Connect the power cable and turn on the projector by pressing the power button.

2. If the LAN cable is used for firmware upgrade, follow these steps to re-active Wireless and

LAN feature when the Wireless and LAN is Disabled.

Step: Advanced Settings →LAN Settings →Wireless and LAN →Enabled. Go to Step 4.

3. If the Wireless Connection is used for firmware upgrade, follow these steps to re-active

Wireless and LAN feature when wireless connection is Disconnected.

Step: Advanced Settings →Wireless Settings →Wireless →Connected. Go to Step 5.

6



Part B: Connect Your Computer to the Projector and Login Web Management

4. If you select the LAN cable for upgrade, please connect the LAN cable to the projector and

the computer. Go to Step 6.

5. If you select the Wireless connection for upgrade, please connect your computer to the

S520 wireless network. Go to Step 6.

NOTE:

Your computer must have wireless network function to detect the connection.

When you connect to the S520 wireless network, you will lose wireless connectivity with

other wireless network.

6. Open the Internet browser on your computer. You will be automatically directed to the Web

Management page.

NOTE: If the web page does not load automatically, enter the IP address (default IP address

is 192.168.100.10) in the browser’s address bar.

7



Part C: Upgrade Multimedia Firmware

7. The S520 web management page opens. Click Admin.

8. Enter the administrator password (default password is admin), then click Login.

9. Click Firmware Upgrade.

10. Follow these steps to upgrade firmware:

Step A: Click “Browse” to find the firmware (*.nad) from downloaded Multimedia FW

folder.

8



Step B: Click the “Update” to start the upgrade firmware (*.nad).

Step C: Download and upgrade firmware (*.nad).

Step D: Firmware (*.nad) completed, click the “OK”.

9



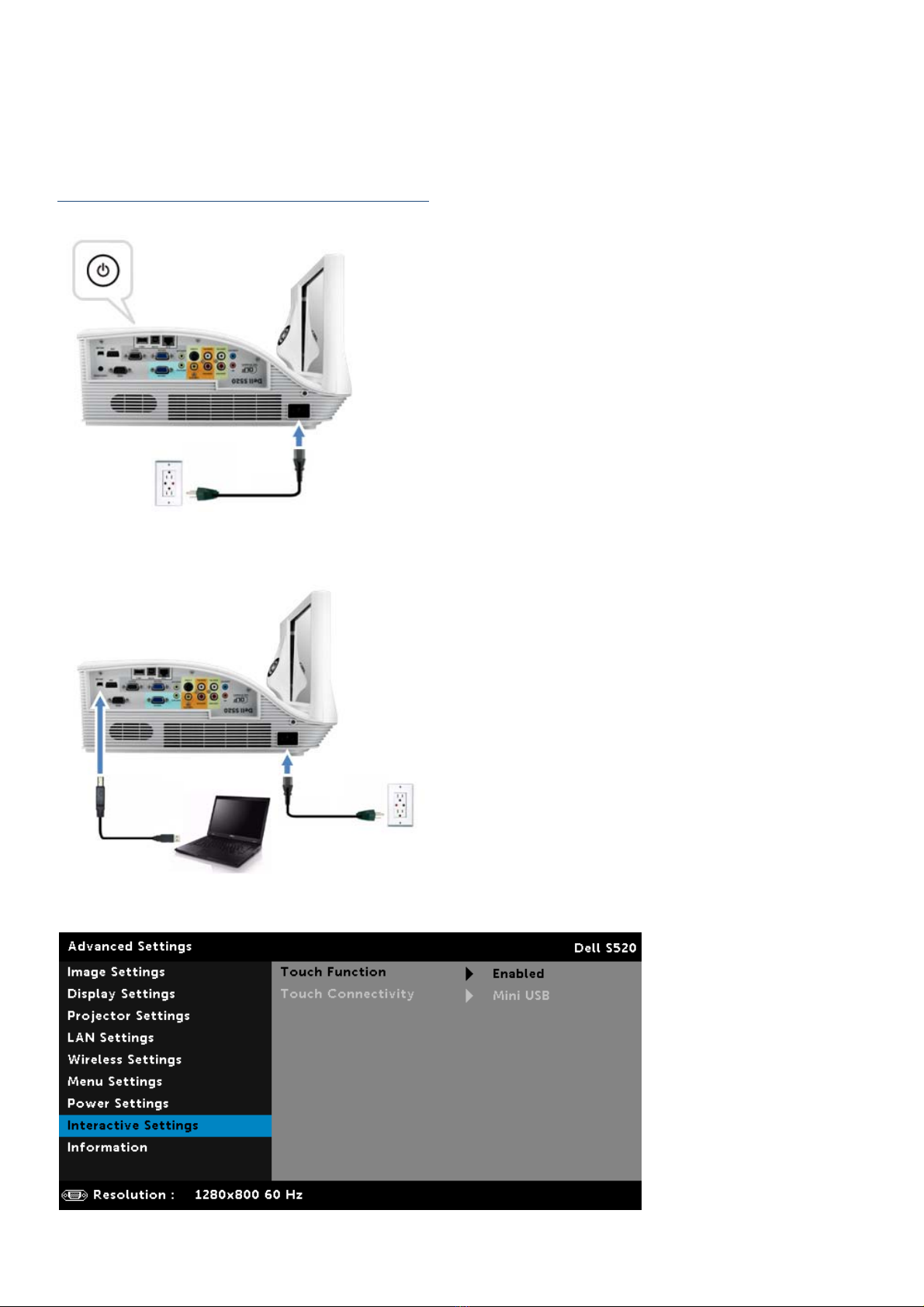

3. Camera MCU Firmware Upgrade Setup

Part A: Connect the Mini USB Cable

1. Connect the power cable and turn on the projector by pressing the power button.

2. Connect the Mini USB (5 m) cable to the projector and the computer.

3. Check projector OSD and confirm the Interactive Touch Function is Enabled.
