573441 GB 31-01-2001 14:34 Pagina 1
2
573441/11.98
ELECTRICAL CONNECTION (UK ONLY)
A) If your appliance comes fitted with a plug, it will incor-
porate a 13 Amp fuse. If it does not fit your socket, the
plug should be cut off from the mains lead, and an app-
ropriate plug fitted, as below.
WARNING: Very carefully dispose of the cut off plug
after removing the fuse: do not insert in a 13 Amp
socket elsewhere in the house as this could cause a
shock hazard.
With alternative plugs not incorporating a fuse, the cir-
cuit must be protected by a 15 Amp fuse.
If the plug is a moulded-on type, the fuse cover must be
re-fitted when changing the fuse using a 13 Amp Asta
approved fuse to BS 1362. In the event of losing the
fuse cover, the plug must NOT be used until a replace-
ment fuse cover can be obtained from your nearest
electrical dealer. The colour of the correct replacement
fuse cover is that as marked on the base of the plug.
B) If your appliance is not fitted with a plug, please fol-
low the instructions provided below:
WARNING - THIS APPLIANCE MUST BE EARTHED
IMPORTANT
The wires in the mains lead are coloured in accordance
with the following code:
Green and yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead may not corre-
spond with the coloured markings identifying the terminals
in your plug, proceed as follows:
The green and yellow wire must be connected to the termi-
nal in the plug marked with the letter E or the earth symbol
or coloured green or green and yellow.
The blue wire must be connected to the terminal marked
with the letter N or coloured black.
The brown wire must be connected to the terminal marked
with the letter L or coloured red.
N
E
L
573441 GB 31-01-2001 14:34 Pagina 2
3
CATALYTIC HEATER
Technical Data
Type Category Maximum Medium Low Gas pressure
Input Input Input
KW g/h KW g/h KW g/h
3.0 218 2.35 170 1.85 134 28÷30 mbar
This appliance is designed to operate with Butane, propane or mix LPG at nominal pressure:
28 ÷ 30 mbar. For a correct gas combustion the required air quantity is 6 m3/h.
WARNINGS
- ALWAYS use heater in accordance with instructions. Read the instructions book carefully
and keep it in a safe place.
- This appliance requires a rubber tube and a pressure regulator in accordance with the
law in force. If not supplied check with your gas supplier.
- Use ONLY in a well ventilated area.
- This appliance MUST NOT be used in basements, high rise flats, bathrooms or
bedrooms and in rooms having volume less than 18,5m3(37 m3in living rooms).
- This appliance emits the combustion residues in the room in which is used.
- DO NOT place clothes or other materials on the heater, as apart from the danger of fire
their presence could affect the efficient working of the appliance (fig. 1).
- DO NOT move heater from room to room when it is lit (fig. 2).
- DO NOT position heater alongside a wall or near curtains or arm-chairs etc. (fig. 3 - 4).
- ALWAYS face heater towards centre of room. Special care should be taken if the heater
is on a surface where it can move or twist on its wheels or castors if knocked by a child
or dog, etc.
- Minimum Clearance : 200 mm from sides,1500 mm from front.
- Be sure installation is complying to local standard.
- Set the appliance to run on maximum for at least 15 minutes the first time it is used, in
order to get rid of the “new” smell and a small amount of smoke coming from protective
substances applied to the components. Air the room while this procedure takes place.
Safety device
The heater you have purchased is fitted with safety devices which come on in the event of
malfunctioning while the appliance is in use. If the pilot light (placed opposite the burner)
accidentally goes out, or if the room is not sufficiently ventilated, the safety device will block
the gas flow, causing the heater to go off.
Gas leakages
If a leak is suspected, turn off gas at the gas bottle, open the window and air the room. DO
NOT disconnect the pressure regulator. Extinguish all naked lights. Slowly turn the gas on
and brush the connections with soapy water or liquid detergent - a gas leak will form bub-
see rating label
573441 GB 31-01-2001 14:34 Pagina 3
4
bles. If a leak is found, turn the gas off and inform your Dealer. DO NOT use the heater
again until it has been inspected by your Dealer.
NEVER USE MATCHES TO FIND LEAKS.
GENERAL SAFETY INSTRUCTIONS
Gas bottle
Gas Bottle with 15 kg of maximum capacity can be installed.
Changing of gas bottle must not be carried out in the presence of a naked flame.
Use the gas bottle always in upright position. If a screw on regulator is used ensure that the
regulator washer is present and in good condition -replace if in any doubt.
To place the bottle in position, remove the rear panel which faces the inside during tran-
sport, by unfastening the screws; than put the bottle in position and replace the panel.
Do not turn the bottle upside down to use completely its content.

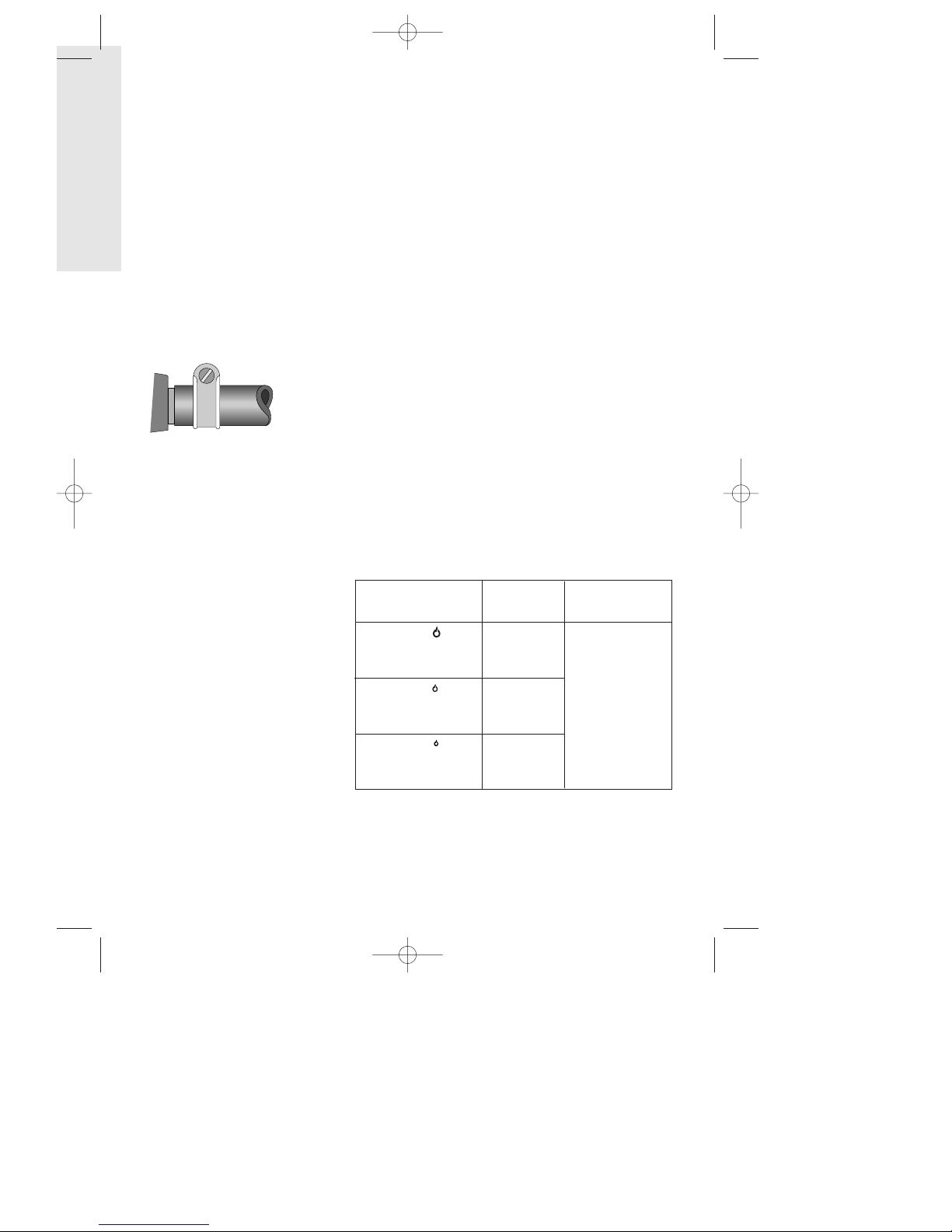

Pressure regulators, rubber tubes and clips
CHECK that tubing is completely over the nozzles at each end of the tubing and that it is
held firmly in place by tube clips (See fig.5). Examine flexible tubing regularly and get
your Dealer to fit new tubing 400 mm long complying to local standard, if perished, worn
fig. 5
Control knob setting Room Size Room Aperture
1) Position
big flame
(maximum rate)
30 m3
75 cm 2
2) Position
medium flame
(medium rate)
23.5 m3
3) Position
small flame
(low rate)
18.5 m3
573441 GB 31-01-2001 14:34 Pagina 4
or damaged. In any case replace the tube every 5 years.
When connecting the pressure regulator to the gas bottle avoid undue twisting of the flexi-
ble tubing.
A 28 ÷ 30 mbar (11.2 in w.g.) pressure regulator for Butane or Propane complying to local
standard must be connected to the appliance with the above tubing, using suitable tube
clips.
Ventilation
USE ONLY IN A WELL VENTILATED ROOM
Adequate ventilation must be provided in rooms in which the heater is used. This ensures
removal of the products of combustion and allows the entry of replacement air.
The following table shows the smallest size of room suitable for each heat setting and the
dimensions of the aperture which must be provided equally divided between high and low
level, according with the maximum, medium or minimum power.
Safety guard
The guard is to prevent risk of fire and no part of it should be permanently removed.
It does not give full protection for young children or the infirm.
OPERATING INSTRUCTIONS
Lighting the heater
1. Turn on the gas at the gas bottle tap.
2. FROM « ● » POSITION, fully depress the control knob for 15 seconds and turn to
(Big Flame) position. (If pilot flame does not ignite return to starting position and repeat).
Continue to fully depress the knob for a further 20 seconds to allow the thermocouple
probe to heat up. Leave control knob in position (big flame) for 10 minutes then turn
the knob to select the desired setting as follows:
(Big Flame) Maximum Input, (Medium Flame) Medium Input,
(Small Flame) Low Input
Auxiliary ignition
Should piezoelectric starter fail to work, repeat operation on control knob and use a match
to light pilot flame.
Tunring off the heater
Turn off the gas bottle tap.
The Heater will be totally “OFF” only if the tap at the gas bottle is turned off.
Ventilation only
(It can be used together with the
gas burners for an adequate
heat distribution).
OFF
Ventilation +1800W heating
(It can be used together with the
gas burners - 3100 W - for the
fast heating of the room).
Ventilation +900W heating
(It can be used together with the
3000 W gas burners - for the
very fast heating of the room).
5
573441 GB 31-01-2001 14:34 Pagina 5
6
Important
When the operating knob is left at the end of the starting time (see rating plate and instruc-
tion manual), this must move up about 5 mm and return to is starting height. If this does not
happen, shut the gas valve and contact your aftersales service centre.Do noy let the item
work with the operating knob pressed downwards by force.
VENTILATED CATALYTIC HEATER
Electrical connection
- Before using the appliance check that your supply voltage is the same as that shown on
the rating label of the unit.
- Connect your heater to earth provided socket only, having a capacity of at least 10/16 A.
- THIS APPLIANCE COMPLIES WITH THE EEC DIRECTIVE 89/336, relating to electro-
magnetic compatibility.
OPERATION AND USE
Fully insert plug into socket-outlet and switch on the fan heater following the instructions below.
Before switching on the gas burner, read carefully the relevant operating instructions.
IMPORTANT
DO NOT cover the appliance when in operation, this could cause a dangerous rise of the
temperature of the fan heater with consequent risk of fire.
Important notes
- Your heater must always be earthed: warranty does not cover damages caused by non-
observance of this warning.
- Do not use your heater close to wash-basin, bath- tub, shower, swimming pool.
- Do not lay the cable on the hot unit.
- Use the appliance only standing on the floor.
- The heater must always operate in upright position.
- Do not cover either the hot air output or input grid on
the top of the unit during service.
- Replacement of the power cable must be carried out
by qualified personnel. Always use original spare
parts supplied by the manufacturer.
- The heater must not be located immediately below a
fixed socket outlet.
.- Never direct the fan hater’s air flow towards furniture,
curtains , spray cans and inflammable material.
- Do not install the appliance in a room which might
contain gas, oil or sulphur, or near sources of heat.
- The appliance should not be used in high mountains.
Fig. 6
