Denver TFD-2211 Bedienungsanleitung

USER MANUAL (GB)

READ CAREFULLY BEFORE OPERATION

TFD-2211

Before connecting the AC power cord to the DC adapter outlet ,make sure the

voltage designation of the LCD TV corresponds to the local electrical supply .

If you are unsure of your power supply , ask your local power company .

Never insert anything metallic into the cabinet openings of the liquid crystal

display LCD TV/monitor;otherwise it may create the danger of electric shock.

To avoid electric shock, Never touch the inside of the LCD TV/monitor and adapter.

Only a qualified technician should open the case of the LCD TV/monitor/adapter.

Never use your LCD TV/monitor/adapter if the power cord has been damaged .

Do not allow anything to rest on the power cord, and keep the cord away from

place where people can trip over it .

Be sure to hold the plug, not the cord, when disconnecting the adapter from an

electric socket.

This symbol indicates dangerous voltage inside

the product that presents a risk of electric shock

or personal injury.

This symbol indicates important instructions

accompanying the product.

Please read this manual carefully before using this product.

IMPORTANT SAFETY INSTRUCTIONS

Openings in the LCD TV/monitor/adapter cabinet are provided for ventilation.

To prevent overheating, these openings should not be blocked or covered. Also,

avoid using the LCD TV/monitor on a bed ,sofa ,rug, or other soft surface. Doing

so may block the ventilation openings in the bottom of the cabinet. If you put the

LCD TV/monitor in a bookcase or some other enclosed space, be sure to provide

adequate ventilation.

Do not expose the LCD TV/monitor to extreme temperature conditions or to

extreme humidity conditions.

The apparatus shall not be exposed to dripping or splashing and that no objects

filled with liquids, such as vases, shall be placed on the apparatus.

Do not place the LCD TV/monitor on an unstable cart, stand, tripod, bracket, table, or

floor where it can fall. It is damaged if dropped, hit or scratched. Do not clean the front

with keton-type materials (e.g.Acetone ),ethyl alcohol, toluene, ethy lacid, methyl, or

chloride-these may damage the panel.

Locate your DC adapter near an easily accessible AC outlet.

If your LCD TV/monitor does not operate normally in particular, if there are any

unusual sounds or smells coming from it unplug it immediately and contact an

authorized dealer or service enter.

，

High temperature can cause problems. Don`t use your LCD TV/monitor in direct

sunlight, and keep it away from heaters, stoves, fireplaces, and other sources of heat.

Unplug the DC adapter when it is going to be left unused for an extended period of

time .

To reduce the risk of fire or electric shock, and annoying interference, use the

recommended accessories only.

If the LCD TV/monitor is broken, do not try to repair it yourself. Contact qualified

service personnel.

Unplug your DC adapter from the AC outlet before any service.

Be sure the service technician uses authorized replacement parts or their equivalents.

Unauthorized parts may cause fire, electrical shook, or other hazards.

Following any service or repair, be sure the service technician performs safety checks

to certify that your TFT-LCD TV/monitor is in safe operating order.

The apparatus with CLASS I construction shall be connected to a MAINS socket outlet

with a protective earthing connection.

IMPORTANT SAFETY INSTRUCTIONS

CONTENT

AV, SCART COMPONENT SETUPAND

Video setting menu 14

TELETEXT FUNCTION

Teletext function 13

EXTERNAL EQUIPMENT

Connecting diagram 3

LET S START'

Select source operation 7

VGA MENU SETUP

Picture 15 Sound 16

Function 18

Monitor setup 17

ANALOG TV MENU SETUP

Picture 8

Analog TV setup 10 Function 12

Sound 9

Battery installation

REMOTE CONTROL

Remote buttons 46

PANEL BUTTON FUNCTIONS

Front panel 1

Rear panel 2

Top panel

Right panel 2

DVD OPERATION

Brief introduction 19

Comparison between DVD

and other discs

Function introduction

Compatible disc types

Features

Playback 22

Volume control

VCD, SVCD menu playback 23

Select track to play directly

by number buttons 24

Memory 23

Select language / audio 24

Repeat playback 25

Fast playback 26

Zooming the displayed frame 27

Repeat playback of selected segment 25

Play from the desired position 26

MPEG4 and JPEG file playing 28

CONTENT

DISPLAY MODE

Display mode

SPECIFICATIONS

Specifications 34

TROUBLE SHOOTING

Sound and TV troubleshooting 33

Display troubleshooting 33

ACCESSORIES

Accessories

DVD source selection 31

Preference setup 31

DVD FUNCTION SETUP

General setup 31

PANEL BUTTON FUNCTIONS

FRONT PANEL

TOP PANEL

Indicator(the indicator is

red when in standby mode,

and green when in working

normally)

SOURCE(Select input source )

STANDBY(To switch standby

mode and power-on mode.)

between

IR sensor window

VOLUME DECREASE

VOLUME INCREASE

CHANNEL (decrease channel number)

CHANNEL (Increase channel number)

MENU(Enter or exit TV menu)

MENU P+ P- V+ V- SOURCE

PANEL BUTTON FUNCTIONS

REAR PANEL

SCART connecting terminal

R input terminal

VGA input terminal

12V DC input terminal

VGA audio input

Y/Pb/Pr audio input

RIGHT PANEL

PLAY/PAUSE button

STOP button

EJECT button

EXTERNAL EQUIPMENT

NOTE

CONNECTING DIAGRAM

You should insert all necessary cables BEFORE plugging in power cord.

DVD or VCR player

REMOTE CONTROL

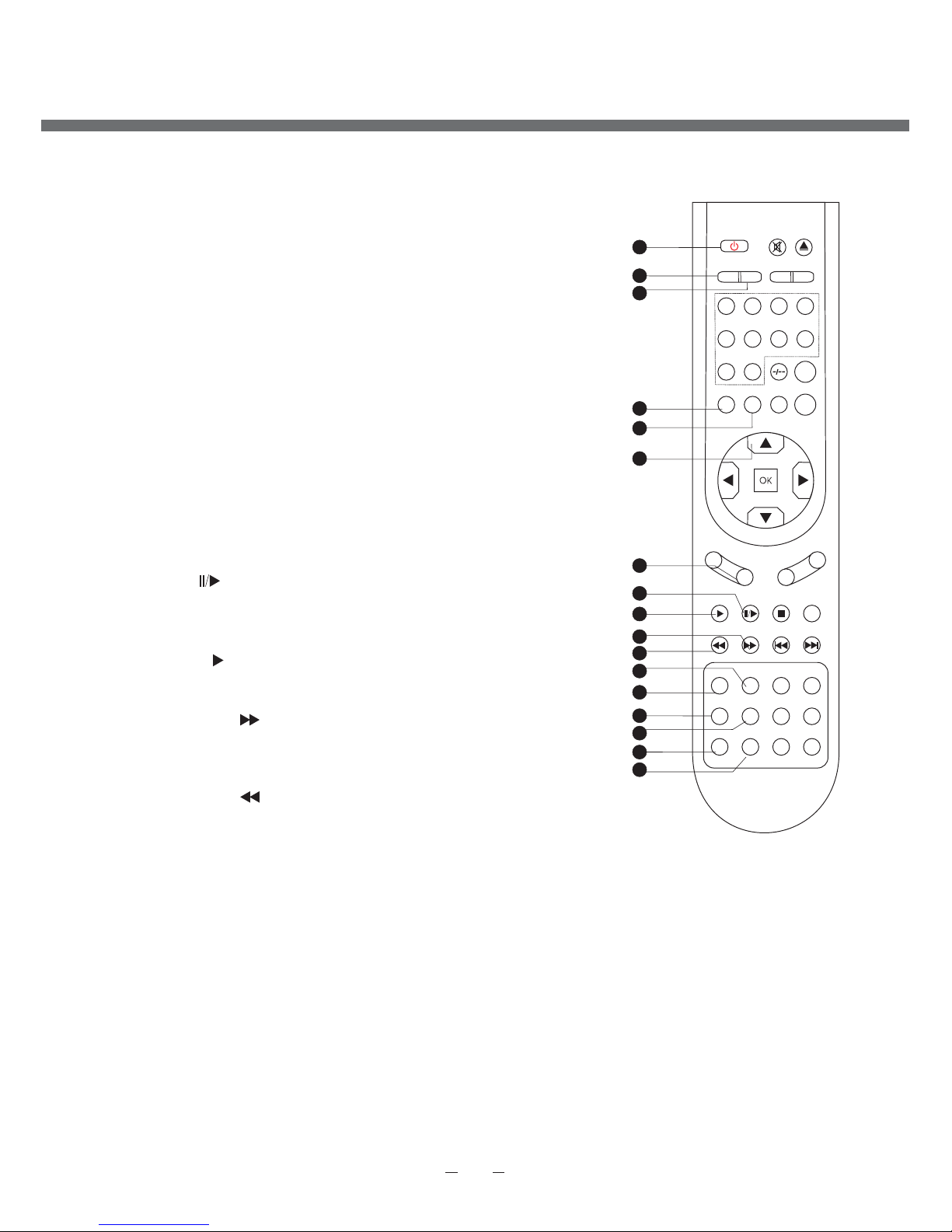

REMOTE BUTTONS

10 Left/Right cursor(menu adjustment )

To move leftward/ rightward or adjust the selected

item in the menu, or adjust sound volume

PBC / PAGE+

To setup the PBC on/off in DVD mode

browse the next page of teletext in

TV mode.analog

To select languagesubtitle's

or switch to JPEG display mode.

To display the program guide valid

21 SUBTILE

DVD / USB / I/II

To switch between DVD mode or in NICAM/A2

MoNo channel in analog TV mode. "USB"-not used.

VOL+/-

To increase or decrease sound volume.

OK button

To confirm the selections.

CALL

To display the information on screen.

SOURCE

To select input source: TV,DVD,SCART,

COMPONENT and VGA.

TWO-DIGIT number button

To switch between one or two-digit

program number.

RECALL

To swap between a preivous program

and the current program in analog TV .

Number button

To select program number.

SLEEP

To setup the sleep timer.

SCALER

Change picture ratio between and4:3 16:9

EJECT

Disc in/out,valid in DVD mode.

MUTE

Sound mute switch.

17 REPEAT / YELLOW

To repeat playback(valid in DVD mode)Select

page in analog TV teletext mode

18 ANGLE/BLUE

To change camera angle in DVD mode when

playing DVD disc/Select page in analog TV

teletext mode

AUDIO

To change the audio language and sound

track.

22 ZOOM+

To zoom in to the picture valid in

DVD mode.

21 34

5678

POWER MUTE

SLEEP SCALER

RECALL

SOURCE

CALLEXITSETUP

CH-

CH+

P.MODE S.MODE

VOL+

VOL-

TEXT MIX INDEX

I/II

CANCEL REVEAL HOLD SIZE

DISPLAY ZOOM-

ZOOM+

SUBTITLE

PAGE+PAGE-

S.PAGE

AUDIO

DVD/USB

GOTO A-B REPEAT ANGLE

DVD-MENU TITLE PBC

teletext in analog TV. To stop playing valid in DVD

mode.

13 INDEX /

To display main content page when playing the

15 HOLD /

To stop teletext on current page in analog TV

To magnify teletext page in analog TV

SIZE /

REMOTE CONTROL

POWER

To switch between standby mode and

power-on mode.

P-MODE

To select picture mode: Standard, Dynamic,

Soft, User(invalid in VGA mode).

SETUP

To display setup menu, different in different

source mode.

EXIT

To exit or back previous menu.

UP/DOWN cursor

To select upward/downward in the menu or

change the channel, valid in analog TV .

CH+/-

To increase or decrease program number

valid in analog TV .

A-B / GREEN

To segment repeat (valid in DVD) /select page in

analog TV teletext mode

GOTO/RED

To play from a certain time point(valid in DVD

mode)/select page in analog TV teletext mode

DVD-MENU / S.PAGE

To go to the menu of DVD menu,valid in DVD

menu/To go to the sub page of teletext, valid

in analog TV mode.

TITLE / PAGE-

To go to the menu of DVD menu,valid in DVD

mode / browse the previous page of teletext in

TV mode.analog

DISPLAY

To Display track time in DVD

mode

S-MODE

To select sound field modes: Music, Film,

News and User.

MIX /

To display analog TV and teletext in the

same time/pause playing/steps playback in

pause mode, valid in DVD mode.

TEXT /

To enable or disable the function of teletext/

to playback,valid in DVD mode.

CANCEL /

To cancel teletext in analog TV/to fast backward

playback, valid in DVD mode.

REVEAL /

To display the hidden teletext information in

analog TV/to fast-forwards DVD playback,

valid in DVD mode.

39 ZOOM-

To zoom out to the picture valid in

DVD mode.

21 34

5678

POWER MUTE

SLEEP SCALER

RECALL

SOURCE

CALLEXITSETUP

CH-

CH+

P.MODE S.MODE

VOL+

VOL-

TEXT MIX INDEX

I/II

CANCEL REVEAL HOLD SIZE

DISPLAY ZOOM-

ZOOM+

SUBTITLE

PAGE+PAGE-

S.PAGE

AUDIO

DVD/USB

GOTO A-B REPEAT ANGLE

DVD-MENU TITLE PBC
