Denver DENVER IPO-1320 Bedienungsanleitung
DENVER IP
O
-
1
32
0
DENVER IPC
-
1030
Packing list:
Note:
Some models don’t have a separate antenna.
Installation procedure:
Note:
For the first time use of IP Camera, please refer to the procedures above.
Connect the Hardware
Install the Search Tool
ogin the IP Camera into AN
ogin the IP Camera to the PC
Client
Access by Mobile
Wireless Settings
End
Start
IP camera Mounting bracket Antenna Power Adaptor
CD Lan cable Installation guide Screws

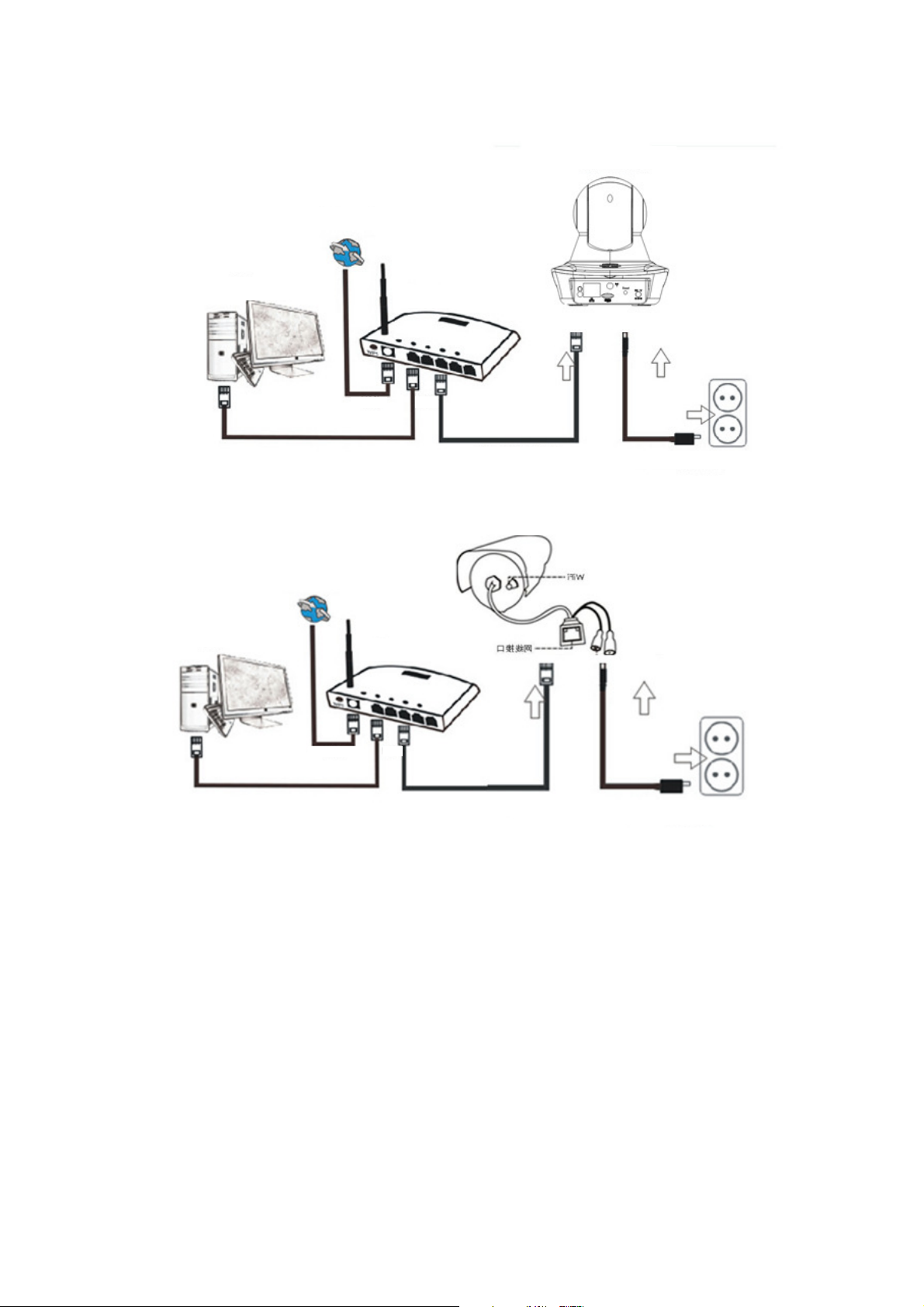

Connect the camera with Internet cable to the router, and with the power cord to the mains,
like shown above.
PC
Internet Cable
Internet
outer
Power
WAN LAN
IP Camera
PC
Internet
outer
Internet Cable Power
WAN
LAN

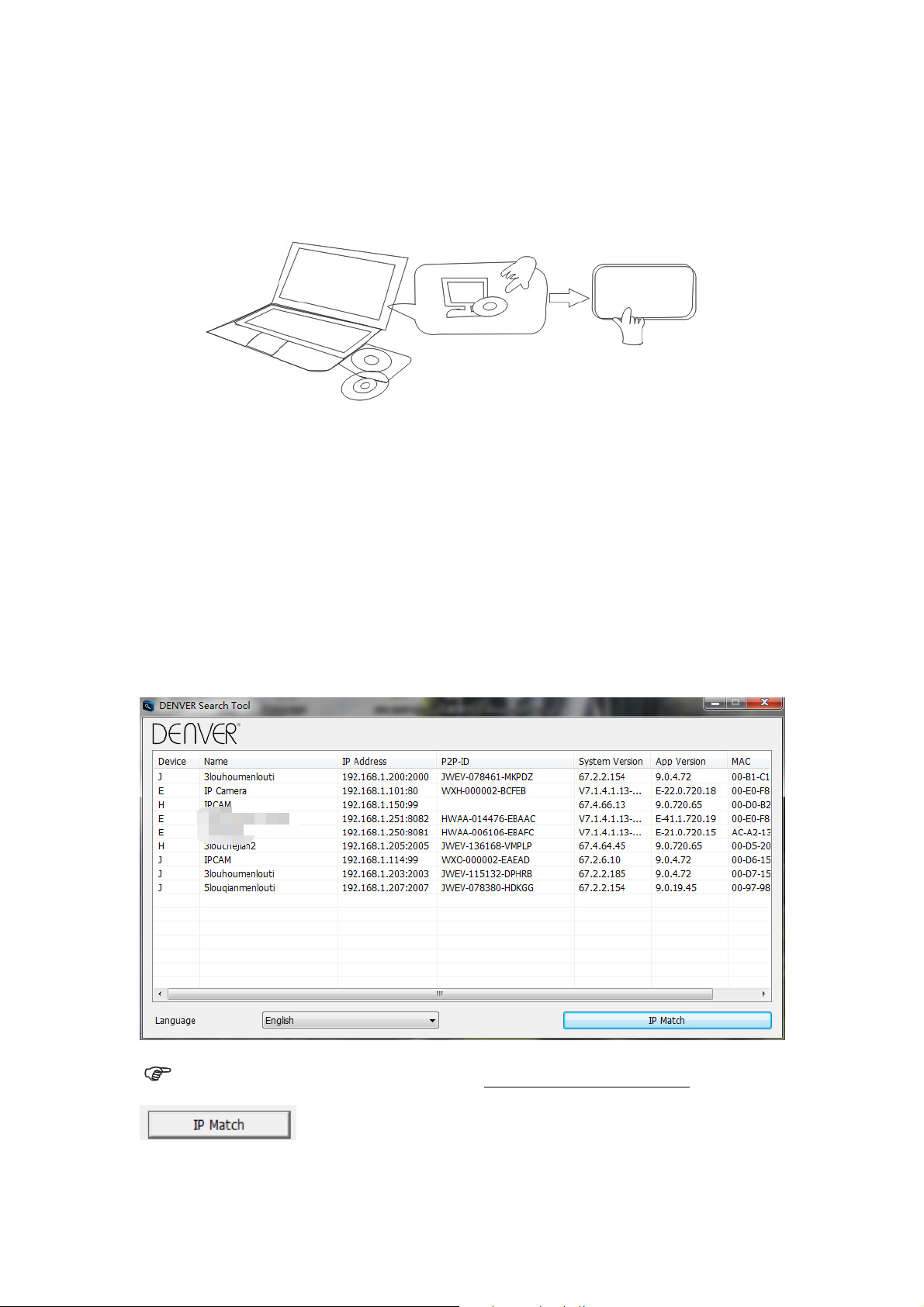

1. Installation of the Search Tool
Insert the CD and install the following software:
1. Open the File “IPO-1320 & IPC-1030”, click on “OCX setup” — “Next” — “Install” —
“Finish”
2. Open the File “Search Tool”, Copy the “Search Tool” to the desktop and launch it.
2. ogin of the IP Camera into the AN
After the hardware is connected properly, launch the search tool, and the IP address of the
camera will be displayed automatically.
Note: If the Search Tool issues the message "Subnet mask does not match, please click
N
ext
Double click the camera IP address in the search tool.

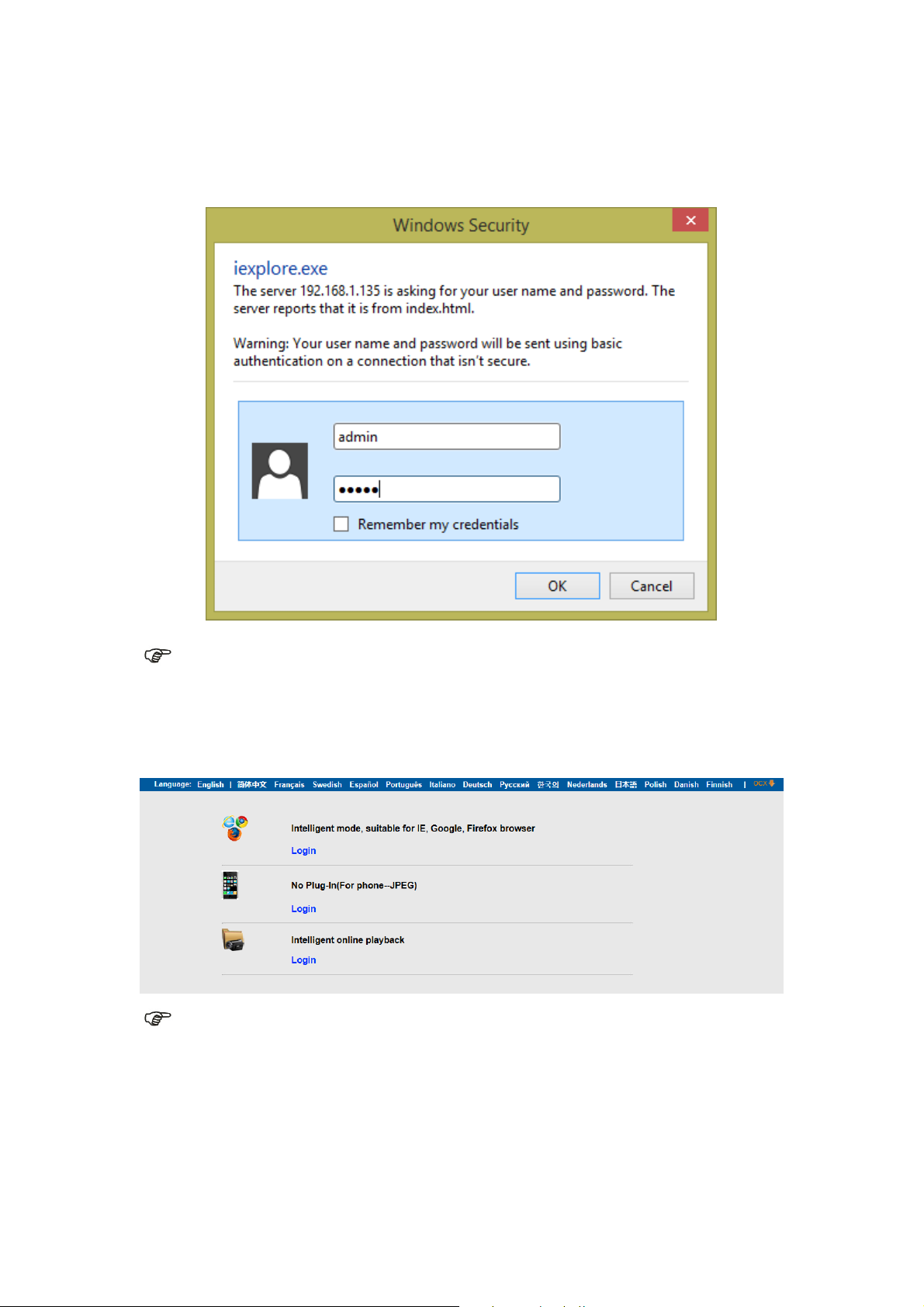

In your default browser a login screen like shown below will be displayed:
Note: Both the username and password are “admin”
(Please change the account user name and password for safety later)
After entering the correct user name and password, the ogin screen will be displayed.
(It supports 6 visitors watching online at the same time)
Note: If the OCX already has been installed you may login directly. If not, please install
OCX.
A. Click on “OCX” to download and Install it.
B. efresh the webpage and login again, the camera video will be displayed as below
ive video
3. Wireless Setting
1. Click on the button to access the “Wireless” settings.
2. Search for the WIFI signals and choose the desired SSID.
3. Make sure that all parameters are the same like in your router, enter the WIFI network
key.
4. After 30 seconds click on “Check”, the notification will show you if the WIFI settings are
successful.
5. If correct, just go back to select “Apply”, then disconnect the network cable.
Note: If the camera IP Address can not be found by the search tool, please connect the
internet cable again to check the WIFI settings.
Checking the WIFI signal connection status
4. Device information Setting
1)
Click on the icon to access the “ Device information” settings
2)
You will see all information for the IP camera
5. Time Settings
1)
Click on the icon to access the “Time” settings
2)
You may choose any NTP server, then click on “Apply”
3)
Choose the desired time and click on “Apply” to activate it
6. Record settings
6.1.Recording in TF card
1) Click on the icon to access the “ ecord” settings
2) Choose “on”
3) Choose between ”First stream” or ”Second stream”
4) Choose the time schedule for recording
5) Click on “Apply”
6.2 Recording to computer disk
1) The main interface into the machine, as shown below;
2) Click on ,select the recording path;
3) Click on ,Start recording.
Note :If you can not change the recording path , please follow these steps:
First
，
please open search tool,Find the camera's ip address and copy it :
Then, un IE browser as administrator :
Finally, Paste IP address of the camera in IE browser, Click “Enter”,then you can modify the
video path as below :
