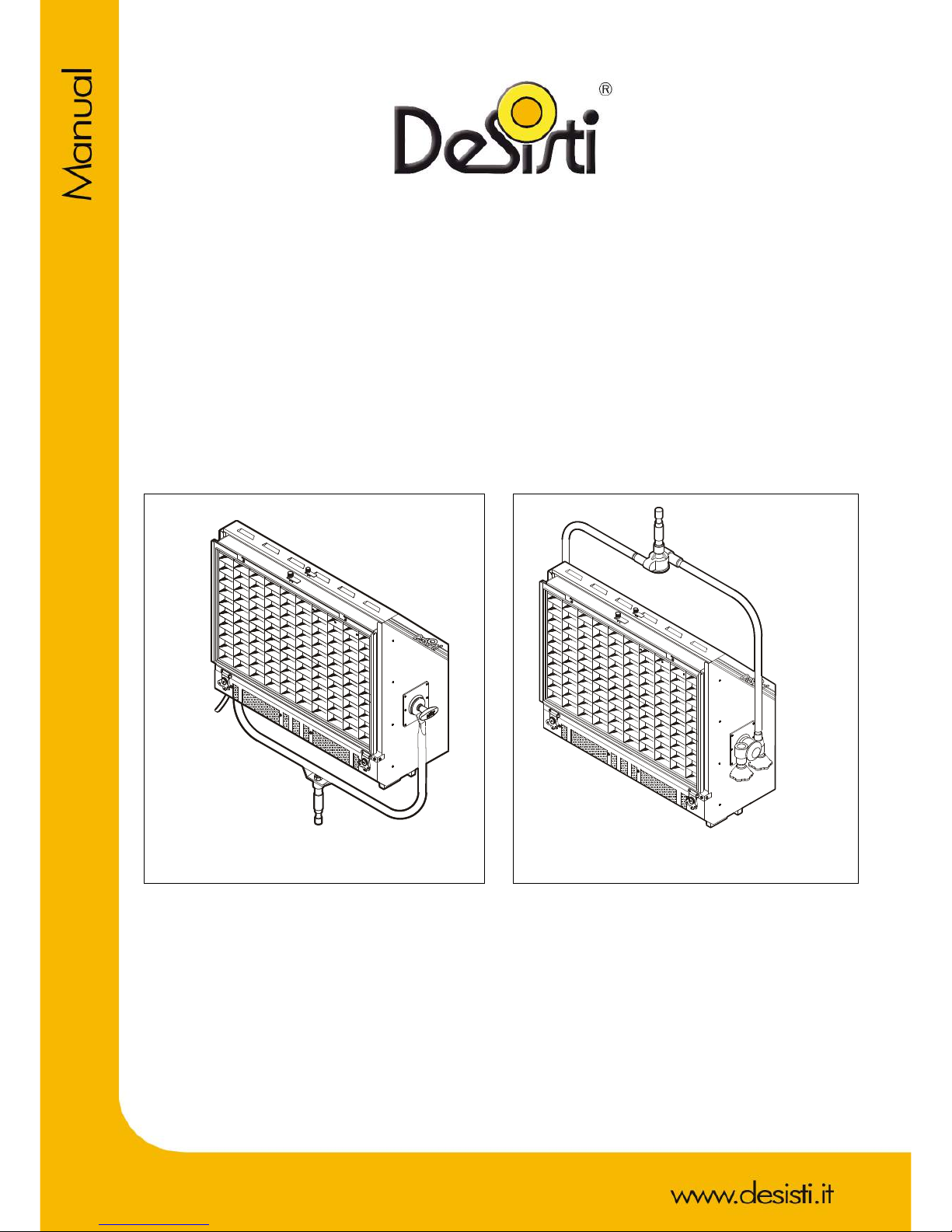

BOTTICELLI 5.000 W Quartz-Halogen Softlight
Standard EN-60598-2-17 Class 1
INSTRUCTION MANUAL
!"#$%&'(
))*!+,-+. )"/ 0 1 +20 #3
!!(P OL E !OP E R ATE D)
MOD.3122
1. INTRODUCTION
Congratulations on your purchase of a BOTTICELLI 5 kW lighting fixture from De Sisti
Lighting, our commitment to Total Customer Satisfaction and a consolidated experience in
leading the innovation in the manufacturing of lighting products for the professional
Entertainment Industry mean you can depend upon the quality of this product.
The BOTTICELLI 5 kW is a compact and robust softlight using 4 tungsten-quartz-halogen
linear filament lamps having R7s sockets, Length of 189 mm. and max. 1,25 kW power
each.

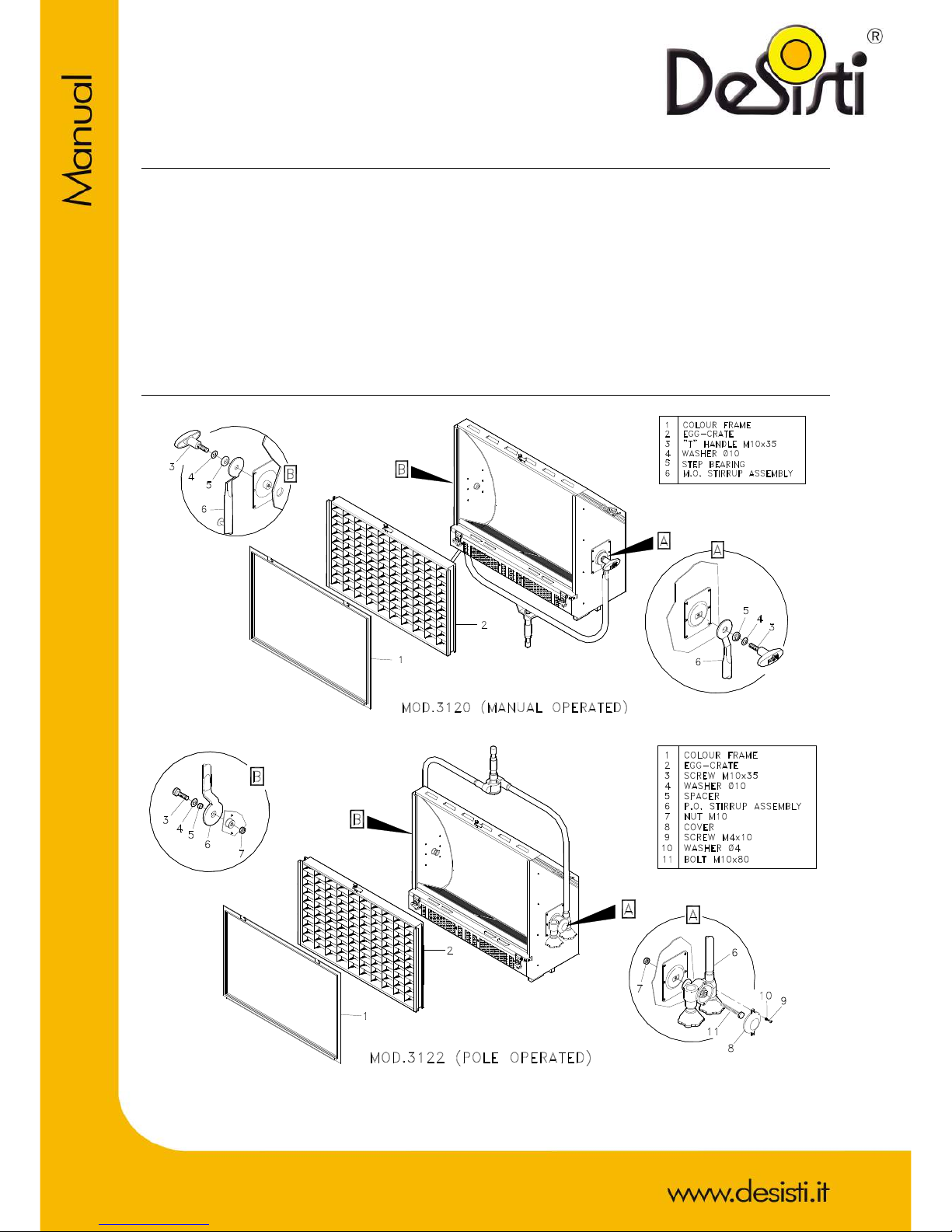

2. YOKE AND ACCESSORIES ASSEMBLY
3. SAFETY INSTRUCTIONS
!Professional use: This luminaire has been designed for professional use and must be
operated by qualified personnel only. Not for residential use.
!Grounding: WARNING: THIS LUMINAIRE MUST BE GROUNDED
!Electrical connections: IMPORTANT The cores in this mains lead are colored in
accordance with the following code:
Europe
America
Ground
Green & yellow
Green or green &
yellow
Neutral
Blue
White
Live
Brown
Black
In case the colors of the cores do not correspond to the colors of the connection points on
your plug, please proceed as follows:
•the green or green and yellow core must be connected to the connection point marked
with the letter E or with the symbol or colored in green or in green - yellow;
•the blue (or white) core must be connected to the connection point marked with the letter
N or colored in black;
•the brown (or black) core must be connected to the connection point marked with the letter
L or colored in red.
Working conditions
!Insertion time
100%
!Working Position
Max. Tilting on vertical plane ±90° from straight horizontal
!Ambient Temperature, ta
-20° C ÷+45° C
!Humidity
Not condensing
!Minimum distances from
inflammable surfaces
Top
Back
Sides
Front
0,4 m.
0,1 m.
0,1 m.
4 m.
The luminaire should never be OPERATED close to inflammable materials. The ones
indicated in the above table are the minimum distances recommended. Other requirements
for safe use are:
A. Do not cover the apertures of the luminaire housing. They are essential for correct
ventilation. Do not use on the floor. It reduces the ventilation.
B. Use only original accessories and spares from De Sisti Lighting.
C. Before hanging the luminaire ensure that the suspension point (or the stand) is properly
rated to accept the luminaire weight.
D. In case of pole operated use, fit only a P.O. stirrup from De Sisti Lighting.
E. A suitable secondary safety suspension device (safety cable, chain or equivalent) must be
fitted between the suspension point and stirrup.
F. Don`t use the luminaire in an environment where the ambient temperature is higher than
the maximum nominal one, ta, indicating the rating.
4. INSTALLATION INSTRUCTIONS
Before connecting the luminaire to the electrical mains ensure that:
A - Earth line is present on the power socket.
B - The mains voltage is within the rated range of the luminaire (see technical data on the
rating label)
C - The lamps fitted:
!are among the recommended lamps (see De Sisti Lighting catalogue or contact
your De Sisti dealer)
!have the same nominal voltage as the mains supply
!have a nominal power not higher than 1 fourth of the maximum power of the
luminaire
NB: the luminaire nominal frequency rate is 0 - 60 Hz.
D - The front safety shields against the lamp explosion are present and in good condition.
Depending on luminaire type these items may consist of:
!wire mesh guard 3 mm x 3 mm
!safety or dichroic glass plus wire guard 12 mm x 12 mm
!Fresnel lens plus wire guard 25 mm x 25 mm.
Shields, lenses safety or dichroic glasses shall be changed if they have become visibly
damaged to such an extent that their effectiveness is impaired, for example by cracks or deep
scratches.
5. LAMP INSTALLATION AND REPLACEMENT
The following procedure should be adopted:
A - Ensure the luminaire is electrically isolated from the power supply.
B - WAIT LEAST 5 MINUTES FROM SWITCHING OFF to avoid risk of injury from possible
lamp explosion. Then open the front hinged door holding the lamp assembly.
WARNING: AFTER THE ABOVE MENTIONED TIME THE LAMPS MAY STILL BE VERY HOT,
USE PROPER THERMAL PROTECTION (EG. GLOVES).
C - Check that the new lamps are of the correct type.
D - Replace the lamps taking good note of the following:
do not touch the bulb with bare-hands; oil and grease can contaminate the bulb surface
and then reduce the performance and the lamp life. The plastic cover which protects the
lamp should not be removed until after fitting should the bulb become dirty due to hand
contact or for any other reason, it can be cleaned with a cloth moistened with alcohol.
E - Ensure that any safety device that has been removed is refitted correctly or that the lens
door is securely closed.

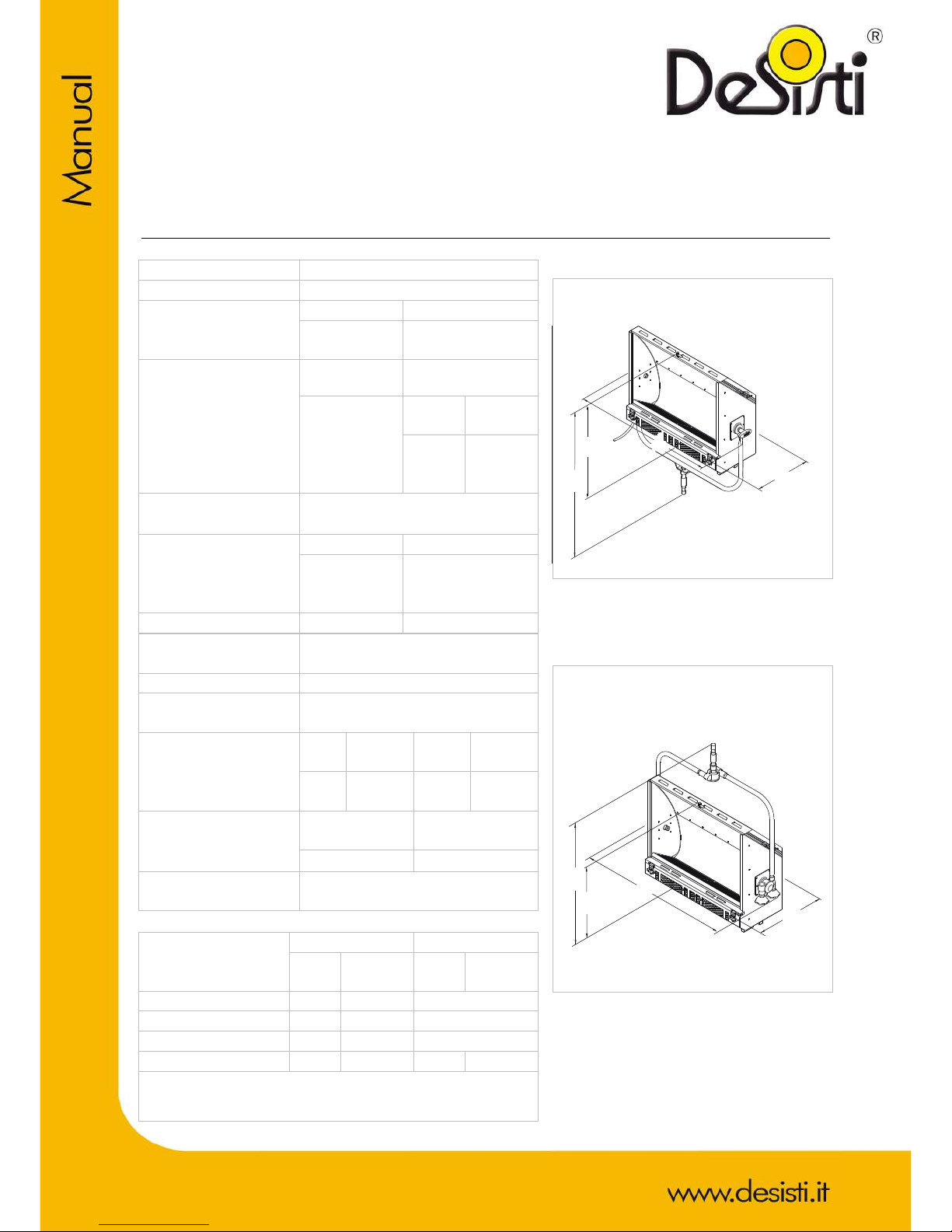

6. CHARACTERISTICS AND PERFORMANCE DATA
DESCRIPTION
VALUE
!Power Input
Max. 5.000W
!Power supply
Europe
America
230 V / 50
Hz
110 V / 60 Hz
!Switch on the
fixture
M.O.
P.O.
4 x TOGGLE
10 A
Europ
e
Americ
a
Rotary
45 A
4 x
Toggle
10 A
!Lamp Holder
R7s
Spring Type
!Power Cable
Europe
America
3 x 4 mm2
H07RN-F
90° C rating
3 x 6 AWG
TYPE SO
90° C rating
!Protection Class
Class 1 – it requires ground
connection
!Protection Type
IP 22
!Max. Housing
Surface Temperature
220° C
!Weight of Fixture
M.O
.
M.O.
USA
P.O.
P.O.
USA
15,5
kg
17,7 kg
16,5
kg
19,2 kg
!Weight of Egg-
crates
24,5 mm
tickness
49 mm
tickness
1,9 kg.
3,4 kg.
!Weight of color
frame
0,85 kg.
USABLE LAMPS -
length-watt-
filament
230 v
120 v
ANSI
LIF
ANSI
LIF
189 – 625 – sc 8
-
P2/10
Not available
189 -1000- sc 8
EKM
P2/7
Not available
189 – 1250 – sc 8
-
P2/12
Not available
119 – 1000 – sc 8
-
P2/20
FCM
P2/28
Dimensions in mm.
Dimensions in mm.
G
326
836
H
556
FE
815
836
B
556
D
815
A
C
326
7. PERIODIC INSPECTION
A. The condition of the internal wiring insulation and of the input cable shall be inspected
and tested every 500 working hours and at least once a year. This frequency may need to
be increased if rough or unknown (eg. rental) treatment is incurred. Replace only with
original De Sisti Lighting spare parts. Non-original cables may not withstand the thermal
and mechanical conditions of use
B. The lamp condition must be checked every 100 working hours. In order to avoid
explosion the lamp should be changed if it has become damaged or deformed. Follow
the instructions supplied by the lamp manufacturer.
C. Check the condition of the safety shield (see chapter 4: Installation Instructions, point D)
before every use.
8. SAFETY STANDARDS
Europe: This product conforms the Applicable European Directives
and Standards as listed below:
America: the product
conforms NEC
!Machine Directive: 89/392/EEC (as amended by
91/368/EEC, 93/44/EEC, 93/68/EEC)
!Low Voltage Directive: 73/23/EEC (as amended by
93/68/EEC)
!EMC Directive: 89/336/EEC (as amended by
93/68/EEC)
!Europen Standards:: EN 60598-2-17, EN 292-1, EN
292-2
