USER GUIDE
7/8/9
HEIGHT ADJUSTMENT CONTROLLERS
OPERATING THE CONTROLLER
The ush-mount activation has two buttons for user control.
•Press and hold either the Raise or Lower buttons to reach the desired height.
•As a safety feature, the user must continuously hold down the button in order
for the table to move.
Note: The buttons can be mounted with both the Raise and Lower buttons
visible on the top surface, or it can be wrapped around the worksurface edge for
an intuitive “push down”, “pull up” action.
OPERATING THE CONTROLLER
•Press and hold either the Up or Down arrow to reach the desired height.
•To switch to a stored height in memory press and hold the numbered button
that has the pre-set height stored into memory until it reaches the stored height.
•As a safety feature, the user must continuously hold down the button in
order for the table to move.
STORE HEIGHT INTO MEMORY
To set into memory the desired height for either seated or standing work,
use the three pre-set buttons.
•Press either the Up or Down arrow until the desired height is attained.
•Press the S button once and then your choice of pre-set buttons 1-3 to set
that
particular height.
•To pre-set additional heights repeat this sequence using the remaining
1-3 buttons.

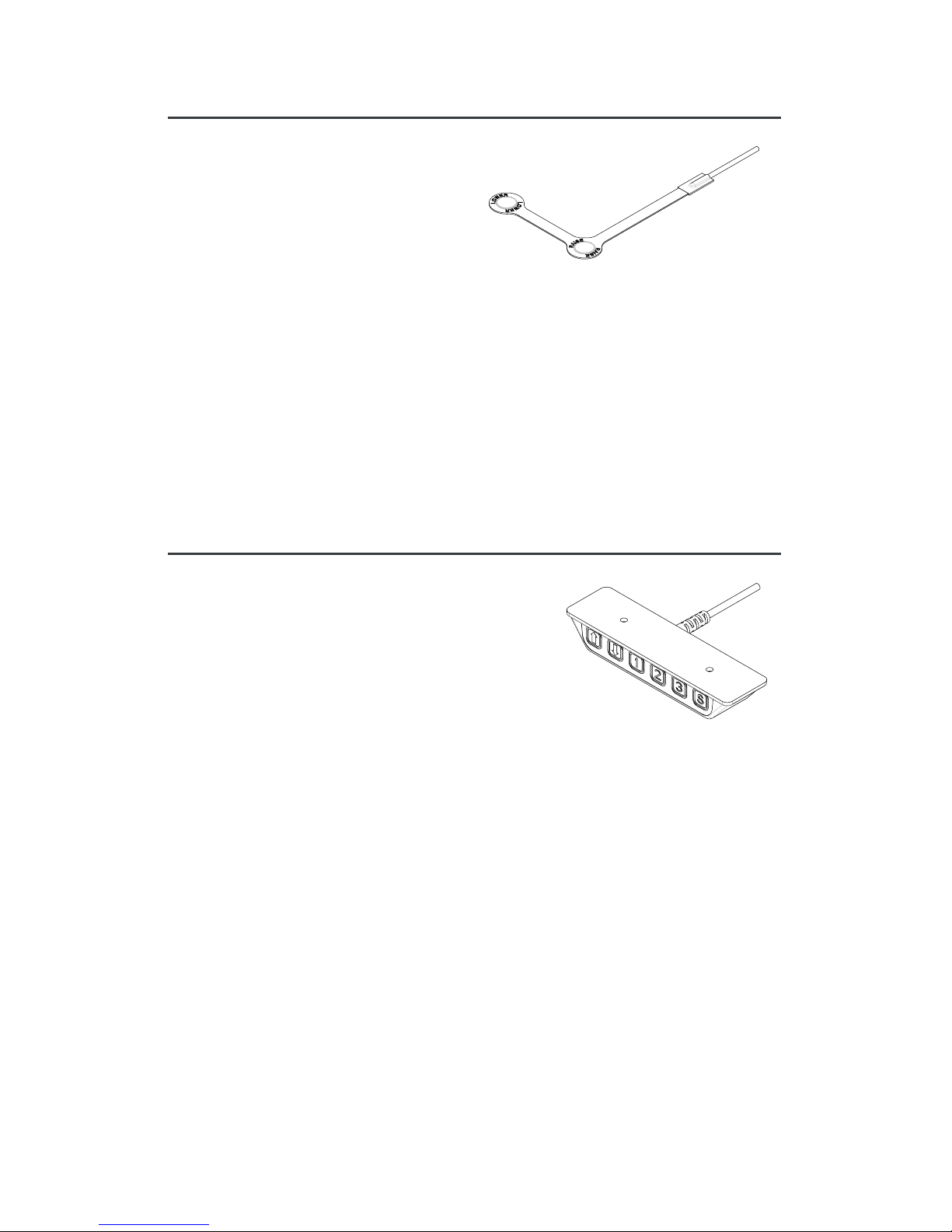

Flush-Mount
Activation Buttons
3 Pre-set
Programmable
HEIGHT ADJUSTMENT CONTROLLERS
OPERATING THE CONTROLLER
•Press and hold either the Up or Down arrow to reach the desired height.
The digital controller will display the current height of the table.
•To switch to a stored height in memory, use the three pre-set buttons.
A. Press the numbered button that has the pre-set height stored into
memory once.
B. The display will flash go1, go2 or go3 for three seconds. During this
time press the Up or Down arrow and hold until the table reaches the
stored height.
•As a safety feature, the user must continuously hold down the button in order
for the table to move.
STORE HEIGHT INTO MEMORY
To set into memory the desired height for either seated or standing work, use the
three pre-set buttons.
•Press either the Up or Down arrow until the desired height is attained.
•Press the S button once.
•The display will flash Sfor three seconds. During this time press your choice
of pre-set buttons 1-3 to set that particular height. The display will store by
showing S1, S2 or S3 for one second.
•To pre-set additional heights repeat this sequence using the remaining 1-3 buttons.
ADJUSTING THE HEIGHT DISPLAYED
It may be necessary to adjust the height displayed. The controller will show 68 cm
or 22.5 inches at its lowest setting which is the default setting from the factory and
does not incorporate worksurface thickness or glide adjustments.
•At the same time press the S button and the Up or Down arrow, until the
display shows the correct height.
SWITCH DISPLAY FROM INCHES TO CENTIMETERS
Press and hold the S button to change the displayed height from inches to
centimeters.
ERROR CODES
In the event of a fault, the digital display may show an error code. Refer to the
troubleshooting guide.

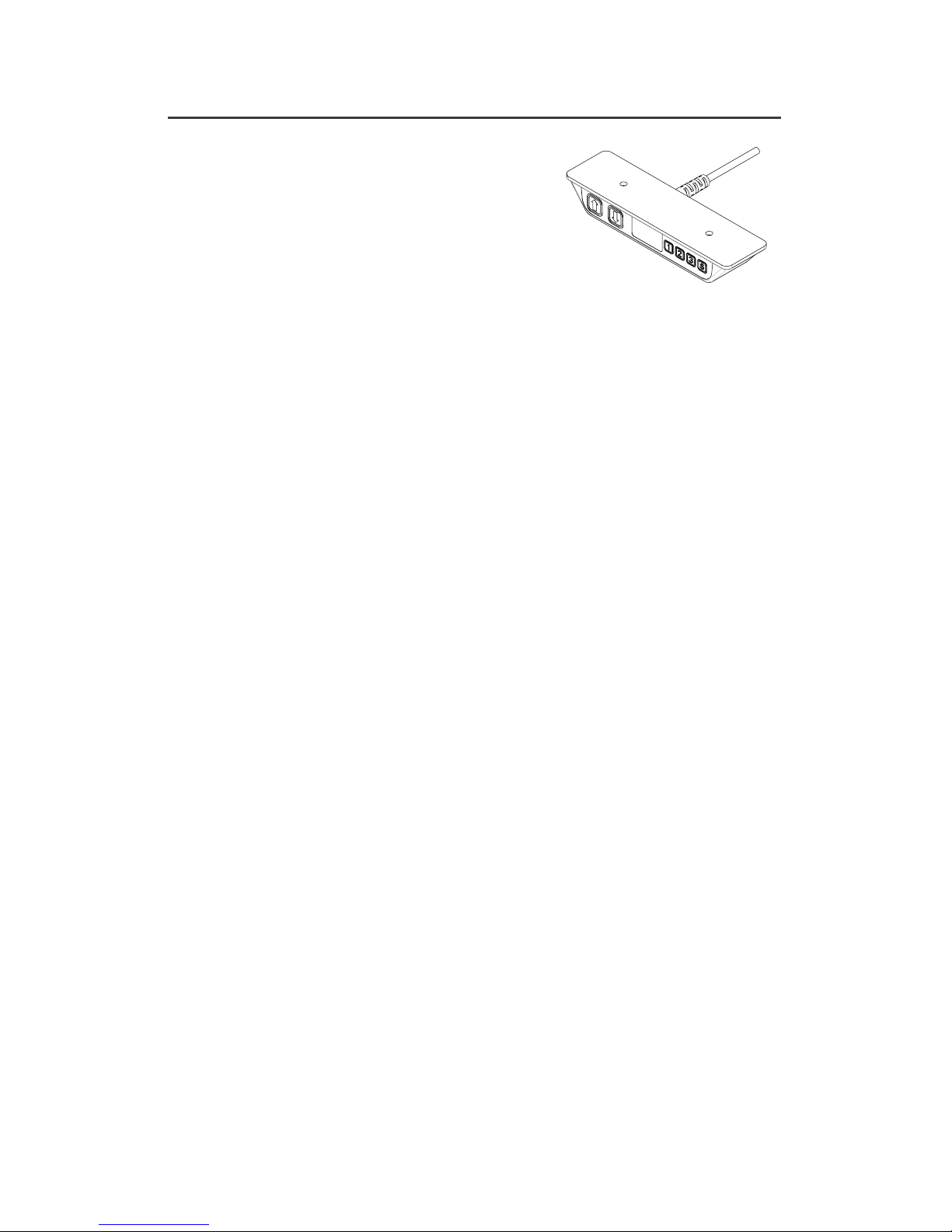

3- Pre-Set Programmable
with Digital Display
CABLE MANAGEMENT
When installing equipment, either on the worksurface or below, be sure that the
connecting cables are free of obstruction. A trough is provided to manage excess
base controller wires and can be found on the underside of the worksurface.
Use this trough to minimize possible entanglements.
WORKSTATION DESIGN TIPS
•Ensure that power cords for all accessory items—computers, lights, monitors,
etc.—are of sufficient length to reach outlets throughout the range of
worksurface height adjustment. Do not subject the cords to any strain while
adjustment of the surface is taking place.
•Always check for proper operating clearance before placing any item on,
above or below the worksurface.
MAINTENANCE AND CLEANING
Regularly clean dust and dirt from lifting columns. To ensure all surfaces are
thoroughly cleaned, make sure the lifting columns are fully extendend to their
maximum height. Also, be sure to inspect Cables and Lifting Columns for
damage. Check all connections for both correct function and secure mounting.
Caution: A damp cloth is recommended. To protect the painted surfaces, use a
cleanser that is not too highly alkaline or acidic. A pH neutral product is ideal.
Note: Please do not move your table on your own. Guidelines have been set-up
on how to move each table and are incorporated in the installation instructions.
Contact your Facilities group for assistance.
TROUBLE SHOOTING
If you are having trouble with your table, try the simple steps outlined below.
If problems persist, please refer to the Series 7/8 or Series 9 Troubleshooting Guide.
POWER-SAVING CONTROL BOX:
•The Control Box automatically powers down into ‘Standby’ mode after
approximately 10 seconds of inactivity.
•During ‘Standby’ mode, the Control Box only consumes 0.1 watt of power.
•With the Control Box in ‘Standby’ mode, the table can lose power without
affecting the synchronization of the Lifting Columns. However, if the Control
Box is still active, and not in ‘Standby’ mode, a power loss will require that the
Lifting Columns be re-synchronized.
•Power fluctuations and brownouts can also cause the need for re-synchronization.
Note: The Control Box does not re-set (initialize) by being unplugged and plugged
back in. Refer to the Initialization procedure below.
INITIALIZING THE CONTROL BOX:
•In the unlikely event that an error occurs, press and hold the Up and Down
arrows simultaneously for 5 seconds to reset the Control Box.
•Synchronize the Lifting Columns as outlined below.
SYNCHRONIZING THE LIFTING COLUMNS:
•Operate the table all the way down to its lowest position, and then release
the Down arrow.
•Press the Down arrow again, and hold.
•After a couple of seconds, the table will give a small, visible ‘up-down’ motion,
where the Lifting Columns are finding their correct bottomed-out position.
•The Lifting Columns are now synchronized via the software in the Control Box.
•Operate the table all the way up and all the way down to confirm proper function.
PRODUCT SPECIFICATIONS
Range of Adjustment 24.3"-51.7" (S7); 23.8"-49.8" (S8); 22.5"-48.5" (S9)
Glide Adjustment 25/32"
Distributed Weight Capacity
(includes worksurface weight)
295 lbs. (2-leg)* / 458 lbs. (3-leg)*
Wire Management Included Yes
Controller Up/Down, Presets, Digital Presets
Decibel Rating < 42.5 – 44.1 dBa
Volts 120v AC
Frequency & Phase 60 Hz, Single Phase
Amps 2-leg: 3.4A / 3-leg: 5.0A
Watts 2:leg: 400W / 3-leg: 600W
Standby Power 0.1W
Adjustability Speed 1.7"/sec.
Duty Cycle 10%
* Includes weight of worksurface, which weigh ~4.5lbs/ft2or ~.031lbs/in2.
•Rectangular tops weigh between 24-68lbs; a 58"x29" top weighs 52lbs.
•90º tops weigh between 44-98lbs; a 58"x58" (23"d) top weighs 68lbs.
•120º tops weigh between 60-91lbs; a 52"x52" top weighs 72lbs.
9/14 ©2014 Steelcase Inc. All rights reserved. All specifications subject to change without notice.
Trademarks used herein are the property of Steelcase Inc. or of their respective owners. Printed in U.S.A.
For further information, please visit steelcase.com/details or call 888.783.3522.
P.O. Box 1967 / CD-5E / Grand Rapids / MI 49501-1967
Part No. 003424D – Rev. H

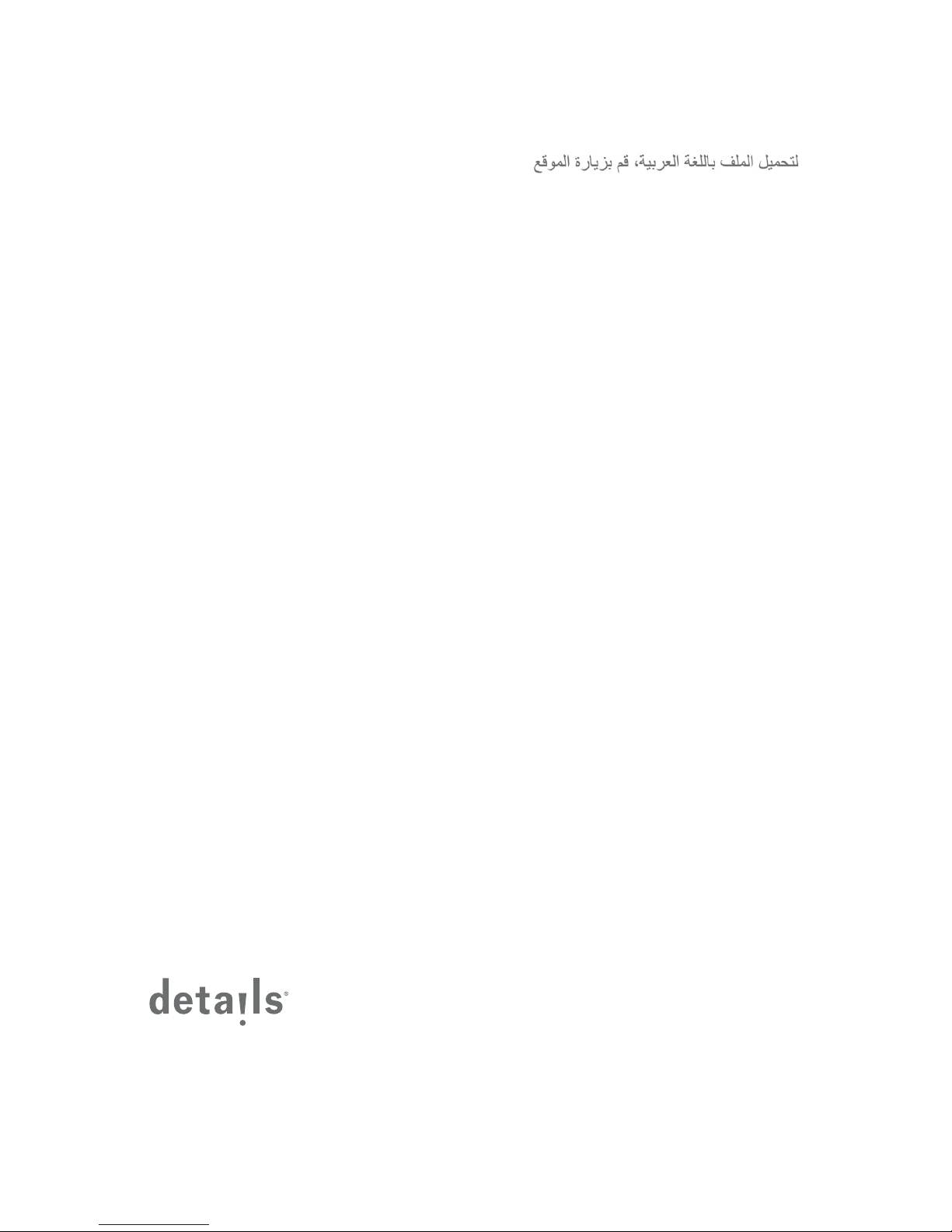

steelcase.com/series7/userguide/ar
请访问 steelcase.com/series7/userguide/cn,
下载该文件简体中文版。
Pour télécharger ce document en français,
allez à steelcase.com/series7/userguide/fr
Para fazer o download deste arquivo em português,
visite steelcase.com/series7/userguide/pt
Для загрузки этого документа на русском языке зайдите на
steelcase.com/series7/userguide/ru
Para descargar este documento en español,
visite steelcase.com/series7/userguide/es
Để tải xuống tài liệu này bằng tiếng Việt,
hãy vào steelcase.com/series7/userguide/vn
