Devantech DS3484 Bedienungsanleitung

dS3484

dS3484 User Manual v4.03

dS3484

User Manual Version 4.03

dS3484

dS3484 User Manual v4.03

Table of Contents

ocumentation history....................................................................................................3

A quick look...................................................................................................................4

Introduction..................................................................................................................5

Getting started...............................................................................................................6

Locating the IP Address...........................................................................................................7

Configuring the dS3484..................................................................................................9

Status page.........................................................................................................................10

Network page.......................................................................................................................11

TCP/IP page.........................................................................................................................12

Webpage security.................................................................................................................14

Configuring relays.................................................................................................................16

Relay automation..................................................................................................................17

Naming I/O's........................................................................................................................20

Connecting I/O to Virtual Relays.............................................................................20

Email notifications.................................................................................................................21

Peer to Peer.........................................................................................................................22

Schedules............................................................................................................................ 23

Counter/Timers....................................................................................................................25

The application page.....................................................................................................28

Application page security.......................................................................................................29

Accessing your webpage from the internet................................................................................30

Boolean equations........................................................................................................31

TCP/IP command sets...................................................................................................33

ASCII command set..............................................................................................................33

Binary command set..............................................................................................................36

AES binary command set.......................................................................................................38

Modbus commands...............................................................................................................40

Function 01 (0x01) Read Coils................................................................................40

Function 04 (0x04) Read Input Registers.................................................................40

Function 05 (0x05) Write Single Coil.......................................................................40

Function 15 (0x0F) Write Multiple Coils....................................................................41

Error code 1.........................................................................................................41

Error code 2.........................................................................................................41

Error code 3.........................................................................................................41

Modbus Gateway..................................................................................................................41

Loading the application firmware....................................................................................42

Erasing old configuration settings............................................................................................44

dS3484 hardware.........................................................................................................45

LE indication......................................................................................................................46

Power supply........................................................................................................................46

Operating temperature..........................................................................................................46

Power relays........................................................................................................................47

igital IO.............................................................................................................................48

Connection Examples............................................................................................................49

Analogue inputs....................................................................................................50

Serial Port Connections..........................................................................................52

dS3484 dimensions......................................................................................................53

Notes..........................................................................................................................54

dS3484

dS3484 User Manual v4.03

Documentation history

V2.18 First release of separate dS3484 manual

V2.19 Added new features:

Peer to Peer Use events to control relays on another dSxxxx module.

Schedules Create regular timed events

Counters Count input transitions or seconds

v2.20 Minor update ocumentation unchanged

v3.01 Application update

Added ModBus function 15, Write Multiple Coils.

Increased to 32 relays. On dS3484, relays 5-32 are virtual relays.

Added CRC calculation to string arrays.

Added Modbus gateway to connect to downstream Modbus RTU modules.

Added settings for Modbus UI and downstream baud rate & parity.

Added independent Set, Reset and Toggle control boxes to relays.

Added ability to connect a virtual relay to a digital output.

Added power-up restore option for relays, restoring previous state.

Expanded application page to include virtual relays.

I E update

Updated to offer cross platform support

Now available under Windows, Linux & MAC OS X

v4.01 Major update to the underlaying dScript, now with functions and local variables.

Added “From Address” for easymail emails.

v4.02 Bug fixes for the underlaying dScript.

v4.03 Editor update, added support for multiple editor tabs.

Compiler update, added support for multiple files in project.

Compiler update, added support for #ifdef, #else, #endif

dS3484

dS3484 User Manual v4.03

A quick look

Ethernet connected module, 10/100Mb auto negotiated.

Relays – 4 x 16Amp 250Vac C/O.

I/O – 8 x digital I/O's NPN output, Volt free input.

4 x 10-bit analogue input

Power – 12V C 1Amp supply required. 2.1mm center positive.

Connections – Screw Terminals for N/O N/C and Common contacts

PCB size – 156mm x 84mm

Controlled graphically by secure webpage or optionally one of ASCII, Binary or Modbus

command sets over TCP/IP.

Email notifications – 8 selectable notifications, up to 100 emails/hour max.

Peer to Peer – Control relays on other modules.

Schedules – Able to schedule events based on time of day/week

Counter/Timers – Count or time events. 20 counts/second Max.

Also available when optionally programming in dScript are two TTL level serial ports and an

RS485 serial port.

dS3484

dS3484 User Manual v4.03

Introduction

The dS3484 is an Ethernet connected relay module featuring 4 channels of 16Amp 250Vac

relays. Each relay has both normally open (NO) and normally closed (NC) as well as the

common available on three terminals.

In addition to the relays, the dS3484 has 8 digital I/O channels and 4 x 10-bit analogue input

channels (0v-3.3v input range).

The dS3484 requires a 12v 1Amp power supply such as this one:

http://www.robot-electronics.co.uk/universal-12vdc.html

The dS3484 has four built in control methods.

Primary control method is graphically by using its built in secure website.

Secondary control may be one of:

ASCII - type in commands via a program such as PuTTY.

Binary - Command set using binary codes

Modbus – Functions 1, 4, 5 and 15 supported

And if you should wish to modify the supplied firmware – you can.

Behind the scenes there is dScript, a powerful multi-threaded operating system and

programming language. The supplied firmware is written in dScript as well as HTML, CSS and

Javascript on the webpages and the full source is in the separately downloadable dScript

support package.

You do not need to use dScript at all, but its great to know its there - just in case you do.

dS3484

dS3484 User Manual v4.03

Getting started

Start by plugging in the Ethernet cable to connect the module to your network, and the 12v

jack plug from your adapter. Switch on and the first thing you will note is that the blue LE will

flash 3 times. This indicates that the control firmware is loaded on the module. (If the blue led

does not flash you will need to load in the control firmware. Don't worry, this is very easy to

do. Just go to the chapter on installing the firmware and follow the instructions there).

If you are using a Win7/8/10 PC, open your browser and into the address bar (not the search

bar) type:

http://dS3484/index.htm

You should now see the application webpage and you can control relays and I/O's.

dS3484

dS3484 User Manual v4.03

Locating the IP Address

If you are not using a windows PC then you will need to find the IP address of the module.

The simplest method is connect the module (Ethernet, USB then lastly, Power) and load up the

dScript editor.

Go to Module Select Port and make sure the correct serial port is selected as illustrated above.→

Now go to Module IP Address and the current IP address is displayed.→

Make sure the Ethernet is connected before you apply power. If you plug the Ethernet cable in

after the power, the module will already have booted with a default IP address.

Alternatively, you can find the IP address of the module by checking your HCP server. If you

have a HCP server on your network (your router is normally the HCP server) then the

dS3484 will get its IP address from that. Log on to your router and navigate to the LAN client

list.

Above is the entry from our ASUS RT-N66U router. So now you type:

192.168.0.64/index.htm

into your browser address bar and you should see the application webpage shown on the

previous page.

dS3484

dS3484 User Manual v4.03

If you prefer, you can download a java program that will run on Windows, MAC or Linux, and

will list all of our modules that are connected to your LAN. evantechModuleFinder.jar

If you do not have a HCP server the dS3484 will use a default IP address of 192.168.0.123 so

make sure your PC is on the same subnet of 255.255.255.0 and its IP address is

192.168.0.xxx

dS3484

dS3484 User Manual v4.03

Configuring the dS3484

There are a set of configuration pages to get the dS3484 operating as you want it. These

pages are all _configx.htm, (that's a leading underscore character).

ie.

_config.htm

_config2.htm

Anything that starts with _config is considered a special name for configuration pages and can

only be seen if you have the the USB cable plugged in and connected to your PC.

Why only if the USB cable is plugged in?

Its an additional security measure. After you have configured and deployed the module, you

really don't want these configuration pages available for others to change. So with the USB

cable disconnected the _config pages are not available. If you try to access them you just get

served a “not authorised” page instead.

So for now, you do want to look over the config pages. If you have a Win10, Linux or MAC PC,

you can go right ahead and plug in the USB cable. These machines will install their own USB

drivers. We won't be sending anything to the board, its just the presence of the USB

connection that enables the config pages to be served. If you have a Win7 or Win8 PC you will

need to install the drivers. (go to the chapter on installing the firmware and follow the

instructions there).

With the USB cable connected, browse to:

192.168.0.64/_config.htm

(substituting your IP address)

dS3484

dS3484 User Manual v4.03

Status age

You should now see the following page:

This status page shows you the system and application firmware revisions as well as the

supplied voltage to the board and its internal temperature.

If you hover your mouse cursor over the menu buttons on the left, the help panel will give you

an overview of each one.

Andere Handbücher für dS3484

Inhaltsverzeichnis

Andere Devantech Computerhardware Handbücher

Devantech

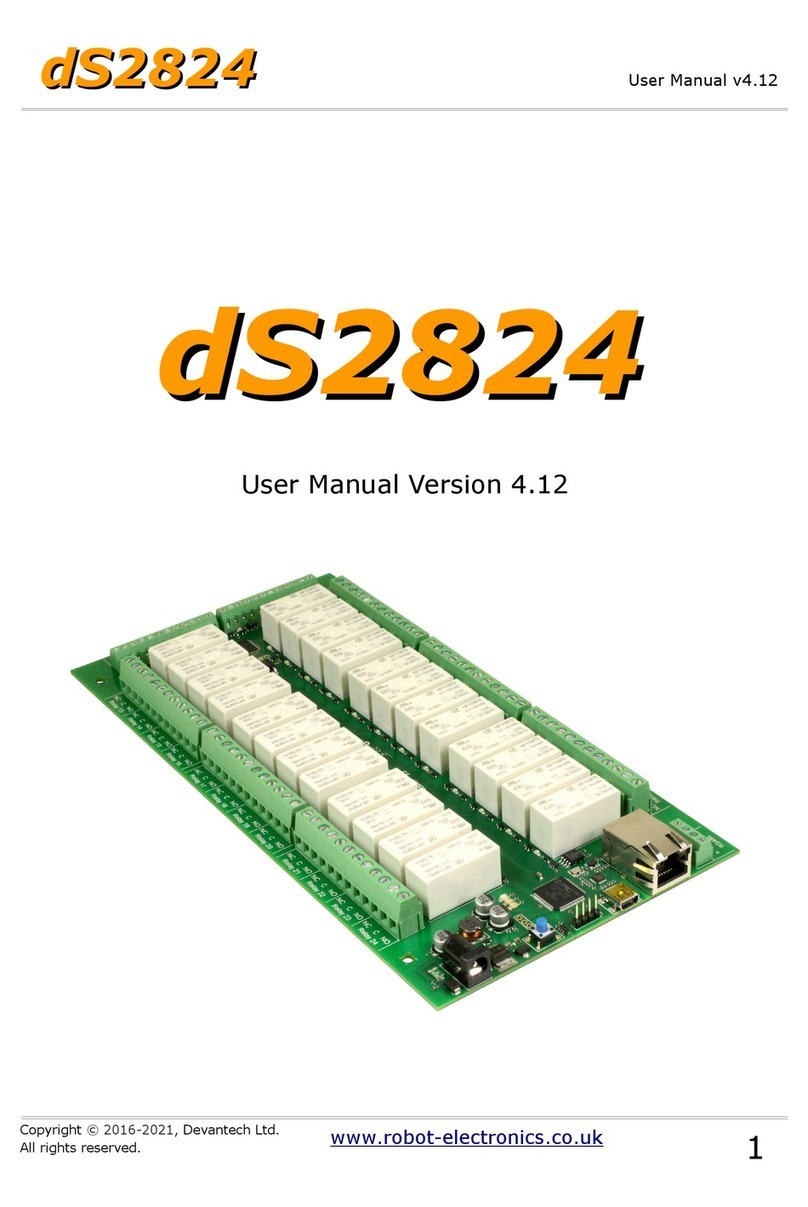

Devantech dS2824 Bedienungsanleitung
