DFI AK34-SC Bedienungsanleitung
AK34-SC Rev. AB+
AK34-EC Rev. A+
System Board Users Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Tablero Electrónico del Sistema Manual del Usuario
43620039
Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2000. All Rights Reserved.
Trademarks
Microsoft®MS-DOS®, WindowsTM, Windows®95, Windows®98,
Windows®98 SE and Windows®2000 are registered trademarks of
Microsoft Corporation. AMD, AthlonTM and DuronTM are registered
trademarks of Advanced Micro Devices, Inc. VIA is a registered
trademark of VIA Technologies, Inc. Award is a registered trademark
of Award Software, Inc. Other trademarks and registered
trademarks of products appearing in this manual are the properties
of their respective holders.
Caution:
Danger of explosion if battery incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the battery manufacturers
instructions.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.
4
Quick Setup Guide
1
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français (French).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
Español (Spanish)..................................................
5
23
41
61
82
5
1
Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 System Board Layout..................................................................................................
1.2 Jumpers.....................................................................................................................................
1.3 Ports and Connectors................................................................................................
1.4 Award BIOS Setup Utility.......................................................................................
6
8
10
18
6
Quick Setup Guide
1
Quick Setup
Guide
1.1 System Board Layout
AK34-SC
(VIA®KT133 - VT8363 and VT82C686A)
7
1
Quick Setup Guide
Quick Setup
Guide

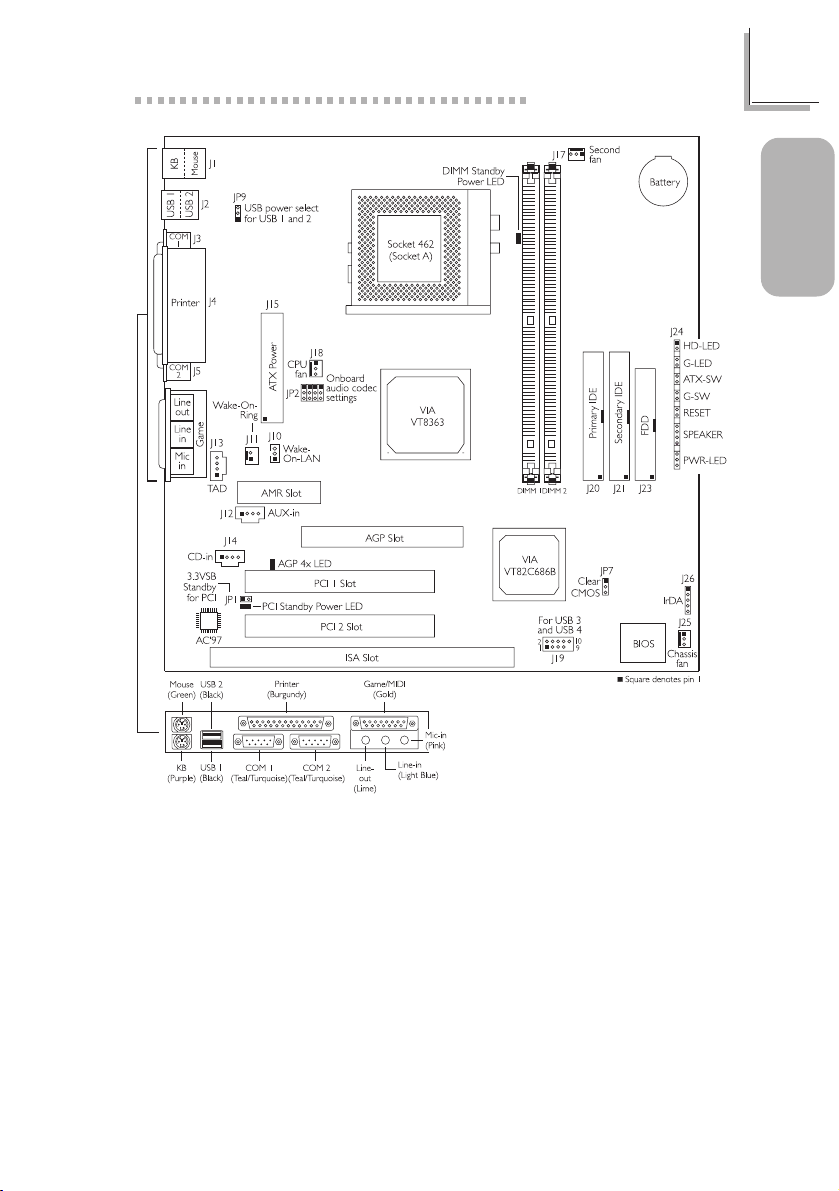

AK34-EC
(VIA®KT133 - VT8363 and VT82C686B)
8
Quick Setup Guide
1
Quick Setup
Guide
1.2 Jumpers
1.2.1 Clear CMOS Data - JP7
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
1
2
3
1
2
3
1.2.2 Onboard Audio Codec - JP2
1-2 On: Enable the
Onboard Audio Codec
(default)
2-3 On: Disable the
Onboard Audio Codec
1
2
3
1
2
3
9
1
Quick Setup Guide
Quick Setup
Guide
1.2.3 USB Power for USB 1 and USB 2 - JP9
2-3 On: 5VSB
1-2 On: 5V
(default)
3
2
1
3
2
1
10
Quick Setup Guide
1
Quick Setup
Guide

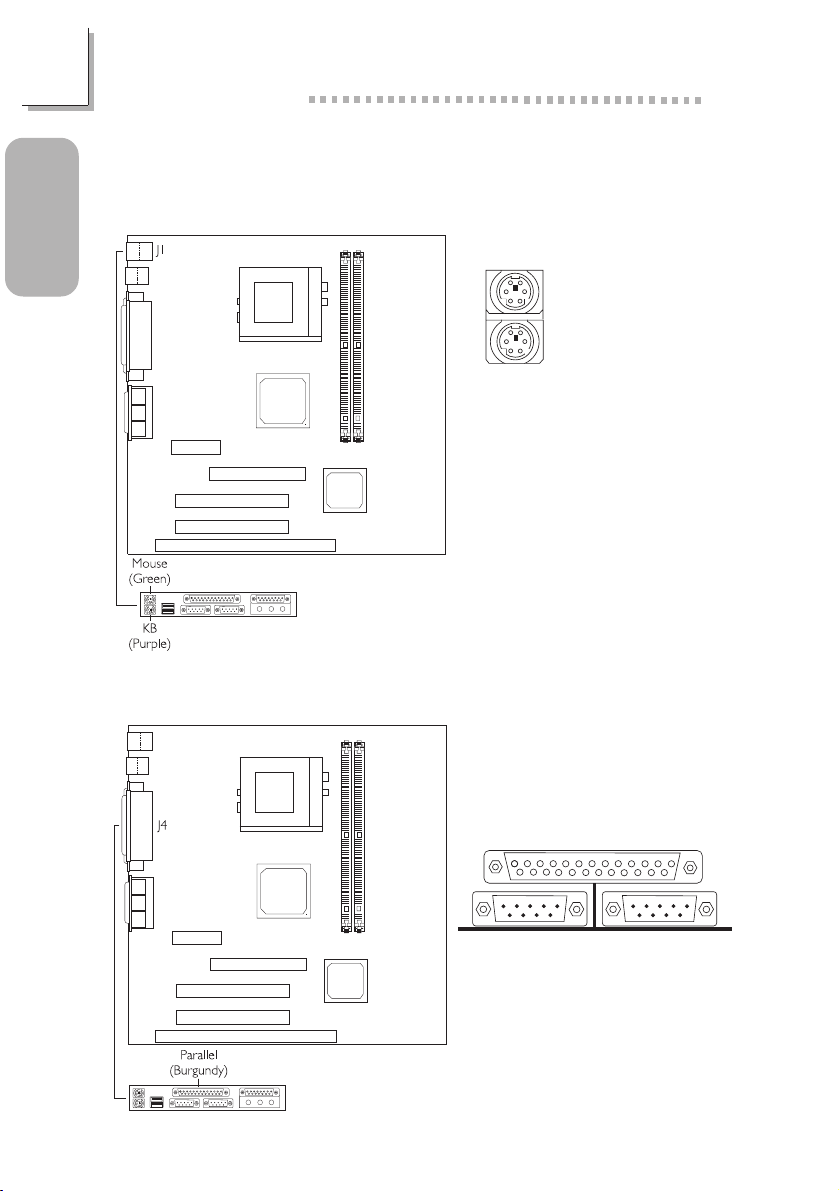

1.3 Ports and Connectors
1.3.1 PS/2 Mouse and PS/2 Keyboard Ports
Make sure to turn off your
computer prior to
connecting or disconnecting
a mouse or keyboard.
Failure to do so may
damage the system board.
PS/2 Mouse
PS/2 Keyboard
1.3.2 Parallel Port
Parallel Port
