DFI K6XV3+ Bedienungsanleitung

K6XV3+

Rev. A+

System Board

Users Manual

38700901

All manuals and user guides at all-guides.com

all-guides.com

This publication contains information that is protected by copyright. No

part of it may be reproduced in any form or by any means or used to

make any transformation/adaptation without the prior written permission

from the copyright holders.

This publication is provided for informational purposes only. The

manufacturer makes no representations or warranties with respect to

the contents or use of this manual and specifically disclaims any express

or implied warranties of merchantability or fitness for any particular purpose.

The user will assume the entire risk of the use or the results of the use of

this document.Further,the manufacturer reserves the right to revise this

publication and make changes to its contents at any time, without obligation

to notify any person or entity of such revisions or changes.

Trademarks

Microsoft®MS-DOS®,WindowsTM ,Windows®95 and Windows®98

are registered trademarks of Microsoft Corporation. Intel and Pentium

are registered trademarks of Intel Corporation. Cyrix 6x86, 6x86L,

6x86MX and M II are registered trademarks of Cyrix Corporation.AMD

K5,K6 and K6-2 are registered trademarks ofAdvanced Micro Devices,

Inc. IBM is a registered trademark of International Business Machine

Corporation.IDT C6 andWINCHIP2 are registered trademarks of IDT

Corporation. Award is a registered trademark of Award Software, Inc.

Other trademarks and registered trademarks of products appearing in

this manual are the properties of their respective holders.

Caution:

Danger of explosion if battery incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

Dispose of used batteries according to the battery manufacturers

instructions.

All manuals and user guides at all-guides.com

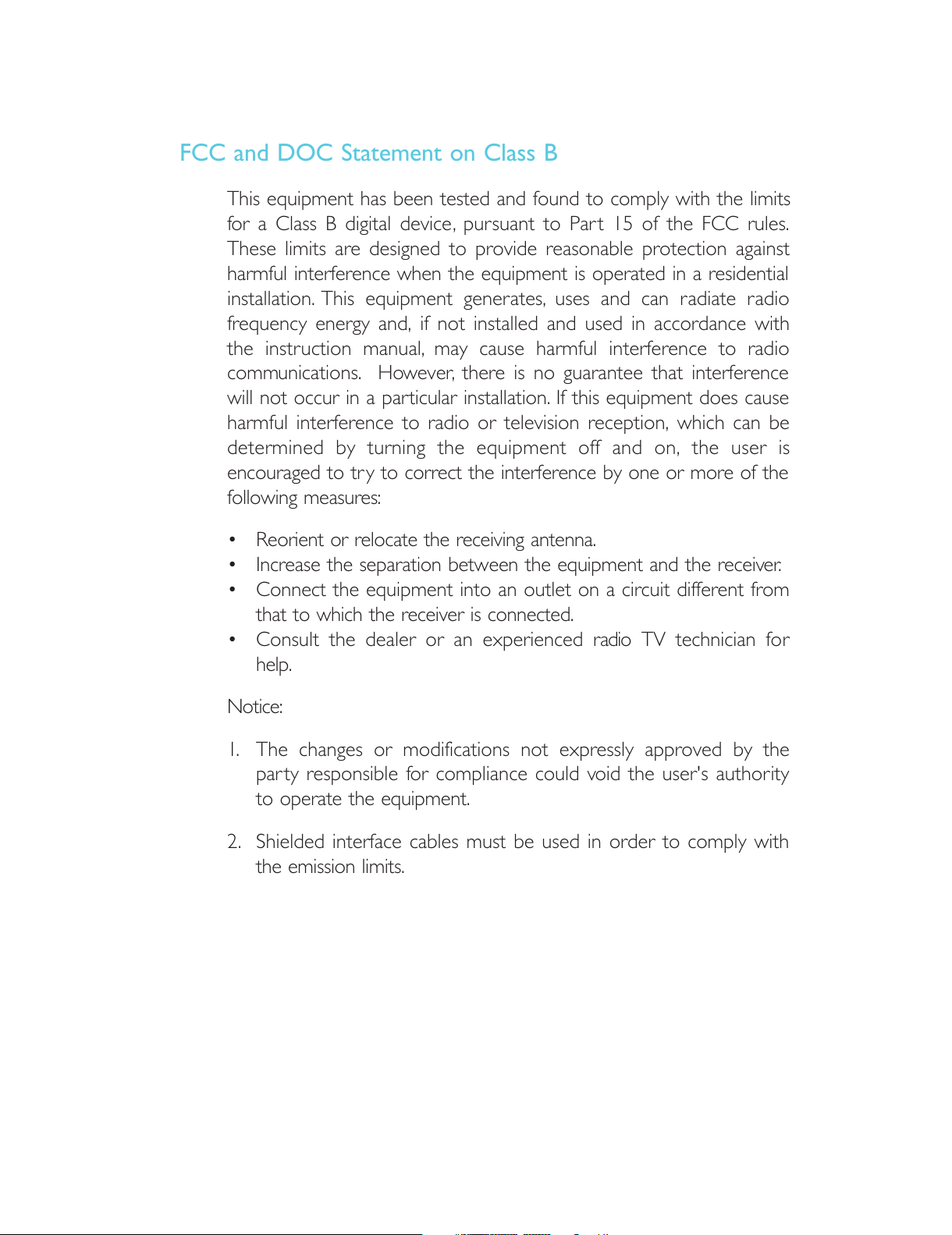

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and the receiver.

 Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

 Consult the dealer or an experienced radio TV technician for

help.

Notice:

1. The changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority

to operate the equipment.

2. Shielded interface cables must be used in order to comply with

the emission limits.

All manuals and user guides at all-guides.com

Table of Contents

Chapter 1 - Introduction

1.1 Features and Specifications ......................................................................

1.2 Package Checklist .........................................................................................

Chapter 2 - Hardware Installation

2.1 System Board Layout .................................................................................

2.2 System Memory .............................................................................................

2.3 DIP Switch Settings of the Processors ............................................

2.4 Jumper Settings for Clearing CMOS Data. ...................................

2.5 Jumper Settings for SDRAM Clock (DIMM) ................................

2.6 Connecting the Ribbon Cables and Wires of the Ports

and Connectors .............................................................................................

Chapter 3 - Award BIOS Setup Utility

3.1 The Basic Input/Output System ...........................................................

3.1.1 Standard CMOS Setup.............................................................

3.1.2 BIOS Features Setup ..................................................................

3.1.3 Chipset Features Setup.............................................................

3.1.4 Power Management Setup ......................................................

3.1.5 PNP/PCI Configuration .............................................................

3.1.6 Load Fail-Safe Settings ...............................................................

3.1.7 Load Optimal Settings ..............................................................

3.1.8 Integrated Peripherals .................................................................

3.1.9 Supervisor Password ..................................................................

3.1.10 User Password...............................................................................

3.1.11 IDE HDD Auto Detection .....................................................

3.1.12 Save & Exit Setup ........................................................................

3.1.13 Exit Without Saving .....................................................................

All manuals and user guides at all-guides.com

Chapter 4 - Supported Softwares

4.1 Desktop Management Interface .........................................................

4.2 System Health Monitor Utility...............................................................

4.3 Drivers ...............................................................................................................

Appendix A - Identifying Processors

A.1 Intel Processors.............................................................................................

A.2 Cyrix Processors ..........................................................................................

A.3 IBM Processors .............................................................................................

A.4 AMD Processors .........................................................................................

A.5 IDT Processors .............................................................................................

Appendix B - System Error Messages

B.1 POST Beep .....................................................................................................

B.2 Error Messages ..............................................................................................

Appendix C - Troubleshooting

C.1 Troubleshooting Checklist ........................................................................

All manuals and user guides at all-guides.com

1.1 Features and Specifications

1.1.1 Features

Chipset

 VIAApollo MVP3 AGP system chipset

Processor

The system board is equipped with a switching voltage regulator

that supports 2.0V to 3.5V core voltage for various processors.

 Intel Pentium90/100/120/133/150/166/200MHz and Intel

Pentium processor with MMXTM technology-166/200/233MHz

 Cyrix6x86L PR150+/PR166+/PR200+, 6x86MX-PR166/

PR200/PR233/PR266 and M II-300/333/350/400

 IBM6x86MX-PR200/PR233/PR266/PR300/PR333

 AMDK5 PR90/PR100/PR120/PR133/PR166, K6-166/200/233/

266/300 and K6-2/250/266/300/333/350/366/380/400

 IDTC6-180/200/225/240 and WINCHIP2-200/225/240/266/

300

System Memory

 16MB to 384MB memory using unbuffered DIMMs

 Three 168-pin DIMM sockets using x64 or x72 SDRAM, 3.3V

 PC-100 SDRAM DIMM for 100MHz external system bus clock

processors

 ECC supported (uses x72 PC SDRAM DIMM)

Chapter 1 - Introduction

DIMMs

2MBx64/x72

4MBx64/x72

8MBx64/x72

16MBx64/x72

Memory Size

16MB

32MB

64MB

128MB

All manuals and user guides at all-guides.com

all-guides.com

Introduction

Level 2 Cache Memory

 512KB or 1MB pipeline burst, direct map write-back cache

installed on the system board.

Expansion Slots

The system board is equipped with 1 dedicated AGP slot, 3

dedicated PCI slots, 2 dedicated 16-bit ISA slots and 1 shared PCI/

ISA slot. All PCI and ISA slots are bus masters.

Desktop Management Interface (DMI)

The system board comes with a DMI 2.0 built into the BIOS. The

DMI utility in the BIOS automatically records various information

about your system configuration and stores these information in the

DMI pool, which is a part of the system board's Plug and Play

BIOS. DMI, along with the appropriately networked software, is

designed to make inventory, maintenance and troubleshooting of

computer systems easier. Refer to Chapter 4 for instructions on

using the DMI utility.

ATX Double Deck Ports

 2 USB ports

 2 DB-9 serial ports

 1 DB-25 parallel port

 1 PS/2 mouse port

 1 PS/2 keyboard port

Connectors

 1 connector for IrDA interface

 2 IDE connectors

 1 floppy connector

 1 20-pin ATX power supply connector

 2 fan connectors for CPU and AGP fans

PCI Bus Master IDE Controller

 Two PCI IDE interfaces support up to four IDE devices

 Ultra DMA/33 supported (Synchronous Ultra DMA mode -

data transfer rate up to a maximum of 33MB/sec.)

All manuals and user guides at all-guides.com

Introduction

 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up

to 16.6MB/sec.)

 Bus mastering reduces CPU utilization during disk transfer

 ATAPI CD-ROM, LS-120 and ZIP supported

IrDA Interface

The system board is equipped with an IrDA connector for wireless

connectivity between your computer and peripheral devices. It

supports infrared peripheral devices that meet the ASKIR or HPSIR

standard.

USB Ports

The system board is equipped with two USB ports. USB allows

data exchange between your computer and a wide range of

simultaneously accessible external Plug and Play peripherals.

BIOS

 Award BIOS, Windows95 Plug and Play compatible

 Flash EPROM for easy BIOS upgrades

1.1.2 Intelligence

Monitors Processor Temperature and Overheat Alarm

The system board is able to detect the temperature of the

processor. An alarm will sound in case of processor overheat.

Monitors Processor/AGP Fan Speed and Failure Alarm

The system board is able to detect the fan speed (RPM-Revolutions

Per Minute) of the processor and AGP fans, and alerts you to attend

to any irregularity that may damage your system.

Monitors Power Voltages and Failure Alarm

The system board is able to detect the output voltage of the power

supply. An alarm will sound warning you of voltage irregularity.

All manuals and user guides at all-guides.com

Introduction

Automatic Fan Control

With the systems power switched on, the processors fan will rotate

only if the temperature of the processor is over 25oC.

Dual Function Power Button

Depending on the setting in the BIOS setup, this switch will allow

your system to enter the Soft-Off or Suspend mode.

External Modem Ring-on

The Modem Ring-on feature allows the system that is in the

Suspend mode or Soft Power Off mode to wake-up/power-on to

respond to incoming calls.

Note:

This feature supports external modem only. If you are using

this function, make sure to turn on the power of the modem

prior to powering-off the system.

RTC Timer to Power-on the System

The RTC installed on the system board allows your system to

automatically power-on on the set date and time.

ACPI

The system board is designed to meet the ACPI (Advanced

Configuration and Power Interface) specification. ACPI has energy

saving features that enables PCs to implement Power Management

and Plug-and-Play with operating systems that support OS Direct

Power Management.

Virus Protection

Most viruses today destroy data stored in hard drives. The system

board is designed to protect the boot sector and partition table of

your hard disk drive.

All manuals and user guides at all-guides.com

Introduction

1.2 Package Checklist

The system board package contains the following items:

þThe system board

þA users manual

þOne 40-pin IDE hard disk cable

þOne 34-pin floppy disk drive cable

þOne CD

If any of these items are missing or damaged, please contact your

dealer or sales representative for assistance.

All manuals and user guides at all-guides.com

Andere Handbücher für K6XV3+

Inhaltsverzeichnis

Andere DFI Hauptplatine Handbücher

DFI

DFI PB50-V3 Bedienungsanleitung

DFI

DFI GIC88-B Bedienungsanleitung

DFI

DFI SD630-H110 Bedienungsanleitung

DFI

DFI LANPARTY UT X58 t3eh8 Bedienungsanleitung

DFI

DFI 586ITBD Bedienungsanleitung

DFI

DFI CA230-BF Bedienungsanleitung

DFI

DFI LanParty 925X-T2 Bedienungsanleitung

DFI

DFI FS051 Bedienungsanleitung

DFI

DFI NB32-SC Bedienungsanleitung

DFI

DFI Blood-Iron LanParty Bi 785G-M35 Bedienungsanleitung

DFI

DFI CS181 Bedienungsanleitung

DFI

DFI ak75-ec A+ Bedienungsanleitung

DFI

DFI G4S601-B Bedienungsanleitung

DFI

DFI ADN171 Bedienungsanleitung

DFI

DFI CS551-C246 Bedienungsanleitung

DFI

DFI P2XBL DE+ Bedienungsanleitung

DFI

DFI CS30-TC Bedienungsanleitung

DFI

DFI AK34-SC Bedienungsanleitung

DFI

DFI SB600-C Bedienungsanleitung

DFI

DFI G586OPA Bedienungsanleitung

DFI

DFI 915P-TAG Bedienungsanleitung

DFI

DFI M8MP553 Bedienungsanleitung

DFI

DFI AL171 Bedienungsanleitung

DFI

DFI ST2K Series Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
