Professional slicer CE

Operating and Maintenance Manual

GRAVITA’

RFL 330-350-370

Ed. 10/2015

INTRODUCTION

This manual has been re-presented to provide the Client with all the

information on the machine and its safety regulations, and also the use and

maintenance instructions which permit using the machine in the best way and

maintaining its efficiency throughout time.

This manual must be kept in its entirety until the machine is disposed of.

This manual should be given to personnel in charge of the use and periodic

maintenance of the machine.

INDEX OF CHAPTERS

CHAP. 1 - RECEIVING THE MACHINE page 5

1.1 - PACKAGE

1.2 - CHECKING THE PACKAGE UPON DELIVERY

CHAP. 2 - INSTALLATION page 7

2.1 - UNPACKING

2.2 -

POSITIONING

2.3 - ELECTRICAL CONNECTION

2.3.1 - Slicer with single-phase motor

2.3.2 - Slicer with 400 V. three-phase motor.

2.3.3 - Slicer with 230 V. three-phase motor

2.3.4 - Blade rotation direction

2.3.5 - Electrical connection modification

2.4 - 115 V. ELECTRICAL DIAGRAM - SINGLE-PHASE 230 V. -

THREE-PHASE 230 V. - THREE-PHASE 400 V.

2.4.1 - 115 V. tension selection

2.4.2 - Single-phase 230 V. tension selection

2.4.3 - Three-phase 230 V. tension selection

2.4.4 - Three-phase 400 V. tension selection

2.5 - PRELIMINARY CHECK

CHAP. 3 - INFORMATION ON THE MACHINE page 12

3.1 - GENERAL PRECAUTIONS

CHAP. 4 - CONSTRUCTION FEATURES page 14

4.2 - SAFETY DEVICES INSTALLED ON THE MACHINE

4.2.1 - Mechanical safety

4.2.2 - Electrical safety

4.3 - DESCRIPTION OF THE MACHINE

4.4 - OVERALL DIMENSIONS, WEIGHT, FEATURES….

CHAP. 5 - MACHINE USE page 19

5.1 - OPERATIONAL CHECK

5.2 - LOADING AND CUTTING THE PRODUCT

5.3 - SHARPENING THE BLADE

CHAP. 6 - ROUTINE CLEANING page 22

6.1 - GENERALITIES

6.2 - CLEANING THE MACHINE

6.2.1 - Cleaning the goods holder plate

6.2.2 - Cleaning the blade, the blade guard and the ring

6.2.3 - Cleaning the sliceguard

6.2.4 - Cleaning the sharpener

6.3 - SLIDE GUIDES LUBRICATION

CHAP. 7 - MAINTENANCE page 26

7.1 - GENERALITIES

7.2 - BELT

7.3 - FEET

7.4 -

FEEDING

CABLE

7.5 - BLADE

7.6 -

GRINDERS

7.7 - SLIDE GUIDES LUBRICATION

7.8 - PUSH-BUTTON PANEL LABEL

CHAP. 8 - DISMANTLING page 27

8.1 - PUTTING OUT OF SERVICE

8.2 - WEEE Waste of Electric and Electronic Equipment

CHAP. 1 - RECEIVING THE MACHINE

1.1 - PACKAGE

The slicer is shipped in a package which consists of (Fig. n°1): cardboard box,

wooden pallets and protective nylon. They should be disposed of separately and

according to the norms in force in the country of installation.

Dimensions

AxBxC Gross weight

(Kg)

RFL 330 760x640x700 46

RFL 350 760x640x700 47

RFL 370 760x640x700 48

Do not place more than one of the

same package on top (Fig. n°3).

WARNING! B

Fig. n°1

Fig. n°2

Fig. n°3

When the package is received, if there is no

external damage proceed to opening it, ma-

king sure that all material is inside. If the

package upon delivery shows signs of tam-

pering (Fig. n°8), impact or fall, it is

necessary to present the damage to the

carrier, and within 3 days of the delivery da-

te, indicated on the documents, make a

precise report of the damage. Do not over-

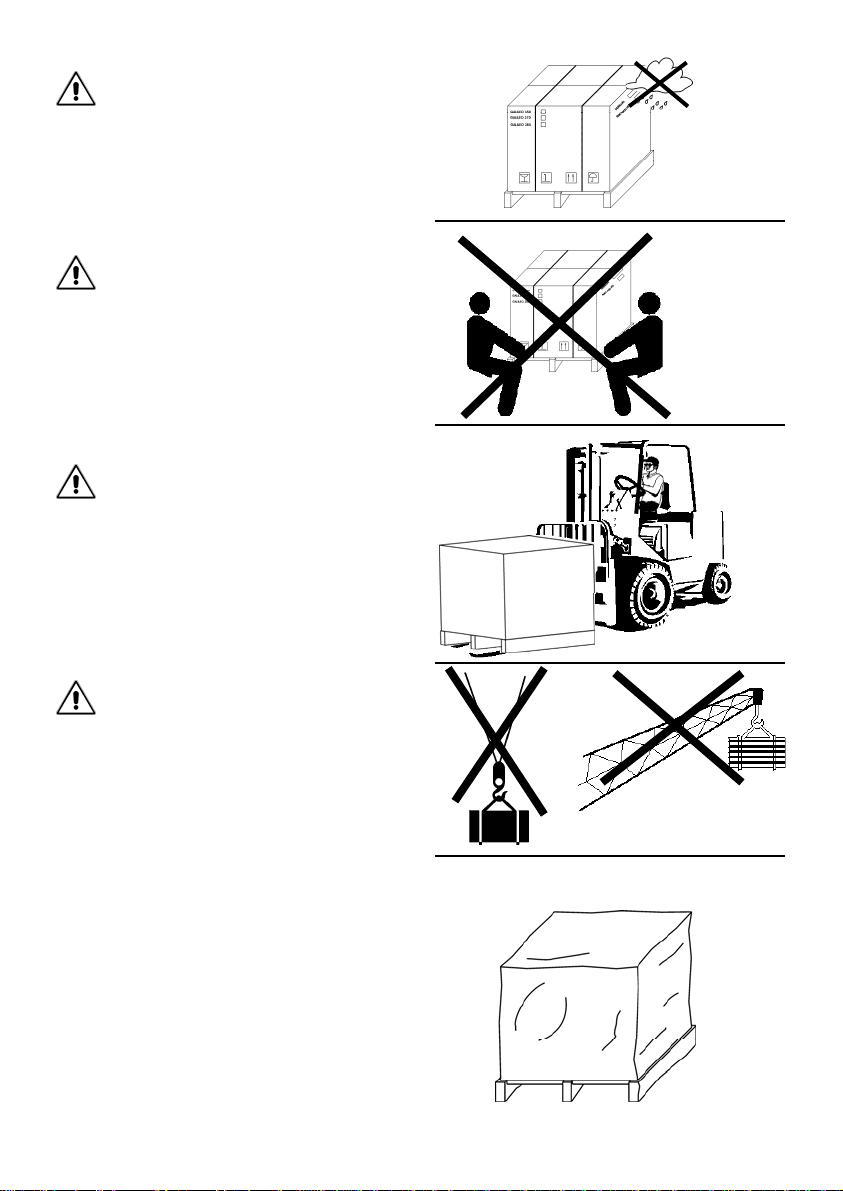

1.2 - CHECKING THE PACKAGE UPON DELIVERY

Heavy package. Do not lift manually

unless with help of at least three people

(Fig. n°5).

Move the package only by electrical

trolleys or manually, equipped with

lifting straps (Fig. n°6).

Do not expose the package to humidity

or rain (Fig. n°4).

Since the center of gravity is not in the

middle of the package, moving it su-

spended by chords or similar systems

is not advisable (Fig. n°7).

Fig. n°4

Fig. n°6

Fig. n°5

Fig. n°8

Fig. n°7

turn the package!! When transporting it make sure that it is firmly held by the four

corners (keeping it parallel to the floor).

All operations must be carried out by

specialized personnel (Fig. n°9).

WARNING!

2.1 - UNPACKING

Remove the straps from the package

(Fig. n°10) and lift the cardboard (h).

The package should be:

a) the machine on the pallet (Fig. n°11

detail a);

b) blade extractor (Fig. n°11 detail e);

c) 4 feet (Fig. n°11 detail f);

d) Case, if present (Fig. n°11 detail b).

If it present, check inside the suitcase,

and find the following components:

(Fig. n°11)

1. Instruction booklet (detail d) ;

2. CE compliance certificate (detail c);

3. Audio-visual cassette;

4. Liquid detergent with sprayer;

5. Oil tube;

6. Sharpening and burring grinders;

7. Socket wrench to remove grinders;

8. Grinders

brush;

9. Large and small screwdrivers;

10. Pliers.

CHAP. 2 - INSTALLATION

Fig. n°9

Fig. n°10

a b

Fig. n°11

e f

2.2 - POSITIONING

Position the pallet, with the slicer, on a

flat surface and take off (a) the sharpe-

ner from the slicer (Fig. n°12).

At this point turn the machine on its

side (Fig. n°13) and unscrew, with the

proper wrench provided, the 4 nuts

which fasten the slicer. Remove the 4

washers and unscrew the 4 fastening

tie rods on the wooden pallet. Take off

the pallet and fasten the 4 feet provi-

ded. Finally, put the sharpener in its

place.

Position the slicer in the predestined

place.

The dimensions indicated in Tab. 1

(according to the model) must be kept

in mind for the plane where the slicer

will be installed, therefore it must be

wide enough, well-levelled, dry, smo-

oth, robust, stable about 80 cm high off

the ground and at least 20 cm from

walls, objects, shelves, etc. (Fig. n°14)

in respect to the space necessary for

its use and safeguarding.

Furthermore the machine must be pla-

ced in an environment with a maximum

humidity of 75%, not salty and with a

temperature between +5°C and +35°C;

in any case in environments which do

not lead to deviations of the above.

Make sure the graduated handgrip is in

posiion “0”.

Check the alignment of the blade-plane

thickness gauge by running a finger

(Fig. n°16) from the blade towards the

thickness gauge plane (never in the op-

posite direction). Unscrew and screw

the foot (1) until the correct alignment is

found (Fig. n°17), then screw the rub-

ber part (2) to fix everything (Fig. n°17).

Fig. n°12 Fig. n°13

~ 80cm

20cm

Fig. n°14

Fig. n°15

Fig. n°16 Fig. n°17

20cm20cm

20cm

2.3 - ELECTRICAL CONNECTION

Check that the data reported on the

technical-part number plate (Fig. n°18),

the delivery documents and the order,

correspond; contact the supplier for cla-

rification if they do not.

At this point make sure that the system

is standard and that the cable and

grounding system perfectly operate.

2.3.1 - Slicer with single-phase motor

The slicer is equipped with a feeding cable with a cross section area of 3x1mm²;

length 1.5m and a “SHUKO” plug. Connect the 230 V. - 50 Hz slicer,

interposing a magnetothermic differential switch of 10A,= 0.03A.

2.3.2 - Slicer with 400 V. three-phase motor

The slicer is equipped with a feeding cable with a cross section area of 5x1mm²,

length1.5m and a red 15A 3F + T CEI plug. Connect the slicer to the 400 V. -

50Hz three-phase supply mains, interposing a magnetothermic differential switch

of 10 A, =0.03A.

2.3.3 - Slicer with 230 V. three-phase motor

The slicer is equipped with a feeding cable with a section area of 5x1mm²; length

1.5m and a blue 15A 3F + T CEI plug.

Connect the slicer 230 V. - 50 Hz three-phase supply mains, interposing a

magnetothermic differential switch of 10A,= 0.03A.

Check that the direction of the blade rotation is counter-clockwise looking at the

slicer from the side of the bladeguard. If not proceed as in par. 2.3.4.

2.3.4 - Blade rotation direction

Check the direction of the blade

rotation with a pulse of the “I” push-

button (ON), immediately followed by

the “0” push-button OFF.

The direction of the blade rotation must

be counter-clockwise when looking at

the slicer from the bladeguard side (Fig.

n°19). In the case that the rotation

direction is not exact, invert (Fig. n°20)

Fig. n°18

Fig. n°19

Fig. n°20

2.3.5 - Electrical connection modification

Unless otherwise specified, the slicers are equipped with 400 V. three-phase

connection. To modify the connection carefully follow these instructions:

-remove the plug from the electric network;

-turn the slicer on the side opposite the trolley;

-take off the yellow cover from the electrical box;

-remove the motor cables from the electronic card;

-connect wires from the motor that have the same colour (white-white, blue-

blue, etc.);

-reconnect them to the electronic card;

-check the positioning of the feed selection plugs on the electronic card (Fig. n°

21);

-close the box, reposition the slicer and proceed as in par. 2.3.3.

2.4 - 115 V. ELECTRICAL DIAGRAM - 230V. SINGLE-PHASE - 230V.

THREE-PHASE - 400V. THREE-PHASE

Fig. n°21

the position of two of the three phase

wires (black, gray or brown) in the plug.
