Harbour 2.0

USB 2.0 LAN Docking Station

User’s Manual

Version 2.0 04/04/2005

Index

1. INTRODUCTION.............................................. FEHLER! TEXTMARKE NICHT DEFINIERT.

1.1 FEATURES AND SPECIFICATIONS…..……………………………………………………………… 3

1.2 SYSTEM REQUIREMENTS………………………………………………………….………………..4

1.3 PACKAGE CONTENTS…………………………………...……………………………..……………4

1.4 CONNECTORS………………………………………...………………………….…..……………...4

1.5AVAILABLE FUNCTIONS………………………………..……………………………………………5

1.6 LED INDICATOR…………………………………………………………………….……………….6

2. INSTALLING HARBOUR 2.0................................................................................................ 7

2.1 DRIVER INSTALLATION………………………………………………………...….………….……...7

2.1.1 Win98/98SE Driver Installation………………………………………………………..7

2.1.2 WinME Driver Installation………………………………………..………….…….….17

2.1.3 Win2000 Driver Installation……………………………………….……………….....20

2.1.4 WinXP Driver Installation...………………………………………..………...….……23

2.2THINGS YOU NEED TO KNOW…..…………………………………..………………………………25

2.3 SET UP THE PRINTER DEVICE……………………………………………..………………………27

2.3.1 For Windows 98/SE/ME…………………………………………………..…………...27

2.3.2 For Windows 2000/XP…………………………………………………..……………..29

2.4 SET UP THE HYPERTERMINAL WITH USB TO SERIAL PORT…………….………….……….…….30

3. UNINSTALLING HARBOUR 2.0......................................................................................... 32

3.1 REMOVE THE DEVICE……………………………………………………..……………………….32

3.2 UNINSTALL THE DRIVER……………………...…………………………..……...………………...32

3.2.1 For Windows 98/SE/ME…….……..………………….……………………………….32

3.2.2 For Windows 2000/XP……….…….………………………..…………………………33

4. APPLICATION NOTE.......................................................................................................... 34

Harbour 2.0 User’s Manual

1. Instruction

Thank you for ordering Harbour 2.0. Harbour 2.0 is an intelligent

expansion module, which connects to a PC or notebook via Universal

Serial Bus (USB) port, providing one high-speed RS-232 serial port, one

printer port, one PS/2 keyboard & mouse, 3 downstream USB2.0 ports

and one Ethernet access. Harbour 2.0 features easy connectivity for

traditional serial devices, keyboards, mice and other USB devices and

provides up to 480Mbps USB2.0 High Speed capability. Also can add one

extra Ethernet port to your PC or notebook in seconds.

1.1 Features and Specifications

zAdd one high-speed serial port, one printer port, one PS/2 keyboard

& mouse, 3 USB2.0 High Speed downstream ports and one Ethernet

port to your PC or notebook in seconds.

zImprove the inconvenience of configuring old PC solutions like card

extension solutions, which require adjusting IRQ or jumper settings

and the incompatibility of various brands of docking solutions or bus

repeaters.

zAvoid the hassle of removing your PC case, or rebooting the

operating system during installation.

zBuilt-in 10/100Mbps Fast-Ethernet and IEEE802.3x flow control

function for 100BASE-TX and 10BASE-T.

zComplies with USB specifications 2.0 (and under), with IEEE802.3u

100BASE-TX and with IEEE802.3 10BASE-T standards.

Product Information:

Basic Power Consumption: 450mA

Bus-Power limit current

protection: 500mA

Output Voltage: 5V

Output Current: 1.8A (switching power

adapter)

Physical PCB size (WxL): 129x70mm

Operating Temperature: 0 ~70C

Stock temperature: 0 ~85C

Humidity: 0%~80%RH

Unit Weight: 145g

Dimensions (LxWxH): 91x135x34mm

Cable Length: 6 feet

Harbour 2.0 User’s Manual

1.2 System Requirements

1. A PC with Pentium series, or equivalent.

2. A minimum of 16M bytes of RAM.

3. One available USB type A downstream port (UHCI, OHCI, or EHCI).

4. Windows 98 or later.

1.3 Package Contents

The product you purchased should contain the equipment and

accessories shown as follows:

1. A Harbour 2.0.

2. One 6” USB AB type cable.

3. One 2A switching power adapter.

4. One Harbour 2.0 driver and User’s manual CD.

1.4 Connectors (Ref. Fig.1)

1. One DB-9 RS-232 serial interface connector supports baud rates from

2,400 to 115.2K.

2. One DB-25 parallel printer connector supports IEEE-1284 printer port.

3. One Mini-din for PS/2 keyboard, mouse.

4. Three USB receptacles type A downstream ports.

5. One USB type B upstream connector.

6. One RJ45 Ethernet connector.

Parallel Port

Serial Port

USB 2.0 Downstream

USB Upstream

RJ45 Ethernet

PS/2 Keyboard Power Connector

PS/2 Mouse Fig.1

1.5 Available functions.

Harbour 2.0 User’s Manual

The available functions of Harbour 2.0 depend on the status of power

supplied:

zBus powered

1. Connect the USB2.0 cable to your PC to provide bus power.

2. When you provide bus power only, the PS/2 mouse & keyboard,

RS232, printer and Ethernet ports will be enabled. However, the

USB2.0 Downstream Ports can also work under low power mode. So

used of externally power adaptor is recommended. (For the use of all

functions)

zExternally powered

1. Connect the power adapter to provide external power.

2. When you provide external power, the USB Downstream Ports can

support all USB devices, and you can use all the functions of Harbour

2.0.

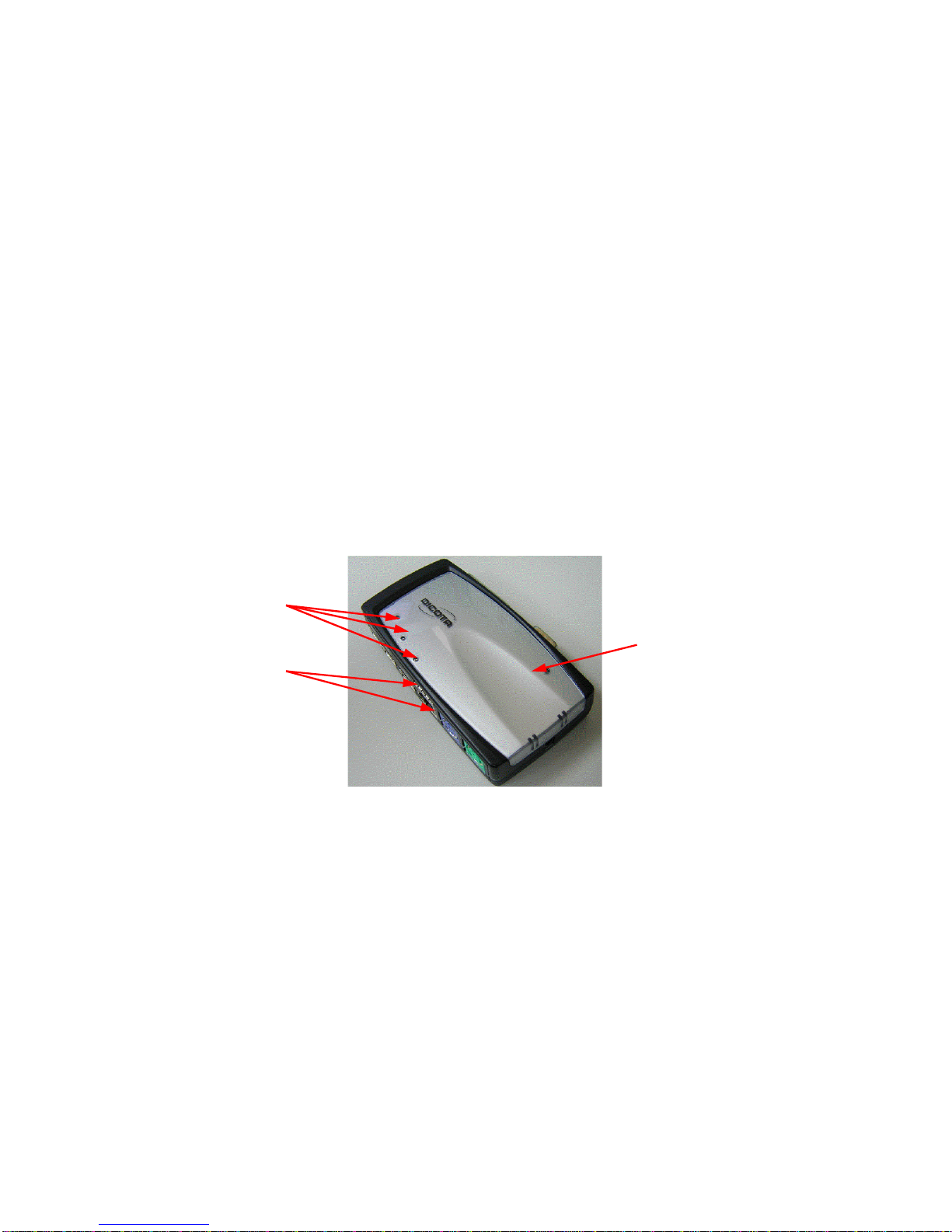

1.6 LED Indicator (Ref. Fig.2)

Harbour 2.0 User’s Manual

zPower Indicator

The Power Indicator will turn RED when only bus power is supplied, will

turn GREEN when external power is supplied.

zUSB Indicators

1. There are three USB indicators. If the USB Downstream Ports are

ready for use, the indicators will turn ON.

2. If over-current happens for certain USB Downstream Ports, the

corresponding USB Indicator will turn OFF to indicate that this port is

not working at the moment.

3. When over-current situation is resolved, the USB Indicator will turn

ON again.

zLAN Indicators

1. Link/Act (Orange): This LED turns on if the 10/100Mbps

(100BASE-TX) Ethernet is connected.

2. Transmission (Green): Blinking to indicate that the data is being

received or transmitted through the RJ-45 port.

LAN Indicators

USB Indicators

Power Indicator

Fig.2

2. Installing Harbour 2.0 Harbour 2.0 User’s Manual

1. This installation guide is written in accordance with different operation

systems. Including Windows 98/98SE/ME, Windows 2000, and

Windows XP.

2. Power on your computer and make sure that the USB port is enabled

and working properly.

3. Connect the power adapter into Harbour 2.0. (For full functions)

4. Connect Harbour 2.0 to the USB port on your computer with the

USB2.0 transfer cable provided.

5. Windows will start detecting USB devices. Please follow the related

section to install your Harbour 2.0.

2.1 Driver Installation

2.1.1 Win98/98SE Driver Installation

The driver installation is divided intoA to F six-steps. Please install Harbour

2.0 under Win98/SE step by step by the following instructions:

A. USB Hub Installation

A1. Please insert the

“Windows 98” CD into

your CD-ROM drive

and press “Next” to

continue.

(Ref. Fig. Win98-A1)

Fig. Win98-A1

A2. Tick “Search for

the best driver for your

device” and press

“Next” to continue.

(Ref. Fig. Win98-A2)

Fig. Win98-A2

Harbour 2.0 User’s Manual

A3. Tick “CD-ROM

drive” and press “Next”

to start the searching

process.

(Ref. Fig. Win98-A3)

Fig. Win98-A3

A4. Press “Next” to

start the installation

process.

(Ref Fig. Win98-A4)

Fig. Win98-A4

A5. Press “Finish” to

complete the

installation of USB

HUB.

(Ref Fig. Win98-A5)

Fig. Win98-A5

B. IEEE-1284 Controller Installation

B1. Please insert the

“Harbour 2.0” CD into

your CD-ROM drive

and press “Next” to

continue.

(Ref. Fig. Win98-B1)

Fig. Win98-B1 Harbour 2.0 User’s Manual

B2. Tick “Search for

the best driver for your

device” and press

“Next” to continue.

(Ref. Fig. Win98-B2).

Fig.Win98-B2

B3. Tick “Specify a

location” and click

“Browse” to select the

location of the driver

folder in the “Harbour

2.0” CD. Press “Next”

to start the searching

process.

(Ref. Fig. Win98-B3).

Fig. Win98-B3

B4. Press “Next” to

start the installation

process.

(Ref. Fig. Win98-B4)

Fig. Win98-B4

Harbour 2.0 User’s Manual

C1. Please insert the

“Harbour 2.0” CD into

your CD-ROM drive and

press “Next” to continue.

(Ref. Fig. Win98-C1)

B5. Press “Finish” to

complete the

installation of

USB-to-Parallel Port.

(Ref. Fig. Win98-B5)

Fig. Win98-B5

C. USB-to-Serial Port Installation

Fig. Win98-C1

C2. Tick “Search for

the best driver for your

device” and press

“Next” to continue.

(Ref. Fig. Win98-C2)

Fig. Win98-C2

Harbour 2.0 User’s Manual
