dVision 1080p

english

TABLE OF CONTENTS

2Table of contents

3Introduction

4Safety & Warnings

8Supplied material

9Optional lenses

10 Overview

11 Keypad

13 Indicators

14 Remote control

16 Connector panel

17 Set up

18 Image adjustments

19 Lamp operation

20 Ceiling mount

22 Using the projector

44 Menu system

23 RS 232 and LAN control

24 Trouble shooting

25 Maintenance

26 Service information

27 Lamp change

28 Technical data

32 Declarations

2 3

english

This digital projector is designed with the latest state-of-the-art technologies in illumination,

imaging, optics, electronics, thermal and industrial design in order to serve traditional as well as

novel imaging applications across a variety of markets, offering features such as:

- PROFESSIONAL GRADE POWERED PROJECTION LENSES with bayonet mounts

- DUAL LAMP SYSTEM with separate lamps for improved life, `redundancy and 24/7 operation

- DUAL OPTOMECHANICAL IRIS for variable contrast and brightness

- MECHANICAL SHUTTER for total black

- HD 1920 x 1080 pixel DLP™ technology

- SINGLE CHIP DMD™ with DarkChip™ technology by Texas Instruments®

- HIGH CONTRAST for vibrant colors and deep blacks

- HIGH RESOLUTION for unprecedented detail

- HIGH BRIGHTNESS for larger screens

- DEEP BLACKS for maximum dynamics

- REDUCED IMAGE NOISE through high end signal processing

- ECO MODE for reduced power consumption and lower audible noise

- VARIABLE LAMP POWER for alignment of multi-screen conﬁgurations

- LONG LIFE LAMP (up to 4000 hours) in low power ECO mode

- STYLISH AND COMPACT DESIGN to ﬁt most applications, installed or movable

- MULTIPLE LENS OPTIONS for close-up front or rear projection and other applications

- DIRECT 1080p DVI-D HDCP compliant interface

EXPANSION PORT for application speciﬁc signal processing

- LAN, RS232 and USB ports for control and monitoring

The speciﬁcations and functionality of the product may change without prior notice.

INTRODUCTION

english

This user guide contains important information about safety precautions and the set-up and use of

the projector. Please read the manual carefully before you operate the projector.

SAFETY

This device complies with relevant safety regulations for data processing equipment for use in an

ofﬁce environment. Before using the projector for the ﬁrst time, please read the safety instructions

thoroughly.

WARNING

Use only the cables and cords supplied with the projector or original replacement cables. Using

other cables or cords may lead to malfunction and permanent damage of the unit.

Always use 3-prong / grounded power cord to ensure proper grounding of the unit. Never use 2-

prong power cords, as this is dangerous and could lead to electrical shock.

Never open the unit. The projector contains no user serviceable parts. Refer all repairs to qualiﬁed

personnel only.

Make sure that no objects enter into the vents and openings of the set. Do not spill any liquids on

the projector or into the vents or openings of the unit.

Always remove lens cap before switching on the projector. If the lens cap is not removed, it may

melt due to the high energy light emitted through the lens. Melting the lens cap may permanently

damage the surface of the projection lens.

Do not look into the projection lens when the projector is switched on. The strong light may

permanently damage sight.

Do not look into the laser beam when activated on the remote control. Laser light may permanently

damage sight. Do not point laser beam on people.

Only place the projector on a stable surface, or mount it securely using an approved ceiling-

mount.

Do not drop the projector.

Always operate the projector horizontally, within the range of the adjustable rear feet. Operating

the unit in other positions may reduce lamp life signiﬁcantly, and may lead to overheating, resulting

in malfunctioning.

Always allow ample airﬂow through the projector. Never block any of the air vents. Never cover the

unit in any way while running. Allow for sufﬁcient distance to walls and ceilings to avoid overheating.

Minimum safety distance to any side of the unit is 50 cm / 20” in any direction.

CAUTION! Hot air is exhausted from the rear vent. Do not place objects that are sensitive to heat

nearer than 50cm / 20” to the exhaust vent.

The projector is designed for indoor use only. Never operate the unit outdoors.

SAFETY & WARNINGS

4 5

english

SAFETY & WARNINGS

Do not operate the projector outside its temperature and humidity speciﬁcations, as this may result

in overheating and malfunctioning.

Only connect the projector to signal sources and voltages as described in the technical speciﬁcation.

Connecting to unspeciﬁed signal sources or voltages may lead to malfunction and permanent

damage of the unit.

Allow the unit to cool down for 60 minutes before lamp change.

INFORMATION AND WARNING ABOUT POTENTIAL HEALTH ISSUES RELATED TO MERCURY

VAPOR.

This projector uses a very powerful UHP™ lamp for illumination to produce an extremely bright

image.

This technology is similar to other high-pressure discharge lamps that are extensively used in cars,

street lights and other lighting appliances today. These lamps, like ﬂuorescent lighting, contain small

amounts of mercury. The amount of mercury present in a lamp is far below the limits of danger set

by the authorities.

It is very important that lamps containing mercury are treated properly to minimize potential health

hazards.

The UHP™ lamp, like any other high brightness projector lamp, is under high-pressure when

operating. While the lamp and the projector are carefully designed to minimize the probability of lamp

rupture, the lamp may break while operating and small amounts of mercury vapor may be emitted

from the projector. The probability of rupture increases when the lamp reaches its nominal life. It is

therefore highly recommended that the lamp is replaced when the rated lifetime is reached.

As a general precaution, secure good ventilation in the room when operating the projector. If lamp

rupture occurs, evacuate the room and secure good ventilation. Children and pregnant women in

particular should leave the room.

When replacing a worn lamp, dispose of the used lamp carefully by proper recycling.

Mercury is a naturally occurring, stable metallic element that may pose a safety risk to people under

certain conditions. According to the Public Health Statement for Mercury published by the Agency for

Toxic Substances and Disease Registry (“ATSDR”, part of the United States Public Health Service),

the brain, central nervous system and kidneys are sensitive to the effects of mercury, and permanent

damage can occur at sufﬁciently high levels of exposure. Acute exposure to high concentrations

of mercury vapor can cause conditions such as lung and airway irritation, tightness in the chest, a

burning sensation in the lungs, coughing, nausea, vomiting and diarrhea. Children and fetuses are

particularly sensitive to the harmful effects of metallic mercury to the nervous system.

Seek medical attention if any of the above symptoms are experienced or if other unusual conditions

are experienced following lamp rupture.

english

WARNING

This product contains chemicals, including lead, known to the State of

California to cause birth defects or other reproductive harm. Recycle

properly, do not dispose of in ordinary waste!”

REMOTE CONTROL WARNING

Laser radiation class II product; wavelength 670nm; maximum output

1mW.

Remote control complies with applicable requirements of 21 CFR 1040.10

and 1040.11.

Remote control complies with applicable requirements of EN 60 825-1:

1994 + A11

SAFETY & WARNINGS

english

WARNING SYMBOLS

READ USER GUIDE

Attention! Read the user guide for further information!

DANGEROUS VOLTAGE

Danger! High voltage inside the product!

HOT

Warning! Hot surfaces!

WAIT

Warning! Wait until cooled down!

MERCURY

Warning! Lamp contains mercury! Recycle properly,

do not dispose of in ordinary waste!

Warning! UV radiation inside the product!

RECYCLE

Warning! Recycle properly, do not dispose of in ordinary waste!

NO TELEPHONE

Warning! Do not connect to telephone lines!

SAFETY & WARNINGS

english

SUPPLIED MATERIAL

Projector without lens

Lens supplied seperately

Remote control with batteries

User guide

Power Cord

(country dependent)

Ceiling mount cover

Before Set up and Use

Unpack the supplied parts and familiarise yourself with the

various components.

english

A range of ﬁxed and zoom lenses is available to cover most applications,

both front and rear. The lenses are powered and ﬁtted with a bayonet

mount for ease of installation.

Switch off all equipment before setting-up for proper function.

When mounting and changing lenses, be aware that the optical system is

exposed to dust and foreign particles as long as the lens is not attached

to the system. Do not leave the lens mount open longer than necessary

to change lens. If a lens is not mounted, always insert the protection lid to

avoid dust and foreign particles entering the internal optics.

Never run the projector without lens mounted.

ARemove the protection lid from the bayonet mount by turning the

knob anti-clockwise.

BRemove the rear lens cap.

CAttach the projection lens using the bayonet mount, observing the

red insertion marks.

DTurn the lens ﬁrmly clockwise until it stops with a click.

ERemove the lens cap from the projection lens. If you switch the

projector on with the lens cap in place, the lens cap may melt,

damaging not only the lens cap, but also the projection lens and

surrounding parts.

FTo change lens, ﬁrst remove the curret lens by pushing the release

button and twisting the lens counter-clockwise until it comes loose.

- Pull the lens out.

- Insert the new lens as described above.

OPTIONAL LENSES

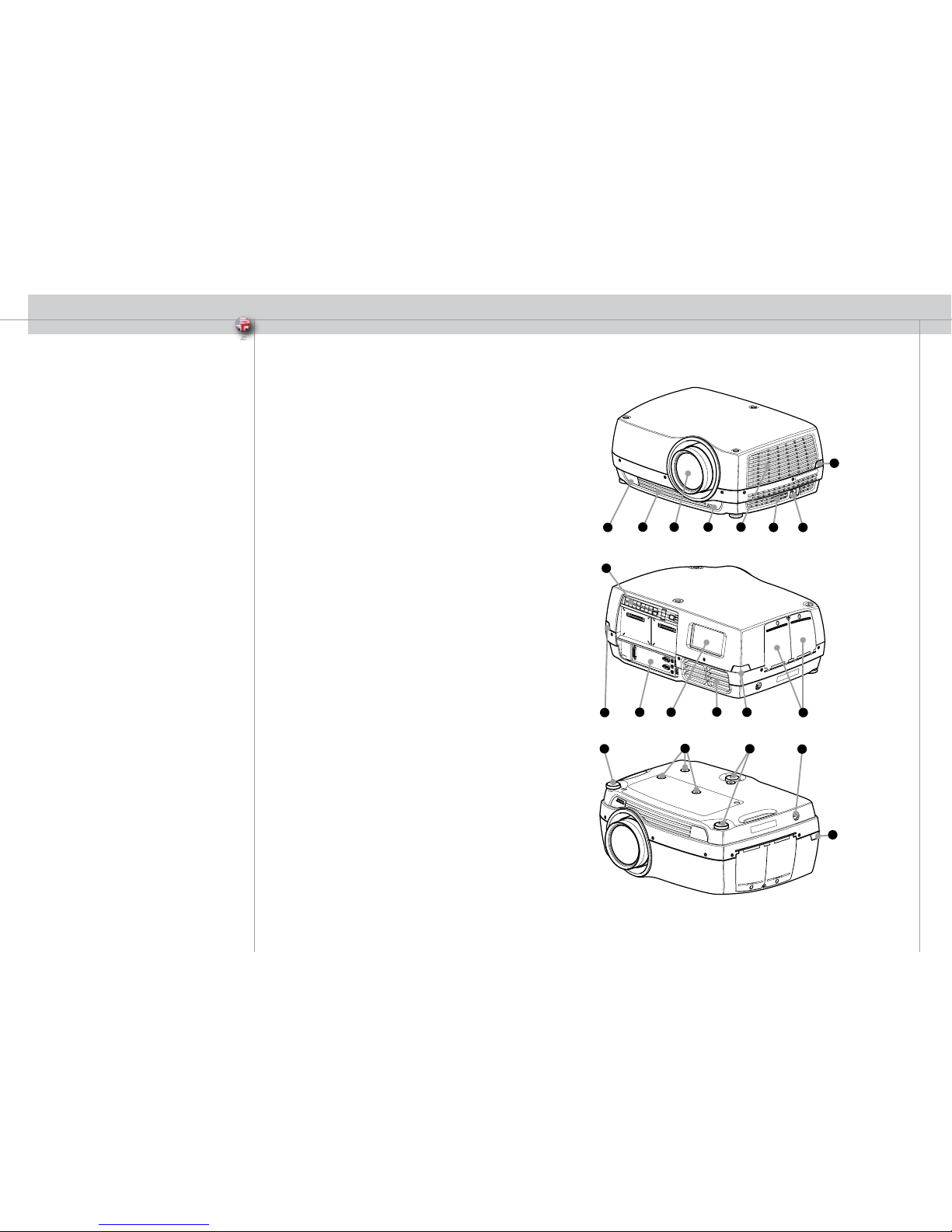

english

ALens

BIR sensor

CVentilation

DLens release

EPower connector

FKeypad

GConnector panel

HLCD

ILamp lids

JAdjustable feet

KSecurity lock

LCeiling mount

OVERVIEW

BC D

BGCBI

JLJK
