Specification Sheet

E-Vision 4500 1080p 3D

4,000 ANSI Lumens | Contrast Ratio: 2,000:1 | Part No:115-131

Colour System: DMD Specification:

5-segment RYGWB Color Wheel

Display Type:

1 x 0.65" DarkChip™ DMD™

1920 x 1080 pixels native.

Fast transit pixels for smooth greyscale and improved contrast.

Aspect Ratio:

16x9

Fill Factor

87%

Key Features

Video & Graphics Processing

HDMI 1.4 for Side by Side, Frame Packing & Top Bottom Formats.

Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources (example 144Hz display).

Synchronisation of active glasses, DLP® Link™ glasses or polarising switcher.

BrilliantColor™ for increased system brightness.

Independent control of hue, saturation and gain for primary and secondary colors.

High Bandwidth Digital & Analog Receiver with 10 Bit A-D.

The projector automatically detects interlaced video and implements 3:2 or 2:2 extraction as appropriate, with

pixel based, motion adaptive interpolation and auto cadence correction.

24p and 1080p native display.

Geometry Correction

Vertical keystone correction.

Source Compatibility:

HDMI including Deep Color™ processing and 3D standards.

DVI with HDCP compliance.

Graphics standards up to 1920 x 1200 resolution at 60Hz via HDMI, DVI, DisplayPort or VGA.

Component Video (SD and HD) via YPrPb, RGBHV, RGB or RGBS.

S-Video (PAL, NTSC & SECAM)

Composite Video (PAL, NTSC & SECAM)

Inputs/Outputs

Video & Computer

Type Connector Qty

HDMI 1.4

DVI-D

DisplayPort

VGA / Analog RGB In

VGA / Analog RGB Out

Component Video

S-Video

Composite Video

Audio

VGA Audio In

VGA Audio Out

Component Audio Out

S-Video/Composite Audio In

HDMI

DVI

DisplayPort

15-pin D-Sub

5 x BNC

3 x RCA

4-pin Mini DIN

RCA

3.5mm Mini Jack

2 x RCA Phono

Communication & Control

Type Connector Qty

LAN

RS232

Wired Remote

12V Trigger

Service Port

1.5A USB charge

3D Sync Out

RJ45

9-pin D Sub

3.5mm Stereo Jack

USB Type B

USB Type A

VESA 3-pin

3D Formats Supported HDTV Formats Supported

Frame Sequential

Top and Bottom

Side By Side (half)

Frame Packing

1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz),1080i (50Hz,

60Hz), 720p (50, 60Hz)

Computer Compatibility Bandwidth

Up to 1920 x 1200 165 MHz on analog RGB

165 Megapixels per second on HDMI and DVI

Remote Control Automation Control

IR remote control, wireless and wired.

On-Board keypad RS232

LAN

Colour Temperature

User selectable

Lamp Type Typical Lamp Life

370W High Intensity Discharge Full Power: 1500 hours

Eco Mode : 2000 hours

Lenses

Lens Part No. Focus Range Lens Shift

0.77: 1 fixed

1.54 - 1.93: 1 zoom

1.93 - 2.91: 1 zoom

114-785

114-783

114-784

0.4m - 3.1m

0.95m - 11.9m

1.2m - 29.8m

Vert: 0.55 (U) 0.15 (D) frame, Hor: 0.05 (L) 0.05 (R) frame

Lens Mount

Manual shift, zoom & focus.

Mechanical Mounting Orientation

Front/Rear Table

Front/Rear Ceiling

Adjustable Front/Rear Feet

Table Top or Inverted: Yes

Pointing Up: Yes

Pointing Down: Yes

Roll (Portrait): +/-10° from horizontal

Power Requirements Power Consumption

100-240VAC 50/60Hz single phase 450W

Thermal Dissipation Fan Noise

1415 BTU/Hour 42 dBA, Eco 37 dBA

Operating/Storage Temperature Operating Humidity

Operating: 5 to 35C (41 to 95F)

Storage: -10 to 60C (14 to 140F) 10 to 85% non-condensing

Weight (Chassis Only) Dimensions

8.6 kg

19 lb L: 34.4 cm W: 43.1 cm H: 18.1 cm

L: 13.55 in W: 16.97 in H: 7.13 in

Safety & EMC Regulations

FCC Class B, cUL, UL, CE, C-tick, CCC, KC, CB, PCT

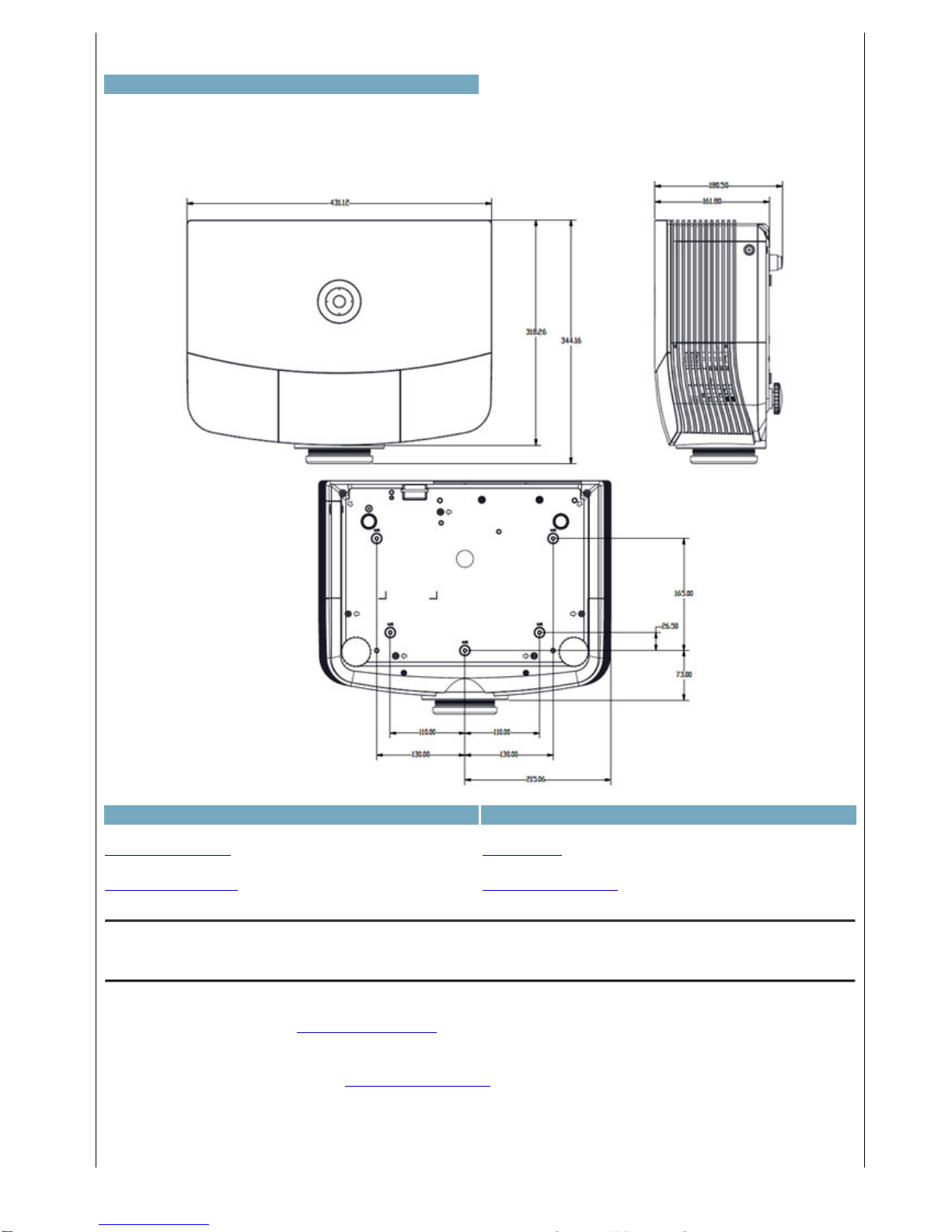

*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this

display for more accurate information.

Downloads

PDF CAD Drawings

AUTOCAD Drawings

User Guides

Important Information

DLP®, Digital Light Processing™ and DMD are trademarks of Texas Instruments, Inc

DIGITAL PROJECTION, INC 55 CHASTAIN ROAD, SUITE 115 KENNESAW, GA. 30144

T: 770.420.1350 | F: 770.420.1360 | www.digitalprojection.com

DIGITAL PROJECTION, LTD GREENSIDE WAY, MIDDLETON MANCHESTER, UK. M24 1XX

T: +44.161.947.3300 | F: +44.161.684.7674 | www.digitalprojection.co.uk

DIGITAL PROJECTION, CHINA TOWER C, RM C1202, CAI FU JIA YUAN, NO. 19 XIA0 YING STREET, CHAOYANG DISTRICT BEIJING,

PR CHINA 100101

T: +86.10.58239771 | F: +86 10 58239770

DIGITAL PROJECTION, ASIA 16 NEW INDUSTRIAL ROAD, #02-10 HUDSON TECHNOCENTRE SINGAPORE 536204

T: +65.6284.1138 | F: +65.6284.1238
