Digital Watchdog DWC-P20CM2 Bedienungsanleitung

DWC-P20CM2

Ceiling Mount Bracket for Dome Cameras

Quick Start Guide

WHAT’S IN THE BOX

Ceiling Mount

Bracket 1 Set QSG Manual 1 Set

Attention: This document is intended to serve as a quick reference for initial set-up.

It is recommended that the user read the entire instruction manual for complete and proper installation and usage.

NOTE Download All Your Support Materials and Tools in One Place

1. Go to: http://www.digital-watchdog.com/support-download/

2. Search your product by entering the part number in the ‘Search by Product’ search bar. Results for applicable part numbers will

populate automatically based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals, Quick Start Guides (QSG), software and rmware will appear in the results.

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday

digital-watchdog.com

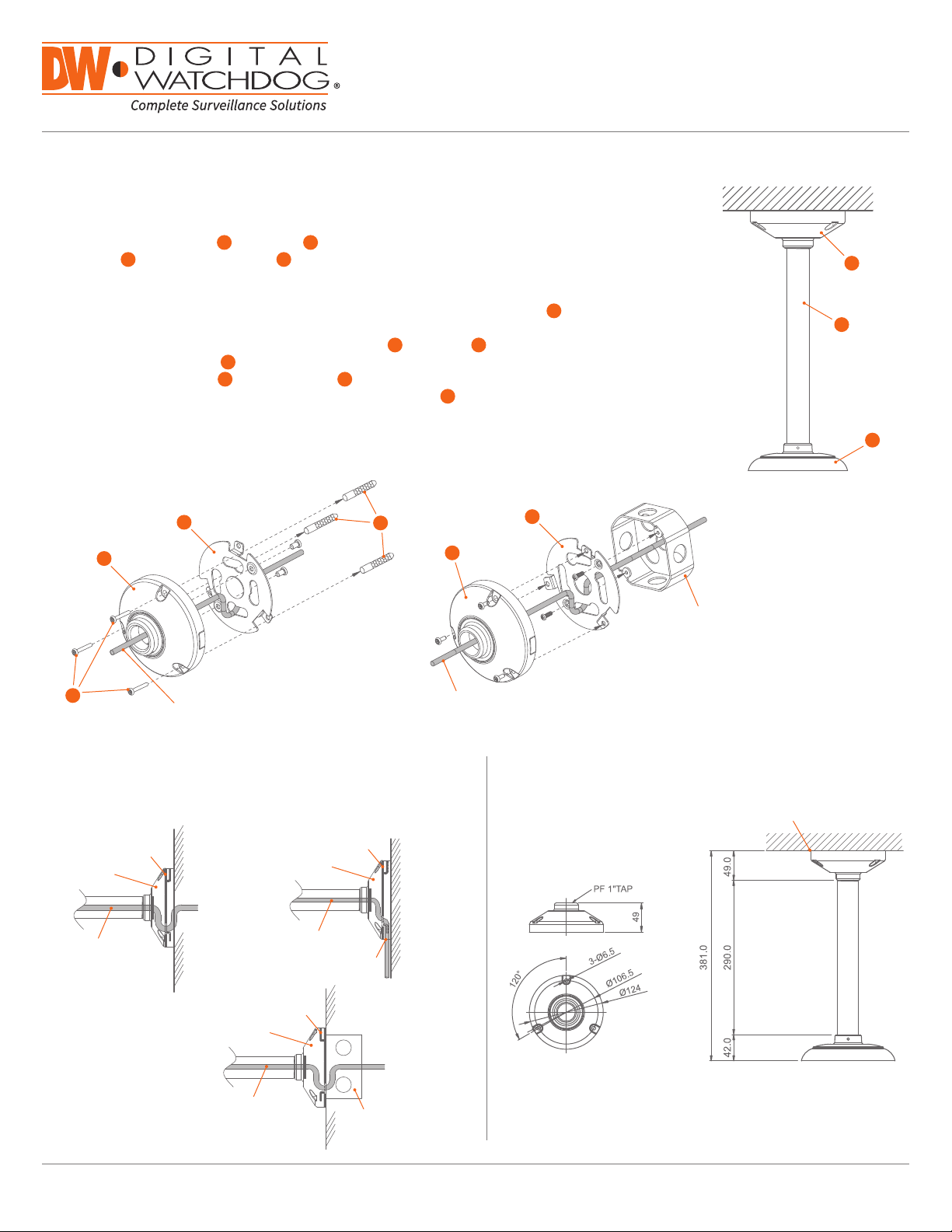

A. Attach the mount base ( ) and plate ( ) to the ceiling or wall using the supplied M6 tapping

screws ( ) and plastic bushings ( ).

B. Wind Teon tape around both threaded ends of the pipe (about 20 times) for sealing. If necessary,

use a silicone rubber sealant to seal the area where the mount base and the pipe meet.

C. Fit the pipe (of which threads are covered by Teon tape) into the mount base ( ) and turn until it

is securely fastened.

D. Pull all the required cables through the mount base ( ) and pipe ( ).

E. Align the dome adaptor ( ) with the pipe and turn until it is securely fastened.

F. Fasten the mount base ( ), dome adaptor ( ) using the set screw.

G. Fasten the vandal proof dome housing to the dome adaptor ( ) using M6 x 12 machine screw.

INSTALLING THE MOUNTING ACCESSORY

Rev Date: 02/17

Specications and pricing are subject to change without notice.

Quick Start Guide

Without Junction Box

Cable

With Junction Box

Cable

Junction Box

Seal around the mount base

tightly using silicon rubber

How to install the plate

Specications Dimensions (mm)

1. Cable passing through the wall 2. Cable on the wall (Remove the conduit

knockout for cable passing through)

3. Cable passing through the

wall with the junction box

(Attention to the plate side)

Cable

Mount

Base

Plate

Cable

Junction

Box

Mount

Base

Plate

Cable

Mount

Base

Plate

Knockout

Mount Base
