Digital Watchdog PowerPix DWC-B6361WTIR Bedienungsanleitung

12132013

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

IR Bullet Camera

DWC-B6361WTIR

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference, when the equipment is operated in a residential environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

Table of Contents

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Mount Installation Instructions

Connecting to Monitors

Control Board

12-20

22-23

24-25

Adjusting the Camera Angle

FEATURES*

1/3” 760H CMOS Sensor Chip (760 Horizontal Pixels)

690 TV Lines

2.8~12mm Varifocal Auto Iris Lens

100ft Range IR with Intelligent Camera Sync

TDN (True Day & Night) with IR Cut Filter

WDR (Wide Dynamic Range)

2D DNR (2D Digital Noise Reduction)

Smear Cancelation

AGC / AWB

Easy Icon Driven OSD Menu with Built-in Joystick

IP66 Certified (Weatherproof)

No Fog or Condensation under Any Weather Condition

Auto Sensing 24VAC/12VDC

FEATURES*

Set Screw

PARTS & DESCRIPTION*

1Mounting Bracket

Camera Module

Sunshield Adjusting Screws

Sunshiled Cover

IR & Lens Module

Front Case

OSD Joystick Controller

DIMENSIONS IN MILLIMETERS (IN)*

234.5 9.23

73.7 2.90

112.0 4.41 94.0 3.70

96.7 3.81

61.5 2.42

4.2 0.17

78.0 3.07

INSIDE THE BOX*

Included with Bullet Camera:

User Manual

Mounting Template

4 Machine Screws and 4 Dry Wall Anchors

L-Key

08122013

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Bullet Camera

DWC-B6361WTIR

INSTALLATION INSTRUCTIONS*

1. Using the mounting template or your own camera,

mark and drill the necessary holes to mount the

bracket to a wall or ceiling.

2. Pull all necessary wires through and make the

proper connections.

3. Use the four (4) mounting screws to install

the camera on the wall or ceiling.

NPT 3/4” Pipe

*Installation Using a Junction Box

*Note: Electrical junction box and

required screws sold separately.

Use the diagram below to connect to a Monitor or CRT Monitor properly.

12VDC/24VAC

Monitor

CCTV Monitor

Second Video Output

Right

Left

Down

Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection)

All cameras are equipped with a second video output for on-site configuration.

CONNECTING TO MONITORS*

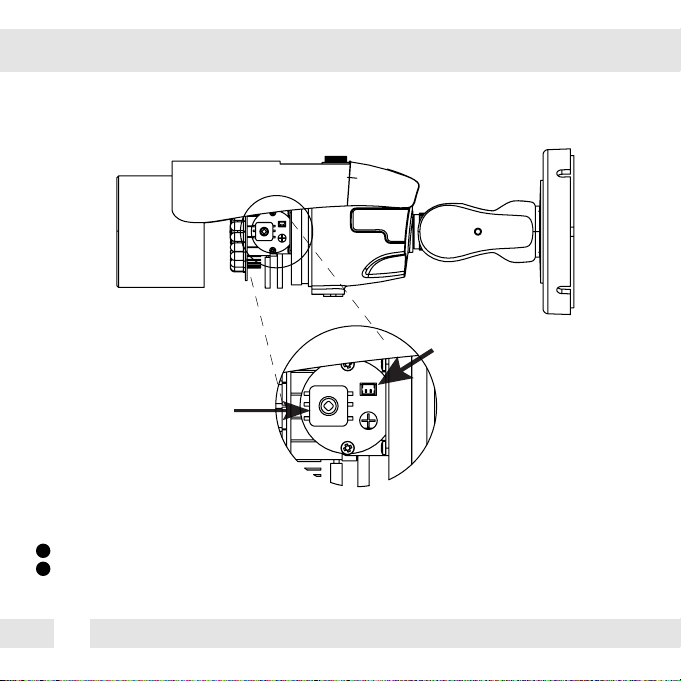

Joystick: Controls the OSD menu.

Secondary Connector:

Video Output Connector for

On-Site Configuration

CONTROL BOARD*

Remove the camera’s lens cover by rotating it counter-clockwise.

Use the Joystick to control the camera’s OSD options.
